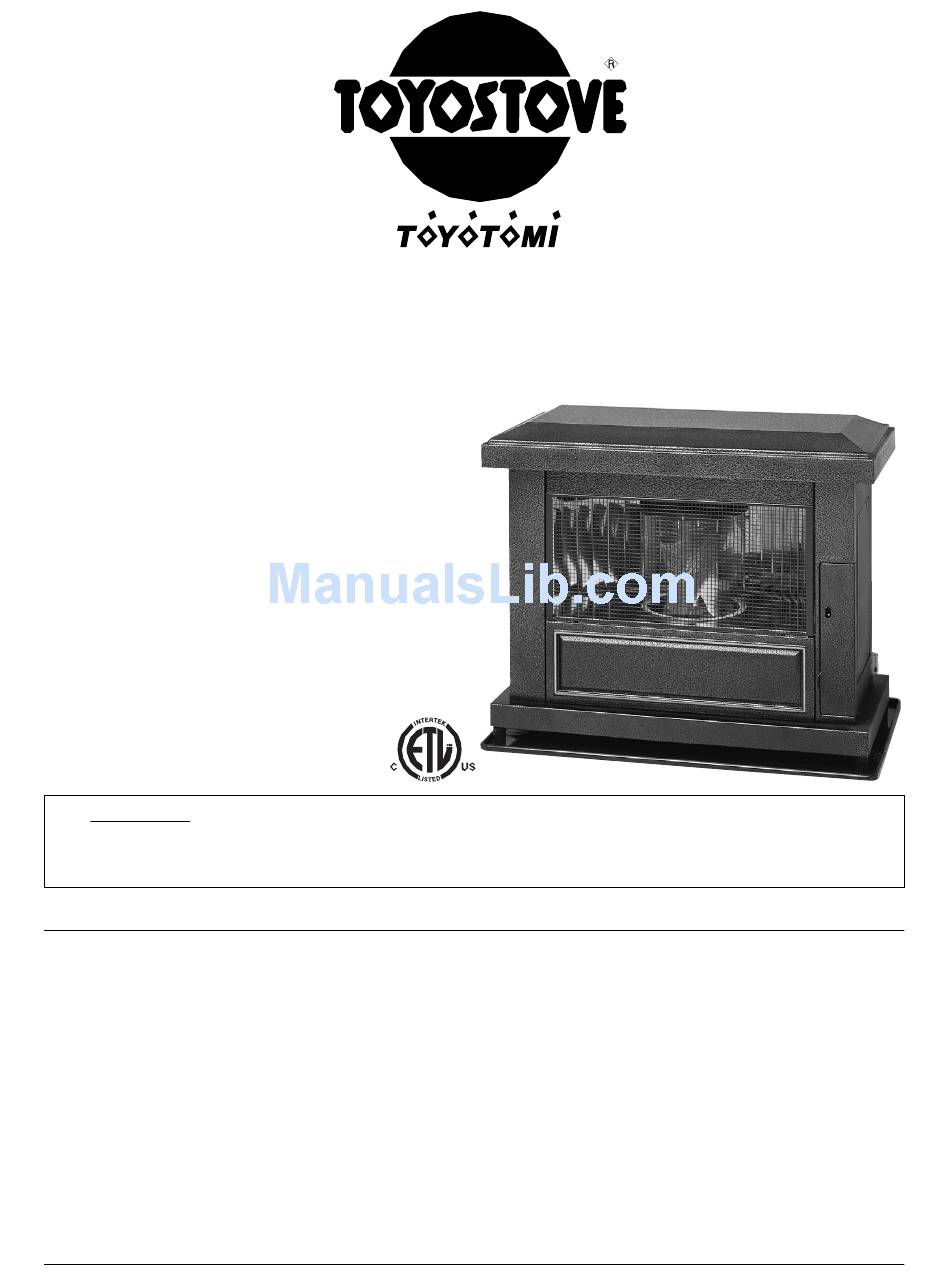

LASER CLEAN HEATING SYSTEM/VENTED HEATER
INSTALLATION AND OPERATION INSTRUCTIONS
LASER CLEAN VENTED

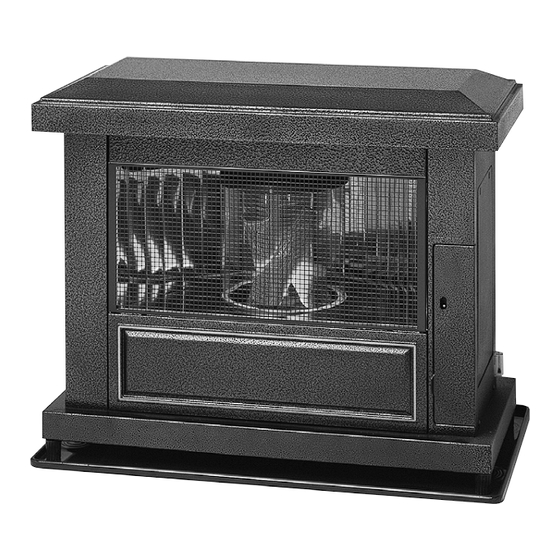

Laser 60AT
MODEL
IMPORTANT
READ AND UNDERSTAND INSTRUCTIONS BEFORE INSTALLING OR USING HEATER.
RETAIN INSTRUCTIONS FOR FUTURE REFERENCE. CHECK LOCAL CODES FOR PERMITTED USE.
················································ 2
·············································· 3
···················································· 5
··········································· 9
·················································· 9
Operation
································ 4
················· 6
···································· 12
···································· 12
CONTENTS
························································ 29
············································ 14
········································ 16
······················ 17
························· 17
········································ 19
·························· 22
············· 23
Advertisement
Table of Contents
Related Manuals for Toyostove Laser 60AT
Summary of Contents for Toyostove Laser 60AT
-
Page 1: Table Of Contents
LASER CLEAN HEATING SYSTEM/VENTED HEATER INSTALLATION AND OPERATION INSTRUCTIONS LASER CLEAN VENTED Laser 60AT MODEL IMPORTANT READ AND UNDERSTAND INSTRUCTIONS BEFORE INSTALLING OR USING HEATER. RETAIN INSTRUCTIONS FOR FUTURE REFERENCE. CHECK LOCAL CODES FOR PERMITTED USE. SECTION A: ················································ 2 Specifications ··············································... -
Page 2: Section A
20˚ F Heat Load = 20 BTU/ft Room size for which this heater is suitable will vary depending on outside temperature, house insulation, window size, and other factors. Laser 60AT 90% (1) High - 30,000 BTU/h (8,800 Watts) Med - 21,000 BTU/h (6,160 Watts) Low - 12,000 BTU/h (3,520 Watts) High - 0.230 gal/h (0.870 L/h) -
Page 3: Safety Features
Your Laser 60AT is equipped with the following safety features. Please familiarize yourself with these features. When your heater is extinguished due to a safety mechanism, be sure to identify and correct the problem. Glass cylinder Ceramic log Burner ring... -
Page 4: Section B
SECTION B: SAFETY TIPS FOR OPERATION CAUTION: Heater and vent pipe system must be properly installed before operation. Please follow instructions under “Installation”, Section I. Never use any fuel other than clear or red dyed ASTM D3699 1-K Kerosene. NEVER USE GASOLINE. Use of gasoline can lead to uncontrollable flames, resulting in destructive fire. -
Page 5: Section C
SECTION C: FUEL GUIDE The Toyostove Laser 60AT is designed for use with clear or red dyed ASTM D3699 1-K Kerosene. Use of low- quality kerosene will cause burner performance to drop, leading to abnormal combustion and reduced heater life. -
Page 6: Section D
SECTION D: OPERATING CONTROLS AND PART NAMES Before using heater, familiarize yourself with the following operating controls and part names. Drip tray 12. Circulating fan Circulation air filter Control panel 15. Plumb bob Outlet mouth Inlet mouth ROOM 8. ON/OFF lamp TEMP AM PM BURNER... -
Page 7: Indicator Lamps
ON/OFF switch: Auto switch: Temperature selectors: Timer & clock set: Timer selector: Digital indicator: Burning mode lamp: ON/OFF lamp: Auto lamp: 10. Normal temperature lamp: 11. Set-back temperature lamp: 12. Circulating fan: 13. Room temperature sensor: 14. Power supply cord: 15. - Page 8 REF # PART # PART NAME 20479946 Front panel 20450007 Plumb bob 20479570 Adjustable leg 20479929 Drip tray 20479960 Top plate 20479963 Right side panel 20479970 Access panel 20479964 Left side panel 20479931 Control panel door 20479903 Grille 20479972 Fan cover 20479940 Circulation air filter 20479944...
-
Page 9: Section E
SECTION E: OPERATION Open the Valve(s) Open the valve(s) of the external fuel tank. Start the Fuel flow If using heater for the first time, or after heater has been out of fuel, press the red reset button once for a period of one second in order to send fuel to the fuel sump. - Page 10 Select Manual Operation Press the “AUTO” switch to “OFF” position. Turn Heater ON A. Push in ON/OFF switch to “ON” position. The current room temperature and the set temperature will be shown on the digital indicator. ON/OFF lamp will start to flash and then blower motor and ignition will start. Note: Heater will not start when room temperature is higher than the desired temperature setting.
- Page 11 Approx. +4˚F Approx. +1˚F TEMP. AUTOMATIC OPERATION “AUTOMATIC” operation is established by programming the time/temperature settings for specific time, “SET-BACK” mode operation will be programmed in a 24-hour period. It is designed for energy efficiency by using a lower temperature setting, generally at night. Start Set-Back Set Start Time of “SET-BACK”...
-
Page 12: Turning Heater Off
Press ON/OFF switch to “OFF” position. (AUTO lamp and temperature lamp will go out. Burning mode lamp will flash until flame disappears.) Circulation fan and blower motors continue to run for approx. three (3) minutes to cool down the heater. Make sure ON/OFF lamp goes out when the fan stops. Note: If ON/OFF switch is pressed to “ON”... - Page 13 Clean Louvers (ONCE A WEEK) Dust and stains should be wiped off louvers with a damp cloth. Clean Circulation Fan Cover (ONCE A WEEK) Remove only dust or pet hair from the cover on the back of the heater. Check for Kerosene Leaks (REGULARLY) Make it a habit to check for any sign of kerosene leakage along the fuel line and at all joints.
-
Page 14: Section G
SECTION G: TROUBLESHOOTING NOTE BEFORE REQUESTING FOR REPAIR AND SERVICES The following symptoms are normal during operation of the heater. CONDITION White smoke or smell at initial use after purchase. Flames flashing for a few minutes after ignition. Occasionally makes “cracking” noise when heater is ignited or extinguished. - Page 15 Should problems arise during operation or ignition, use this chart to determine the cause and the proper steps to take. Be sure to unplug heater and allow to cool completely before taking corrective measures. In the event that heater should extinguish itself, without any action or your part, you should look to the digital indicator for any of the following error codes.
-
Page 16: Section H
SECTION H: LONG TERM STORAGE At the close of each heating season, or when you do not plan to use your heater for an extended period, the following procedures are recommended. As the end of the season approaches, calculate your kerosene purchases so that you can use up all the kerosene you have on hand. -
Page 17: Section I
SECTION I: INSTALLATION TOOLS NEEDED FOR INSTALLATION Tool Phillips Head Screwdriver Electric Drill Hole Saw, 2-3/4 to 3“ diameter STANDARD INSTALLATION PARTS The following standard installation parts are enclosed with heater. For alternate installation methods, you may need to purchase additional accessories which are available from your TOYOSTOVE dealer. See ”Accessory Parts“, page 19. - Page 18 Flue Pipe (1) (PART #20479891) Exhaust Air Cap (1) (PART #20479845) Intake Air Cap (1) (PART #20474949) Bent Joint (1) (PART #20474984) Oil Catch (1) (PART #20474925) Inlet Hose (1) (PART #20474951) Spacer (1) (PART #20478967) L-Shaped Hose (2) (PART #20474975) Hose Band (2) (PART #20474977)
-
Page 19: Accessary Parts
The following accessory parts are available for use in non-standard installation of the Laser 60AT. After giving careful consideration to your desired heater and flue pipe locations and fueling system, consult your TOYOSTOVE dealer to purchase the necessary accessory parts. - Page 20 Extension Pipe Kit (L) Max. 39- ~ Min. 22- inch (# 20479853) inch (# 20479872) 80 inch (# 20474951) 40 inch (# 20474955) Name of Part Q’ty Adjustable Exhaust Pipe Max. 39- ~ 22- Exhaust Extension Pipe (long, 39- inch) Intake Pipe (80 inch) Insulating cloth cover (40 inch)
- Page 21 Extension Pipe Kit (M) PART #20479897 Max. 39- ~ Min. 22- inch (# 20479861) (# 20479853) 40 inch (# 20474951) 40 inch Screw (# 20474955) (1 pc.) Figure 2 Name of Part Q’ty Adjustable Exhaust Pipe Max. 39- ~ Min. 22- Intake Pipe (40 inch) Insulating cloth cover Flue pipe...
-
Page 22: Safety Tips For Installation
Follow the safety tips below when planning the installation of your Laser 60AT. Intake and exhaust flue pipe openings must be fully exposed to outside air. Do not vent into garage, basement under the floor, or into any enclosed area. -
Page 23: Installation Of Heater And Flue Pipe
INSTALLATION OF HEATER AND FLUE PIPE IMPORTANT: Check and comply with all state and local codes that may apply to vented heaters before beginning installation. NOTE: This heater is designed to be used no more than 3000 FT. above sea level. ASK your local dealer for using at altitudes higher than 3000 FT. - Page 24 Install the ceramic log. a. Remove four (4) screws from top plate and remove the top plate. b. Remove four (4) screws from canopy guard and remove the canopy guard. Remove the heat chamber lid from the heat exchanger. c. Gently insert the ceramic logs into three (3) brackets inside of burner properly. After inserting the ceramic logs, install log supporter on the upper holes of the ceramic logs.
- Page 25 For standard installation, use the template enclosed with the heater to position the hole for the flue pipe. Tack or tape template to the wall at the desired position (See Fig. 4). NOTE: Heater should be installed on a sturdy floor that is level and flat. NOTE: The template can be adjusted for use of non-standard installations such as the use of extension pipe kits.
- Page 26 Install the inner flue pipe. For wall thickness 5- From inside the room, insert the inner flue pipe through the hole. Make sure the arrow on the inner flue pipe is pointing up. Secure the inner flue pipe to the wall with the three wood screws. (See Fig.
- Page 27 Insert the bent joint to the exhaust mouth of the flue pipe. Cut the inlet hose for desired length if necessary. Attach the L-shaped hose to each end of the inlet hose and attach the L-shaped hose to the intake mouth of the flue pipe. Secure the L-shaped hose to the intake mouth with the hose band. Plug the unused exhaust and intake mouth with the caps provided with the heater.
- Page 28 Secure the L-shaped hose to the intake inlet mouth with the hose band. Secure the bent joint to the flue pipe with the pipe holder (If the extension pipe is used, also attach the pipe holder to the connection of the bent joint and the extension pipe).
- Page 29 A room temperature sensor is provided with an eight (8) feet long extension wire. It is located on the rear of the cabinet. Make sure that the extension wire is not touching the exhaust pipe. The room tem- perature sensor can be installed either with the self adhesive tape on the back or with a wood screw provided with the sensor depending on the type of surface chosen for installation.
-
Page 30: Section J
¡The top nut on the valve (below the turn handle) is sealed and should never be tightened or removed. ¡When installing fuel lines to the valve, be sure to check for fuel leakage. ¡A LEAKING VALVE SHOULD ALWAYS BE REPLACED. Laser 60AT Laser 60AT FUEL SYSTEM OPTIONS EXTERNAL TANK INSTALLATION 8-1/2 ft. maximum Fusible link valve (inside) 16 in. -
Page 32: Limited Warranty
WHO IS COVERED : The original purchaser at retail. WHAT WE WILL DO : TOYOTOMI will either repair or replace, at its option, all defective parts free of charge that are covered by this limited warranty on a carry-in basis, to your nearest authorized dealer or distributor of TOYOTOMI.
