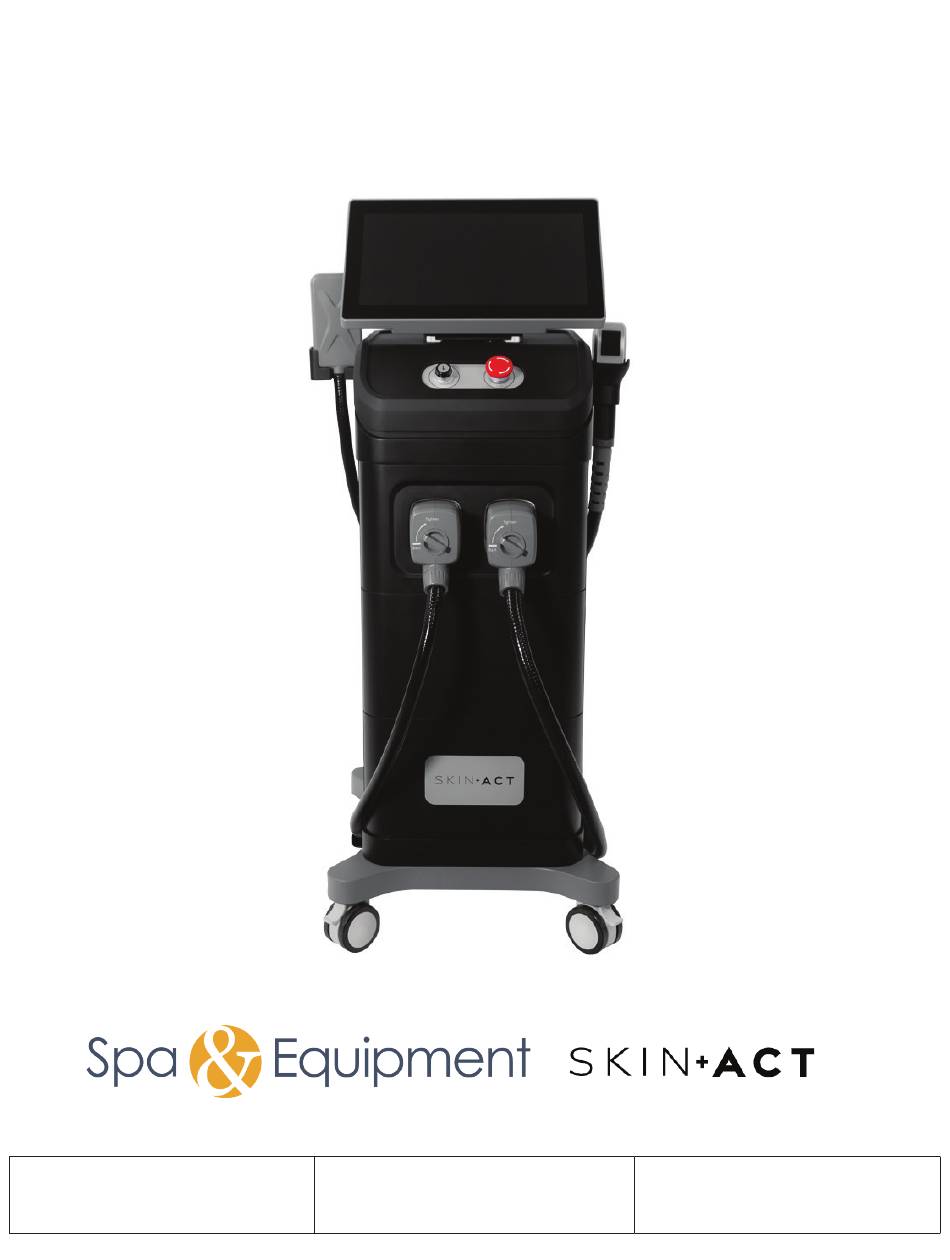

- Page 1 1200W Diode Laser Hair Removal (SKU24664) www.skinact.com Toll Free: 1.800.418.0830 International: 818.834.6640 www.spaandequipment.com...
- Page 2 Spa and Equipment/SkinAct shall not be liable for incidental or consequential damages arising out of the furnishing, performance, or use of this document and the program material which it describes.
- Page 3 Measurements 15.5” 10” 13” 14” 45” 36.75” 17.5” 18.5”...
-
Page 4: Table Of Contents
User Manual This manual contains important information on the use and operation of this machine. Please read all the information carefully for optimal performance to prevent any damage or misuse of the machine. Any change or modification not expressly approved in this manual could void the warranty for this equipment. -
Page 5: Basic Introduction
Basic Introduction Theory The 1200W 808nm DIODE LASER Hair Removal integrates 808nm system(the golden stan- dard wavelength for all hair types) and cooling plate into one device. 1200W 808nm DIODE LASER: Its technology is based on the selective absorption of light and heat. -
Page 6: Advantage
Advantage • The gold standard for permanent hair removal. • Fast hair removal of all skin types (I, II, III, IV, V, VI) and hair colors. • High output power 1200W with sufficient and stable energy. • 12 best-quality laser bars imported from “USA-COHERENT”. Long service life. •... -
Page 7: Application
Application • Permanent hair removal for all hair colors and skin types (I, II, III, IV, V, VI). • Apply for most body areas, such as lip hair, beard, chest hair, armpit hair, back hair, arm hair, leg hair, and unwanted hair outside the bikini line, etc.. •... -
Page 8: Specification
Specification... - Page 9 Installation Instruction Accessories...
-
Page 10: Installation Step
Installation Step 1. Cooling Plate Handle Installation Put one end of the cooling plate handle into the right side slot of the machine, insert anoth- er end into the preset slot marked A on the front of the machine, and then fix it by turning the rotary button clockwise. - Page 11 3. Foot Pedal Installation Insert one end of the foot pedal into the reserved port(next to the blue port) on the back of the machine. 4. Foot Pedal Installation • Insert one end of the power cord into the first black port on the right on the back of the machine and another end into the power strip.
- Page 12 P.12...
-
Page 13: Before Operation
Operation Introduction Before Operation • It’s necessary that users should read the manual carefully prior to the application of this machine. • Consult patients on whether they have any of the contraindications mentioned previously. • It is suggested that this machine is operated in a separate room. •... - Page 14 Initial Interface Initial Interface • Click “ON” and “OFF” button on the initial interface to turn on and off the cooling plate. • Click the “1200w 808nm Diode Laser Hair Removal” mode to enter into the responding interface. And the interface will show 5 sets of “Spot Size Optional”, “20mmx40mm”,“12mmx20mm”, “10mmx10mm”, “8mm”, “5mmx5mm”.
- Page 15 4. Click the “1200w 808nm Diode Laser Hair Removal” button to enter the “HR Preset” and “HR Professional” interface. 5. Click “HR Preset” button to enter the responding interface. • Click AREA: Select “Face”, “Arm”, “Armpit”, “Back”, “Abdomen”, “Bikini”, “Leg” icon •...
- Page 16 • After the previous parameters are confirmed, the HR Preset Interface will show three sets of default values: “FREQUENCY”, “PULSE WIDTH”, “LASER INTENSITY”. • Click “FREQUENCY” (1~10Hz adjustable), “PULSE WIDTH” (10ms~200ms adjustable), “LASER INTENSITY” (5%~100% adjustable) according to the actual treatment needs of the patient(Please refer to the recommended parameters in the next part), and the corresponding screen area will change from blue to orange(Orange means it is selected).
- Page 17 • There are 3 parameters in the treatment interface needed to be set: “FREQUENCY”, “PULSE WIDTH”, “LASER INTENSITY”. • Click “FREQUENCY”, “PULSE WIDTH”, “LASER INTENSITY” according to the actual treatment needs of the patient(Please refer to the recommended parameters in the next part) and the corresponding area will change from blue to orange (Orange means it is selected).
- Page 18 10. Secondary cooling with the Cooling Plate for the treatment area. 11. After treatment, clean the handle and cooling plate, etc.. Finally put the handle back into the machine. NOTE: Any sudden situations, please press the Emergency Button to stop working. P.18...
-
Page 19: After Operation
After Operation The laser penetrates into deep skin and then delivery the energy into hair follicle to destroy it directly, preventing hair from growing back. Most people see a significant reduction in hair after eight treatment sessions. Expect to achieve 75%~85% hair removal. After a day or two, the skin of the treated area may looks and feels as if sunburned, so you might need to use cool compresses or a gentle moisturizer. - Page 20 P.20...
- Page 21 Note: The parameters for reference only. The actual ones should be decided by the feeling of patients during practical treatment. P.21...
-
Page 22: Other Information
Other Information Precaution • Put the machine on a flat and stable surface. • Check the main machine, accessory and the power cable are intact well before use. • The machine is fragile. Do not drop it. • Clean the machine with a wet cloth but make sure no liquid penetrates. •... -
Page 23: Warranty
Warranty All products are strictly tested before delivery. Free repair warranty from date of purchase, during which the maintenance for any breakdown due to non-artificial factors will be performed free of charge. Accessories are not included in the warranty, so please contact us if needed. - Page 24 If you experience persistent irritation, discontinue use and consult a healthcare professional. 7. Manufacturer’s Liability: Spa & Equipment + SkinAct and its affiliates are not liable for any direct, indirect, incidental, or consequential damages resulting from the use of our laser hair removal machine.
