Toy kitchen "Creative cooking"
1 - Left sidewall
2 - Right sidewall
1 pc.
1 pc.
6 - Back wall
7 - Tabletop
2 pcs.
1 pc.
11 - Kitchen sink
12 - Cabinet door
1 pc.
1 pc.
16 - Upper back wall
17 - Microwave oven
door
676
1 pc.
1 pc.
21 - Drawer back
22 - Lower drawer
plank
plank
282
1 pc.
1 pc.
26 - 3 mm hex key
27 - 4 mm hex key
1 pc.
2 pcs.
31 - Shelf holder
32 - Screw with
a flat head
M6x20
6 pcs.
2 pcs.

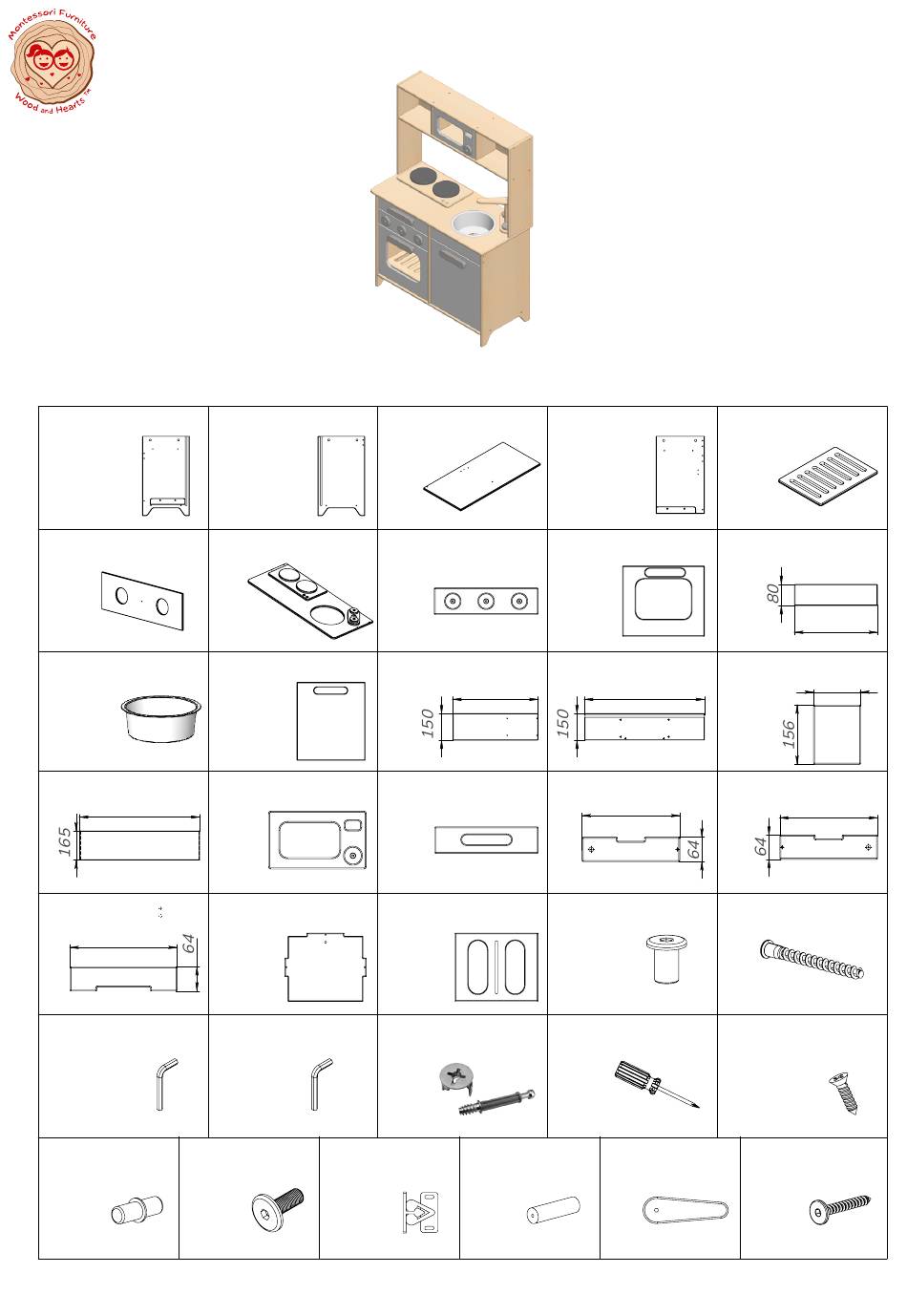

ASSEMBLY DETAILS
3 - Lower base
1 pc.
8 - Front panel
1 pc.
13 - Upper sidewall
480
2 pcs.
18 - Drawer facade
1 pc.
23 - Under drawer
plank
1 pc.
28 - Set of minifixe
8 pcs.
33 - Plastic lock
34 - Tap base
3 pcs.
1 pc.
4 - Lintel
5 - Baking tray
1 pc.
1 pc.
9 - Owen door
10 - Plank
1 pc.
1 pc.
14 - Upper plank
15 - Upper lintel
676
2 pcs.
2 pcs.
19 - Left drawer
20 - Right drawer
sidewal
sidewall
257
1 pc.
1 pc.
24 - «Ericson» nut
25 - Confirmat screw
5x40
2 pcs.
45 pcs.
29 - Screwdriver
30 - Self-tapping
screw 3x12 mm
1 pc.
12 pcs.
35 - Upper part
of the tap
1 pc.
312
124
257
36 - Screw
6.3x40
2 pcs.
Advertisement
Related Manuals for Montessori Furniture Creative cooking
Summary of Contents for Montessori Furniture Creative cooking
- Page 1 Toy kitchen "Creative cooking" ASSEMBLY DETAILS 1 - Left sidewall 2 - Right sidewall 3 - Lower base 4 - Lintel 5 - Baking tray 1 pc. 1 pc. 1 pc. 1 pc. 1 pc. 6 - Back wall 7 - Tabletop...
- Page 2 Pic. 1 Take the Left sidewall (1) and install the Shelf-holders (31) as shown in the picture 1. Pic. 2 Take the Lintel (4) and using the Self-tapping screws (30), connect the Plastic lock (33) and install the Shelf-holder (31). See Pic. 2 Pic.
- Page 3 Pic. 4 Now take the Owen door (9) and using the Self-tapping screws (30) and a Screwdriver(29), connect the Plastic locks (33). See Pic.4 Pic. 5 Take the lintel (4) and using the confirmats (25), a key (26) and connect it to the front panel (8) and a plank (23).
- Page 4 Pic. 7 Take the Cabinet door (12) and fix the Lock (33) with the Screws (30). Insert the Shelf-holders (31). See Pic. 7 Pic. 8 Locate the Cabinet door (12) on the Shelf-holder (31) on the Lower base (3). Then install the Plank (10) and screw with the Confirmar screws (25) from the side of a Lintel (4).
- Page 5 Pic. 10 Insert the Back walls (6) into the gooved of Sidewalls (1,2) and screw them with the Confirmat screws (25). Then install the Tabletop (7) onto the previously assembed construction and close the Eccentrics (28) on the Sidewalls (1,2) and a Lintel (4) clockwise. See Pic.10 Pic.
- Page 6 Pic. 13 Connect the Upper lintels (15) to one of the Upper planks (14), using the Confirmat screws (25). Then connect the Upper sidewalls (13) the same way using the screws (25). Insert the Microwave owen door (17) with the Shelf-holder into the Upper plank (14). See Pic.13 Pic.
- Page 7 install the dowels from minifixes (28) Pic. 15 Take the Drawer facade (18) and using the Screwdriver (29), fix the dowels from Minixises (28). See Pic. 15 Pic. 16 Take the Lower drawer plank (22) and using the Confirmat screws (25), fix the Sidewalls and Back plank of a drawer (19,20,21).
- Page 8 Pic. 17 Screw together 2 assembled structures with Confirmat screws (25) and insert a drawer. See Pic. 17 Pic. 18 To prevent the drawer from falling out, screw it together with the Under-the-drawer plank (23) with the help of a Nut (24), screws (32) and both 4 mm hex keys (27).
