Summary of Contents for CP Plus CP-DBP-H20-PGW

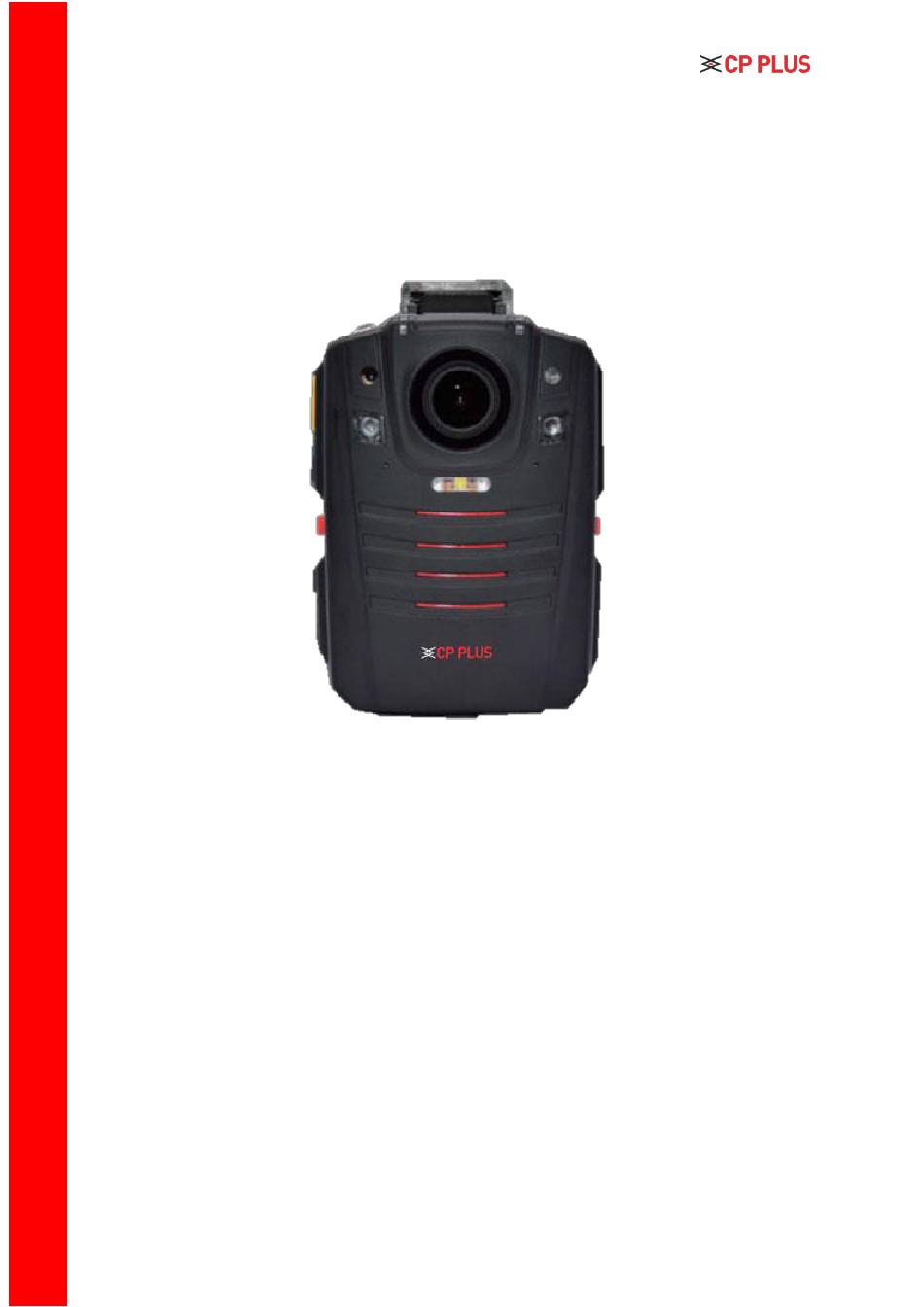

- Page 1 CP-DBP-H20-PGW USER MANUAL...
- Page 2 Statement Thank you for purchasing our products, please read the manual carefully before use. If the product in the use of the process of failure, please contact our after-sales staff in time. The product will be updated in real time according to the market demand, and the manual and system procedures will be updated in time. If there is any upgrade, no further notice will be given.
- Page 3 2.Product function 2.1 Button description Button Icon Usage Function name Short OFF state：No response press ON state：ON/OFF LCD screen Power Long OFF state：3 seconds：power on； press ON state：3 seconds：power off； Loosen：listen Press：speak ON state：Start/Stop video recording； Video Short When the screen is off, you can turn on the screen and start video recording recording press OFF state：Boot up and start video recording directly（One-button video recording）...
- Page 4 back video、recording and photos（During the video recording, short press can also be played back） ； Insert SIM, can be transmitted in real time Data transmission and charging Reset Short ON state，short press can restart； press Long ON state，long press for 10 seconds，restore factory settings press 2.2 Indicator lamp description Indicator...
- Page 5 to shut off due to too low battery. It represents the device is charging. It represents video recording is on. It represents the device has connected to the platform. 12.3G/14.9G It represents available capacity out of all capacity. The device is actually full when available capacity is 1.4G.
- Page 6 stop recording, accompanied with an audio cue and vibration. Audios will be saved automatically as WAV files and the LCD screen shows real-time preview interface, and the status lamp turns green. Users can playback recorded audio files. 2.4.6 Photograph When the device is powered on and the LCD screen shows preview main interface, short press and record button to take a snapshot, accompanied with an audio cue and vibration, and the status lamp turns red.
- Page 7 2.5 Menu Introduction 2.5.1 Main Menu In the real-time video interface, press menu button to enter the main menu. The main menu includes Video Setting, Platform Configuration, Function Setting, System Configuration, Wireless Network, Equipment Information. In the menu interface, the menu button is the sure button, the up button is selecting previous, and the down button is selecting latter.
- Page 8 ●4G: On/Off (Off is set as default.) When the device is powered off, insert a Micro-SIM 4G Data Card and start the device. Enable 4G function in the menu and return to the real-time video interface. When 4G icon is white, 4G is ready. See the appendix for instructions of inserting the 4G card.
