Summary of Contents for CS Instruments 0530.0106

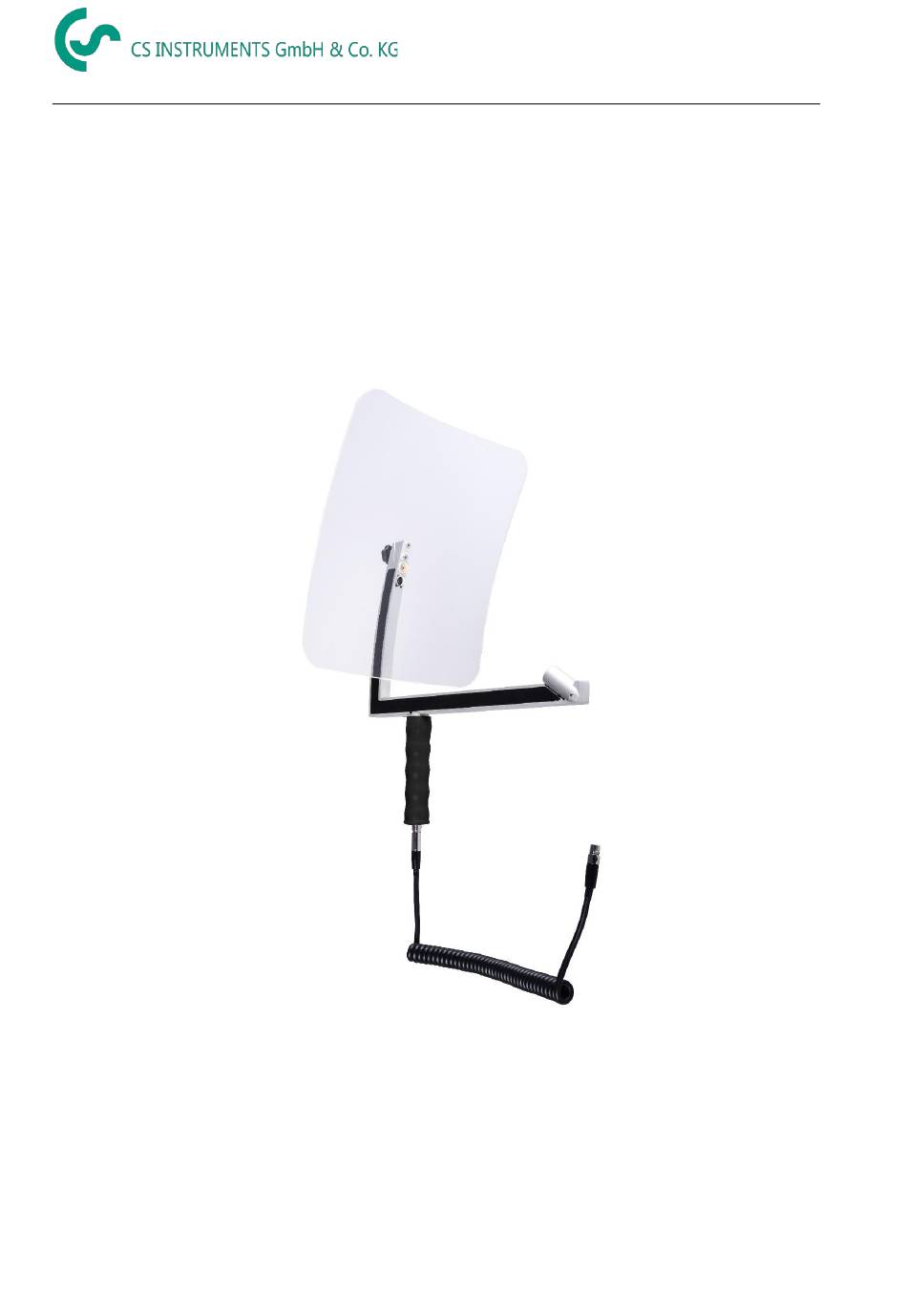

- Page 1 En- English Instruction manual Parabolic mirror Parabolic mirror V1.00 EN Page 1 from 11...
-
Page 2: Table Of Contents
Table of contents 1 Table of contents TABLE OF CONTENTS ............................... 2 SAFETY INSTRUCTIONS ............................3 ............................3 ENERAL SAFETY INSTRUCTIONS ..............................3 ANDLING CLASS LASER SERVICE AND MAINTENANCE ..........................4 PROTECT ENVIRONMENT ............................4 INTENDED USE ................................. 4 TECHNICAL DATA OF THE PARABOLIC MIRROR ......................4 IDENTIFICATION .............................. -
Page 3: Safety Instructions
Safety instructions 2 Safety instructions About this document • Read this documentation carefully and familiarize yourself with the product before using it. Pay particular attention to the safety instructions and warnings to prevent injuries and product damage. • Keep this documentation handy for reference when needed. •... -
Page 4: Service And Maintenance
(observe local regulations) or return the product to CS INSTRUMENTS GmbH & Co.KG for disposal. • CS INSTRUMENTS GmbH & Co.KG makes no warranty as to the suitability for any particular purpose and assumes no liability for errors printed in these operating instructions. Nor for consequential damages in connection with the delivery, performance or use of this device. -
Page 5: Identification
General functional description 7 Identification Nameplate Parabolic mirror without automatic tool detection→ see: 6.3 Importing the new attachment: Parabolic mirror 2.0 has the Automatic detection and does NOT need to be taught. Parabolic mirror 3.0 has the Automatic detection and does NOT need to be taught. In addition, this has a laser distance measurement. -
Page 6: Label Positioning Parabolic Mirror
General functional description Label positioning parabolic mirror 8 Use of the parabolic mirror The parabolic mirror focuses horizontally incident ultrasound at its focal point, where the ultrasonic transducer is located. On the one hand, this leads to a considerable amplification of the measured ultrasound (high range) and, on the other hand, to a very precise directivity, since non-horizontally incident ultrasound is reflected from the mirror. -
Page 7: Auto Tool Recognition
General functional description Please make sure that the mirror is mounted by means of the screw according to the curve of the base body, so that the holes in the mirror sit above the camera and the laser. The parabolic mirror is removed by disconnecting the connection cable. To do this, press the release button on both sides and pull off the cable. -
Page 8: Automatic Distance Measurement
General functional description Import: Home→ Export/Import → Import new Tool → Parabolic mirror/gooseneck serial number Automatic distance measurement The new parabolic mirror is equipped with an integrated distance measurement module. To use the functionalities, the following requirements must be met: The main board must be "intelligent"... - Page 9 General functional description To use the measured distance for cost quantification, "Distance by laser" must be activated under "Parameters". Note: Before "Distance by laser" can be activated, the laser must be switched on. Otherwise, the symbol flashes yellow and red. Note: For the parabolic mirror, the valid distance range is 3 - 12 meters or 118.11"...
-
Page 10: States
General functional description Attention: On black surfaces or in very bright environments, measuring the distance can be problematic. Therefore, it is still possible to enter distances manually. "Distance by laser" must be deactivated, then manual distances can be entered. States "Dist:"... - Page 11 General functional description OFFICE NORTH Gewerbehof 14 D-24955 Harrislee GERMANY Tel.: +49 (0) 461 80 71 50 - 0 Fax: +49 (0) 461 80 71 50 - 15 info@cs-instruments.com www.cs-instruments.de OFFICE SOUTH Zindelsteiner Straße 15 D-78052 VS-Tannheim GERMANY Tel.: +49 (0) 7705 978 99-0 Fax: +49 (0) 7705 978 99-20 info@cs-instruments.com www.cs-instruments.de...
