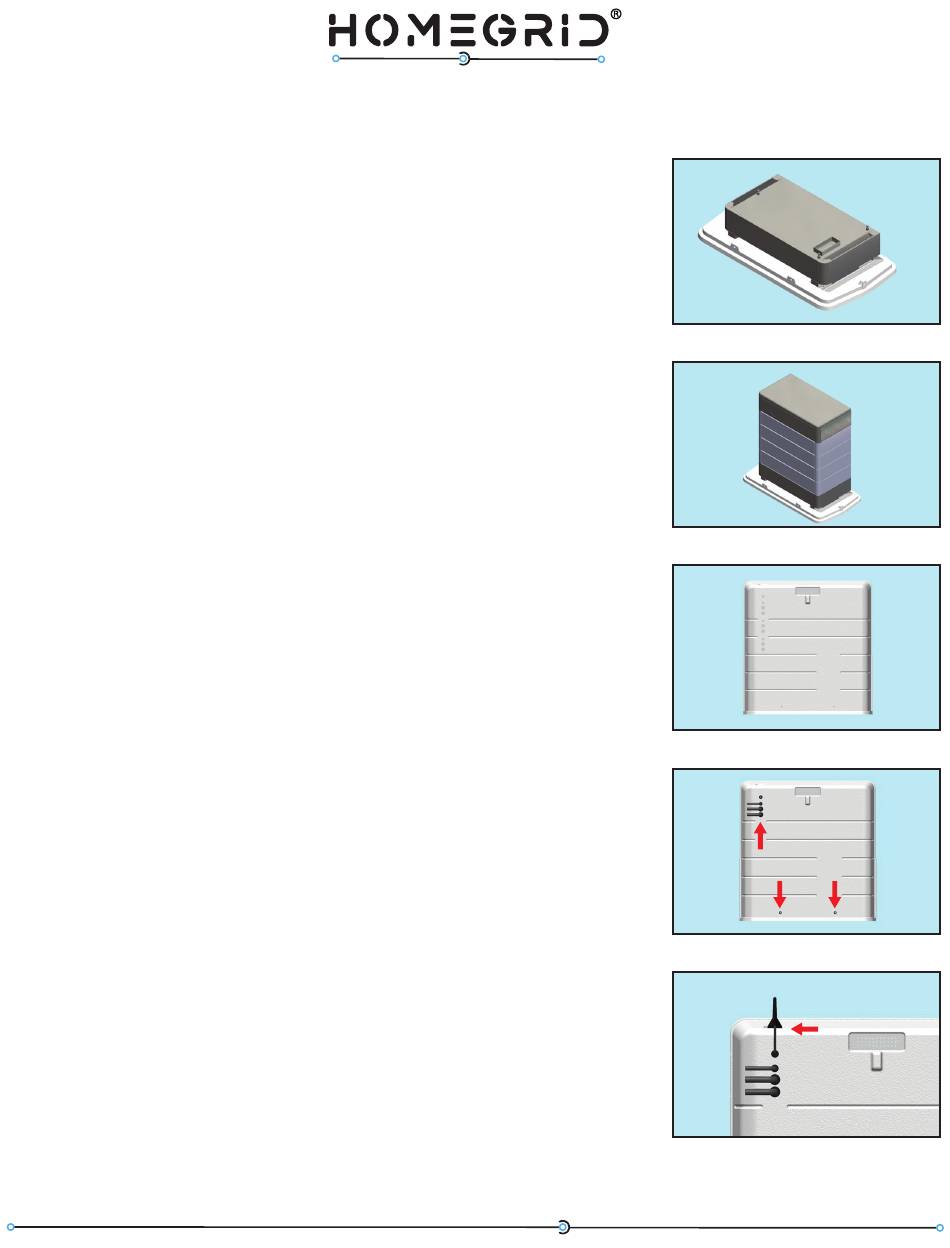

HOMEGRID Outdoor Case Installation Manual

Outdoor Case Installation Guide

1.
Place the bottom piece of the Outdoor Case on secure,
level ground that can support the weight of the battery.
Put the Stack'd Series base into position on the bottom
piece of the case.
OPTIONAL: Place bolts through the bottom holes to
secure the entire stack to ground.
2.
Stack the battery modules on the battery base (2-4 module
stack). Add the BMS on top of the modules. The Stack'd
Series battery installation manual can be found at
homegridenergy.com
3.
Drill out holes on the back of the case that correspond to
the right stack height and conduit that you've chosen to
use. When drilling holes, make sure to leave room between
the holes for the waterproof conduit attachment.
4.
Secure the back of the case to the base using two bolts at
the bottom (make sure the rubber washers are used here).
Make all connections through the conduit (finish battery
install).
5.
Pass the Wi-Fi antenna through the included compression
fitting at the top of the case.
OUTDOOR CASE INSTALLATION GUIDE
