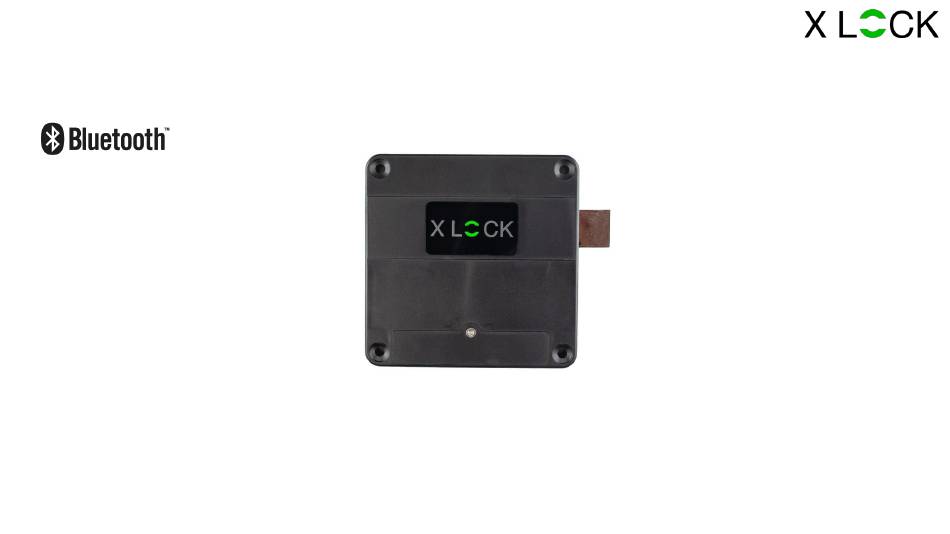

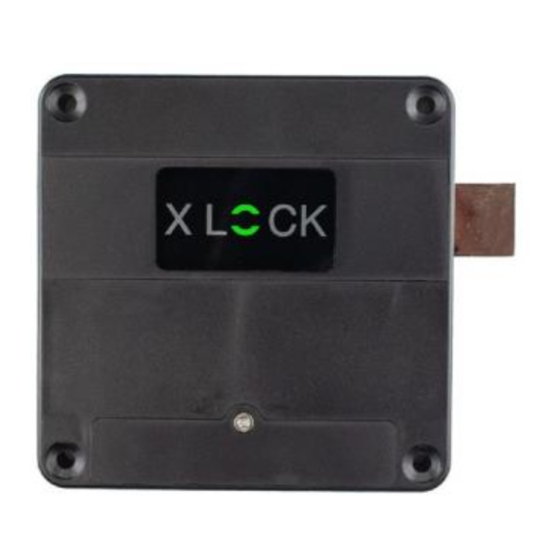

- Page 1 XLOCK 140 INSTALLATION Guide MTA_9 344 407 00...
-
Page 2: Packaging Contents
PACKAGING CONTENTS Always use lithium batteries! Lock XL140 2 x CR123A , 6V lithium batteries Closing part XL-S17 4 x screws for lock, 3 x screws for locking part countersunk head 3.5 x 35 mm. countersunk head 2.5 x 12 mm. Attention: Please order batteries separately. - Page 3 DIMENSIONS Lock XL140 Closing part XL-S17...
- Page 4 PREPARATION FROM THE LOCK 2 pieces CR123A, 6V lithium Open the battery compartment Close the battery Your lock is now ready batteries. cover and insert the batteries compartment cover and fix it for use. For error-free operation, please with the correct polarity (+/-). with the screw.
- Page 5 Simply scan the QR code with your camera: After installation, create your XLOCK account and confirm in the e-mail - > done. For the commissioning of an XLOCK lock, the location Bluetooth must be activated...
-
Page 6: Create Account
3. Verify your account by clicking on the 4. Congratulate! You 2. Enter your email address and 1. Tap the button above. confirmation link in the XLOCK e-mail in have successfully choose a password. To confirm, your e-mail inbox installed the XL LOCK password again Manager app. - Page 7 1. Tap the button at the 2. Tap New Lock. 4. The lock is displayed 5. Give the lock a . The XLOCK lock has now bottom right corner. with its ID number. Tap name and tap ADD. been successfully linked to...
- Page 8 UNLOCK - LOCK Unlocking with the smartphone and the app is very simple. A swipe to the right unlocks the lock for 5 seconds. The reading distance is up to 15 meters. Therefore, the lock can also be installed hidden, e.g. behind a drawer. The toggle mode (open-close function) can also be used with the smartphone.
- Page 9 VIEW MOUNTING LEFT / RIGHT Left Right The direction of the locking latch can be changed, please specify when ordering.
- Page 10 XLOCK 140 MOUNTING LEFT Mounting - Left Mounting the lock Tighten the screws with feeling and do not use drills or cordless drill or cordless screwdriver.
- Page 11 XLOCK 140 MOUNTING RIGHT Mounting - Right Mounting the lock Tighten the screws with feeling and do not use drills or cordless drill or cordless screwdriver.
- Page 12 XLOCK GATEWAYS Optional! Please order separately. XLOCK Gateway G2-WIFI incl. XLOCK Gateway G3- XLOCK Gateway G3 POE-Ethernet USB C charging cable. Ethernet incl. USB C charging incl. USB C charging cable. cable. 2.4 GHz WIFI compatible USB POE does not require a separate...
-
Page 13: Bluetooth Accessories
With the Wireless Key and the Wireless Keypad, the lock can be unlocked over a distance of up to 20 meters - cable-free. The wireless keypad can be used to program all XLOCK pin code functions such as fixed, time and one-time code. - Page 14 More information and support at www.xlockgroup.com XLOCK by data mobile Landstrasse 35-39 AUT – 6911 Lochau info@xlockgroup.com www.xlockgroup.com...
