Federal Communications Commission (FCC) Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reason-
able protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with instructions contained in this manual, may cause harmful interference
to radio and television communications. However, there is no guarantee that interfer-
ence will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-
REORIENT OR RELOCATE THE RECEIVING ANTENNA
-
INCREASE THE SEPARATION BETWEEN THE EQUIPMENT AND THE RECEIVER
-
CONNECT THE EQUIPMENT INTO AN OUTLET ON A CIRCUIT DIFFERENT FROM
THAT OF THE RECEIVER
-
CONSULT THE DEALER OR AN EXPERIENCED AUDIO/TELEVISION TECHNICIAN
NOTE: Connecting this device to peripheral devices that do not comply with Class B
requirements, or using an unshielded peripheral data cable, could also result in
harmful interference to radio or television reception.
The user is cautioned that any changes or modifications not expressly approved
by the party responsible for compliance could void the user's authority to operate
this equipment.
To ensure that the use of this product does not contribute to interference, it is
necessary to use shielded I/O cables.
Copyright
This manual is copyrighted with all rights reserved. No portion of this manual may be copied or
reproduced by any means.
While every precaution has been taken in the preparation of this manual, no responsibility for errors
or omissions is assumed. Neither is any liability assumed for damages resulting from the use of the
information contained herein.
Trademarks
All brand names, logos and registered trademarks mentioned are property of their respective owners.
Electronic Emission Notices
SAPPHIRE PURE ELEMENT
Advertisement
Table of Contents
Related Manuals for Sapphire Pure CrossFire ELEMENT PC-AM2RD580
Summary of Contents for Sapphire Pure CrossFire ELEMENT PC-AM2RD580
- Page 1 While every precaution has been taken in the preparation of this manual, no responsibility for errors or omissions is assumed. Neither is any liability assumed for damages resulting from the use of the information contained herein. Trademarks All brand names, logos and registered trademarks mentioned are property of their respective owners. SAPPHIRE PURE ELEMENT...
-
Page 2: Table Of Contents
Table of Contents HARDWARE CONFIGURATION ..............5 Key Features ..................5 MOTHERBOARD LAYOUT ................8 REAR PANEL ....................9 CONNECTORS AND HEADERS ..............11 Floppy Disk Drive Connector - J1801 ............ 11 J1700 (Primary IDE Connector) ............11 IEEE 1394 Header - JP1600 ..............12 Fan Power Header - J2801, J2805, J2806,J2807 ........ - Page 3 BIOS UPDATE PROCEDURE ................ 61 REALTEK HD AUDIO DRIVER SETUP ............62 Getting Started ..................62 Sound Effect ................... 62 Environment Simulation ................ 62 Equalizer Selection ................63 Frequently Used Equalizer Setting ............63 Karaoke Mode ..................63 Mixer ....................... 64 SAPPHIRE PURE ELEMENT...
- Page 4 " Playback control ................64 Recording control ................65 Audio I/O ................... 66 Speaker Configuration ..............67 Global Connector Settings ............... 68 S/PDIF ....................68 Speaker Calibration ................. 69 Microphone ..................70 Noise Suppression ................70 Beam Forming ................. 70 Acoustic Echo Cancellation .............
-
Page 5: Hardware Configuration
• One floppy port which supports two FDD of 1.44MB, 2.88MB capacity. • Ten USB ports (six ports via three headers). • PS/2 keyboard support. • PS/2 mouse support. • One front panel sound connector. SAPPHIRE PURE ELEMENT... - Page 6 Expanded USB Support • Includes 2 OHCI host controllers. • Includes 1 EHCI USB2.0 Host Controller that supports all ports (Bandwidth is shared between the all ports). • This motherboard supports USB 2.0 only on Windows® 2000 (with SP4 or above) and Windows® XP (with SP1 or above) operation systems.
- Page 7 500 watt or higher power supply. Static electricity can harm delicate components of the motherboard. To prevent damage caused by static electricity, discharge the static electricity from your body before you touch any of the computer’s electronic components. SAPPHIRE PURE ELEMENT...
-
Page 8: Motherboard Layout

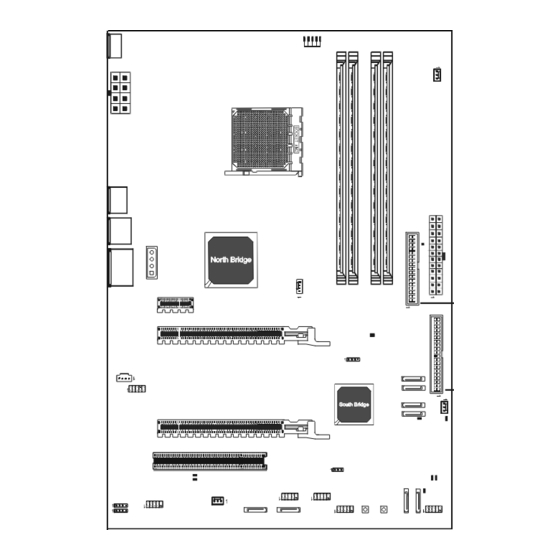

& MOTHERBOARD LAYOUT The following diagram shows the relative positions of the jumpers, connectors, major components and memory banks on the motherboard. NOTE 1) Be sure to check the cable orientation in order to match the coloured strip to the pin 1 end of the connector. -
Page 9: Rear Panel
USB 2.0 Connector USB 2.0 - Pin Definition SIGNAL DESCRIPTION +5V/5VSB (optional) -Data 0 Negative Data Channel 0 +Data0 Positive Data Channel 0 Ground +5V/5VSB (optional) -Data 1 Negative Data Channel 1 +Data 1 Positive Data Channel 1 Ground SAPPHIRE PURE ELEMENT... - Page 10 VIA VT6307 IEEE 1394 Connector (Optional) The mainboard provides an IEEE 1394 Connector and allows you to connect an IEEE 1394 device directly to the connector. Gigabit LAN The onboard Marvell 88E8052 PCI-E X1 controller supports 10/100/ 1000 Mb/s operations. 8 Channel HD Audio Option select of 2, 6, or 8 channel audio from onboard ALC882 High Definition audio compliant CODEC with 20-bit ADC and 24-bit DAC resolution.
-
Page 11: Connectors And Headers
Primary IDE Connector - J1700 The hard drive should always be connected to J1700. J1700 can connect a Master and a Slave drive. You must configure the second hard drive to Slave mode by setting the jumper accordingly. SAPPHIRE PURE ELEMENT... -
Page 12: Ieee 1394 Header - Jp1600
IEEE 1394 Header - JP1600 This motherboard provides one 1394 pin header that allow you to connect IEEE1394 port. JP1600 - Pin Definition SIGNAL TPA+ TPA- Ground Ground TPB+ TPB- Cable power Cable power Key (no pin) Ground JP1600 IEEE 1394 Cable PC-AM2RD580 User’s Manual... -
Page 13: Fan Power Header - J2801, J2805, J2806,J2807
The CPUFAN (processor fan) and SYSFAN (system fan) support system cool- ing fans using +12V via three-pin head connectors. J2805 - SYS FAN CD-IN Header - J2102 This header allows for the connection of audio from CD-ROM drive. J2102 - Pin Definition SIGNAL CD-L CD-R J2102 SAPPHIRE PURE ELEMENT... -
Page 14: Front Panel Audio Header - J2101
" Front Panel Audio Header - J2101 J2101 J2101 - Pin Definition Signal Description PORT 1L Analog Port1 - Left channel Ground PORT 1R Analog Port 1 - Right channel PRESENCE Active low signal - signals BIOS that a High Definition Audio dongle is connected to the analog header. -
Page 15: Usb Headers - J1502, J1503,J1504
Front Panel Header - JU2801 The motherboard provides a front panel connection to the front panel switches and LEDs. FP1 is compliant with the Front Panel I/O Connectivity Design Guide. JU2801 RESET PWR_SW PW_LED- HDD_LED- PW_LED+ HDD_LED+ SAPPHIRE PURE ELEMENT... -
Page 16: Serial Ata Hard Disk Connectors - J600, J601, J602, J603
Serial ATA Hard Disk Connectors - J600, J601, J602, J603 The motherboard has four SATA connectors: J600, J601, J602, J603. Each supports 1 generation SATA data rates of 300MB/s. All connectors are fully compliant with Serial ATA 2.0 specifications. Each SATA connector can connect to one hard disk device. -
Page 17: Serial Ata-Ii Hard Disk Connectors - J1400, J1401, J1402, J1403
This cable is compatible for use with SATA and SATA-II devices. Serial ATA Cable Serial ATA Devices Power Cable (optional) Please do not fold the serial ATA cable, which may lead to loss of data during transmission. SAPPHIRE PURE ELEMENT... -
Page 18: Spdif Out Header - J2103
& SPDIF Out Header - J2103 SPDIF In Header - J2104 This header provides a SPDIF (Sony/Philips Digital Interface) output to digital multimedia device through fiber or coaxial connector. J2103, J2104 - Pin Definition SIGNAL SPDIF +5VA J2104 SPDIF-in SPDIF-out J2103 Speaker Header - JU2800 This motherboard provides a speaker connection to the external PC speaker. -
Page 19: Jumper Setting
DRAM modules are set correctly. Refer to this chapter whenever in doubt. JU600 Clear CMOS Jumper: JU600 If you want to clear the system configuration, use the JU600 (Clear CMOS Jumper) to clear data. JU600 Selection 1-2* Normal* CMOS Clear SAPPHIRE PURE ELEMENT... -
Page 20: Slots
SLOTS The motherboard provides two PCI-E x16 slots, one PCI-E x1 slot and one 32- bit PCI slot. PCI-E X1 Slot Slave PCI-E X16 Slot Master PCI-E X16 Slot PCI Slot PCI Express x16 Graphics Interface • Two 16-lane (x16 port) PCI Express port intended for external graphics. -
Page 21: Cpu Installation
3. If the CPU is correctly seated, the pins should be completely embedded in the socket and can not be seen. (Please note that any deviation from the correct installation procedures may cause permanent damage to your mainboard.) SAPPHIRE PURE ELEMENT... - Page 22 4. Press the CPU down firmly into the socket and close the lever. As the CPU is likely to move while the lever is being closed, always close the lever with your fingers pressing firmly on top of the CPU to make sure the CPU is properly and completely embedded into the socket.
-
Page 23: Memory Configurations
MEMORY CONFIGURATIONS DDRII DIMM Sockets Location Please refer to the following figure for the location of the DDRII DIMM Sockets. SAPPHIRE PURE ELEMENT... -
Page 24: Ddrii Dimm Sockets Location
" Install DDRII DIMMs Please follow the steps below to install DDRII DIMMs. 1. Hold the DDRII DIMM module by the edges and remove it from its antistatic package. 2. Make sure the clips at either end of the DIMM socket are pushed away from the socket. -
Page 25: Crossfire Setup
Make sure that the card is inserted in correct slot. You need to install the 8.15 driver or later which must include the Catalyst Control Centre (CCC). Step1 In the CCC advanced mode, you need to click the check box to enable the CrossFire. Step2 SAPPHIRE PURE ELEMENT... - Page 26 Step3 Step4 After CrossFire is enabled successfully, you will be able to see that CrossFire has started. PC-AM2RD580 User’s Manual...
-
Page 27: Sata Raid User Manual (For Sb600)
A logical drive appears to the computer as a single hard disk drive. As a result, you can install your operating system onto a logical drive and boot your computer from the logical drive. The following steps describe how to create a bootable logical drive. SAPPHIRE PURE ELEMENT... - Page 28 & Create a Logical Drive You will now use the onboard FastBuild BIOS utility to create a logical drive. 1. Boot your system. If this is the first time you have booted with the disk drives installed, the ATI onboard BIOS will display the following screen (below).
- Page 29 You have the option of using all of the disk drive capacity for one logical drive or allocating a portion to a second logical drive. Press Ctrl-Y to Modify Array Capacity or press any other Key to use Maximum Capacity ... SAPPHIRE PURE ELEMENT...
- Page 30 Choose one of the following actions: • Use the full capacity of the disk drives for a single logical drive. Go to “One Logical Drive” below. • Split the disk drives among two logical drives. Go to “Two Logical Drives” below. One Logical Drive Continued from Create a Logical Drive step 8, above.
- Page 31 5. Press Ctrl-Y to save your logical drive configuration. 6. Press Esc to exit to the Main Menu. Press Esc again to exit the Utility. 7. Press Y to restart the computer. You have successfully created a new RAID logical drive. SAPPHIRE PURE ELEMENT...
-
Page 32: Driver And Raid Software Installation (For Sb600)
Driver and RAID Software Installation (for SB600) Microsoft Windows Driver Installation 1. After Windows has finished booting up, the system will automatically find the newly installed adapter and prompt the Found New Hardware Wizard window. Click Cancel to skip it. 2. -
Page 33: Sata Raid User Manual (For Sil3132)
“Integrated Peripherals” and press the <Enter> key to accept. Set “Onboard SIL3132 SATA TYPE” to [RAID] in the sub-menu “Onboard Device” of “Integrated Peripherals” . Then save the setup and exit. SAPPHIRE PURE ELEMENT... - Page 34 !" Creating and deleting RAID sets is a function found in the BIOS. During bootup, the following message will appear, pausing for a few moments to allow the user to choose what to do: Press Ctrl+S or F4 to enter RAID utility An easy-to-use screen will appear with the following choices in the top left: Create RAID Set Delete RAID Set...
-
Page 35: Sata-Ii Driver And Raid Software Installation (For Sil3132)
3. Press “F6” at the prompt “Press F6 if you need to install a third party SCSI or RAID driver...” 4. Insert the floppy disk. 5. Choose the OS device driver wanted for loading. 6. Install the OS. 7. Install driver after OS is installed. SAPPHIRE PURE ELEMENT... -
Page 36: Bios Setup
BIOS SETUP About the Setup Utility The mainboard uses the latest Award BIOS with support for Windows Plug and Play. The CMOS chip on the motherboard contains the ROM setup instruc- tions for configuring the motherboard BIOS. The BIOS (Basic Input and Output System) Setup Utility displays the system’s configuration status and provides you with options to set system parameters. -
Page 37: Press Del To Enter Setup
Advanced BIOS Features Setup page, to force your computer to boot from the floppy diskette drive first.) Also see page 56 for more information. 4. At the A:\ prompt, type the Flash Utility program name and press <Enter>. SAPPHIRE PURE ELEMENT... -
Page 38: Using Bios
!& 5. Type the file name of the new BIOS in the “File Name to Program” text box. Follow the onscreen directions to update the motherboard BIOS. 6. When the installation is complete, remove the floppy diskette from the dis kette drive and restart your computer. -
Page 39: Ide Devices
NOTE: Before attempting to configure a hard disk drive, ensure that you have the configuration information supplied by the manufacturer of your hard drive. Incorrect settings can result in your system not recognizing the installed hard disk. SAPPHIRE PURE ELEMENT... -
Page 40: Advanced Bios Features
" Access Mode (Auto) This option defines ways that can be used to access IDE hard disks such as LBA (Large Block Addressing). Leave this value at Auto and the system will automatically decide the fastest way to access the hard disk drive. Press <Esc>... -
Page 41: Hard Disk Boot Priority
First, Second, and Third boot devices. Boot Up Floppy Seek (Enabled) When this option is enabled, it checks the size of the floppy disk drives at startup time. SAPPHIRE PURE ELEMENT... - Page 42 " Boot Up Num Lock Status (On) This option defines if the keyboard Num Lock key is active when your system is started, default is on. Gate A20 Option (Fast) This option defines how the system handles legacy software that was written for an earlier generation of processors.
-
Page 43: Advanced Chipset Features
Menu Level T [Press Enter] AGP Aperture Size [64MB] Memory Hole [Disabled] System BIOS Cacheable [Disabled] \[: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help F5: Previous Values F6:Fail-Safe Defaults F7: Optimized Defaults SAPPHIRE PURE ELEMENT... -
Page 44: Dram Configuration
"" DRAM Configuration Navigate to this section and press <Enter> to view the following screen: Phoenix - Award WorkstationBIOS CMOS Setup Utility DRAM Configuration Timing Mode [Auto] Item Help Menu Level TT Menory Clock value or Lini DDR 400 CAS# Latency (Tcl) Auto Register Setting... - Page 45 As a result, the minimum tRC value should be no less than tRAS + tRP. Write Recovery Time (tWR) (3 bus clocks): This option specifies the time measured from the last write datum is safely registered by the DRAM. SAPPHIRE PURE ELEMENT...
- Page 46 "$ Read Percharge time (Trtp)/(2 clock):This option specifies the Read Percharge time. R-W Turnaround(TrwTo)/(4 clock):This option specifies the R-W Turn around time. W-R Command Delay(Twtr)/(2 clock):This option specifies the W-R Command Delay time. Write-Write Timing(Twrwr)/(1 clock):This option specifies the Write- write timing.
-
Page 47: Ldt & Pci Bus Control
LDT bus multiplier needs to be lowered to bring the resulting LDT frequency back to 1000 MHz. SAPPHIRE PURE ELEMENT... -
Page 48: Pcie Configuration
"& PCIE Configuration Navigate to this option and press <Enter> to view the following screen: Phoenix – Award WorkstationBIOS CMOS Setup Utility PCIE Configuration Link Width ..GFX1 [x16] Item Help ..GFX2 [x16] Menu Level TT Payload Size ..GFX [64 Bytes] ..SB [64 Bytes]... -
Page 49: South Onchip Ide Device
Each IDE channel supports a master device and a slave device. This motherboard supports Ultra DMA technology, which provides faster access to IDE devices. If you install a device that supports Ultra DMA, change the appropriate item on this list to Auto. SAPPHIRE PURE ELEMENT... -
Page 50: South Onchip Pci Device
IDE HDD Block Mode (Enabled) Enable this option if your IDE hard drive supports block mode. Block mode enables BIOS to automatically detect the optimal number of block read and writes per sector that the drive can support. It also improves the speed of access to IDE devices. -
Page 51: Onboard Devices
This option allow user to Enable SATA0 or SATA1 controller SATA6, 7 is control by SATA0 controller, SATA4, 5 is control by SATA1 controller. On board SIL3132 SATA Type (IDE contorller) This option allow user select SATA TYPE. SAPPHIRE PURE ELEMENT... -
Page 52: Overclocking Features (Expert Only)
Overclocking Features (Expert only) Phoenix – Award WorkstationBIOS CMOS Setup Utility OverClock/Voltage Features Item Help Over Clock/Voltage Control [Enabled] CPU Fid control [Auto] Menu Level TT CPU Vid control [Auto] AMD CPU Cool&Quiet control [Auto] CPU/HT Reference Clk (MHz) [200] PCIE Graphics Clock [100] RD580 Voltage... - Page 53 This field allow you Enable or disable sptead spectrum. Boot Failure Ratry count(5) If the system does not boot for the specified number of times, then the overclocking defaults will be loaded automatically. Set to “0” to disable this feature. SAPPHIRE PURE ELEMENT...
-
Page 54: Power Management Setup
#" Power Management Setup This option lets you control system power management. The system has various power-saving modes including powering down the hard disk, turning off the video, suspending to RAM, and software power down that allows the system to be automatically resumed by certain events. Item Help Phoenix-Award WorkstationBIOS CMOS Setup Utility Power Management Setup... - Page 55 Delay 4 Sec. then holding the power button down for four seconds is required to cause a software power down. Power On by PCI Card (Disabled) This options allows the system to be awakened from power saving modes when activity or input signal of the PCI Card is detected. SAPPHIRE PURE ELEMENT...
-
Page 56: Pnp/Pci Configurations
PNP/PCI Configurations This section configures how PnP (Plug and Play) and PCI expansion cards operate in your system. The PCI bus on the motherboard uses system IRQs (Interrupt ReQuests) and DMAs (Direct Memory Access). You must set up the IRQ and DMA assignments correctly through the PnP/PCI Configurations Setup utility for the motherboard to work properly. - Page 57 PCI devices in the system, more devices will vie for the bus and, therefore, very high latencies could result in data starvation of one or the other device. In most modern systems, the empirically found best performance across the board is between 64 and 96 cycles. SAPPHIRE PURE ELEMENT...
-
Page 58: Pc Health Status
#& PC Health Status Your mainboard supports hardware monitoring; this section lets you monitor the parameters for critical voltages, temperatures and fan speeds. Phoenix-AwardBIOS CMOS Setup Utility PC Health Status Shutdown Temperature [Disabled] Item Help VDDHT Voltage 1.20v Menu Level TT VDDA Voltage 1.20v... -
Page 59: Load Fail-Safe Defaults
If you only want to install setup defaults for a specific option, select and display that option, and then press <F7>. Note: Please use the factory BIOS default setting “Load Optimized Defaults” when installing the Operating System. SAPPHIRE PURE ELEMENT... -
Page 60: Set Supervisor/User Password
Set Supervisor/User Password When this function is selected, the following message appears at the center of the screen to assist you in creating a password. ENTER PASSWORD Type the password, up to eight characters, and press <Enter>. The password typed now will clear any previously entered password from CMOS memory. You will be asked to confirm the password. -
Page 61: Bios Update Procedure
Warning : - Do not turn off or RESET the computer during the flash process. - If you are not sure how to upgrade the BIOS, please take your computer to an Authorized Service Center and have a trained technician do the work for you. SAPPHIRE PURE ELEMENT... -
Page 62: Realtek Hd Audio Driver Setup
Realtek HD Audio Driver Setup Getting Started After installing the Realtek HD Audio Driver (insert the driver CD and follow the onscreen instructions), “Realtek HD Audio Manager” icon will show in System tray as below. Double click the icon and the control panel will appear: Sound Effect After clicking on the “Sound Effect”... -
Page 63: Equalizer Selection
Vocal Cancellation: Single click on “Voice Cancellation”, the vocals of the songs will be erased, while the background music is still playing which lets you take over the vocal part. Key Adjustment: Using “Up / Down Arrow” to find a key which better fits your vocal range. SAPPHIRE PURE ELEMENT... -
Page 64: Mixer
$" Mixer Realtek HD Audio Sound Manager integrates Microsoft’s “Volume Control” functions into the Mixer page. This gives you the ability to create your favorite sound effect in one single tool. Playback control Mute You may choose to mute single or multiple volume controls or to completely mute sound output. -
Page 65: Recording Control
Once this item is checked, you will find “advanced” icon beside “Front Pink In” & “Mic Volume”. With this, the input signal into “Front Pink In” & “Mic Volume” will be strengthen. Enable recording multi-streaming At any given period, you can have maximum 2 streams operating simultaneously. SAPPHIRE PURE ELEMENT... -
Page 66: Audio I/O
Audio I/O Realtek HD Audio Manager frees you from default speaker settings. Jacks are no longer limited to a specific function. Instead, each jack can now be as- signed either an output (i.e. playback) function or input (i.e. Recording) func- tion, we call this “Retasking”. -
Page 67: Speaker Configuration
* If the device is being plugged into the correct jack, you will be able to find the icon beside the jack changed to the one that is same as your device. * If not correct, Realtek HD Audio Manager will guide you to plug the device into the correct jack. SAPPHIRE PURE ELEMENT... -
Page 68: Global Connector Settings
$& Global Connector Settings Click to access global connector settings Mute rear panel when front headphone plugged in Once this option is checked, whenever front headphone is plugged, the music that is playing from the back panel, will be stopped. Disable front panel jack detection (option) Did not find any function on front panel jacks? Please check if front jacks on your system are so-called AC’97 jacks. -
Page 69: Speaker Calibration
After you have successfully plugged in speakers and assigned them to the right jacks, there is only one more step to enjoy the desired sound quality. We provide “Speaker Calibration” to help you check if the speakers are located in the correct position. SAPPHIRE PURE ELEMENT... -
Page 70: Microphone
Microphone This page is designed to provide you better microphone / recording quality. Below picture indicates both “Noise Suppression” & “Acoustic Echo Cancellation” are both enabled. Noise Suppression If you feel that the background noise, especially the sound generated from the fan inside PC is too loud, try “Noise Suppression”. -
Page 71: Audio Demo
Note to User: The bundled driver CD contains all the drivers that the motherboard needs. Each driver will install automatically once it is selected. Please select the drivers that you want to install by clicking on the driver’s button. SAPPHIRE PURE ELEMENT... - Page 72 0259A8 PC-AM2RD580 User’s Manual...
