Bajaj EFL-05 User Manual

INTRODUCTION

Thanks for acquiring a unique Bajaj EFL-05 multifunction product with novel style. It can be used as a normal box
table fan with light on 23OV 50Hz AC mains as well as on 12 V battery. In case of tripping off of power supply, its
heavy duty rechargeable battery Uninterrupted Power Supply (UPS) will take over instantaneously so that you
continue to enjoy cool breeze and light for about 4 hours without interruption. When mains AC power is restored, it
will automatically switch over to the same and also charge the battery simultaneously. It also has wind guide wheel
which rotates, allowing for continuous flow of air in all directions.
Bajaj EFL-05 can be used as UPS for 12 Volts DC applications. This means that you can use all your equipment running
on 12 volts DC such as cordless telephone / answering machine using 12 V DC adaptor, Car radio / Stereo, STD/PCO,
Musical instruments.

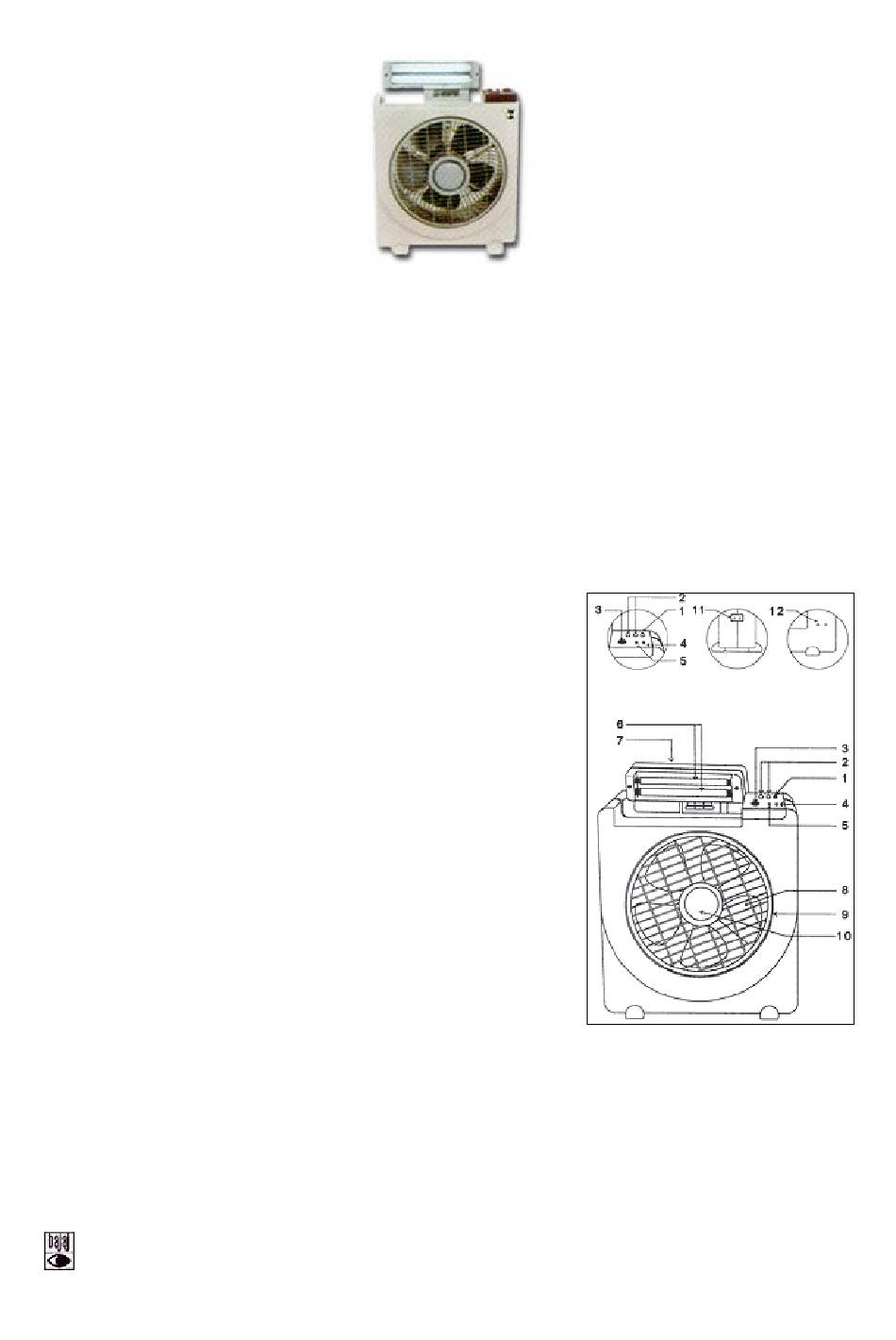

OPERATING INSTRUCTIONS

1.
On/Off switch for fan.
2.
Speed control buttons. (high/low)
3.
Light switch
4.
Charging LED.
5.
Emergency LED.
6.
Tubes.
7.
Tube housing.
8.
Fan blade.
9.
Wind guide wheel.
10.
Wheel Knob.
11.
Power socket. (left side of body)
12.
UPS /External Batt. Terminals. (back side of body)

OPERATION

Please plug in the mains cord into the power socket of the EFL-05.
A.
FAN : Switch on by selecting high/low buttons (2). It can be switched off using off button (1). You can keep
the wind guide wheel (9) fixed or have air circulation by turning the wheel knob (10) slightly anti-clock wise.
It can be fixed again by turning the wheel knob clock wise as marked on the knob.
B.
LIGHT: Press light switch (3) whenever needed. Two 6 watts fluorescent tubes will light up. Light can be set
to desired angle up to 90
bajaj electricals limited
Fan & Light
Model: EFL-05
User Manual
o
by adjusting tube housing (7).
Page 1 of 2
