Summary of Contents for Leutert MUDTEST 7100.11.00000

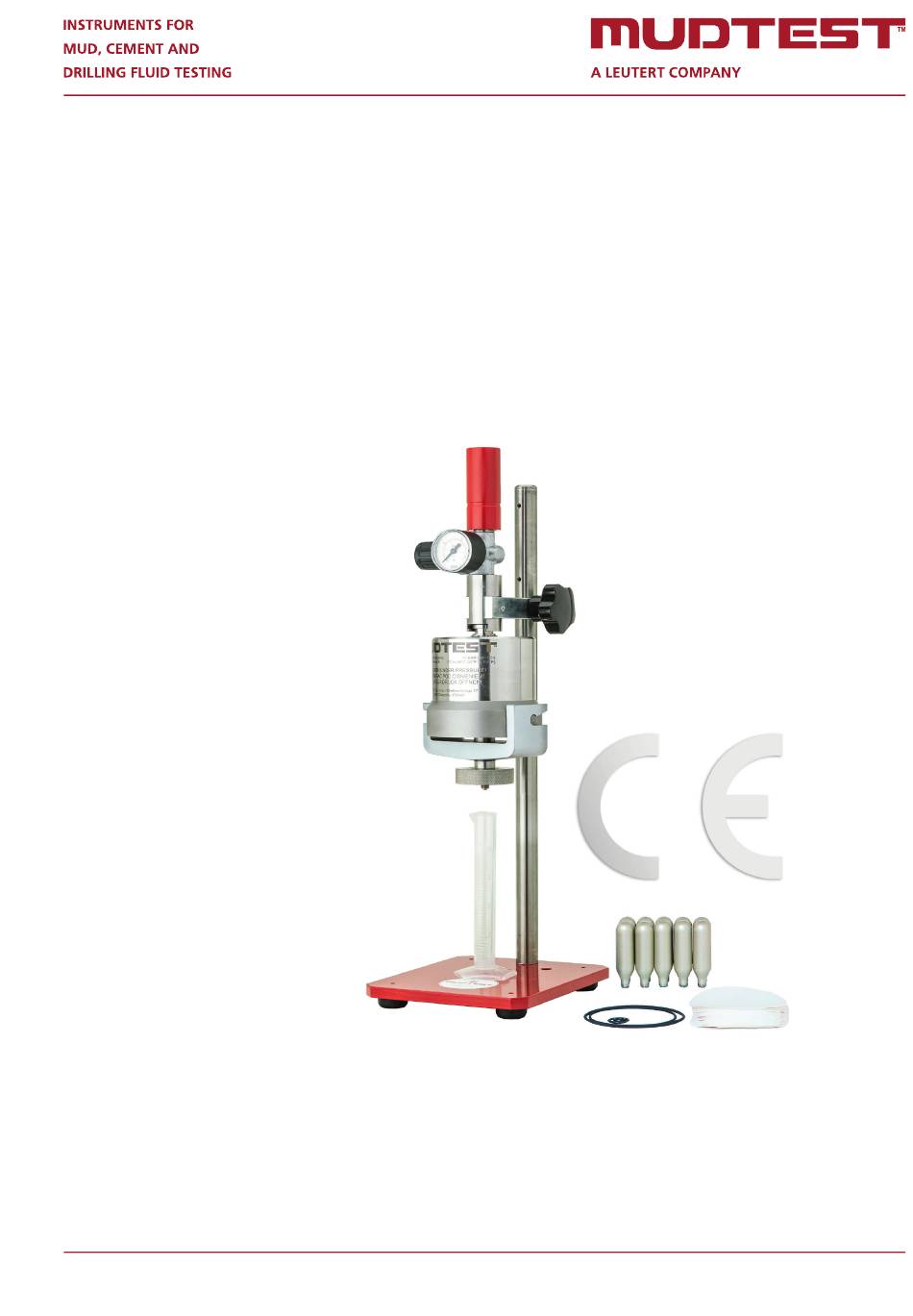

- Page 1 API Filter Press Instruction Manual Filtration The API filter press is used to analyze filtration behavior and wall cake building characteristics of drilling fluids and cement slurries.. MUDTEST Sp. z o.o., www.mudtest.com, info@mudtest.com...
-
Page 2: Eu Declaration Of Conformity

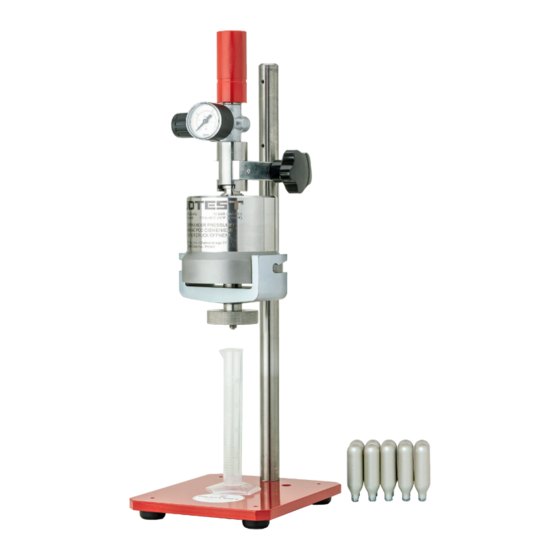

EU Declaration of conformity The manufacturer MUDTEST Sp. z o.o. Chełmońskiego 77, 32-500 Chrzanów / Polen hereby declares that the following product: API Filter Press Name of product Drawing number 7100.11.00000 complies with the provisions of the guidelines identified below, including those at the time of the declaration applicable changes. - Page 3 Description The API filter press is used to analyze filtration behavior and wall cake build- ing characteristics of drilling fluids and cement slurries. Their stability is based on fluid loss and may be determined by measuring and describing the filter cake. The components of the filter press are: A cell body to hold the mud sample, a base cap c/w drain tube to discharge filtrate into a graduated cylinder, a stand, a cell support including a pressure regulator with gauge, a CO...
-
Page 4: Technical Specifications
Technical Specifications Max. test pressure 10 bar | 145 psi Medium temperature 20°C ± 2°C | 68°F ± 2°F Dimensions 200 x 500 x 230 mm | 7.87 x 19.68 x 9.0 in Weight ca. 5.5 kg | 12.13 lbs Material test cell assembly : stainless steel Volume test cell assembly... -
Page 5: Order Information
Order Information Filter Press / 7100.11.00000 Carriing case c/w form insert 7100.11.09100 Graduated cylinder 10 ml 3000.00.00010 Seal kit 7100.11.02002 Filter paper 7100.11.02205 Spiral air hose 7100.11.07001 cartridge 7100.11.06006 Stand 7100.11.01000 cartridge holder 7100.11.06000 Pressure regulator 7100.11.04002 Pressure Gauge 7100.11.04001 Ball valve 7100.11.05000 Cell support 7100.11.03000 O-Ring 7100.11.03005... - Page 6 Drilling-fluid cell assembly / 7100.11.02000 External circlip 7100.11.02005 O-Ring 7100.11.02004 T-Coupling 7100.11.02003 Cell 7100.11.02300 Gasket 7100.11.02206 Filter paper 7100.11.02205 Countersunk screw 7100.11.02208 Screen 7100.11.02204 Lid c/w drain tube 7100.11.02200 O-Ring 7100.11.02207 Clamp 7100.11.02101 Knurled screw 7100.11.02103 Hexagon nut self-locking 1000.52.00002 Cartridge holder assembly / 7100.11.06000 Puncturing head assembly 7100.11.06100 Gasket (not shown) 7100.11.06103...
-
Page 7: Operating Procedure
Operating procedure Unscrew and remove the barrel for CO cartridge. Make sure that the pressure regulator is closed. Insert a CO cartridge in the barrel and tighten it carefully with approximately three turns. NOTICE: The CO cartridges must not be opened yet, CO should not exhaust! Remove the drilling-fluid cell assembly from the T-groove. - Page 8 carefully. The time interval, if other than 30 min, shall be reported. NOTICE: The duration and test pressure vary depending on which standard is being followed. While API requires a test pres- sure of 100 PSI for a duration of 30 minutes, DIN 4127 requires a test pressure of 7 bar for only 7.5 minutes.
