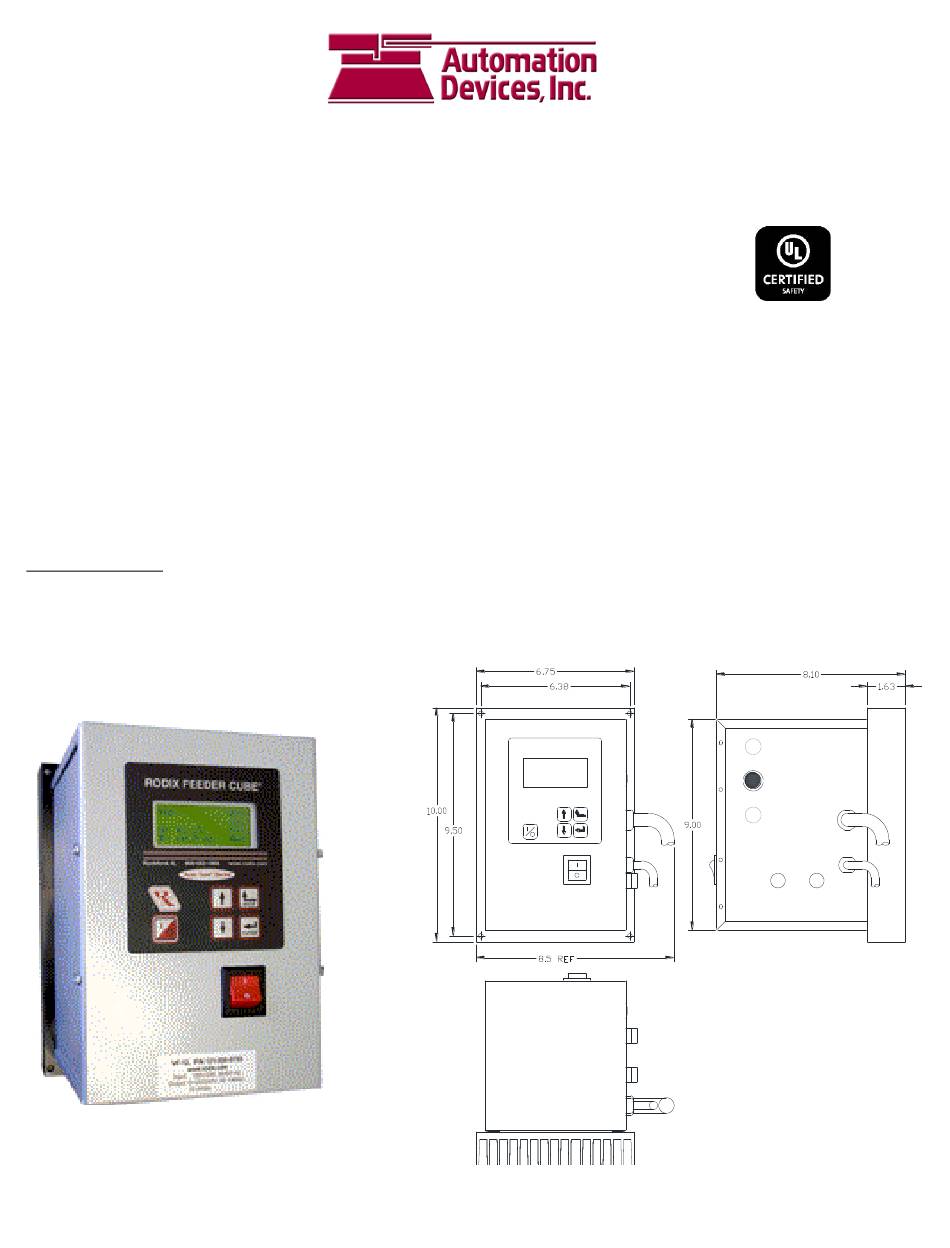

FEEDER CUBE ®
VF-12, P/N 6472.3* and 6473.3
* Includes CFR vibration sensor 6476.3
GENERAL PURPOSE MODEL
IMPORTANT: APPLICATION NOTE
Input: 85 - 264 VAC, 50/60 HZ.
Single Unit Fuse Size: 10 AMPS
Output: 0 - 120/240 VAC
Maximum output voltage matches input voltage
Output Frequency: 5 - 180Hz
Rated Output Current: 12 Amps at 120V or 9 Amps at 240V
Model Information: The Autotune Series of Variable Frequency Feeder Cubes® generates an output frequency for feeding
that is independent from the power line frequency. An optional vibration sensor, P/N 6476.3, can be used to maintain the
vibratory feeder at a constant feed rate. The start/stop operation of the output can be controlled with an optional parts
sensor. For more information on this control, refer to the enclosed Adjustments and Set Up pages.
© 2005, 2020 Automation Devices
7050 West Ridge Road Fairview, PA 16415-2099
Phone: 814-474-5561
www.autodev.com
sales@autodev.com
File No. E183233
ADI 6450 series cover.docx 5/11/21 Page 1
Advertisement
Summary of Contents for Automation Devices VF-12
- Page 1 7050 West Ridge Road Fairview, PA 16415-2099 Phone: 814-474-5561 www.autodev.com sales@autodev.com FEEDER CUBE ® VF-12, P/N 6472.3* and 6473.3 * Includes CFR vibration sensor 6476.3 File No. E183233 GENERAL PURPOSE MODEL IMPORTANT: APPLICATION NOTE Input: 85 - 264 VAC, 50/60 HZ.
-
Page 2: Wiring Diagram
WIRING DIAGRAM Automation Devices, Inc. 7050 West Ridge Road Fairview, PA 16415-2099 Phone: 814-474-5561 www.autodev.com sales@autodev.com Figure 1 ADI 66450 series cover.docx 5/23/23 Page 2... - Page 3 CFR Positive Gain [ 7 Default ] CFR Negative Gain [ 12 Default ] Current Limit [ 9.5 VF-9, (3.5 VF-3), (12.5, VF-12), (18.0, VF-18) Default] Amps Frequency Settings Frequency 5.0 to 180.0 ] Hz (60.0 Hertz Default) Max Frequency [ 15.0 to 180.0 ] Hz (140.0 Hertz Default)
-
Page 4: Adjustments & Set Up
Series of variable frequency feeder 3. Auxiliary Output controls are ideal for vibratory bowls, storage Important: The heat sink fins of the VF-12 power The right column of the display shows the status of the Aux output, “A=1” or “A=0.”... - Page 5 In over-ride mode the output The VF-12 uses a #12 AWG output cord and the 11. External Speed & Frequency Control turns on regardless of I/O connections and status.
- Page 6 The Min Frequency adjustment specifies the 14. Frequency Settings 15. Resonate Threshold Level The “Frequency” menu contains the portion of the The “Resonate Threshold Level” setting sets the frequency used when the 0-10VDC input is at minimum level of vibration that the control considers menu that controls the frequency settings.
- Page 7 The CFR set point only appears on the display when When enabled, the security code is a number from Automation Devices, Inc. the “Amplitude Source” menu under power settings 0.0 to 99.9. The preset code is 0.0. It may be 7050 West Ridge Road is set to “Auto Track”...
- Page 8 How to Interlock Two VF Series Controls together 4/8/20 Page 8 1. Remove the run jumper from TB2 terminals 8 & 9 of the subordinate control. 2. Add a wire from term. TB2-1 of the master control to terminal 7 of the subordinate control. 3.
- Page 9 Automation Devices, Inc. A. ORIENT THE SENSOR so that its sensitive cable from the sensor to the control.
- Page 10 Snubber on them to reduce should be kept shorter than 2”. Please see electrical noise. Use a diode on a DC coil. Automation Devices controls have been the enclosed picture. Use a RC Snubber on an AC coil.
