INSTRUCTIONS
FOR INSTALLING AND USING

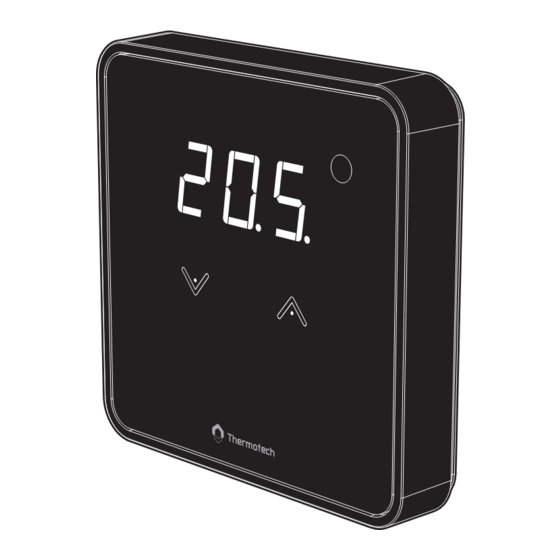

IQ Room
RADIO ROOM THERMOSTAT
67940 (WHITE)
67942 (BLACK)

TABLE OF CONTENTS

Overview ................................................................................................................ 1
Pack contains ....................................................................................................... 1
System overview ................................................................................................. 1
Controls and display ........................................................................................... 1
Installation ............................................................................................................ 2
Mounting of wall mouting plate ......................................................................................2
Installing batteries .........................................................................................................2
Radio pairing/Unpairing .................................................................................................2
General information ............................................................................................ 3
Operating ............................................................................................................... 3
Led status ......................................................................................................................3
Temperature setting.......................................................................................................3
Child lock .......................................................................................................................3
Standby mode ...............................................................................................................3
Maximum Temperature setting ......................................................................................3
Minimum Temperature setting .......................................................................................4
Advanced settings .............................................................................................. 4
Radio unpairing .............................................................................................................4
Controller output identification .......................................................................................4
Temperature calibration .................................................................................................4
Expert settings .................................................................................................... 5
Eco reduction setting .....................................................................................................5
Troubleshooting................................................................................................... 5
Technical specifications .................................................................................... 6
Products codes .................................................................................................... 6

OVERVIEW

Thank you for the trust you have placed in us and congratulations on choosing
one of our products. The radio room thermostat is extremely easy to install, has
an innovative design, and is ergonomic.
It has been designed to make your life easier and to help you to save money on
your heating bills. It displays the room temperature and adjusts the temperature
of the zone to which it is paired.
67940-67942 TEC ENG PM V00 21 08 2023

PACK CONTAINS

x2
x1
Thermostat
AAA batteries

SYSTEM OVERVIEW

The system consists of different components divided into 3 groups:
1- IQ Room
The room thermostats transmit the
setting
temperature,
the
ambient
temperature and the battery status to
the central control unit via radio waves.
Based on this information and a
number of other parameters, the central
control unit will optimise the opening
and closing of the valve of the relevant
circuit in order to achieve the desired
room temperature.
Each room (or zone) can be assigned
1 to 12 channels depending on the remaining availability on the control unit.
Depending on the number of channels available on the central controller, up to
12 room thermostats can be linked to the central controller.
Example: room thermostat 1 = channel 1; room thermostat 2 = channel 2; room
thermostat 3 = channel 3 and channel 4...
2- IQ Base
The control unit for underfloor heating/
cooling is compatible with the transmit-
ters presented above. It regulates the
whole installation in heating or cooling
according to the orders it receives.
3- IQ Home
The mobile application communicates via Bluetooth with the
control unit. It allows you to transmit the setting temperature
room by room, to change the current mode (Comfort, Eco, Frost
protection), to select the cooling or heating mode and to modify
the parameters of the thermostat and the associated channel. It
can also be used to pair a thermostat and be alerted in case of an
unexpected event on one of the thermostats/channels.
Note: The mobile application can be associated with up to 3
control units.
If you want to start a new installation but you already have 3 control
units associated with your mobile application, you must first delete the
information from at least one of the existing installations in order to start
the new installation.
To do this, go to the settings of your mobile application and click on "Start
a new installation".

CONTROLS AND DISPLAY

• Thermostat
button
x2
x2
Screw anchors
Screws for base
mounting
White LED signaling
(see "led status"
section
page
3)
Displays the setting
temperature, ambient
temperature and various
adjustment values
button
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IQ Room 67940 and is the answer not in the manual?

Questions and answers

Summary of Contents for Thermotech IQ Room 67940

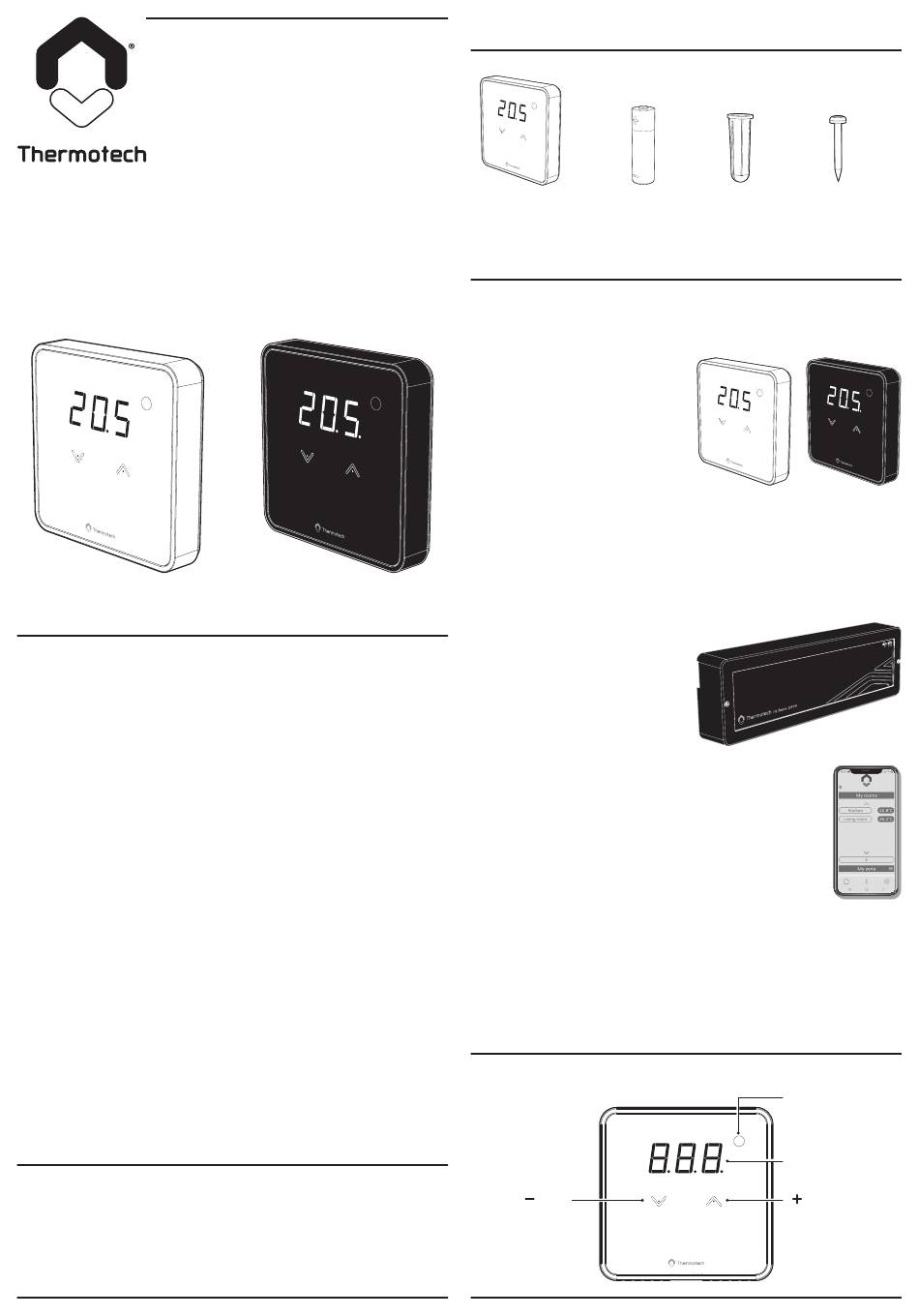

  • Page 1 PACK CONTAINS INSTRUCTIONS FOR INSTALLING AND USING IQ Room Thermostat AAA batteries Screw anchors Screws for base RADIO ROOM THERMOSTAT mounting SYSTEM OVERVIEW 67940 (WHITE) 67942 (BLACK) The system consists of different components divided into 3 groups: 1- IQ Room The room thermostats transmit the setting temperature,...
