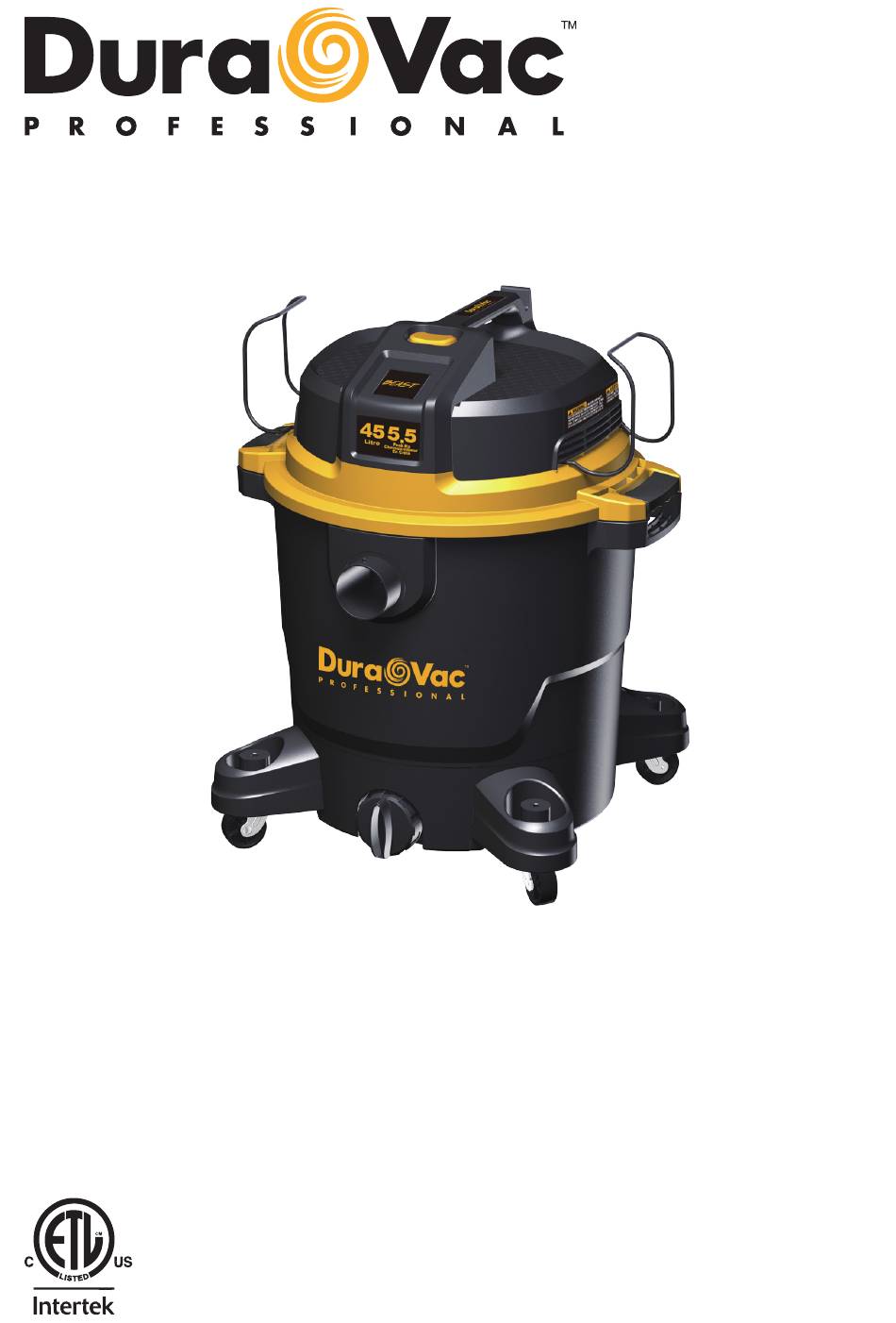

Wet/Dry Vacuum
Operator's Manual
12 Gallon
Model No.
VJH1211PF 0501
FOR YOUR SAFETY
Read and understand this manual before use.
Keep this manual for future reference.
Distributed By
Cleva North America, Inc.
Replacement Filters &
601 Regent Park Court
Accessories available at:
Greenville, SC 29607
www.Duravac.ca
Advertisement
Table of Contents
Related Manuals for DURAVAC VJH1211PF 0501
Summary of Contents for DURAVAC VJH1211PF 0501
- Page 1 Wet/Dry Vacuum Operator’s Manual 12 Gallon Model No. VJH1211PF 0501 FOR YOUR SAFETY Read and understand this manual before use. Keep this manual for future reference. Distributed By Cleva North America, Inc. Replacement Filters & 601 Regent Park Court Accessories available at: Greenville, SC 29607 www.Duravac.ca...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SECTION PAGE Warranty ............................2 Important Safety Instructions ......................3 Double Insulation Instructions ......................4 Extension Cords ..........................5 Symbols ............................5 Unpacking & Checking Carton Contents ..................6 General Assembly Instructions ......................7 Dry Vacuum Operation ........................8 Liquid Vacuum Operation ...................... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE USING THIS VACUUM. Read and understand this operator’s manual and all labels on the Wet/Dry Vacuum cleaner before operating. Safety is a combination of common sense, staying alert and knowing how your vacuum works. -
Page 4: Double Insulation Instructions
When using as blower: • Direct air discharge only at work area. • Do not use Wet/Dry Vacuum as a sprayer. • Do not direct air at bystanders. • Keep children away when blowing. • Wear safety goggles. SAVE THESE INSTRUCTIONS DOUBLE INSULATION INSTRUCTIONS This Wet/Dry Vacuum is double-insulated, eliminating the need for a separate grounding system. -
Page 5: Extension Cords
EXTENSION CORDS When using an extension cord with your Wet/Dry Vacuum refer to the following table to determine the required A.W.G. wire size. Before using the cleaner make sure the power cord and extension cord are in good working condition. Make repairs or replacements before using the vacuum cleaner. -
Page 6: Unpacking & Checking Carton Contents
UNPACKING & CHECKING CARTON CONTENTS Remove all contents from the box. Remove the power head and take out any contents inside the collection tank. Check each item against the carton contents list. Carton Contents List: Description ........Qty. Vacuum Assembly ......... 1 Hose ............ -
Page 7: General Assembly Instructions
GENERAL ASSEMBLY INSTRUCTIONS A Philips head screw driver is required. WARNING : DO NOT PLUG POWER CORD INTO POWER OUTLET. MAKE SURE PLUG IS DISCONNECTED BEFORE ASSEMBLING THE WET/DRY VACUUM. TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT EXPOSE TO RAIN. UNPACKING YOUR WET/DRY VACUUM &... -
Page 8: Dry Vacuum Operation
POLARIZED PLUG To reduce the risk of electrical shock, this appliance has a polarized plug (one blade wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. - Page 9 OPERATING INSTRUCTIONS: DRY VACUUMING 6. Insert the locking end of the hose into the vacuum port and turn to lock into place (Fig. 5). 7. Choose the desired accessory and insert onto the end of the hose or extension wand (Fig. 6). 8.
-
Page 10: Liquid Vacuum Operation
LIQUID VACUUM OPERATION LIQUID VACUUMING WARNING : BE SURE TO READ, UNDERSTAND, AND APPLY INFORMATION ENTITLED “IMPORTANT SAFETY INSTRUCTIONS”. DO NOT VACUUM IN AREAS WITH FLAMMABLE GASES, VAPORS, OR EXPLOSIVE DUSTS IN THE AIR. FLAMMABLE GASES OR VAPORS INCLUDE BUT ARE NOT LIMITED TO: LIGHTER FLUID, SOLVENT TYPE CLEANERS, OIL-BASED PAINTS, GASOLINE, ALCOHOL, OR AEROSOL SPRAYS. -
Page 11: Blower Operation
BLOWER OPERATION This Wet/Dry Vac has blowing capabilities. To use the blower feature follow the instructions listed. WARNING : ALWAYS WEAR SAFETY GOGGLES COMPLYING WITH ANSI Z87.1 (OR IN CANADA, CSAZ94.3) BEFORE USING BLOWER. WARNING : KEEP BYSTANDERS CLEAR FROM BLOWING DEBRIS. WARNING : WEAR A DUST MASK IF BLOWING CREATES DUST THAT MIGHT BE INHALED. -
Page 12: Maintenance
MAINTENANCE EMPTYING THE COLLECTION TANK WARNING : ALWAYS DISCONNECT THE PLUG FROM THE POWER OUTLET BEFORE REMOVING THE POWER HEAD FROM THE COLLECTION TANK. 1. Verify that the power cord is disconnected from the outlet (Fig. 1). 2. Disconnect the hose from the vacuum (Fig. 2). 3. -
Page 13: Installing & Cleaning Cartridge Filter
INSTALLING & CLEANING CARTRIDGE FILTER INSTALLING CARTRIDGE FILTER 1. Verify that the power cord is disconnected from the outlet (Fig. 1). 2. Remove the power head and place in upside down position. 3. Install the cartridge filter over the filter cage making sure the cage is completely covered. Carefully push filter in until it stops against the power head (Fig. -
Page 14: Installing & Cleaning Foam Wet Filter
INSTALLING & CLEANING FOAM WET FILTER INSTALLING FOAM WET FILTER 1. Verify that the power cord is disconnected from the outlet (Fig. 1). 2. Remove the power head and place in upside down position. Follow instructions to remove the cartridge filter. 3. -
Page 15: Exploded View
EXPLODED VIEW... -
Page 16: Parts List
PARTS LIST Part Drawing Number Description Quantity 551006102 Hose Holder Power Head Assembly 551006103 Float 551005104 Filter Cage Collection Tank 551006107 Vaccum Port Assembly 551006106 Vacuum Port Cover 551002110 Drain Cap Assembly 551006109 Caster Foot Assembly 551004104 Filter Retainer VCFF Cartridge Filter 551060104 EVA Hose...
