FLIR MPX C237EC Quick Start Manual

On-Screen Display (OSD) Menu
Configure OSD menu options using the
integrated control stick on the camera
cable (see image to the right).
To use the OSD menu:
• OPTIONAL: Connect a test monitor to the
camera's analog (yellow) BNC connector.
• Push the middle of the joystick to open the
OSD menu.
• Move the joystick / to select a setting,
then / to change the setting value.
• Push the middle of the joystick to confirm selection.
• Arrows beside settings indicate a submenu (
Select the setting and push the joystick to enter.
• Select RETURN and push the joystick to return to the
previous menu, or EXIT from the main menu to exit.
See the full OSD menu tree below. For detailed
explanation of camera settings, see the OSD
instruction manual on www.flirsecurity.com/pro.
Language
Video Format
OFF
Backlight
WDR
BLC
HLC
DNR
Advanced Lens ELC
ALC
Brightness
Exposure
Shutter
Sens-Up
AGC
Auto
White Balance
ATW
Preset
Manual
Mode
Day&Night
Delay
D
N
Smart IR
Smart IR Level
Sharpness
Color Gain
Freeze
Flip
D-Zoom
Defog
Special Black Level
Privacy
DP Comp
Reset
Version
Exit
Package Contents

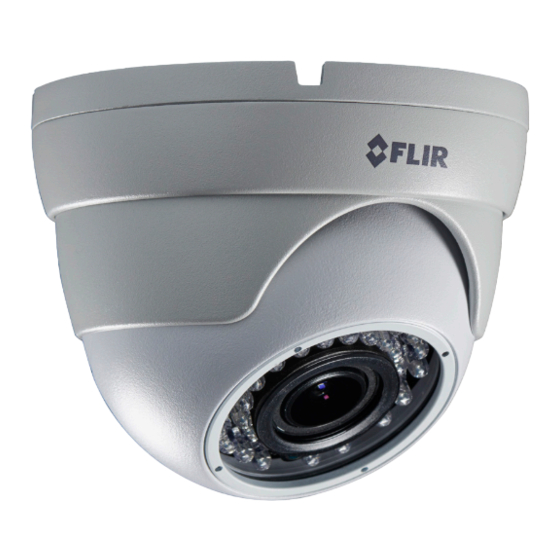

• 1x 1.3MP Motorized Varifocal Lens WDR Dome
Camera
• 4x Mounting Screws
• 4x Drywall Anchors
• 1x Allen Key
• 1x Mounting Template
NOTE: 12V DC / 24V AC power supply not included.
Safety Precautions
).
• Use an appropriate low voltage power cable to
prevent fire or electrical shock.
• Make sure to install the camera in an area that can
support the camera weight.
• There are no user serviceable parts inside the
camera. Please do not disassemble the camera.
• Do not clean the lens cover with an abrasive cleaning
material. Please use a soft cloth to clean the lens
cover.
N Level
D Level
IT'S ALL ON THE WEB!
www.flirsecurity.com/pro
FLIR Systems, Inc., Copyright © 2015
As our products are subject to continuous improvement, FLIR
Systems Inc. reserves the right to modify product design,
specifications and prices, without notice and without incurring
any obligation. E&OE
VISIT
1.3MP Motorized Varifocal Lens
WDR Dome Camera
QUICK START GUIDE MODEL: C237EC/
English Version 2.0
www.flirsecurity.com/pro
