Summary of Contents for Tecnogas R00476

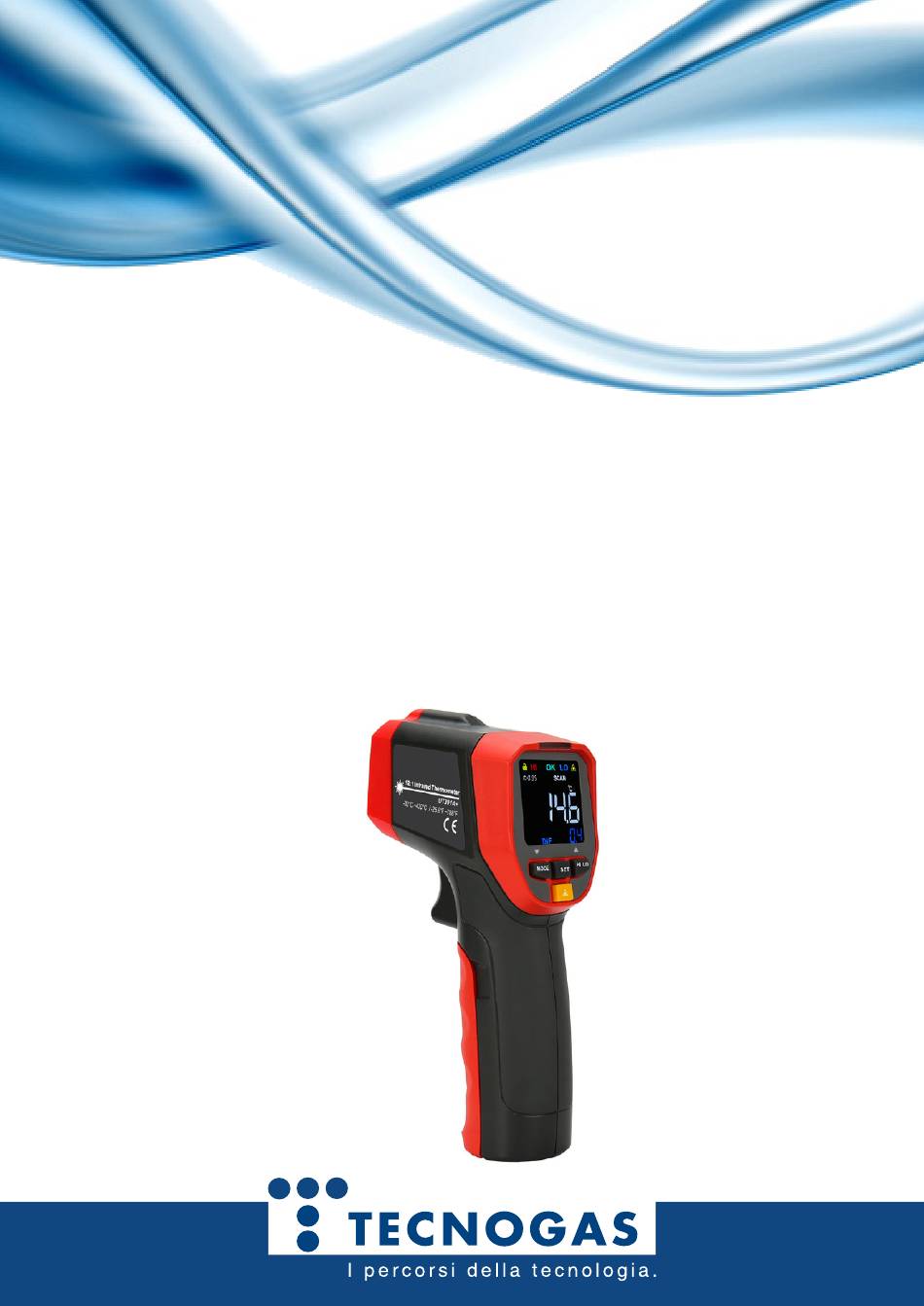

- Page 1 Termometro a infrarossi Infrared thermometer anuale perativO peratiOn anual SKU R00476 TECNOGAS manuale operativo operation manual...
- Page 2 Al fine di non invalidare la garanzia, consigliamo di affidarsi a installatori e manutentori esperti. Thank you for buying this Tecnogas product. For your safety, please read these instructions carefully before use. In order not to avoid guarantee, we strongly recommend to rely on expert technicians and service.
- Page 3 Foro a vite per treppiede | Tripod screw hole Display LCD | LCD display Pulsante MODE | MODE button Pulsante SET | SET button Pulsante HI/LO | HI/LO button Pulsante interruttore per laser | Laser switch button TECNOGAS manuale operativo operation manual...
-
Page 4: Avvertenze Per L'uso
Evitare di lasciare il termometro vicino a sorgenti con alta temperatura per un lungo periodo. • Avoid keeping the thermometer near high temperature environment for long period. Conformità CE Safety standards Certificazione CE: EN61326-1:2013 CE Certification: EN61326-1:2013 Certificazione CE per il laser: EN60825-1:2014 Laser safety standards: EN60825-1:2014 TECNOGAS manuale operativo operation manual... -
Page 5: Specifiche Tecniche
-20°C ÷ 60°C / -4°F ÷ 140°F Umidità di esercizio I Operating humidity R.H <90% Test di caduta I Drop test Batteria I Battery Peso I Weight 204 g Dimensioni I Product size 161x90x48 mm TECNOGAS manuale operativo operation manual... -
Page 6: Measurement Area
Before detecting the temperature, you have to ensure that the object diameter is twice the size of the measurement area at least and then determine the test distance D according to the D:S diagram (fig. A). The D:S ratio is equal to 12:1. TECNOGAS manuale operativo operation manual... -
Page 7: Avvio Rapido
I valori corrispondenti appariranno nel display ausiliario. To see the different measured temperature values in the last measurement, press the MODE button ( ) in turn. The corresponding values will apper on auxilliary display. TECNOGAS manuale operativo operation manual... -
Page 8: High/Low Temperature Alarm
Scegliere ON/OFF con le frecce To set the measure unit of the temperature (°C or °F), pull the SET button ( ) until setting is displayed. Switch between ON or OFF pressing the arrows TECNOGAS manuale operativo operation manual... -
Page 9: Manutenzione
During the setting of one of them, it is possible to switch from a setting to another (this operation is valid for each parameter) pushing the button . The values are automatically saved inside the 5 settings of thermometer and can be recalled during the following settings. TECNOGAS manuale operativo operation manual... -
Page 10: Risoluzione Problemi
Grezzo / Rough 0,1 - 0,3 Lucidato / Burnishing Ottone I Brass Ossidato / Oxidization Ossidato / Oxidized 0,4 - 0,8 Rame I Copper Morsetti / Electric terminal board Hastelloy (lega I alloy) 0,3 - 0,8 TECNOGAS manuale operativo operation manual... - Page 11 Pelle umana I Human skin 0,98 Sabbia I Sand 0,90 Carbone I Charcoal 0,96 Tessuto I Textile 0,90 - 0,95 Neve I Snow 0,83 Mattone I Brick 0,93 - 0,96 Cuoio I Leather 0,75 - 0,80 TECNOGAS manuale operativo operation manual...
