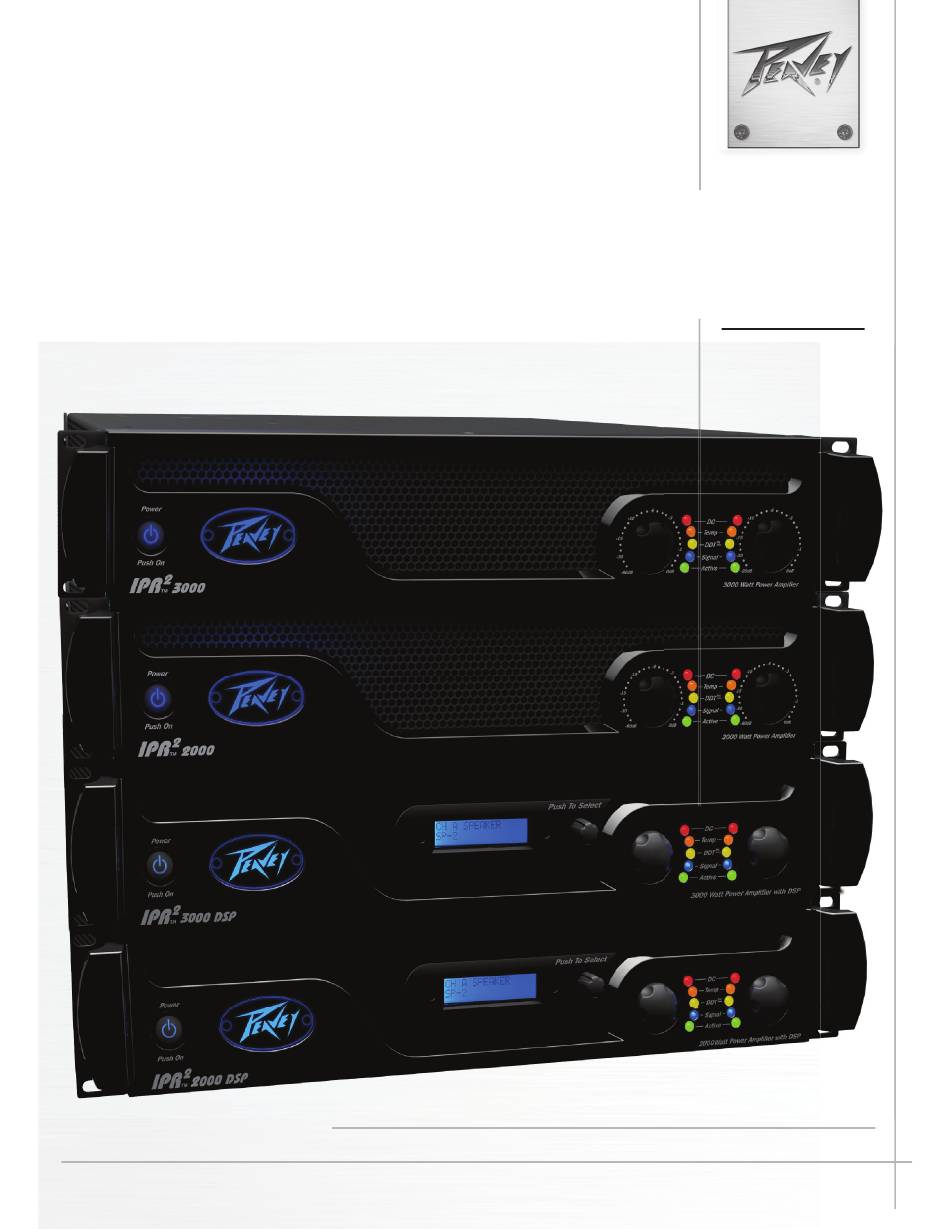

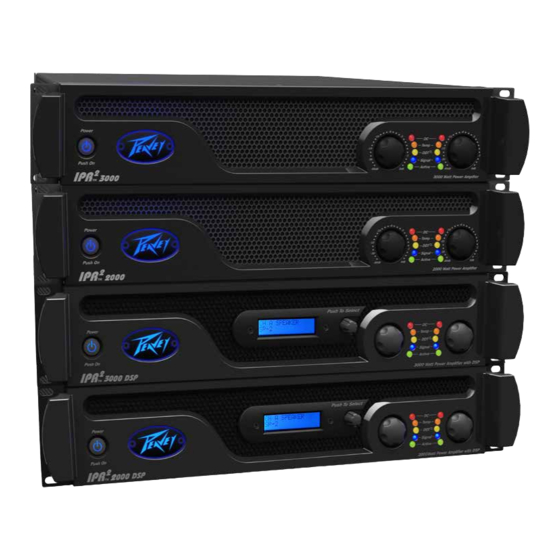

- Page 1 IPR2 ™ 2000/3000 IPR2 ™ 2000/3000 DSP Power Amplifiers Operating Operat ting Manual Manu www.peavey.com...
- Page 2 a risk of electric shock to persons. Intended to alert the user of the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. CAUTION: Risk of electrical shock — DO NOT OPEN! CAUTION: WARNING: Protective earthing terminal. The apparatus should be connected to a mains socket outlet with a protective earthing connection. Este símbolo tiene el propósito de alertar al usario de la presencia de instruccones importantes sobre la operación y mantenimiento en la información que viene con el producto.
-
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING: When using electrical products, basic cautions should always be followed, including the following: Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with a dry cloth. Do not block any of the ventilation openings. - Page 4 Logo referenced in Directive 2002/96/EC Annex Logotipo al que se hace referencia en la Directiva 2002/96/EC Logo documenté dans l’annexe de la Directive 2002/96/EC La barra es el símbolo para marcar los nuevos desechos y se aplica The bar is the symbol for marking of new waste and is applied La barre est le symbole de signalisation des nouveaux déchets qui Correct Disposal of this product.
- Page 5 FCC Compliancy Statement This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, that may cause undesired operation. Warning: Note - pursuant to Part 15 of the FCC Rules.
- Page 6 IPR2 Series amplifiers are designed with a resonant switch-mode power supply and a high-speed class D topology that yields the highest audio resolution and efficiency available. This revolutionary amplifier offers the sonic superiority and unsurpassed reliability for which Peavey is famous, in an extremely efficient and lightweight design. Advanced technology ™...
- Page 7 (or in standby). When the switch is depressed, the amplifier will turn on and the switch will illuminate brightly. PEAVEY LOGO While the amplifier is off, the logo is illuminated dimly to indicate power is connected. When the amplifier is on, the logo will illuminate brightly.
- Page 8 In the unlikely event of operating conditions that may potentially damage the amplifier, the circuit breaker may trip. After inspecting the cables and connections, the amplifier can be reset. If the circuit breaker trips a second time, contact the local Peavey authorized service center.
- Page 9 ENGLISH ™ IPR2 2000/3000 DSP Power Amplifier As the name implies, the IPR2 ™ 2000 and 3000 DSP all include advanced digital signal processing. The DSP was designed to be incredibly effective, yet extremely easy to use. Using unique and revolutionary advanced bass enhancement processes, the IPR2 DSP amplifiers dramatically improve the perceived level of bass in any system, using a fraction of the power that would be required with any other power amplifier.
- Page 10 This button indicates power is connected to the amplifier by glowing dimly while the amplifier is off. When the switch is depressed, the amplifier will turn on and the switch will illuminate brightly. PEAVEY LOGO While the amplifier is off, the logo is illuminated dimly to indicate power is connected. When the amplifier is on, the logo will illuminate brightly.
- Page 11 In the unlikely event of operating conditions that may potentially damage the amplifier, the circuit breaker may trip. After inspecting the cables and connections, the amplifier can be reset. If the circuit breaker trips a second time, contact the local Peavey authorized service center.
-
Page 12: Navigation Overview
Navigation Overview ™ Once the IPR2 screen appears, you can start adjusting the DSP processor. Pressing the encoder will bring you to the main menu. The encoder knob to the right of the display is used to navigate and control the DSP functions. The Channel A and B controls to the left of the display are also encoders but are dedicated to adjusting input gain for each channel. - Page 13 To select an item from the Main Menu, rotate the encoder until the cursor marks the selection you want. Press the encoder to navigate to the Sub Menu adjustment screens for that processing function. When you enter a processing function Sub Menu, the cursor will appear in the upper left corner of the screen allowing you to scroll through Sub Menu screens.
- Page 14 Unlike the other function Sub Menus, the input mode does not change until you select “Save and Apply” and return to the Main Menu. Crossover Filters, Band-Pass Filters and Polarity Set: BP Filters Independently When you enter the “XOVER” Sub Menu, you are given three options for how the band-pass filters can be set.
-
Page 15: Output Polarity
Output Polarity Output Polarity The output polarity can be inverted on either channel. Select Normal or Invert in the polarity screen. If you create a crossover with 12dB per octave filters, the high frequency output would likely need to be inverted to maintain the proper phase relationship at the crossover frequency. - Page 16 Horn EQ The Horn EQ provides a 6dB per octave high frequency boost that is sometimes required for high frequency horns. The frequency control sets the low frequency corner of the filter. To return to the Main Menu, select Discard and Exit or Save and Exit.
-
Page 17: Saving Settings
Saving Settings In the Memory Operation Sub Menu, select “Save Settings.” Select one of the four preset locations. Edit the name by rotating the cursor to select the character and pressing the encoder to step to the next position. Continue until complete. To keep the same name, press the encoder six times to step through the name edit screen. - Page 18 ™ IPR2 2000 Specification Sheet Rated Watts 2ch x 2 ohms 1100 watts 20ms repetitive burst / 900 watts 1% THD both channels driven @ 1kHz. Rated Watts 2ch x 4 ohms 600 watts 20ms repetitive burst / 570 watts 1% THD / 530 watts 0.15% THD, both channels driven @ 1kHz. Rated Watts 2ch x 8 ohms 370 watts 20ms repetitive burst / 325 watts 1% THD / 300 watts 0.15% THD, both channels driven @ 1kHz.
- Page 19 Warranty registration and information for U.S. customers available online at www.peavey.com/warranty or use the QR tag below Features and specifications subject to change without notice. Peavey Electronics Corporation 5022 Hartley Peavey Drive Meridian, MS 39305 (601) 483-5365 FAX (601) 486-1278 Logo referenced in Directive 2002/96/EC Annex IV (OJ(L)37/38,13.02.03 and defined in EN 50419: 2005...
