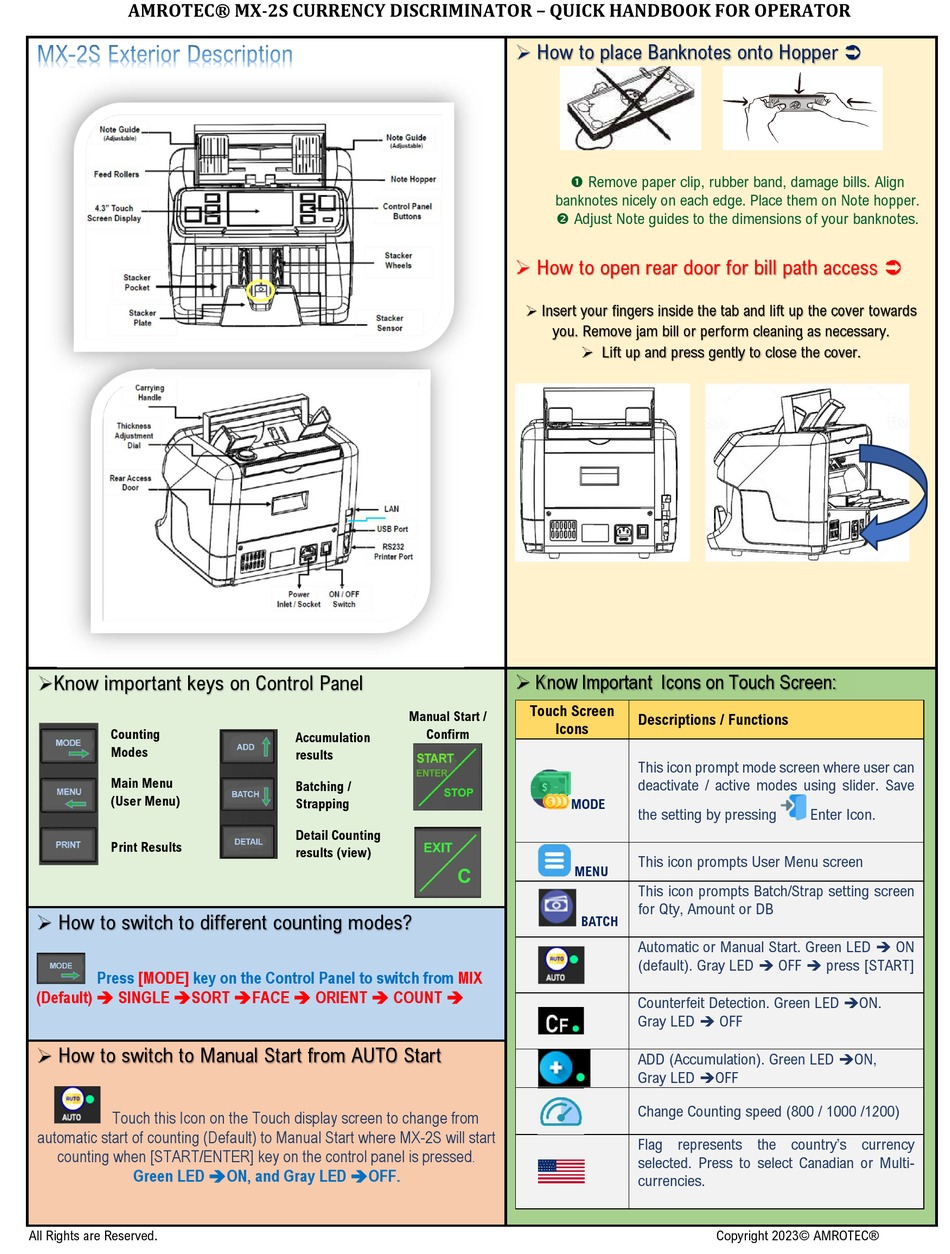

AMROTEC® MX-2S CURRENCY DISCRIMINATOR – QUICK HANDBOOK FOR OPERATOR
Know important keys on Control Panel
Counting
Modes
Main Menu
(User Menu)
Print Results
 How to switch to different counting modes?
Press [MODE] key on the Control Panel to switch from
(Default)  SINGLE SORT FACE  ORIENT  COUNT 
 How to switch to Manual Start from AUTO Start
Touch this Icon on the Touch display screen to change from
automatic start of counting (Default) to Manual Start where MX-2S will start
counting when [START/ENTER] key on the control panel is
Green LED ON, and Gray LED OFF.
All Rights are Reserved.
Manual Start /
Confirm
Accumulation
results
Batching /
Strapping
Detail Counting
results (view)
MIX
pressed.
 How to place Banknotes onto Hopper 
 Remove paper clip, rubber band, damage bills. Align
banknotes nicely on each edge. Place them on Note hopper.
 Adjust Note guides to the dimensions of your banknotes.
 How to open rear door for bill path access 
 Insert your fingers inside the tab and lift up the cover towards
you. Remove jam bill or perform cleaning as necessary.
 Lift up and press gently to close the cover.
 Know Important Icons on Touch Screen:
Touch Screen
Descriptions / Functions
Icons
This icon prompt mode screen where user can
deactivate / active modes using slider. Save
MODE
the setting by pressing
This icon prompts User Menu screen
MENU
This icon prompts Batch/Strap setting screen
for Qty, Amount or DB
BATCH
Automatic or Manual Start. Green LED  ON
(default). Gray LED  OFF  press [START]
Counterfeit Detection. Green LED ON.
Gray LED  OFF
ADD (Accumulation). Green LED ON,
Gray LED OFF
Change Counting speed (800 / 1000 /1200)
Flag represents the country's currency
selected. Press to select Canadian or Multi-
currencies.
Enter Icon.
