Summary of Contents for Commell DC-DC2

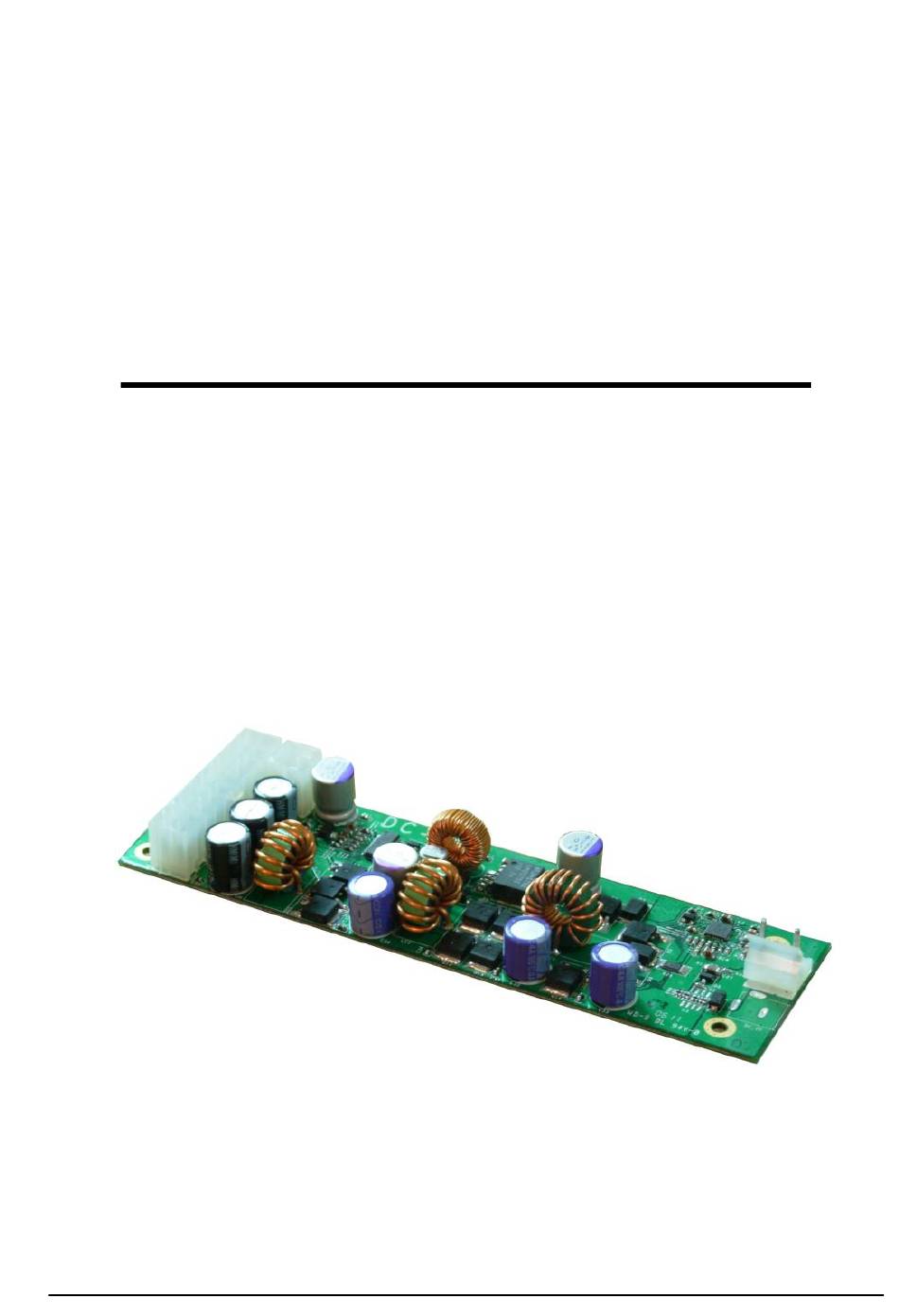

- Page 1 DC-DC2 Power Converter Module User’s Manual Edition 1.3 2023/10/06...
- Page 2 Trademark All trademarks are the property of their respective holders. Any questions please visit our website at h ttp://www.commell.com.tw...
- Page 3 DC-DC2 User’s Manual Packing List: Please check the package content before you starting using the board. Hardware: DC-DC2 Power converter module x 1 Cable Kit: DC Power Cable x 1 (1040071) DC12V to MB Cable x 1 (1040049) ATX to MB Cable x 1...
- Page 4 DC-DC2 User’s Manual Index 1.0 <Product Information> ..................5 1.1 <Mechanical Drawing> ..................6 1.2 < DC-DC2 installation guide > ................7 Contact Information ..................9...
-
Page 5: Product Information
DC-DC2 User’s Manual 1.0 <Product Information> Power Input: 8 ~ 24VDC full range power input (MAX 150W) External 2-pin wafer or DC Jack connector Power output: Range Max Load 3.14 ~ 3.47 +3.3 4.75 ~ 5.25 10 A 11.4 ~ 12.6 5 ~ 8 A -10.8 ~ -13.2... -
Page 6: Mechanical Drawing
DC-DC2 User’s Manual 1.1 <Mechanical Drawing>... -
Page 7: Dc-Dc2 Installation Guide
DC-DC2 User’s Manual 1.2 < DC-DC2 installation guide > CN_12V(DC_Out) DC_2H DC_Input 2 20 1 11 ATX(DC_Out) Remark : When the DC input voltage during 8~12V, +12 V only provide 5A output. Dimension (W x L) 45 x 155mm DC Input... - Page 8 DC-DC2 User’s Manual Connector: ATX Type: 20-pin ATX power connector Description Description 5VSB PWOK PSON 3.3V 3.3V 3.3V Connector: CN_12V Type: 4-pin standard Pentium 4 additional +12V power connector Description Description Ground Ground +12V +12V Jumper: JAT Type: Onboard 3-pin jumper...
-
Page 9: Contact Information
Taiwan Commate Computer Inc. 19F., No.94, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Address Taipei City 22102, Taiwan +886-2-26963909 +886-2-26963911 Website h ttp://www.commell.com.tw E-Mail i nfo@commell.com.tw (General Information) t ech@commell.com.tw (Technical Support) Commell is a brand name of Taiwan commate computer Inc.
