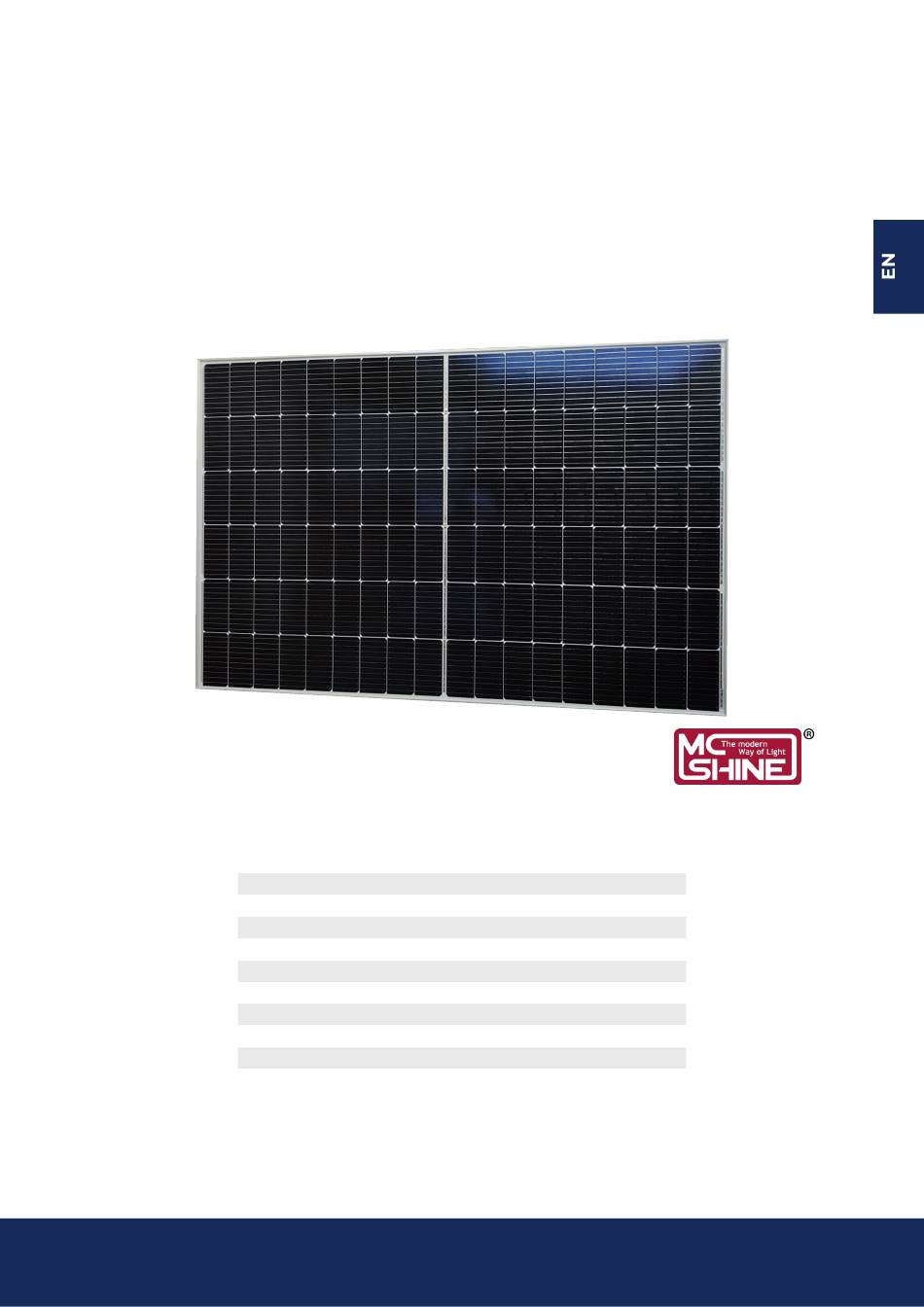

Monocrystalline
Solar Panel McShine
410W, IP68, 1724x1134x35mm
TECHNISCHE DETAILS
Maximum power (Pmax):
Voltage at Pmax:
Current at Pmax:
Module Efficiency:
Protection class:
Cable length:
Length:
Width:
Depth:
Weight:
Made by ETT Distribution GmbH, Schmalbachstraße 16, 38112 Braunschweig
www.ett-online.de | Tel. +49 531 58 11 00 | service@ett-online.de
Reprinting or reproduction only with express permission.
Item number: 1480029
Instruction manual
410 W
31,44 V
13,04 A
20,9 %
IP65
2x 35 cm
1724 mm
1134 mm
35 mm
19,5 kg
Status: 08/2023
Advertisement
Related Manuals for McShine 1480029
Summary of Contents for McShine 1480029
- Page 1 Status: 08/2023 Item number: 1480029 Instruction manual Monocrystalline Solar Panel McShine 410W, IP68, 1724x1134x35mm TECHNISCHE DETAILS Maximum power (Pmax): 410 W Voltage at Pmax: 31,44 V Current at Pmax: 13,04 A Module Efficiency: 20,9 % Protection class: IP65 Cable length:...
-
Page 2: Safety Instructions
Status: 08/2023 Item number: 1480029 SAFETY INSTRUCTIONS General Safety Safety during handling • Modules falling under this application class can be used in • Do not lift the module by the junction box or systems with voltage higher than 50V DC or 240 W, where electrical wires. -
Page 3: Mechanical Installation
Status: 08/2023 Item number: 1480029 MECHANICAL INSTALLATION Safety during installation Selection of the location • Never disconnect electrical connections or unplug • Select a suitable location for installing the modules. connectors while the circuit is under load. • Modules should face south at northern latitudes and north • Contact with electrically active parts of the modules,... - Page 4 Status: 08/2023 Item number: 1480029 • Beachten Sie stets die Anweisungen und • Note and take into account the linear thermal expansion of Sicherheitsvorkehrungen, die in den Modulträgerrahmen the module frames (the recommended minimum distance enthalten sind. between two modules is 2cm).
-
Page 5: General Installation
Status: 08/2023 Item number: 1480029 GENERAL INSTALLATION The modules can be installed using mounting holes, clamps* or an insertion system. The recommended torque is 20 Nm - 25 Nm. The modules must be installed according to the following examples. Strictly follow the guidelines during installation, otherwise the warranty will be affected. - Page 6 Status: 08/2023 Item number: 1480029 RECOMMENDED MOUNTING METHOD A = 1/4 long frame length ±50 mm Fastening with four bolts and beams Fastening with eight bolts and Four clamps with supports underneath beams underneath underneath Test load: Test load: Test load:...
-
Page 7: Electrical Installation
Status: 08/2023 Item number: 1480029 ELECTRICAL INSTALLATION General electrical connection • The PV modules are supplied with connectors for the • All hardware used must be compatible with all other electrical connection of the system. materials used to prevent galvanic corrosion. Defects • To ensure a reliable electrical connection and prevent... - Page 8 Status: 08/2023 Item number: 1480029 Electrical properties Series connection and parallel connection • Module under standard test conditions: Irradiance of • The maximum number of modules that can be connected 1000W/m², cell temperature of 25°C and air mass of AM 1.5. in series in a string must be calculated in accordance • Normally, a module is likely to generate more current...
- Page 9 Status: 08/2023 Item number: 1480029 Recommended installation method for full cell solar modules: It is recommended to connect the modules in the PV system in portrait orientation, and the cable length should not be less than 0.7 m. Recommended mounting method for half-cell solar modules: The head and the end of the modules in the PV array are arranged in portrait orientation, and the cable length is not less than 0.65 m.
- Page 10 Status: 08/2023 Item number: 1480029 Grounding Maintenance • Refer to regional and national safety and electrical To ensure optimal module performance, Amso solar standards for grounding and connection requirements. recommends the following maintenance procedures: If grounding is required, use a recommended type of plug • Clean the module at least once a year or more often...
- Page 11 Schmalbachstraße 16 DE – 38112 Braunschweig erklären unter unserer alleinigen Verantwortung, dass das folgende Produkt Artikelnummer: 1480029 McShine Monokristallines Solarmodul, IP68 auf das sich diese Erklärung bezieht, mit der / den technischen Anforderungen, Normen und Richtlinien gemäß EMV-Richtlinie 2014/30/EU EN 61000-6-3:2007+A1:2011 EN IEC 61000-6-1:2019 gemäß...
