Summary of Contents for ABM ergonomic style Superbike Kit

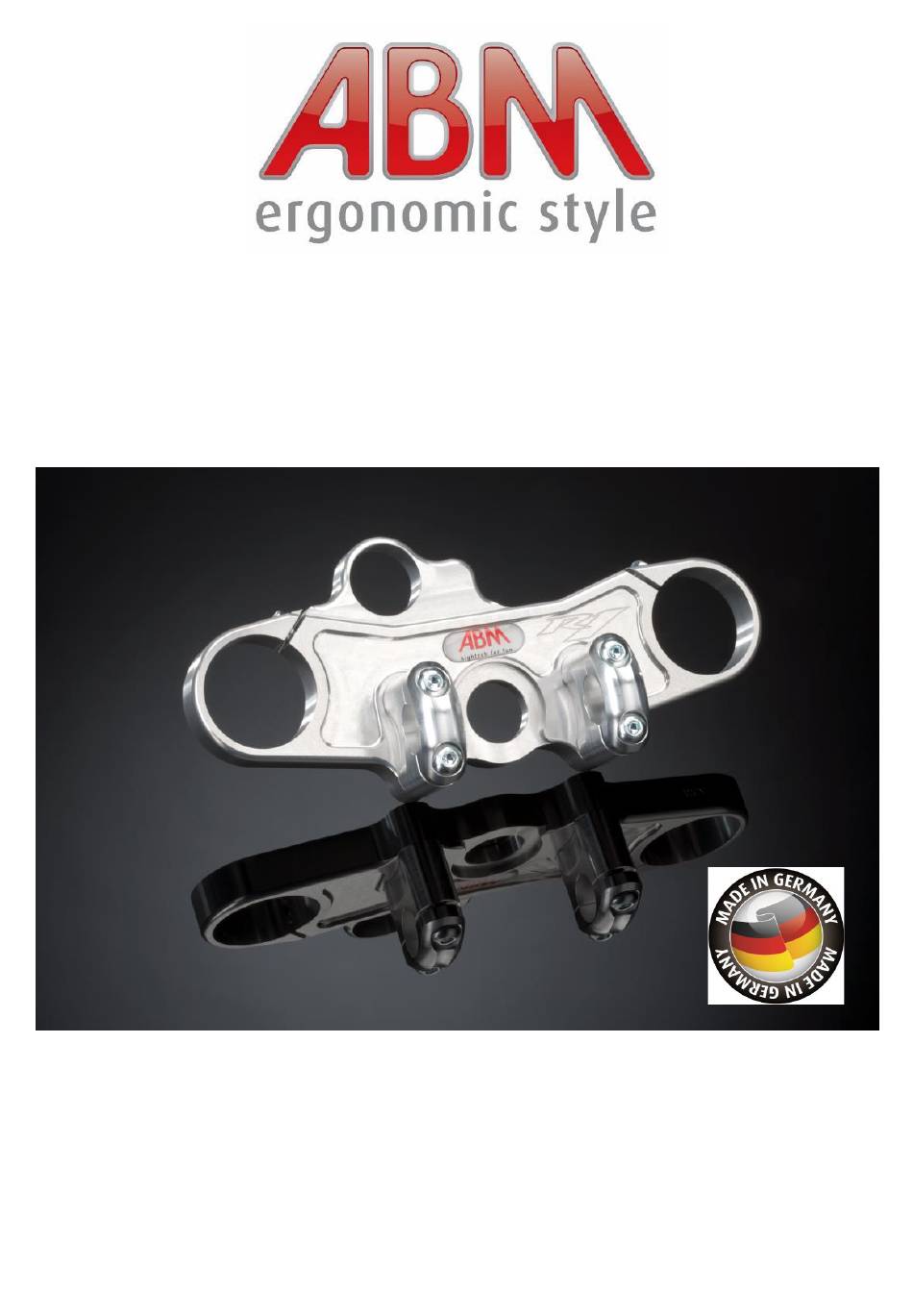

- Page 1 Superbike Kit Installation and safety information Kawasaki Ninja H2 SX from model year 2018 • www.ab-m.de ••• info@ab-m.de •...
- Page 2 Never tie down the vehicle at the handlebar. The Superbike Kit requires registration. This product has been designed for a standard vehicle. ABM® Fahrzeugtechnik GmbH makes no warranty or guarantee of any kind for any damages whatsoever arising out of the combination with other component parts not tested by ABM, as a consequence of improper installation or inadequate maintenance.
- Page 3 ™ Installation manual Superbike for Kawasaki Ninja H2 SX 2018- Preparation Please read the entire safety information and installation manual carefully. A motorcycle not securely positioned can fall over during the following work. Therefore, make sure that the motorbike is positioned on solid, flat ground and is secured against falling over and rolling away.
- Page 4 ™ Installation manual Superbike for Kawasaki Ninja H2 SX 2018- Installation Remove the right-hand fairing and the plastic covering under the head-lamp. Remove all armatures and operating elements as well as the accelerator cables from the handlebars. Tip: Lightly loosen the hollow screw of the hand pump to facilitate opening later.
- Page 5 ™ Installation manual Superbike for Kawasaki Ninja H2 SX 2018- Screw in and tighten the provided screws into the top yokes threads. Mount the risers with the screws (M10) and safety washers provided to the clamps. Tightening torque 28 Nm Make sure that the wide side of the risers is facing forward.
- Page 6 ™ Installation manual Superbike for Kawasaki Ninja H2 SX 2018- Drain the brake fluid. Loosen the connections of the brake- and clutch lines from the pumps, steel lines and the ABS module. Mount the provided Stahlflex lines according to the specifications of the vehicle manufacturer.
- Page 7 ™ Installation manual Superbike for Kawasaki Ninja H2 SX 2018- Stick on the left-hand rubber grip. Before the final fixing of the handlebar and the armatures, make sure that the handlebar does not come into contact with any other parts (e.g. fairing or tank), even in maximum steering angle.
- Page 8 ™ Installation manual Superbike for Kawasaki Ninja H2 SX 2018- After completing the work, the firm fit, function and tightness of all components and screws must be checked. Make sure that there is sufficient brake fluid in the reservoir. Also check the front wheel's freewheel and the functionality of the brake system.
