Summary of Contents for Turbines FIC712-2

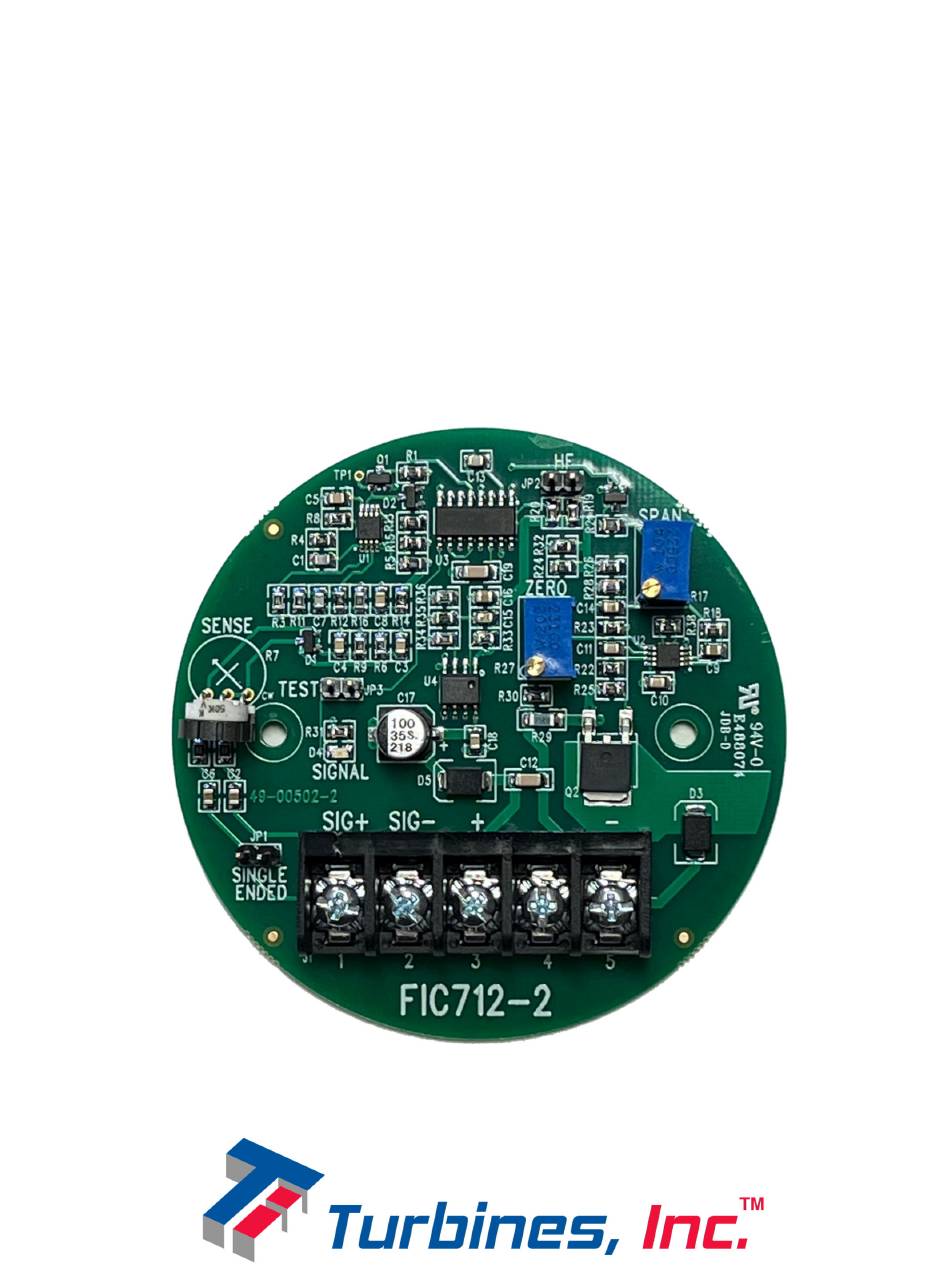

- Page 1 FIC712-2 Loop Powered 2 wire 4-20mA Transmitter Installation and Operation Manual...
- Page 2 JP1 jumper installed. ‘Test’ jumper JP3, when installed, illuminates D4 if both loop voltage and input signal are present. Installation of the FIC712-2 requires only 2 wires because it is a true 2-wire transmitter: input power and signal output utilize the same wires.
- Page 3 Turbines, Inc. FIC712-2 Transmitter pg 3 DOC#: IOM712-2 BENCH TEST CALIBRATION PROCEDURE Required Equipment: Power Supply 12-28v, Digital Multimeter (DMM), Frequency Generator, & Frequency Counter Test Procedure: 250 0 = 100-1000Hz 1 = 1 KHz-10KHz Frequency Power Gen/Ctr Supply...
- Page 4 Turbines, Inc. FIC712-2 Transmitter pg 4 DOC#: IOM712-2 TYPICAL LOOP CONFIGURATIONS 12-28 VDC J1-3 J1-3 POWER SUPPLY RSENSE RLOAD FIC712- FIC712- J1-5 J1-5 12-28 VDC J1-3 J1-3 POWER SUPPLY FIC712- FIC712- RLOAD RSENSE J1-5 J1-5...
- Page 5 Turbines, Inc. FIC712-2 Transmitter pg 5 DOC#: IOM712-2...
