Summary of Contents for MessKonzept FTC320-OEM

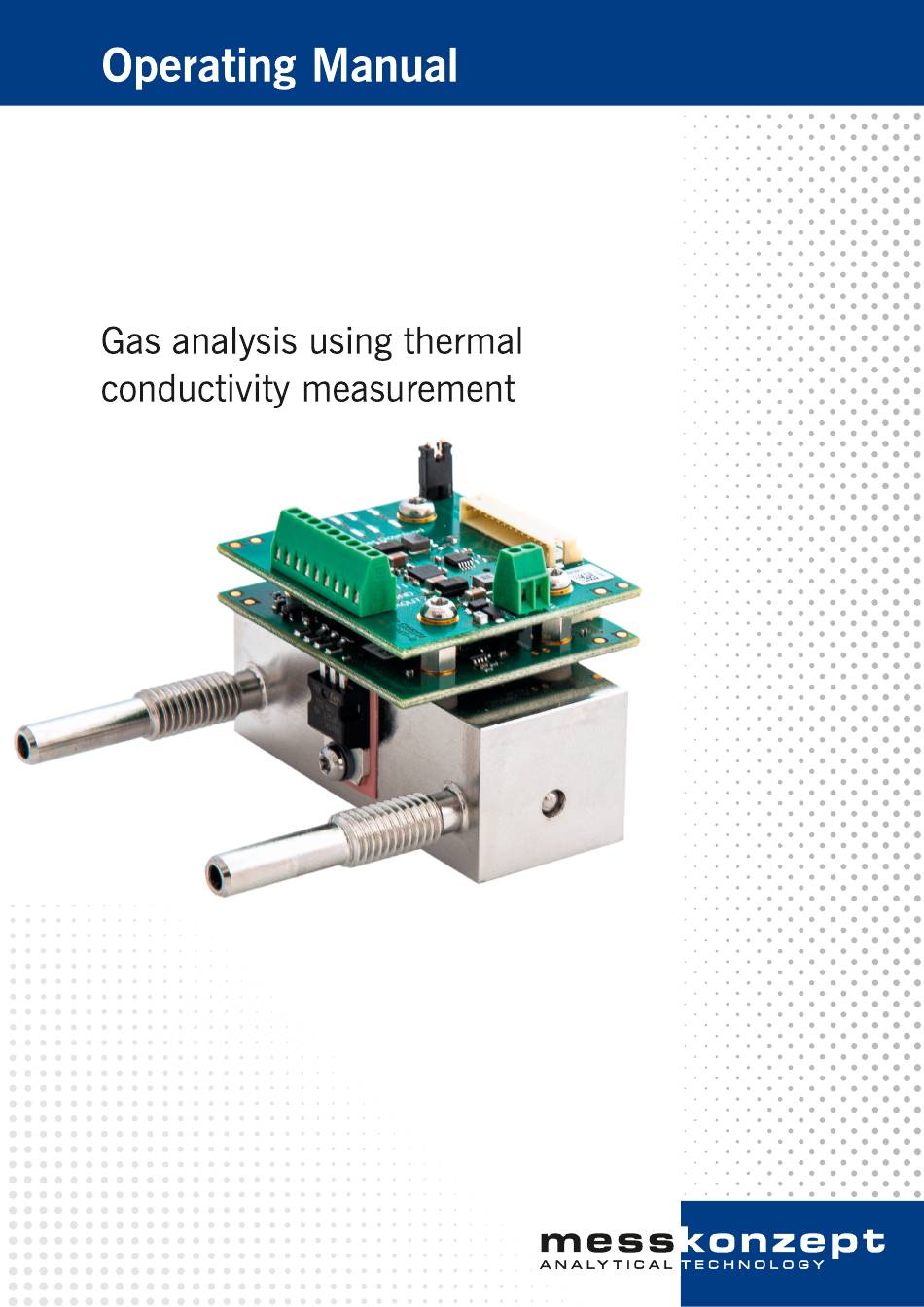

- Page 1 FTC320-OEM...
- Page 2 All information of technical nature and particulars of the product and its use (including the in- formation in this manual) are given by Messkonzept in good faith. However, it is acknowledged that there may be errors or omissions in this manual. Images and drawings may not be in scale.
-
Page 3: Table Of Contents
1 Determining Concentrations via Thermal Conductivity 2 FTC320-OEM Detector Unit 2.1 Description ........ -
Page 4: Operator Safety
• Never lead explosive gases or gas mixtures into the device! • Warranty expires if any element of the device is removed or replaced without the consultation of Messkonzept. • The unit and the cables must be effectively protected against damage and... -
Page 5: Safety Instructions
Note: Please keep this manual for future use. Messkonzept also offers, upon request, other models of the FTC-series analyzers that can monitor, addition- ally to the aforementioned, flammable or explosive gases. For more information in this regard, do not hesitate... -
Page 6: Principle Of Measurement
Cross-sensitivity is the sensitivity of the measurement on other gases than the measured component. The FTC320-OEM contains a TC sensor that analyzes the quantitative composition of gas mixtures. The measurement is based on the heat transfer between a heat source and a heat... - Page 7 File name: 1.09KD221202EMAV01 Figure 1: Schematic drawing of thermal conductivity measurement. The sensor is mounted in the stainless steel block that is kept at a constant temperature. sink. The measuring gas is led through a stainless steel block that is kept at a constant temperature of 63 C (for most applications).
-
Page 8: Ftc320-Oem Detector Unit

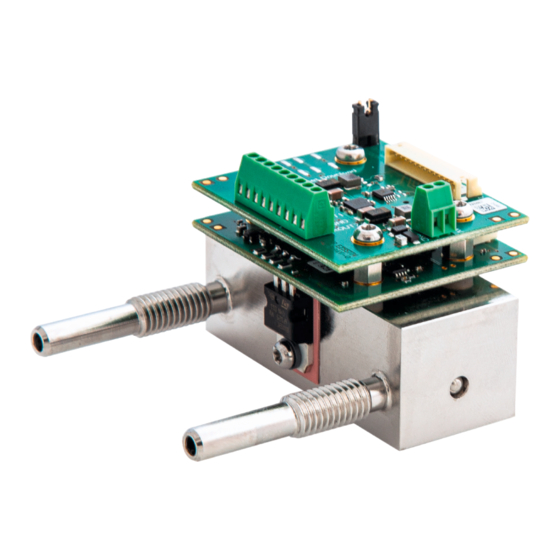

0% - 100% 0% - 2% 96% - 100% Table 1: The measuring ranges of typical gas compositions for analysis with the FTC320-OEM. FTC320-OEM Detector Unit Description The FTC320-OEM is a highly precise and stable Thermal Conductivity Detector (TCD) that is designed for the use as an OEM detector. -
Page 9: Emc
The FTC320-OEM unit must be thermally isolated from the environment! The bottom view of the FTC320-OEM shows four M3 thread holes which can be used for the fixation of the detector (see Figure 2). Use insulating spacers (min. 4mm) and stainless- steel screws in order to minimize heat flow from the 60°C hot detector body. -
Page 10: Electrical Connection
With proper heated lines and connections, a dew point up to 50°C is permissible. Figure 3: The gas in- and outlet of the FTC320-OEM. Warning! The gas led into the device cannot contain any dust, condensate and potentially condensing matter unless the FTC unit equipped with a filter membrane protecting... -
Page 11: Output Of The Instrument
Power supply range: min. 18V – max. 30V, 24V recommended. GND = Ground for negative input from power supply. Maximum DC current consumption = 700mA. Figure 4: The electrical connections to and from the FTC320-OEM. Part IV Output of the Instrument The gas concentration is mapped onto the voltage output of the device. -
Page 12: Communication With Ftc320-Oem
Figure 5: Connecting the Low-voltage TTL (LVTTL) with the board. SetApp 3.0 Starting in February 2023, Messkonzept will offer a software for the operation of the FTC320 series. It enables monitoring of measured values and adjusting the settings of the FTC devices. -
Page 13: Specifications
80kPa (0.8 bar) to 2000kPa (20bar) Error due to change of pressure (above 800hPa) 1% of smallest range per 10hPa Table 2: Specifications of the TC-analyzer FTC320-OEM. The values given above refer to H in N , they may vary for other gas pairs. -
Page 14: Drawings
File name: 1.09KD221202EMAV01 Part VIII Drawings Figure 6: 3D-model of the FTC320-OEM from the upper left side. Figure 7: 3D-model of the FTC320-OEM from the bottom left side.
