Summary of Contents for Club Cannon THE BUTTON

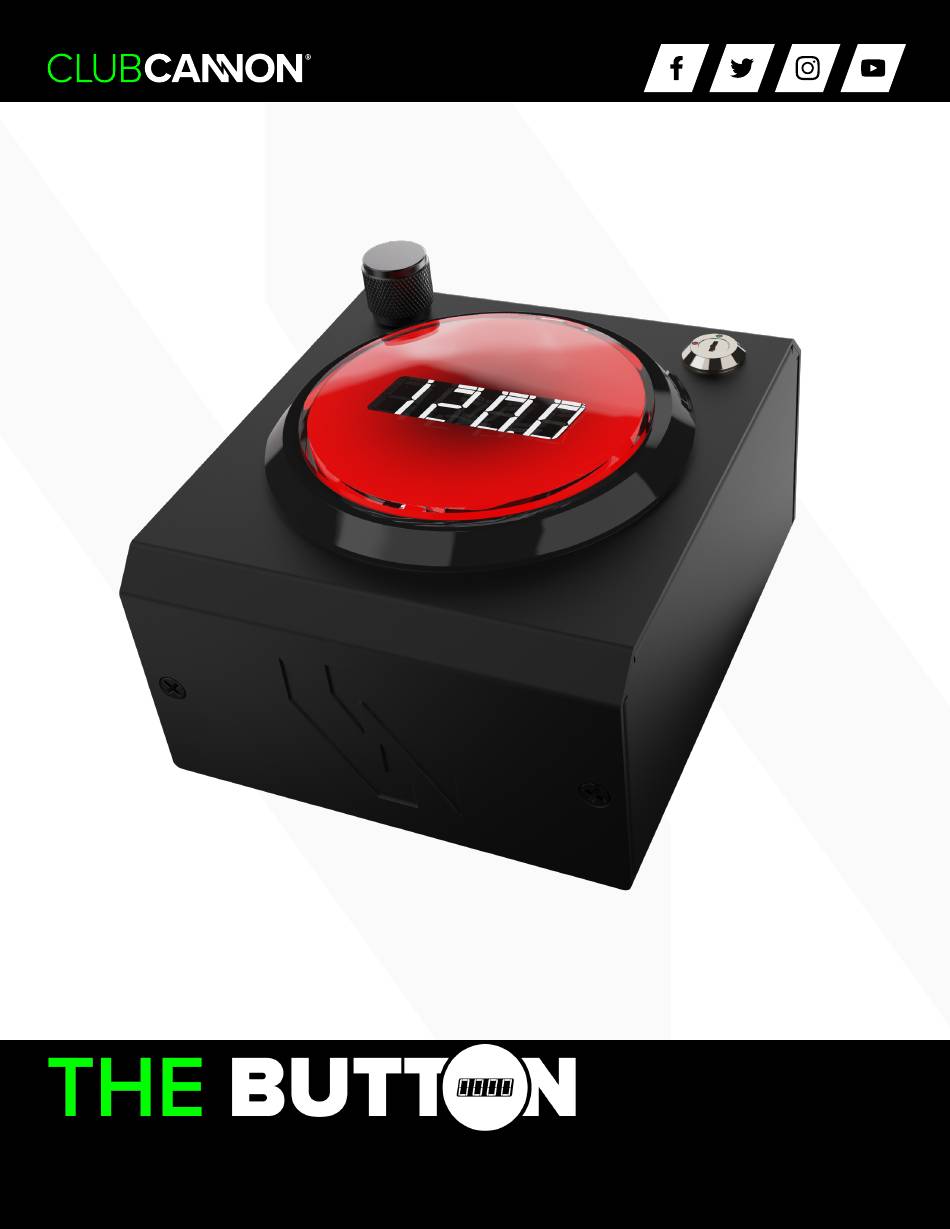

- Page 1 VERSION 1.5 User Manual JAN 2023...

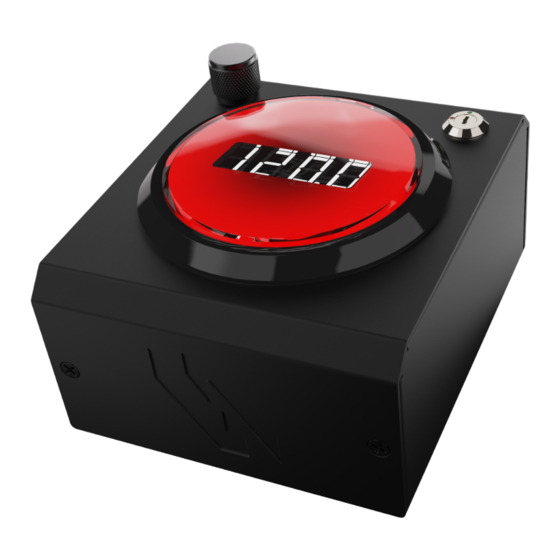

- Page 2 FX products that rely on consumables, or a reference for cues calling for a specified duration. The Button introduces new capabilities in a compact & simple form factor. Designed from the ground up to provide an intuitive, capable dmx control solution for special effects equipment of all kinds.
-
Page 3: Specifications
INCLUDED ITEMS The following items are included with the purchase of The Button. If you need replacement items, contact Club Cannon, 888-804-8175 / info@clubcannon.com. THE BUTTON TRUE1 CABLE SAFETY KEYS Special effects controller Nema 5-15 to True1 Used to arm / disarm with 3 &... - Page 4 MODE While Cut Mode is enabled, the button will function as usual until the timer reaches 0. At that point, DMX output will be deactivated until the timer is reset or Cut Mode is disabled. This allows you to control usage as needed.
- Page 5 LED colors on the fly. The Button’s colors will correspond to the output color. SETTINGS SETTINGS LEd > COLr The Button has 30+ preset looks to choose from. There is also 1 custom color that can be set via RGB settings. (LED > Colr > Cust) ADJUSTIBLE ANIMATIONS LEd >...
- Page 6 .OFF .002 dONE prEsEts G100 The Button is an electronic device, sensitive to moisture. To avoid risk of electronic shock, malfunction, or voided warranty, only use in dry environments. PAIr This product should only be used by trained and qualified persons.
- Page 7 ENCODER KEY LOCK MENU ENCODER Used for navigation on The Button’s menu. The Button features a segmented RGB LED backlit button that can be RGB LED BUTTON customized to suit the operators needs. SAFETY KEY LOCK Key lock enables & disables DMX output...
- Page 8 HARDWARE OVERVIEW CONTROLLER REAR TRUE1 DMX OUTPUTS POWERCON (3 & 5 PIN) INPUT ONLY 1 PORT TO BE USED AT A TIME POWER Controller supports voltage from 110v-240v via True1 PowerCON Input. One full universe of optically isolated DMX output. Output is isolated from controller, ports are not isolatted from each other.
-
Page 9: Troubleshooting
• The LED fixture channel order needs to be as follows: fixture. CH 1 : Dimmer/Intensity CH 2: Red CH 3: Green CH 4: Blue No user serviceable parts inside. If your issue is not listed or the suggested solution did not solve the issue, contact Club Cannon. - Page 10 Page left blank intentionally.
-
Page 11: Warranty
This product should only be used by trained and qualified persons. Club Cannon, LLC accepts no liability or responsibility for misuse or abuse of this product, nor any liability or responsibility of the products being used with the The Button. - Page 12 CONTACT 856 Ricardo Ct, San Luis Obispo, CA 93401 888-804-8175 info@clubcannon.com ● www.clubcannon.com © CLUB CANNON 2023...
