www.philips.com/welcome
EN
User manual
Customer care and warranty
Troubleshooting & FAQs
E line
E Line
391E8
391E8
1
17
21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 391E8 and is the answer not in the manual?

Questions and answers

Related Manuals for Philips 391E8

Summary of Contents for Philips 391E8

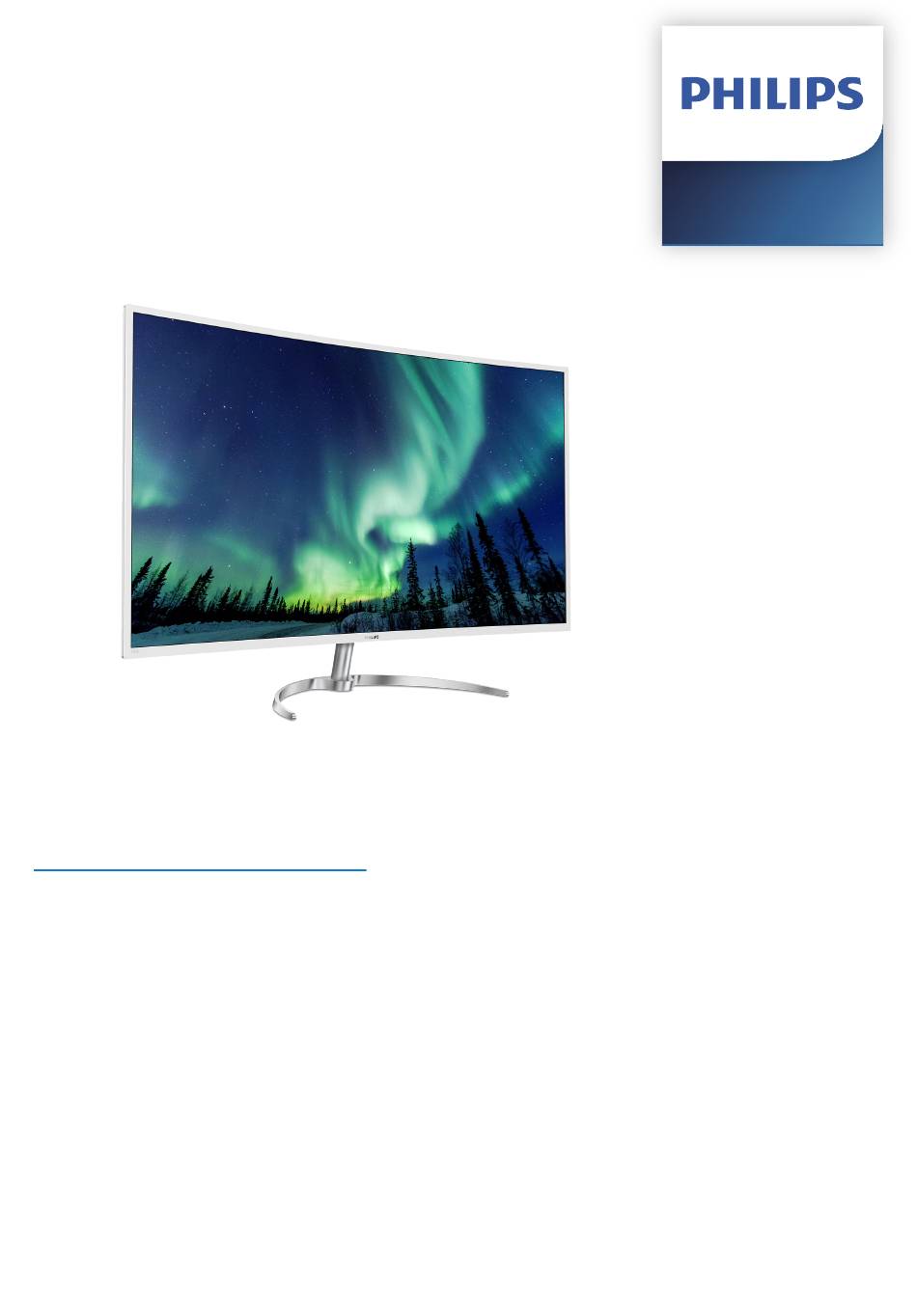

  • Page 1 E line E Line 391E8 391E8 www.philips.com/welcome User manual Customer care and warranty Troubleshooting & FAQs...

  • Page 2: Table Of Contents

    4.1 Resolution & Preset Modes ..15 5. Power Management ....16 6. Customer care and warranty ... 17 6.1 Philips’ Flat Panel Monitors Pixel Defect Policy ...... 17 6.2 Customer Care & Warranty ..20 7. Troubleshooting & FAQs ... 21 7.1 Troubleshooting ......

  • Page 3: Important

    • Please use approved power cord purchase, dealer’s name and model and provided by Philips at all times. If production number of the product. your power cord is missing, please contact your local service center.

  • Page 4: Notational Descriptions

    1. Important pose the monitor to dust, rain, water, that will not disappear and cannot be or excessive moisture environment. repaired. The damage mentioned above is not covered under your warranty. • If your monitor gets wet, wipe it with dry cloth as soon as possible.

  • Page 5: Disposal Of Product And Packing Material

    Equipment-WEEE From the planning, design and production stages, Philips emphasizes the important of making products that can easily be recycled. At Philips, end-of-life management primarily entails participation in national take- This marking on the product or on back initiatives and recycling programs...

  • Page 6: Setting Up The Monitor

    Top Victory Investments Ltd. or one of its a liates. Top Victory Investments Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. used under license.

  • Page 7: Operating The Monitor

    2. Setting up the monitor Connecting to your PC 2.2 Operating the monitor Front view product description AC power input HDMI input DVI input VGA input HDMI Audio out Kensington anti-theft lock Connect to PC 1. Connect the power cord to the back Press to switch power on.
  • Page 8 On-Screen Display. You can use On-Screen Display (OSD) is a feature in this as a reference when you want to all Philips LCD monitors. It allows an end work your way around the different user to adjust screen performance or adjustments later on.

  • Page 9: Remove The Base Assembly

    2. Setting up the monitor Resolution notification 2. Use your fingers to loosen the screw located at the bottom of the base, This monitor is designed for optimal and remove the base from the performance at its native resolution, stand. 1920x1080@60Hz.

  • Page 10: Image Optimization

    Whether you're working with text applications, displaying images or watching a video, Philips SmartImage delivers great optimized monitor performance. 1. Toggle to the left to launch the Why do I need it? SmartImage on screen display.
  • Page 11 Developed for wellbeing, temperature of the monitor. Philips LowBlue Mode setting uses a smart software technology to • Office: Enhances text and dampens reduce harmful shortwave blue brightness to increase readability light.

  • Page 12: Smartcontrast

    3. Image Optimization 3.2 SmartContrast What is it? Unique technology that dynamically analyzes displayed content and automatically optimizes a LCD monitor's contrast ratio for maximum visual clarity and viewing enjoyment, stepping up backlighting for clearer, crisper and brighter images or dimming backlighting for clear display of images on dark backgrounds.

  • Page 13: Adaptive Sync

    3. Image Optimization • AMD Radeon R7 260X 3.3 Adaptive Sync • AMD Radeon R7 260 ■ Processor A-Series Desktop and Mobility APUs Adaptive Sync • AMD A10-7890K • AMD A10-7870K PC gaming has long been an imperfect • AMD A10-7850K experience because GPUs and monitors •...

  • Page 14: Technical Specifications

    4. Technical Specifications 4. Technical Specifications Picture/Display Monitor Panel Type VA panel Backlight W-LED system Panel Size 38.5” W (97.8cm) Aspect Ratio 16:9 Pixel Pitch 0.445(H) x 0.445(V) mm SmartContrast 20,000,000:1 Response Time 8ms (GtG) (typ.) SmartResponse 5ms (GtG) Optimum 1920x1080 @ 60Hz Resolution Viewing Angle...
  • Page 15 4. Technical Specifications Power AC Input AC Input AC Input Consumption Voltage at Voltage at Voltage at 100VAC , 50Hz 115VAC , 60Hz 230VAC , 50Hz Normal Operation 59.7 W (typ.) 59.8 W (typ.) 59.9 W (typ.) Sleep (Standby) 0.5 W (typ.) 0.5 W (typ.) 0.5 W (typ.) 0.3 W (typ.)
  • Page 16 Cabinet Color White Finish Glossy Note 1. This data is subject to change without notice. Go to www.philips.com/support to download the latest version of leaflet. 2. Smart response time is the optimum value from either GtG or GtG (BW) tests.

  • Page 17: Resolution & Preset Modes

    4. Technical Specifications 4.1 Resolution & Preset Modes Maximum Resolution 1920x1080@60Hz (VGA/DVI/HDMI) 1920x1080@75Hz (HDMI) Recommended Resolution 1920x1080@60Hz (digital input) H. freq Resolution V. freq (Hz) (kHz) 31.47 720x400 70.09 31.47 640x480 59.94 35.00 640x480 66.67 37.86 640x480 72.81 37.50 640x480 75.00 37.88 800x600...

  • Page 18: Power Management

    5. Power Management 5. Power Management If you have VESA DPM compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse or other input device is detected, the monitor will 'wake up' automatically.

  • Page 19: Customer Care And Warranty

    Other combinations Pixel Defect Policy of lit and dark sub pixels appear as single pixels of other colors. Philips strives to deliver the highest quality products. We use some of the Types of Pixel Defects industry's most advanced manufacturing...
  • Page 20 A red or blue bright dot must be the warranty period, a TFT Monitor more than 50 percent brighter than panel in a Philips flat panel monitor must have pixel or sub pixel defects neighboring dots while a green exceeding the tolerances listed in the bright dot is 30 percent brighter than following tables.
  • Page 21 6. Customer care and warranty BRIGHT DOT DEFECTS ACCEPTABLE LEVEL 1 lit subpixel 2 adjacent lit subpixels 3 adjacent lit subpixels (one white pixel) Distance between two bright dot defects* >15mm Total bright dot defects of all types BLACK DOT DEFECTS ACCEPTABLE LEVEL 1 dark subpixel 5 or fewer...

  • Page 22: Customer Care & Warranty

    Please contact our Philips Customer Service Representative or local contact center (by Consumer care number) for more details. Philips Customer Care Center number listed below.

  • Page 23: Troubleshooting & Faqs

    • Disconnect the monitor from mains • First, ensure that the power button power source immediately for safety on the front of the monitor is in the • Contact with Philips customer OFF position, then press it to the service representative immediately. ON position.
  • Page 24 For further assistance, refer to the images over an extended period Consumer Information Centers list may cause "burn in", also known as and contact Philips customer service "after-imaging " or "ghost imaging", representative. on your screen. "Burn-in", "after- * Functionality different according to imaging", or "ghost imaging"...

  • Page 25: General Faqs

    • Shut down your computer, the panel surface side. This may disconnect your old monitor and affect your warranty conditions. reconnect your Philips LCD monitor. How should I clean the LCD • Turn on your monitor and then turn surface? on your PC.
  • Page 26 Q9: Can I connect my LCD monitor to Q12: Why is my Display not showing any PC, workstation or Mac? sharp text, and is displaying jagged Ans.: Yes. All Philips LCD monitors are characters? fully compatible with standard Ans.: Your LCD monitor works PCs, Macs and workstations.
  • Page 27 7. Troubleshooting & FAQs Q13: How to unlock/lock my hot key? Ans.: Please press for 10 seconds to unlock/lock the hot key, by doing so, your monitor pops out “Attention” to show the unlock/lock status as shown below illustrators.    ...
  • Page 28 Top Victory Investments Ltd. or one of its affiliates. Top Victory Investments Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. used under license.
