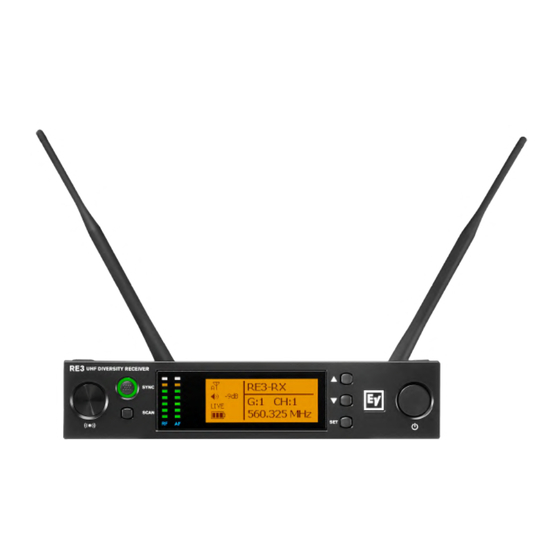

Electro-Voice | RE3-RX RE3 Diversity Receiver
RE3-RX RE3 Diversity
Receiver
▪ Diversity reception minimizes dropouts
▪ Up to 36 MHz tuning bandwidth (band specific) for
trouble-free operation
▪ Easy-to-read LCD display
▪ Frequency scanning for selecting open frequencies
▪ Sync function links transmitter to receiver for easy
setup
The RE3-RX is a professional rack-mountable, ½ space
diversity receiver. Designed to function as the control
center for an RE3 wireless set, it features frequency
scanning and synchronizing, as well as full transmitter
control settings which synchronize to a mated
transmitter.
The diversity reception technology minimizes the
chances of signal dropouts by providing two separate
antenna locations which are electronically chosen
moment-by-moment based on signal strength and
stability. The wide tuning bandwidth provides access
to a wide range of frequencies, selectable in 25kHz
steps for trouble-free operation of single and multi-
channel systems. The easy-to-read LCD display
provides vivid viewing of all menus and operating
parameters. The easy-to-use frequency scanning
function simplifies locating and tuning to a clear
operating frequency. The sync function wirelessly
synchronizes all operating parameters to the mated
transmitter.
Technical specifications
Frequency oscillation mode:
Carrier frequency range:
Band names, tuning
bandwidths, and carrier
frequency ranges:
Phase-locked loop (PLL)
470 - 865 MHz
(tuning bandwidth is band
dependent)
5L: 36 MHz (488-524 MHz)
5H: 36 MHz (560-596 MHz)
6M: 10 MHz (653-663 MHz)
8M: (823-865 MHz)*
T: 3 MHz (803-806 MHz)
*8M is split into two segments:
823-832MHz: 9MHz
863-865MHz: 2MHz
Sync frequency:
Ultrasonic 40 kHz
Diversity:
Antenna diversity
Bandwidth:
36MHz
Signal/Noise ratio:
>100dB(A)
Total harmonic distortion
<0.6%@1kHz
(Thd):
Receiving sensitivity:
-81dBm for -12dB SINAD
Frequency response:
63Hz~16kHz±2dB (BPT)
51Hz~16kHz±2dB (HHT)
Antenna type:
Detachable ½ wave with BNC
connector
Antenna booster power:
DC12 - 15V/100mA
Function display by:
LCD
Contents of display:
Group, channel, frequency, antenna
A/B, transmitter battery level,
transmitter status (mute, live, or no
sync), output level attenuation, AF
indication, RF indication, key lock
indicator.
