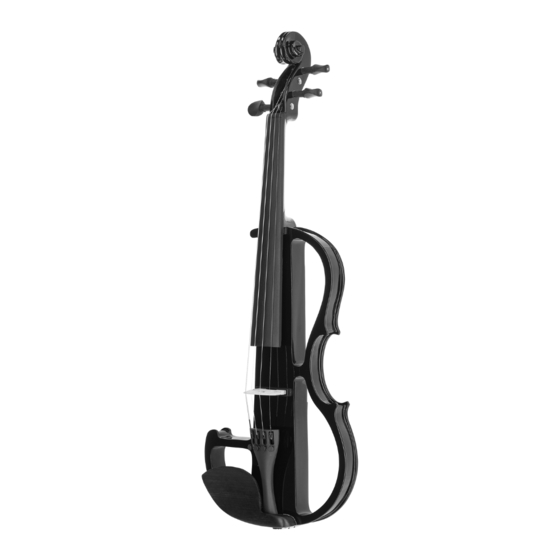

- Page 1 HBV 870 Electric Violin...
- Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 02.05.2022, ID: 225647, 225648, 225650, 456461, 511891 (V2)
-
Page 3: Table Of Contents
5.2 Connecting audio devices..................12 5.3 Connecting headphones................... 12 5.4 Adjusting Volume and Tone..................12 Maintenance........................... 13 6.1 Changing strings......................13 6.2 Battery change....................... 13 Technical specifications....................14 Plug and connection assignment................. 15 Cleaning............................ 16 Protecting the environment................... 17 HBV 870 Electric Violin... - Page 4 HBV 870 Electric Violin...
-
Page 5: General Information
Service customer service will gladly assist you. 1.2 Notational conventions This manual uses the following notational conventions: Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. HBV 870 Electric Violin... -
Page 6: Symbols And Signal Words
NOTICE! This combination of symbol and signal word indicates a possible dangerous situation that can result in mate‐ rial and environmental damage if it is not avoided. Warning signs Type of danger Warning – danger zone. HBV 870 Electric Violin... -
Page 7: Safety Instructions
Leaking batteries can cause permanent damage to the device. Take batteries out of the device if it is not going to be used for a longer period. NOTICE! Possible property damage by magnetic fields Loudspeakers produce a static magnetic field. Therefore, maintain an appropriate distance to devices that can be adversely affected or damaged by an external magnetic field. HBV 870 Electric Violin... -
Page 8: Scope Of Delivery
1 × bridge (pre-assembled) 1 × strings set (pre-assembled) 1 × composite bow 1 × bow rosin 1 × compatible carrying case Assembling and tuning your instrument are described in detail in the following sec‐ tions. HBV 870 Electric Violin... -
Page 9: Assembly Instructions
3.5 mm jack socket to connect an audio device. [MIC] 3.5 mm jack socket to connect an instrument microphone. [PHONE] 3.5 mm jack socket to connect head phones. [ON]/[OFF] Main switch. Turns the device on and off. Battery compartment HBV 870 Electric Violin... -
Page 10: Tuning The Strings
Assembly instructions 4.1 Tuning the strings Tune all strings with the machine heads using a tuner device to the correct pitch (usually g–d'–a'–e''). HBV 870 Electric Violin... -
Page 11: Connections And Controls
Before you connect amplifiers or microphones, the volume controls of the violin and the devices to be connected must be set to “Minimum”. This avoids loud crack noises when switching on. HBV 870 Electric Violin... -
Page 12: Connecting And Inserting The Battery
When using headphones with 1/4" jack, you need an appropriate adapter. 5.4 Adjusting Volume and Tone The controls to adjust the volume [Volume] and the tone (treble, bass) [TONE] are located on the back of the instrument. HBV 870 Electric Violin... -
Page 13: Maintenance
It must audibly click into position. NOTICE! Risk of fire due to incorrect polarity Incorrectly inserted batteries may destroy the device or the batteries. Ensure that proper polarity is observed when inserting batteries. HBV 870 Electric Violin... -
Page 14: Technical Specifications
Weight 700 g Ambient conditions Temperature range 0 °C…40 °C Relative humidity 20 %…80 % (non-condensing) Further information Number of strings Size Electronic Incl. bag Incl. case Incl. bow Incl. shoulder support Incl. 4 fine tuners HBV 870 Electric Violin... -
Page 15: Plug And Connection Assignment
Since the interference affects both cores equally, by subtracting the phase-shifted signals, the interfering signal is completely neutralized. The result is a pure signal without any noise interference. Three-pole 1/8" mini phone jack (stereo, unbalanced) Signal (left) Signal (right) Ground, shielding HBV 870 Electric Violin... -
Page 16: Cleaning
Cleaning Cleaning Clean the instrument and especially the strings after playing with a dry, soft, lint-free cloth. Stubborn dirt can be removed with a slightly dampened cloth. Never use cleaners containing alcohol or thinner. HBV 870 Electric Violin... -
Page 17: Protecting The Environment
Dispose this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. HBV 870 Electric Violin... - Page 18 Notes HBV 870 Electric Violin...
