    Introduction The Murideo 8K SIX-G is an HDMI pattern generator intended for the AV integration market to confirm HDMI 2.0(b) and HDCP 2.3 operation at the 40 Gbps level. Additionally, the SIX-G is an excellent field troubleshooting tool for distributed high bandwidth HDMI systems and a reference source for video cali- bration.

  • Page 5: What's In The Box

    3” LCD display with simple menu system Native 4K Geometry Pattern in multiple Timings (Frame Rates) Audio test tones for confidence testing What’s in the box MU-GEN2-SIX-G-8K Generator 12V 2A DC/AC Power Supply / Charger (110- 240 VAC) Rechargeable Battery Pack (Internal) x1 USB-C to USB A cable x1 3.5mm to DB9 (F) serial cable adapter...

  • Page 7: Front Panel Overview

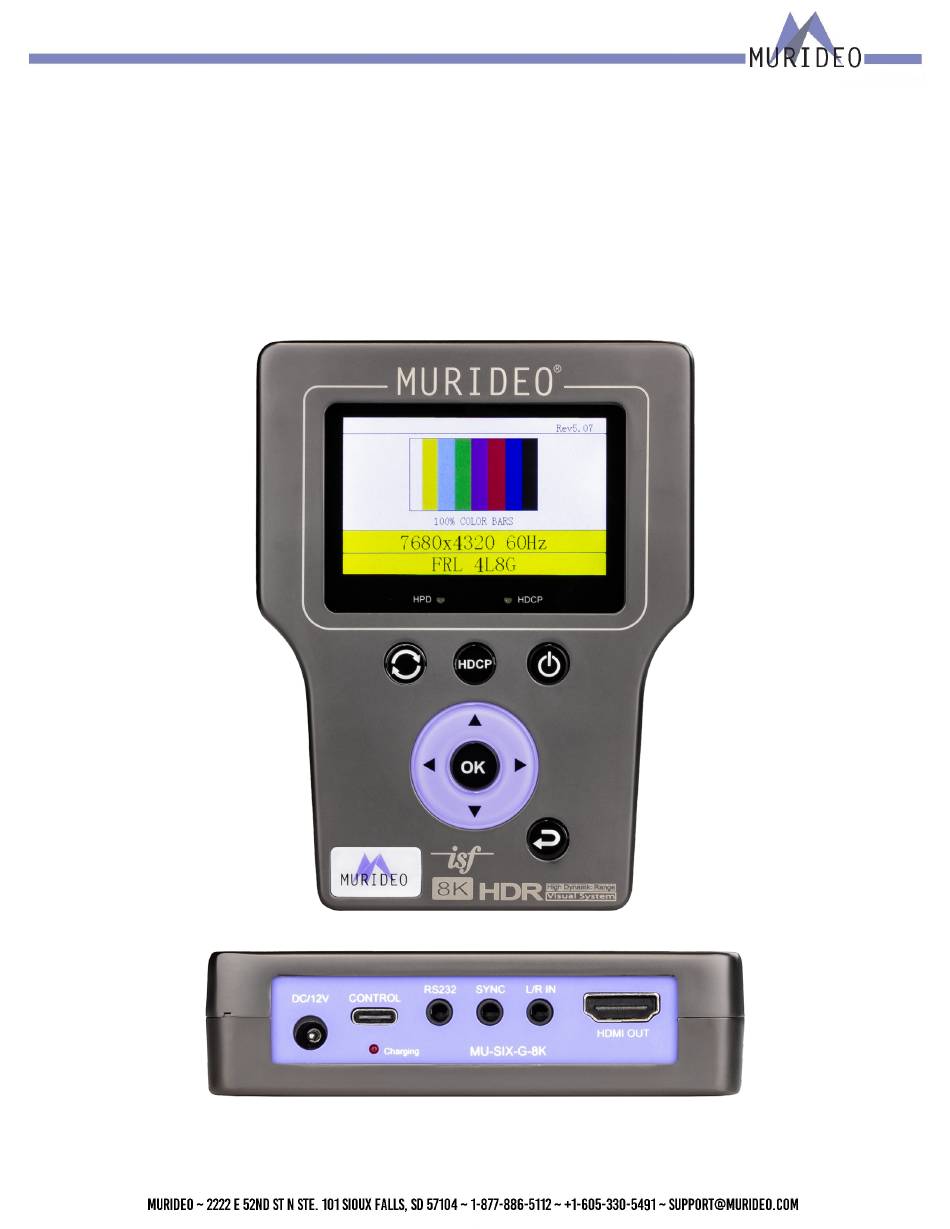

    FRONT PANEL OVERVIEW Connection Overview:...

  • Page 8: D E O G E N E R At O R : M A I N M E N U

    Video Generator: Main Menu Pressing the OK button will bring up the Main Menu. Use the up/down arrow keys to select a sub menu, press the OK button to enter. 01 - Timing Setup 02 - Pattern Setup 03 - Color Space Setup 04 - BT.2020 Setup 05 - Color Depth Setup 06 - HDCP Setup...
  • Page 9 Video Generator: Main Menu Pressing the OK button will bring up the Main Menu. Use the up/down arrow keys to select a sub menu, press the OK button to enter. 01 - Timing Setup 02 - Pattern Setup 03 - Color Space Setup 04 - BT.2020 Setup 05 - Color Depth Setup 06 - HDCP Setup...
  • Page 10 01 - Timing Setup This menu contains the available output timings separated into 9 sub menus. They are broken down below. 4K-DCI 01 - 7680x4320 30Hz 01 - 3840x2160 30Hz 01 - 4096x2160 30Hz 02 - 7680x4320 29.97Hz 02 - 3840x2160 29.97Hz 02 - 4096x2160 29.97Hz 03 - 7680x4320 25Hz 03 - 3840x2160 25Hz...

  • Page 11: F P G A P Att E R

    02 - Pattern Setup This menu contains 7 sub menus for Pattern Setup. These include the following options: 01 - FPGA Pattern 02 - HDR Pattern 03 - HD ISF Pattern 04 - UHD ISF Pattern 05 - Dolby Vision Pattern 06 - IRE Window 07 - RGB Triplet 1 - FPGA Pattern...

  • Page 12: H D R P Att E R

    2 - HDR Pattern The SIX-G-8K contains 3 HDR test patterns and 1 HDR reference image provided by DVS (www.diversi- fiedvideosolutions.com). These test patterns/image are natively 1920x1080@60Hz 4:2:2 12Bit 1000nits. Use the test patterns to verify black level, white level, and color saturations are set correctly on the dis- play.

  • Page 13: H D I S F P Att E R

    3 - HD ISF Pattern This menu contains 9 ISF Patterns in HD (1920x1080P 60Hz). 01 - Black Pluge HD 02 - White Pluge HD 03 - Geometry 178 HD 04 - Geometry 240 HD 05 - Cone Gradiants 06 - ISF Color Girls 07 - PD Family 08 - ISF Dob 09 - Red Blue MTB...

  • Page 14: I R E W I N D O

    6 - IRE Window: Use this menu to change the size and level of the window test pattern. This may be helpful when work- ing with different display types. Once in this menu press the OK button. Use the UP/DOWN buttons to INCREASE/DECREASE the window size.

  • Page 15: R G B T R I P L E

    RGB Triplet: Use this menu to create a custom window test pattern. Here you can control the size and color of not only the window but also the background of the test pattern. This can be used for SDR and Dolby Vision/ HDR.
  • Page 16 03 - Color Space Setup Select the Color Space for the display or system you are testing. These include the following options: RGB (0-255) – RGB Full is generally reserved for PC monitors since PCs use full range RGB. RGB (16-235) – RGB Limited - HDTV SMPTE Range – Movies and most video based content (TV Shows, streaming, etc.) are viewed and produced within this range.
  • Page 17 05 - Deep Color Depth Deep Color Depth - Also known as Color Depth/Bit Depth. Allows selection of bit depth between 8 and 16-bits per pixel. This menu contains the following options: 8Bit 10Bit 12Bit 16Bit As the Bit Depth increases the image looks smoother, especially within solid colors in the image. Note: Resolution/Timing, Color Space, and Bit Depth are interrelated and they all effect the total band- width.
  • Page 18 06 - HDCP Setup In this menu you can enable or disable HDCP. Disabling HDCP may be useful while troubleshooting. These menu contains the following options: HDCP OFF HDCP1.4 HDCP2.3 The above example the repeater/AVR cannot pass HDCP 2.x (resulting in “HDCP Snow”). Steps must be taken to convert, bypass, or replace the non-compliant device.
  • Page 19 08 - HDMI /DVI Setup This menu will allow you to select between HDMI and DVI as the SIX-G-8K’s output. Although the SIX-G- 8K’s physical output port is HDMI, if using an HDMI to DVI adapter anywhere in the signal chain this may result in no signal or no image on the display under test.
  • Page 20 09 - HDR SETUP Choose from Off, or from 8 customizable HDR Test Info-frame. The included HDR levels are some of the most commonly used. If you would like to build a custom HDR Infoframe please use the SIX-G-8K’s PC Control Software.
  • Page 21 10 - Audio Setup The SIX-G-8K is also capable of generating audio test tones for confidence testing. If using the SIX-G-8K for audio testing you can set the following: Audio Sampling Rate Audio Sampling Size Audio Source Audio Channels Audio Volume Once you select the audio output parameters the SIX-G-8K will output a 1KHz test tone.

  • Page 22: A U D I O G E N E R At O R : A U D I O S A M P L E R At

    Audio Generator: Audio Sample Rate Allows audio sampling rates between 32K and 192K. This menu contains the following options: 44.1K 176K 192K NOTE: There is no “one size fits all” setting for Audio Sample Rate. Choose the selection that you need for your specific application.

  • Page 23: A U D I O G E N E R At O R : A U D I O S O U R C

    Audio Generator: Audio Source This menu contains the following options: INT. SineWaveTone (1K) EXT. Stereo If you would like to use an external audio source instead of the internal test tone generator select the EXT (external) Stereo setting. Connect your audio source to the 3.5mm “L/R IN” port on the connections panel.

  • Page 24: A U D I O G E N E R At O R : A U D I O V O L U M

    5CH (Front Left/Front Left Center/Front Center/Front Right Center/Front Right) 5.1CH (Front Left/Front Left Center/Front Center/Front Right Center/Front Right/LFE) 5CH (Front Left/Front Left Center/Front Right Center/Front Right/Rear Center) 5.1CH (Front Left/Front Left Center/Front Right Center/Front Right/Rear Center/LFE) 6CH (Front Left/Front Left Center/Front Center/Front Right Center/Front Right/Rear Center) 6.1CH (Front Left/Front Left Center/Front Center/Front Right Center/Front Right/Rear Center/LFE) 6CH (Front Left/Front Left Center/Front Right Center/Front Right/Rear Left/Rear Right) 6.1CH (Front Left/Front Left Center/Front Right Center/Front Right/Rear Left/Rear Right/LFE)
  • Page 25 11 - CEC Test The CEC (Consumer Electronics Control) test is a simple pass/fail test to confirm CEC is functioning on the device that is connected to the SIX-G-8K. This can be either a source, repeater, or sink (display). To run the CEC test connect an HDMI Cable from the SIX-G-8K to the device you are testing.
  • Page 26 12 - Sync & Latency Test This test is designed to measure (in microseconds “us”) the sync and latency between the source and sink. This could be something as simple as an HDMI cable or as complex as a distributed AV system. The results of this test will give you the data needed to adjust any audio or video delay adjustments in the AV system.
  • Page 27 13 - Save EDID: You can save up to 6 EDIDs from any device that has an EDID. Reading the EDID of the device that you are testing will help you understand the capabilities of the device. To save and EDID: Connect an HDMI Cable between the SIX-G-8K and the device you would like to read the EDID from Navigate to the SAVE EDID menu...
  • Page 28 14 - Sink EDID Info This menu will give you the basic EDID information of the device that is connected to the SIX-G-8K. This information includes the device’s manufacturer, preferred timing, and more. NOTE: To see detailed information about the EDID use the SIX-G-8K PC Control Software.

  • Page 29: O U T P U T S Ta N D B

    15 - System Setup This menu contains 4 sub menus 1 - Auto Power Off 2 - Output Standby 3 - Vital Information 4 - Reset All 1 -Auto Power Off You can set your SIX-G-8K to power off automatically when not in use. This will help save battery life. This menu contains the following options: 1- DISABLE - The SIX-G-8K will remain powered on until you power if off manually.

  • Page 30: V I Ta L I N F

    3 - Vital Info You can view your SIX-G-8K vital information here. This menu contains the following options: Firmware Version - Current Firmware Versions Main Chip Temperature - Current Chip Temperature (°C) Battery Stats - Shows Current Charge Level 4 - Reset All This menu allows you to reset the generator to default settings.

  • Page 31: T E S T P Att E R N S : U S A G E A N D E X P L A N At I O

    Test Patterns: Usage and explanation...

  • Page 32: L I S T O F S U P P O R T E D R E S O L U T I O N

    List of supported resolutions Maximum 8K UHD resolution is: 8680x4320@60Hz (4:2:0 40Gbps FRL5)

  • Page 33: W A R R A N T Y A N D G E Tt I N G H E L

    MURIDEO will, at its discretion, repair or replace any defective products or parts thereof covered by this International Limited warranty with refurbished parts of the product that are equivalent to new or like new products in both functionality and performance.

  • Page 34: O B Ta I N I N G T H E W A R R A N T Y S E R V I C

    If MURIDEO determines that any returned Product is not defective, or if MURIDEO determines that the defect is not covered by the warranty, MURIDEO will return the Product to the Owner at Owner’s ex- pense, freight collect, and Owner agrees to pay MURIDEO’s reasonable cost of handling and testing;...

  • Page 35: D I S C L A I M E R O F W A R R A N T

    CLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY, THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE AND OF ALL OTHER OBLIGATIONS OR LIABILITIES ON MURIDEO’S PART, AND IT NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PARTY TO ASSUME FOR MURIDEO ANY OTHER LIABILITIES.

  • Page 36: G E Tt I N G H E L

    +1-605-330-8491 for worldwide technical support Legal notices MURIDEO® Logos are trademarks or registered trademarks of AVPro Global Holdings, Inc. in the United States or other countries. ISF® and the ISF logo are trademarks or registered trademarks of, and are used under license from, Imaging Science Foundation, LLC. in the United States or other countries.
