Summary of Contents for GEONiN DM-100

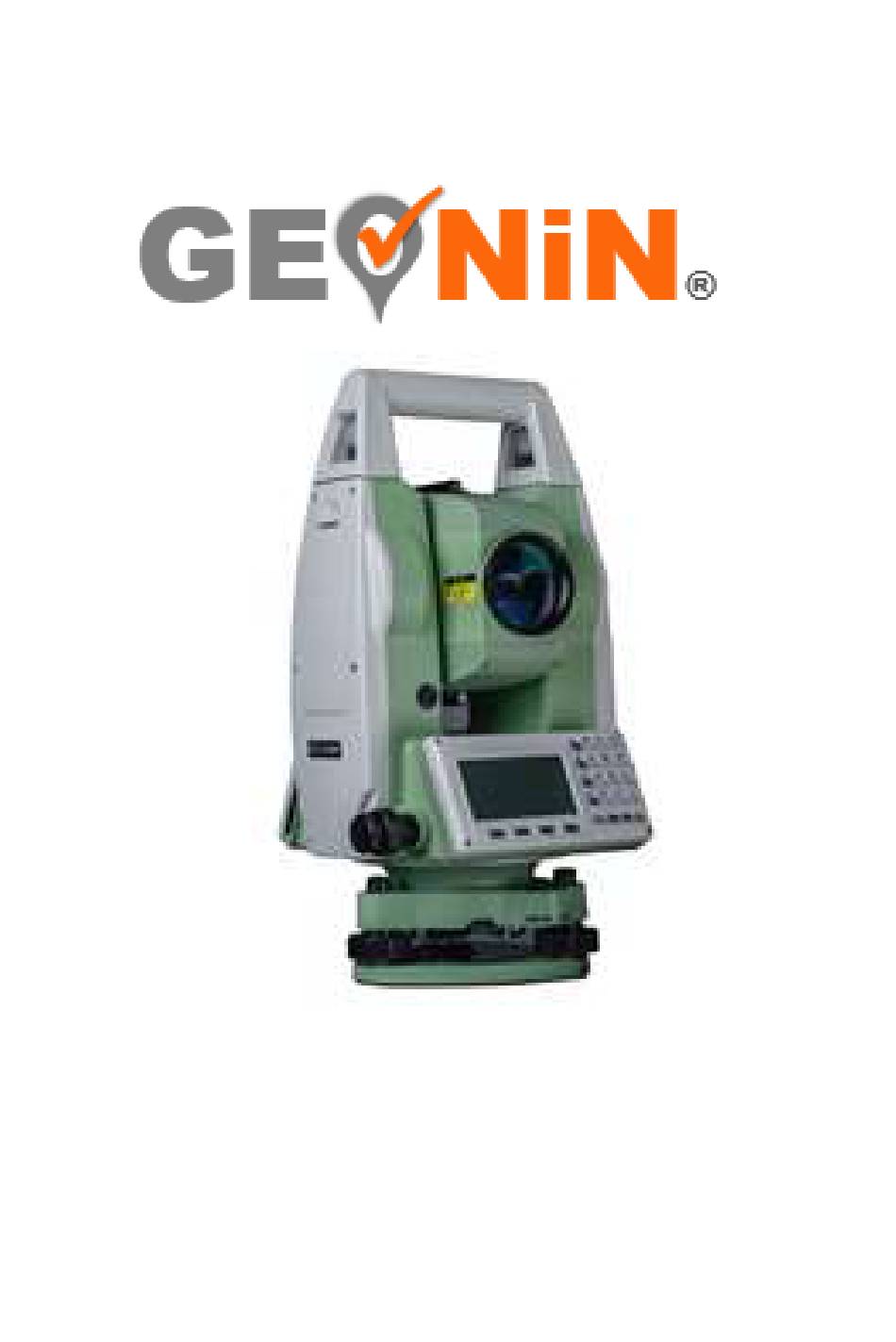

  • Page 1 MANUAL ESTACION TOTAL GEONiN DM-100...
  • Page 2 Preface Thank you for purchasing our DM-100 series total station! This manual is your good helper, please read it before operating the instrument and keep it properly. Product Validation In order to get our best service, please give the feedback about the version, number, purchasing date of the instrument and your valuable suggestions to us after you purchase our product.
  • Page 3 Features Rich Features--our total station carries abundant surveying application, at the same time has the functions of data storage, parameter settings and etc. It‘s suitable for all kinds of professional measurements. Absolute code disc Equipped with absolute code disc, the instrument can measure after switched on .Even if reset the battery halfway, the azimuth information will not be lost.
  • Page 4 around the boxes is required for long-distance transport. When setting the instrument, it‘s better to work with high-quality wooden tripod for stability and measurement accuracy. In order to improve the precision of Non-Prism measurement, please keep the object lens clean. When cleaning exposed optical devices, please wipe them gently with absorbent cotton or lens paper only.
  • Page 5 Publication: Class 3R Laser Products are used in outdoors and on building site (with non-prism measurements). The personnel who are specially trained, qualified and authenticated are allowed to stall, adjust and operate these laser instruments. b. Set up corresponding laser warning signs in the use of area range. c.

  • Page 6: Table Of Contents

    Content 1. Use of instrument ............10 2. Names and functions of the components ....11 2.1 Names of the components ............ 2.2 The information of the displays ..........2.3 Functional keys under the basic measurement mode ... 2.3.1 Angle mode (including three pages) ......2.3.2 Distance measurement mode ........
  • Page 7 4. Preparations before measurements ..... 28 4.1 Unpacking and storing instruments ........4.2 Set up the instrument ............4.2.1 Using plummets to center and level (align) ....4.2.2 Using centering device to center ....... 4.3 Loading and unloading of battery ........4.4 Reflecting Prism.
  • Page 8 8.2 Offset (Dist1) ................ 8.3 Offset (Dist2) ................ 8.4 Offset (Plane) ............... 8.5 Offset (Column) ..............9. Menu ................52 9.1 Surveying ................9.1.1 Operation ..............9.1.2 Preparation ..............9.1.3 Station and backsight ..........9.1.3.1 Example for set station ........... 9.1.3.2 Example for setting angle ........
  • Page 9 9.4.1.2 ―Without T.H‖ ............9.4.2 Resection ..............9.4.3 MLM ................. 9.4.4 Coord.Z ..............9.4.5 Area measurement ............. 9.4.6 Projection ..............9.4.7 Roadway ..............9.5 Options ................. 9.6 Adjust ................... 9.6.1 Calibrate I.E .............. 9.6.2 Calibrate TILT:X ............9.6.3 Calibrate TILT:Y ............9.6.4 Calibrate TILT: Zero ..........
  • Page 10 11.8 Addictive constant (K) ............105 11.9 The parallelism of collimation axis and photoelectricity axis ......................106 11.10 Non-prism ranging ............107 12. Technical parameters ..........108 Appendix A File format introduction (GEONiN) ..Appendix B Bi-directional communication ....111...

  • Page 11: Use Of Instrument

    1. Use of instrument The total station is such an instrument that measures the azimuth and distances to destination and can calculate the destination point coordinates automatically. It plays an important role in the economic construction and national defense construction. General Survey, exploration and mining of minerals, the construction of railways, roads, bridges, irrigation, urban planning and construction is driven by electronic total station measurements.

  • Page 12: Names And Functions Of The Components

    2. Names and functions of the components 2.1 Names of the components Handle Coarse sighting device Objective lens Vertical clamping and tangent screw Plate level Display keys serial port connector SD card port Base...
  • Page 13 Battery Focusing knob Horizontal axis center eyepiece Horizontal clamping and tangent screw Base Leveling screw...

  • Page 14: The Information Of The Displays

    2.2 The information of the displays Symbols on the keyboard Keys Name Function In the basic interface,enter the angle Angle measurement . Under other modes, move measurement the cursor up or up to select the options. In the basic interface，enter the distance Distance mode DIST...
  • Page 15 The characters at the bottom line of the F1~F4 Soft Keys display indicate the meaning of the soft keys. Input numbers or characters or choose the Number keys menu In any measurement interface, you can enter the star key interface .You can set the ★...
  • Page 16 Slope distance. dSD is to stake out differences between slope distances. Northing. dN is to stake out differences between north-coordinates. Easting. dE is to stake out differences between East-coordinates. Elevation. dZ is to stake out differences between Z-coordinates EDM(Electronic Distance Measurement) is in progress. Unit in meters (metric units) Units in feet Units in American feet...
  • Page 17 View List out details of the current record Info. Displays the name, code and coordinate of the current station and back-sight station. Settings Set the height of the instrument and the target Enter coordinates of the station where instrument is placed.

  • Page 18: Functional Keys Under The Basic Measurement Mode

    2.3 Functional keys under the basic measurement mode 2.3.1 Angle mode (including three pages) 278°12′23″ 278°12′23″ 159°54′05″ [F4] 159°54′05″ Hold Save 0set Hset 1/3 278°12′23″ [F4] 159°54′05″ [F4] H-Bz Vmode Page Soft key Reference Function Record the measured angle to the Save selected file.

  • Page 19: Distance Measurement Mode

    right/ clockwise) and HL (horizontal left/ anticlockwise) mode Vertical Angle Mode (altitude angle（Vh）, Zenith（Vz） Display the first page of the soft key functions.  The key [★] is used to set contrast, light, compensator and parameters  of distance measurement . It can work under the basic modes. 2.3.2 Distance measurement mode 278°12′23″...

  • Page 20: Coordinate Measurement Mode

    2.3.3 Coordinate measurement mode 278°12′23″ 278°12′23″ 159°54′05″ 159°54′05″ [F4] Save Mode Config Meas 278°12′23″ 159°54′05″ [F4] [F4] Ofset Aver. Page Soft key Reference Function Start coordinate measurement and record Save the measured data into the selected files (measurement file ‗File(.MEA)‘ or coordinate file ‗File(.COO)‘...

  • Page 21: Explanation Of Saving Data

    Display the first page of the soft key functions 2.3.4 Explanation of saving data If you have never selected the measurement file and your first time to use the [Save] soft key, a dialogue box of ‗Select file‘ would appear to the screen.
  • Page 22 Para.: Press the key [F4] to select ‗parameters‘. You can set ● settings of prism const, PPM value and temperature and pressure, and view the signal. (The setting of the distance measurement. After you input the temperature and pressure, pressing [F1] can automatically calculate the value of PPM, if you are not satisfied with the value, you can input and save it).

  • Page 23: Initial Setup

    3. Initial setup 3.1 On & Off Press the power key until the screen displays pictures. The instrument is now switched on. After self-checking, the instrument enters Angle Mode automatically (see Angle Mode for details) Pressing power key will leads to a dialogue box. Press [ENT] to turn off the instrument.

  • Page 24: Signal

    20 ℃ Temp.: Press: 1013 hpa Prism c: PPM: 0 ppm Signal Clear Signal Enter 3.5 Signal The function of signal is to display the intensity of signal of EDM (Electrical Distance Measurement). It can help achieve ideal aiming result under poor conditions.

  • Page 25: Set Up The Atmospheric Correction Value (Ppm) Directly

    atmospheric conditions when the correction is zero) Atm: 1013 Pa Temp:20℃ The calculation of atmospheric correction △S= 277.825- 0.29434P/(1+0.003661T) (ppm) In the formula: △S: correction coefficient (unit: ppm) P: atmospheric pressure (unit: hPa) T: temperature (unit:℃) 3.6.1 Set up the Atmospheric Correction value (ppm) directly You may measure the temperature and pressure to find out the atmospheric correction (ppm) through the correction formula or from the atmospheric correction chart.

  • Page 26: Set Up The Minimum Reading Of The Angle

    The formulas of two corrections about our instrument are as followed: Corrected Horizontal Distance : D=S×[cosα+sinα×S×cosα(K-2) / 2Re] Corrected Elevation : H=S×[sinα+cosα×S×cosα(1-K) / 2Re] If the Atmospheric Refraction and the earth curvature are not corrected, the formula for calculating horizontal distance and elevation are as followed: D=S×cosα...

  • Page 27: Set Rectangle Beep

    shut off”. The interface as shown in picture below: Auto shut off [ 1. Never 5minutes 10minutes 10minutes Exit Enter You may choose ‗Never‘ to cancel the auto shutdown. When choosing 5, 10, 20 minutes opts, the instrument will shut down automatically if there is no key pressed.
  • Page 28 COO= Coordinate File, used for retrieving coordinate. COD= Code File, used for retrieving code. LSH/LSV = Defined horizontal /vertical alignment file, working for staking out roadway.

  • Page 29: Preparations Before Measurements

    4. Preparations before measurements 4.1 Unpacking and storing instruments Unpacking Lay down the box gently with the top side facing up. Open the lock and take out the instrument. Storage Cover the telescope cover. Make sure that the vertical clamping screw and the level bubble face upwards.

  • Page 30: Using Centering Device To Center

    Screw C buble center Screw B Screw A Using the plate level to level the instrument precisely ① Loosen the horizontal locking screw and turn the instrument around until the plate level is perpendicular to a line shaped with screws A and B. Adjust the screws A and B to make the bubble in the center of the level;...

  • Page 31: Loading And Unloading Of Battery

    ② Make sure that the center of the tripod top is right above the station; ③ Stamp one foot on the ground with your feet. Install the instrument gently on the top of the tripod and screw up the screw connection. Open the laser plummet through star (★) key to aim at the station precisely;...

  • Page 32: Reflecting Prism

    long time. 4.4 Reflecting Prism. When measuring distance with prism mode, a reflecting prism must be set at the target site. You can connect the prism to the base, and then connect the base onto the tripod .you can also set the prism onto the centering rod.
  • Page 33 Select file(.MEA&.COO) Select file(.MEA&.COO) [Num.] File： File： List Num. Enter List Alph. Enter Press [7], then, ―S‖ displays in the edit box; Select file(.MEA&.COO) File： B.S List Alph. Enter Wait 0.4 seconds, then press [7] again, ―SS‖displays in the edit box; Press [7] again, ―ST‖displays in the edit box;...
  • Page 34 Select file(.MEA&.COO) File： SUN1A B.S List Alph. Enter ● Input numbers Example 2: Take surying mode for example in the menu, Select file (.MEA&.COO) and press [Enter], Inputting the station and press [STA] and [F3],which needs to input ―-123.456‖ in the edit box. Because the edit box ―NO‖...

  • Page 35: Notice For Using U Disk

    The order of the keys:[1]→[2]→[3]→[·]→[4]→[5]→[5]→[6]; The result is as shown below: Set HA 123.4556 B.S Clear Exit Enter After completing the input, press [F4] to confirm the input or press [ESC] to cancel it. If it is over ―360°‖, a prompt box will appear ―Overtop!‖.

  • Page 36: Angle Mode

    5. Angle mode The instrument would enter the Angle Mode automatically after switched on. You can also enter this Mode by pressing [ANG] under basic measurement mode. This Mode involves three pages switched by the key [F4]. Their functions are explained as followed: 278°12′23″...

  • Page 37: Hset

    ● Press [F2](0set); Asking ―Set 0?‖, press [ENT] to set 0 or [ESC] to exit this ● operation. In order to make sure the accuracy, you may press [ENT] lightly. 5.3 Hset Function: Set the horizontal angle as wanted angle. Press [F3] to enter the interface of ―Set HA‖...
  • Page 38 3rd meas.starts 3rd meas. End(avg. of 3 meas. Is displayed 2nd meas.starts 2nd meas. End(avg. of 3 meas. Is displayed 1st meas.starts 1st meas.starts( angle between two points is displayed) ● Enter the interface of angleoby repetition Count 90°00′00″ 90°00′00″ Oset Exit Hold...

  • Page 39: Slope (V%)

    Count 120°20′00″ 120°20′00″ 120°20′00″ Oset Exit Rel. Aim at point ‗A‘ again by horizontal motion and tangent screw ● and press [F3](Rel.); Count [ 1] 120°20′00″ 120°20′00″ 120°09′30″ Oset Exit Hold Aim at point ‗B‘ again by horizontal motion and tangent screw ●...

  • Page 40: L/R

    5.8 L/R Press [F2] to make the horizontal angle mode switched between right angle (HR) and left angle (HL). HR: Right angle mode .When the alidade is rotated clockwise, the horizon angle is increscent; HL: Left angle mode. When the alidade is rotated anticlockwise, the horizon angle is decreasing.

  • Page 41: Distance Mode

    6. Distance mode Press [DIST] to enter the distance measurement mode, which has two interfaces . The functions of first interface are ―Save‖, ―Meas.‖ and ―Mode‖; The functions of the second interface are ―Ofset‖, ―S.O‖ and ―m/f/i‖. The two interfaces shown as below: 278°12′23″...

  • Page 42: Offset

    Press [▲] or [▼] to move the ―[]‖ the wanted option , then press [ENT] to save. 6.4 Offset Press [Ofset] to enter the interface of offset (will described in the offset function). 6.5 Stake out (S.O) Enter the distance stakeout function DistStakeout HD：...

  • Page 43: Coordinate Mode

    7. Coordinate mode Press [CORD] to enter the coordinate measurement mode. According to the diagram below, please set up the coordinates station, azimuth, target height and instrument height before coordinate measurement. Center of lens Center of instrument Coordinates of unknown point (N1,B1,Z1) Coordinates of the center of instrument =NC,BC,ZC+...
  • Page 44 press [Yes] (if you haven‘t select measured file, there will be a interface of ―Select file (.MEA)‖ to let you select file.), which needs you the point name (Pt.N) ,Code and target height (T.H). The number of ―Pt.N‖ defaults to added 1. The code is input according to your need, but the target height according to actual situation.
  • Page 45 already done under Angle Mode, you don‘t need to set BSS again under Coordinate Mode. NBS: 100.000 EBS: 200.213 ZBS: 1.123 B.S Clear List Enter There are two way to get backsight coordinates, which are inputting by keyboard and retrieving from files; If you select inputting, just input by keyboard.

  • Page 46: Offset Mode

    8. Offset mode includes five functions which ―Offset(Angle)‖, ―Offset(Dist1)‖,―Offset(Dist2)‖,―Offset(Plane)‖,―Offset(Column)‖. These functions help for coordinate measurement, and can get the coordinates of the point which the prism can‘t be at. Before operating these functions, please set ‗STA‘, orientation, instrument height and target height. 8.1 Offset (Angle) This mode is specifically useful when setting up prism difficultly, e.g.

  • Page 47: Offset (Dist1)

    Offset(Angle)-Result 200°54′21″ SD： 11.775 HD： 11.773 VD： 0.190 Next P Save Then, aim at offset point, you can get its coordinates. Pressing [Next P] to measure next point; press [Save] to save the coordinates of offset point; press [ESC] to exit. 8.2 Offset (Dist1) If have already known the front &behind and left &...

  • Page 48: Offset (Dist2)

    Offset (dist1)-Prism 200°54′21″ HR： SD： HD： VD： Meas T.H Mode After measuring, press [Enter] to enter the result interface: Offset (dist1)-Result 200°54′21″ HR： N： -10.998 m E： -4.201 Z： 0.190 Next P Save Display the coordinates or offset point. Pressing [Next P] to measure next point;...

  • Page 49: Offset (Plane)

    Offset (Dist2) Distance： Clear Enter Input the distance, and press [Enter] to enter the interface of ―Offset -Begin ‖. You must aim at point ―P0‖ to measure.After measuring, press [ENT] to exit the interface to enter the interface of ―Offset-End‖. Offset-Begin Offset-End 171°49′54″...

  • Page 50: Offset (Column)

    P1(with (with prism) Prism) (with prism) （without prism） In the menu of ―Offset‖, select ―4. Offset (Plane)‖ to enter the interface of ―Offset –Pt.1‖: Offset (plane)-Pt.1 200°54′21″ Meas Mode Press [Meas] to measure point 1, and press [Enter] to receive the measured data and enter to the interface of ―Offset (plane)-Pt.2‖.
  • Page 51 on the cylinder under this mode. Then calculate the horizontal distance, azimuth angle and coordinate of the cylinder by measuring the surface points of tangency P2 and P3. The average value of P2 and P3 is the azimuth angle of the cylinder. PO’...
  • Page 52 Offset (Column)-R.edge 181° 26′16″ HR： SD： 4.570 m HD： 4.575 VD： 1.004 Enter After aim at the left edge, press [Enter] to enter the interface of ―Offset (column)-L.edge‖. After aim at the right edge, press [Enter] to enter the interface of ―Offset (column)-Center‖, as shown in picture below: Offset(column)-Center 179°59′39″...

  • Page 53: Menu

    9. Menu In the basic measurement interface, press [MENU] to enter the menu interface, then, press [F4] to enter the next page. Menu Menu 1.Surveying 1.Adjust 2.Stake 2.Config [F4] 3.Fileman 3.Select CodeFile 4.Program 4.Grid scale 5.Options 5.Communication On the every page of menu, you can press number key to select. For example, if you press [1], the first option ―1.Surveying‖...

  • Page 54: Station And Backsight

    it appears a dialog for select file. 选择测量和坐标文件 文件名： 回退 调用 数字 确认 Press [F2] (List) to enter the interface of ―Select Disk‖. If you have inserted the SDdisk, it would be displayed. Select Disk [FLASH Exit Enter After selecting a disk, press [ENT] to enter the interface of file list. You can press ―[F1]~[F4]‖...

  • Page 55: Example For Set Station

    2) Input directly by keyboard; Three methods of the orientation angle of backsight point are followed: 1) Set backsight point by coordinate in memory; 2) Input the coordinate of backsight point directly; 3) Input the orientation angle directly; 9.1.3.1 Example for set station The operations of set station by using the data in memory: Enter the interface of ―Set STA‖...

  • Page 56: Example For Setting Angle

    Setup STA STA-> Code: I.H： 1.000 Input Search Save 6) Press [▼] to move the ―->‖ to ―Code‖ column; Setup STA STA: Code-> I.H： 1.000 Save Input List 7) Press [F1] to input code , then press [F4] to confirm it; Setup STA STA: Code->...
  • Page 57 You can save the data of orientation angle of backsight point by the following method. 1) Enter the interface of ―BSS‖; Setup BSS BBS-> Code: I.H： 1.000 Input Search Meas 2) The screen displays the data set last time. You can press [F4] (BBS);...

  • Page 58: 4Measurement

    6) Input ―Code‖ and target height ―T.H‖; Setup BSS BBS: Code-> I.H： 1.000 Input List Meas 7) Press [F3](Meas); Setup BSS BBS: Code: I.H-> 1.000 Angle Coord. 8) Aim at the backsight point, and select a key of measurement mode. For example: press [F2](SD), then measure the backsight point;...
  • Page 59 Meas Meas Pt.n-> [F4] Pt.n： Code： Code-> TREE [Enter] T.H： 1.000 T.H： 1.000 Input Search Num. Enter List Num. Enter 3) Input target height (I.H) ,then press [Enter]; Meas Meas Pt.n: Pt.n: Code: Code: [F4] TREE TREE T.H-> T.H-> 1.000 1.000 Enter Meas...

  • Page 60: Staking Out

    measure as the same way of last point by pressing [F4](Ditto) or you can press [F3] to select the measurement methods; 8) Finishing measurement, the data will be saved and youcan press [ESC] to exit. 9.2Staking out Staking out is to find the earth point for the designing point. The required process of staking out is as followed: You may select files for staking out .The files can call the coordinates of station(STA),backsight(BSS) and the stakeout...
  • Page 61 1) In the first page of staking out, press [3] (Stake out); 1.Setup STA Stake out 2.Setup BBS 3.Stake out Pt.n： Input List Coord. Enter 2) Press [F1] (Input) to input point name (Pt.n), then press [Enter]; Stake out Stake out [F4] Pt.n: Enter...
  • Page 62 251°24′23″ 251°24′23″ dHR: dHR: -1°59′29″ -1°59′29″ dHD: Meas Mode Next P Meas Mode Next P [Dist] [Coord.] HR: measured angle dHR: the rotation angle (when the instrument aiming at stake-out point) When ―dHR=0°00′00″‖, it means you haves found the direction pf stake-out point.

  • Page 63: Polar Coordinates

    Stake out Pt.n: B.S List Num. Enter 9.2.2 Polar coordinates Set up the instrument on the known point, and use polar coordinate to measure the new point. 1) Enter the second interface of staking out, press [1](PolarCoord.Meas); 1.PolarCoord.Meas 2) Input the new point name, code and target height; PolarCoord.Meas Pt.n: Code:...

  • Page 64: Resection

    PolarCoord.Meas 252°24′21″ -1.532 m -0.486 m -0.174 m > Enter？ [Yes] → PolarCoord.Meas Pt.n-> Code: T.H: 1.000 List Num. Meas 9.2.3 Resection Set up instrument on a new point, and measure at most 5 known points to calculate the coordinates of this new point, the measurement of resection is as following: ●Resection by distance measurement：Measure at least two known points.
  • Page 65 Resection NO.1 Pt.n: B.S List Num. Enter [Enter]→ Resection NO.1 Pt.n： Input List Coord. Enter 4) If the point doesn‘t exist in this file, tips ―None Pt.n‖. You can press [F3](Coord.) to input coordinates, then press [F4] to confirm; Resection No.1 9.169 m 7.521 m...
  • Page 66 No.1 2°09′30″ 102°09′30″ T.H: 1.000 > Aim at BS? Angle Dist 7) Start measuring; No.1 2°09′30″ 102°09′30″ [Sgnl] << T.H: 1.000 Measuring„ 8) Enter the input interface of point 2 ; Resection NO.2 Pt.n： B.S List Num. Enter 9) According to step 5)~step 8), when using [Dist] to measure, the residual will be calculated.

  • Page 67: File Manager

    No.4 52°09′30″ 102°00′30″ 10.953 T.H: 1.000 Next P Calc 12) You can press [F4](Calc) to check the result of resection, and the standard deviations of the coordinates is displayed. Unit (mm); St.D D(n): D(e): D(z): Coord. 13) Press [F4] (Coord.) to view the coordinates of the new points. Otherwise, the coordinates will be saved in the coordinate file and as station coordinates.
  • Page 68 Select disk [ 1. FLASH 2. USB Exit Enter After selecting the disk, press [Enter] to enter the interface of file type, as shown in picture below: 1.File(.MEA) 2.File(.COO) 3.File(.COD) 4.File(.LSH) 5.File(.LSV) 6.All file You can select different file list, here, you can press [6] to view all files in the system and can press [▲][▼][◄][►] to select file.
  • Page 69 Press [Search] to enter the interface of ―Search‖, as shown in picture below. After input the file name, press [ENT]. If found it, then back to the file list with the cursor at the file name, or tips ―Has‘t file‖. Search Name：...

  • Page 70: Import

    vertical alignment file in the road function.  Select a measurement file in the file list, and press [ENT] to display the  data list as shown in picture below. The left side of list is point name, and right is data type. [STA] BS01 [ANG]...

  • Page 71: Import From Pc

    Type of import 1. Import from PC 2. Import from USB 9.3.2.1 Import from PC This function needs port to connect PC and instrument, but the transfer software must be installed on the PC to end data, or the instrument can‘...

  • Page 72: Import From Usb

    Import: Import data. The process of importing requires assistance of the connected computer. Firstly, the data must be imported to the computer already and waited to be received by instrument. Then press softy key [Import] to import the data. After a success import, the coordinates will appear at the bottom of the selected file, while the number ―NO.‖...

  • Page 73: Export

    Select Cd. type 1.Pt,N,E,Z,Po 2.Pt,E,N,Z,Po 3.Pt,Po,N,E,Z 4.Pt,Po,E,N,Z Select the coordinate format matched coordinate file, such as ,if the file ―SUA.TXT‖ selected is saved according to the ―Pt,N,E,Z,Po‖, you can press [1] to enter to the next interface; Input new filename File: SUA.COO Num.

  • Page 74: Export To Usb

    ―import‖. You may be careful that the export file must be measurement and coordinate, or can‘t be exported. When exporting file, the computer must receive firstly. The format of exported file is ―ASCII‖. The instruction of ―GEONiN‖ which you can refer to Appendix B; 9.3.3.2 Export to USB...

  • Page 75: Export With Mini Usb Port

    Export data 1. Send (.MEA) 2. Send (.COO) 2) AS an example of measurement data, press [1] to enter to the next interface, as shown in picture below. Input the measurement file which needs to be exported or press [F2] to retrieve; Select file(.MEA) File: 1.MEA...

  • Page 76: Format Disk

    cut; After copy the work file and coordinate file, you can open them by transport software directly. After ending the connecting, unplug the Mini USB cable, then press [ENT] to running the program continually. 9.3.4 Format disk This function can re-create the file system, but can‘t format U disk. After format system disk, the previous data will be all lost, you must be careful.
  • Page 77 3) Press power button on the instrument. The page of hyper terminal is as followed; Note: you must be specifically cautious when updating. As soon as you choose to update, the instrument will enter updating mode. If pressing key ‗3‘ under the page shown below, the previous program may be resumed.

  • Page 78: Program

    5) Select the new version of total station software and click ‗ Send ‘ on the computer; 6) Then the computer displays the process of sending. After finishing updating, display the operation menu again .You can press [5] to update boot image and press [6] to update language; 7) After update program, boot image, language, press [3] to end the update and press power button to turn on the instrument to run the updated program.

  • Page 79: Remote Height (Rem)

    Menu Select file(.COO) 1.Surveying 2.Stake File： 3.Fileman 4.Program 5.Options List Num. Enter enter into the program menu, as shown in picture below: P r o g r a m P r o g r a m 1.R E M 1.Project [F4] 2.R o a d w a y 2.Resection...

  • Page 80: Without T.h

    REM-Prism 77°18′33″ 169°11′14″ Meas Mode Enter Aim at prism, then press [Meas] to measure the horizontal distance between target point and instrument. Press [Enter] to enter the interface of ―REM-Ground to target‖; REM-Ground to target 77°18′33″ 169°11′14″ 0.000 Then, turn the telescope up and down to aim at the target point. The VD column displays the elevation difference from the ground to the target point.

  • Page 81: Resection

    Aim at the reference point and press [Select] to enter the dialog of ‗REM-Altitude‘ REM-Altitude 77°18′33″ 169°11′14″ 0.000 SetVA Then turn the telescope up and down. The elevation difference between the target and the reference point is displayed in the VD column. REM-Altitude 77°18′33″...

  • Page 82: Coord.z

    You may also input the coordinate or retrieve coordinate from files to calculate the value. There are two modes of ‗MLM‘: 1.MLM (A-B,A-C): measure A-B, A-C, A-D…. i.e the starting point is the reference point of all following points. 2.MLM (A-B, B-C): measure A-B, B-C, C-D…. i.e the previous point is the reference point of all the other points.
  • Page 83 Coord. Z Setup STA Pt.n： Input List Coord. Enter Here, you can press [Coord.] to input station point, or press [List] to retrieve coordinate from known files. 2) Setup datum mark. You can press [2] (Datum mark) to enter the interface of ―Coord.Z-No.1‖;...

  • Page 84: Area Measurement

    9.4.5 Area measurement This function is to help you to calculate out the area of the plane figure formed by measured or inputted coordinates. 1) Press [MENU]→[4](Program) →[4](Area) to enter the interface of area measurement‘; Area Input Meas Del 2) Select [Input] to input point information, here, you can retrieve point;...

  • Page 85: Projection

    start to end one by one in order. Thus, you may not get the correct area, if the graphic of area has crossed line. You may press [★] key to check the shape of the area. 9.4.6 Projection Prism B Measured point Station Unknown point...

  • Page 86: Roadway

    Project（Begin） 50°02′17″ 175°13′13 ″ Meas Mode Enter Press [Meas] to start measuring, then press [Enter] to enter the interface of ―Project(End)‖; Project（End） 55°53′34″ 164°21′45 ″ Meas Mode Enter Press [Meas] to start measuring, then you can press [Enter] to return to ―project‖...
  • Page 87 Options 1. Unit options 2. Mode options 3. Other options Press [1] to enter the interface of ―options‖ Unit options Unit options 1.Type of feet 1.Unit(Temp.) 2.Unit (Angle) 2.Unit(Press) 3.Unit (Length) Press [2] to enter the interface of ―Mode options‖: Mode options 1.EDM Mode 2.NEZ option...

  • Page 88: Adjust

    9.6 Adjust Warning： The following functions must be carried out under the guidance of professionals, if the operation is wrong, it may lead to the instrument can’t work properly! Press [MENU]→[F4] →[1](Adjust) to enter the interface of ―Adjust‖: Adjust 1. Calibrate I.E 2.
  • Page 89 Enter the interface of tilt calibration: 90°00′00″ Tilt X= 125 F1 Up 3′ Enter Specific steps are as follows: 1) After leveling the instrument, aim at the target F1 in the collimator face left, record the current vertical angle as V0. 2) Set the vertical angle to ‗V0+3′‘with the help of the vertical tangent screw.

  • Page 90: Calibrate Tilt:y

    9.6.3 Calibrate TILT:Y Enter the interface of tilt calibration: 90°00′00″ Tilt Y= 75 F1 Up 3′ Enter 1) After leveling the instrument, aim at the target F1 in the collimator face left, record the current vertical angle as V0. 2) Set the vertical angle to ‗V0+3′‘with the help of the vertical tangent screw.

  • Page 91: Calibrate Tilt: Zero

    9.6.4 Calibrate TILT: Zero In Menu press [F4] to enter Page2, choose ―1 Adjust‖, then press [F4] +[F1] to enter ―Tilt Zero Adjust‖. Steps: Steps Display [Adjust Tilt Zero] 1 After leveling ○ the total station, aim at [F4] target with face left, Take positive! then press [F4](OK).

  • Page 92: Config (Instrument Constant)

    X=-9 Y: 16 3 Program will ○ ENT->Save [F4] show the result value, press [F4](OK) to save. Note: If there is no special requirement, the compensator should be turned on before Index error correction. 9.7 Config (Instrument constant) Operations are permitted only when the instrument was tested strictly. We recommend you to set it after it is tested by the factory or professional verification institutions.

  • Page 93: Gird Scale

    9.9 Gird scale Formula: 1) Altitude factor= R / (R+Altitude) R:the earth's average curvature radius Altitude: Altitude above the mean sea level 2) Scale factor Scale factor:the measurement station scale factor 3) Grid scale factor of coordinate Grid scale factor of coordinate=Altitude factor ×Scale factor Distance calculation: 1) Grid scale distance(HDg)= HD×Grid scale factor HD= distance on the ground...

  • Page 94: Roadway

    10. Roadway Roadway function is divided into two parts: Design Roadway and Stake out Roadway. You may stake out designed points according to the stake and deviation of the Designed Roadway. Select ―[Menu]→4.Program→[F4](P2)→Select file (.MEA&.COO) and press [Enter]→1.Roadway‖ to enter the interface of road menu: Roadway Roadway 1.
  • Page 95 Define(H)-Begin Mark: Clear Enter Note: Do not define the length as ‗0‘, which indicates ending the alignment. Input ―Line‖: Define(H)-Line 0.0000 Len.: Clear Enter Input ―Circle‖: Define(H)-Circle Len.: Clear Enter length Radius The value of Radius (R) can be negative. The positive direction is the right direction along the designed roadway, and the left is negative.

  • Page 96: Intersection Method

    The ―R‖(Radius) indicates the radius of end point of spiral transition curve; After inputting the ―Line‖, ―Circle‖, ―Spiral‖, press [ENT] to receive the input and exit to ―Define(H)‖. if you want to view the input, press [ENT] to finishing inputting and enter the interface of ―List of H curve‖; List of H curve 01ST: 10000.000...

  • Page 97: Vertical Alignment

    Point PT Para A1 Para A2 Radius R Former point Next point ‗PT‘ is the intersection point of road. The ―x‖ of ―Px‖ is the number of intersection point. When inputting R,A1, and A2, they can‘t be negative. If inputting the radius, the system will insert an arc with defined radius in between the former point and the next point.

  • Page 98: Stake Out (Road)

    Stake 508.306 1000.48 Altitude 324.325 329.247 325.689 Length 84.56 52.806 In the ―Roadway‖ menu, select ―Re-define (V)‖ to enter the interface of ―Define (V)-Begin‖: Define(V)-Begin Mark: Height: Len.: Clear Enter After inputting the ―Mark‖, ―Height‖ and ―Len.‖ (Length), press [Enter] to confirm, and enter the interface of the point 01 input, as hown in picture below: Define(V)-01 Mark:...

  • Page 99: Selecting Roadway File

    You may not be worried about the problem that the capacity of 20 point of horizontal alignment and 20 point of vertical alignment, because you can divide any long road into several pieces and save them into several line type files. Midcourt line Left deviation Right deviation...

  • Page 100: Stake Out Road

    10.2.3 Stake out road Before staking out Roadway, please first enter the parameters required for staking out. e.g starting mileage, space between, ―L dist‖(left distance), ―R dist‖(right distance), ―L dV‖ and ―R dV‖. Parameter 1/2 Parameter 2/2 L dist： Start： [F4] R dist：...
  • Page 101 accepts the maximum of is 8 characters).then you can press [Save] to save the information of staking out to the current coordinate file. Press [Enter] to enter the interface of ―Roadway-Calc‖, which displays the azimuth angle and horizontal distance: Roadway-Calc 68°48′31″...

  • Page 102: Adjustments And Corrections

    11. Adjustments and Corrections The instrument is under strict test and calibration, the quality is accord with the standard demand. But after a long-distance transportation and environment change, the small change of instrument parameter is inevitable. Therefore, the new purchased instruments should be checked and calibrated before surveying to ensure the precision.

  • Page 103: The Perpendicularity Of Collimation Axis And Cross Axis (2C)

    the cross wire on the reticle. Lock the instrument with vertical and horizontal locking knob after aiming at A. 2. Rotate the vertical slow motion knob, move A point to the edge of the field of view (A 'points); If point ―A‖ moves along the vertical line of the crosshair, but is still in the vertical line as the left picture, the crosshair doesn't need to calibrate.

  • Page 104: Vertical Plate Index Zero Automatic Compensation

    1. Set a target A in about 100m away, and make sure the vertical angle of the target is within ±3°.Precisely level the instrument and switch on it; 2. Make the telescope focused on target A in face left, and read the horizontal angle e.g.

  • Page 105: Vertical Index Error (Angle I) And Set Vertical Index 0

    3. Screw the leveling screw towards one direction for circumferential distance around 10mm, the vertical angle displayed will disappear through the process and ‗Tilt over!‘ appears to the column. It indicates that the inclination of the instrument is over 3′, which is over the range the instrument was designed to compensate.

  • Page 106: Addictive Constant (K)

    Place the instrument onto the tripod and draw a cross on a white paper, place the paper with a cross on the ground right below the instrument; 2. Adjust the focal length of the optical plummet (for the optical plummet) or press key[★] to switch on laser plummet, move the white paper to make the cross in the center in the field of view (or laser flare);...

  • Page 107: The Parallelism Of Collimation Axis And Photoelectricity Axis

    simple method. Checkout 1. Choose a flat field A to set up and level the instrument , mark three points A、B、C in the same line ,their interval is 50m, and set up the reflection prism accurately; 2. After setting the temperature and atmospheric pressure of the instrument, measure the horizontal distance of ‗A B‘...

  • Page 108: Non-Prism Ranging

    telescope crosshair center deviates from emission photoelectricity axis center largely, send it to professional repair and calibration department. 11.10 Non-prism ranging The red laser beam is coaxial with the telescope, used for no prism ranging, and it is sent by telescope. If the instrument has been calibrated, red laser beams will coincide with the line of sight.

  • Page 109: Technical Parameters

    12. Technical parameters Serial Function Unit DM-100 — Imaging Erect Magnification × — Telescope Field of view 1゜20′ Min.target distance Effective aperture 40/50(EDM) (″) 2C index error (″) Angle Angle i index error measurement Angle measurement — Absolute encoder (Hz, V) method (″)
  • Page 110 and white screen） — Illumination Support Wavelength 635nm Laser (optional) Laser Maximum output power — Laser Plumb Plumb (adjustable): not less than 0.4 m W, not more than 1.0 mW （″）/2 Tubular level Level （ ′） /2 Round level — Built-in application Support Rechargeable High-energy...

  • Page 111: Appendix A File Format Introduction (Geonin)

    Appendix A File format introduction (GEONiN) These following examples to instruct exported file format ST001,1.205,AD 100.000,100.000,10.000 BS001,45.2526,50.0000 BS001,1.800 98.2354,90.2314,10.235 A1,1.800,CODE1 104.662,99.567,10.214 A2,1.800,CODE1 78.3628,92.4612,4.751 A3,1.800,CODE1 63.2349,89.2547 NOTE this note Every record consists of two lines: The information of first line: record type, name, elevation, code...

  • Page 112: Appendix B Bi-Directional Communication

    Appendix B Bi-directional communication The total station controlled by external computer can sent the information about angle and distance. The settings of communication and protocol as follow: ● Baud rate: 2400~115200 available ● Data length: 8 ●Stop bits: 0 ●Parity bits: none ●protocol: ●Code: STX（02），CR（13），X_ON(17)，X_OFF(19) The angle ans diatance data are transferred by a form of fixed length...
