Summary of Contents for REDOR PG-811A

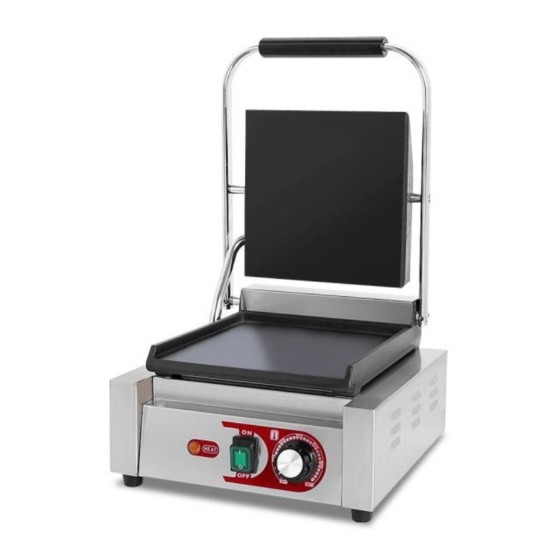

- Page 1 USER MANUAL PANINI GRILL USER MANUAL Model:PG-811A PG-811A PG-811C PG-812A PG-812B PG-812C PG-813A PG-813B PG-813C...
- Page 2 USER MANUAL Please read this manual thoroughly before using to understand proper use and function The Sandwich Grill design combines the advantages of stylish design, efficient construction, ease of operation and simple maintenance. The grill temperature can be easily adjusted to suit cooking requirements, and, while mainly used for sandwich grilling, the grill may be used for other foods.
- Page 3 4. Convenient independent temperature controls are easy to set and may result in overall power savings (double unit). 5. Nonstick hotplate for easy clean 6. Over-heat temperature controller for safety using Model Voltage Power Hotplate shape Dimension/mm PG-811A 220-240V/50HZ 1.8kw Full Ribbed 305*365*210 PG-811B 220-240V/50HZ 1.8kw Full Smooth 305*365*210 PG-811C 220-240V/50HZ 1.8kw...
-
Page 4: Specification
USER MANUAL PG-812C 220-240V/50HZ 2.2kw Half Ribbed Half Smooth 430*365*210 PG-813A 220-240V/50HZ 3.6kw Full Ribbed 520*365*210 PG-813B 220-240V/50HZ 3.6kw Full Smooth 520*365*210 PG-813C 220-240V/50HZ 3.6kw Half Ribbed Half Smooth 520*365*210 PG-812D 220-240V/50HZ 4.4kw Full Ribbed 845*365*210 Specification Mainly part ⑥ ⑤... - Page 5 USER MANUAL Thermostat:50-300C:Used to set or adjust the temperature of the cooking plate. The numbers on the dial correspond with the grill plate temperature. The “0” position is off. Heat Indicator:This light indicates the element is heating. Once the set temperature has been reached the light will go out. Unit will continue to maintain heat and temperature with the light cycling.
-
Page 6: Explosive View
USER MANUAL Explosive View MODEL:PG-811A PG-812A Serial Model QTY/ ITEM NAME NO. ITEM NAME NO. ITEM NAME /PCS /PCS Machine’s body 18 Bottom board 35 Spring Wire jacket PVC Sticker 36 Rubber Feet Lower hot plate 20 Wire jacket 37 Wire jacket... - Page 7 USER MANUAL...
- Page 8 USER MANUAL Explosive View MODEL:PG-813 Serial Model QTY/ QTY/ QTY/ ITEM NAME NO. ITEM NAME NO. ITEM NAME MACHINE'S BODY 18 BOTTON BOARD 35 SPRING PVC STICKER 19 WIRE JACKET 36 RUBBER FEET RUBBER LOWER HOT PLATE 37 WIRE JACKET PROTECTOR OIL CONTIANER 21 POWER...
- Page 9 USER MANUAL MODEL:PG-813 Serial Model...
-
Page 10: Circuit Diagram
USER MANUAL Circuit Diagram MODEL:PG-811 PG-812 with On &Off Power Switch ST1:Thermostat SA:Power Switch HL:Heater Indicator EH1:Heater EH2:Heater... - Page 11 USER MANUAL MODEL:PG-811 PG-812 without On &Off Power Switch ST1:Thermostat HL:Heater Indicator EH1:Heater EH2:Heater ST2:Temperature Limiter...
- Page 12 USER MANUAL Circuit Diagram MODEL:PG-813 with On& Off Power Switch MODEL:PG-813 without On &Off Power Switch ST1-ST3:Thermostat HL1-HL3:Power Indicator HL2-HL4:Heater Indicator ST1-ST3:Thermostat EH1-EH3:Heater HL2-HL4:Heater Indicator EH2-EH4:Heater EH1-EH3:Heater EH2-EH4:Heater ST2-ST4:Temperature Limiter...
-
Page 13: Troubleshooting
USER MANUAL Trouble Shooting Problem Possible Cause Action Grill plates do not heat even though Defective controller Replace controller power indicators are lit. Defective heater(s) Replace heater(s) Temperature can not be controlled. Defective controller Replace controller Heating appears normal but power Defective indicator(s) Replace indicators are not lit.
