APART Volume Control E-VOL50 Manual

Introduction

The APart E-VOL50 is a 100 Volt volume control that can handle up to 50 watt of power.
It is very durable due to the step by step attenuation in 11 steps + zero position.
The volume control is equipped with a 24V priority relais. This way a microphone call will always come through at
maximum volume, no matter what position the volume control is in.
The E-VOL50 is build on a universal chassis that can easily be integrated with
Gira, Jung and Euro. Different cover plates are available for the UK market.
Please avoid
- Please avoid any power overload, measure your speakerlines before connecting.
- In reality, a lot of speakers have much higher load than the value listed in their specification.
Our APART speakers are especially engineered within their specification, so no risk for overload when using them !
- Please never apply clipped or overloaded levels from your amplifier to this volume control.
It may cause overheating and damage ! Our APART amplifiers are automatically limited to avoid such
distorted signals !

Tech. Specifications

• Type : Euro
• Handling power : 50 watt
• Voltage : 100 Volt
• 24V priority : Yes (20mA)
• Attenuation steps : 11 + "0"
• Build-in box : E-MODIN
• Build-on box : E-MODON
• Dimensions (H x W x D) : 80 x 80 x 70 mm
• Weight : 0.3 Kg
• Colour : white

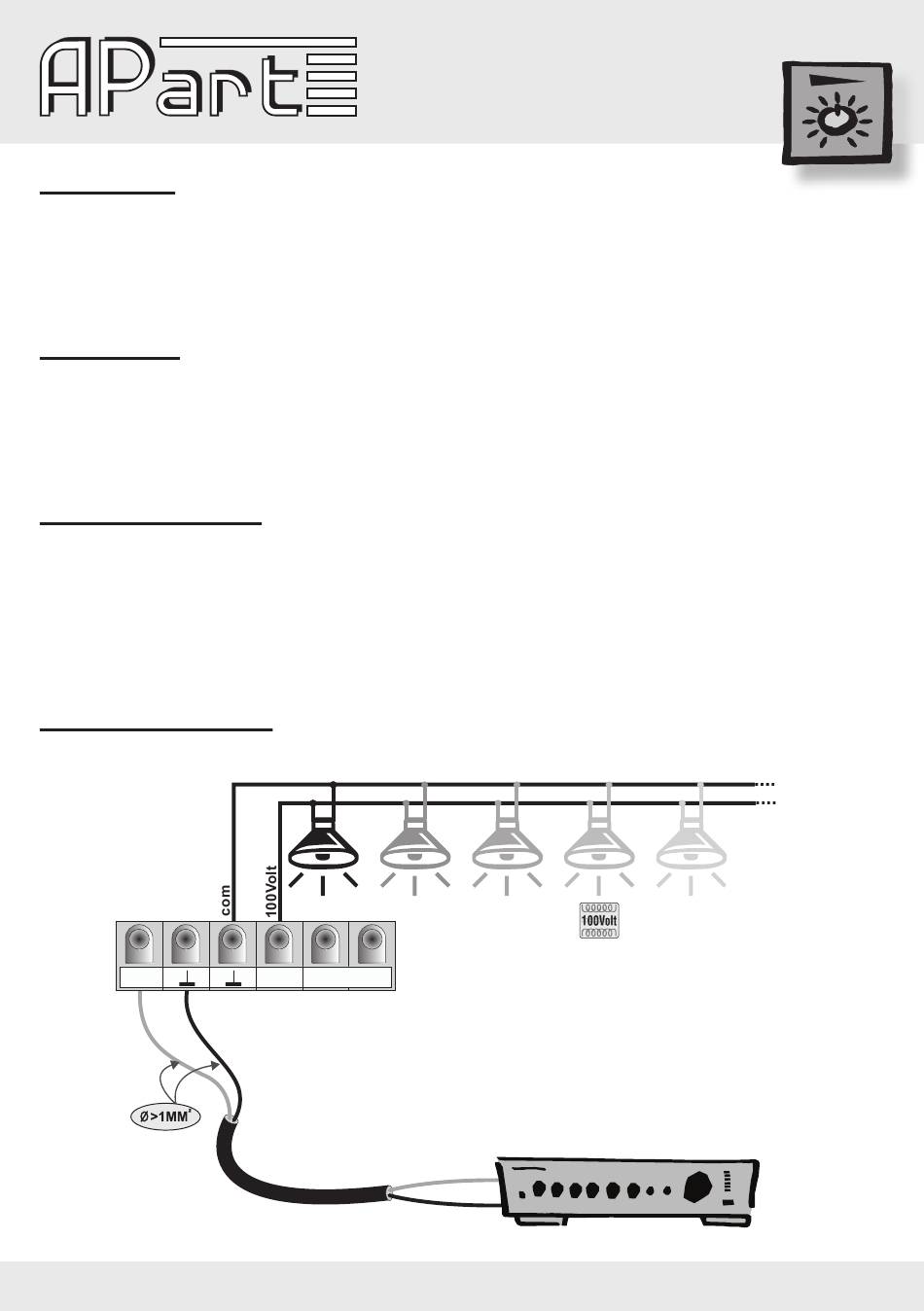

2-WIRE CONNECTION

IN
WWW.APART-AUDIO.COM
TOTAL LOUDSPEAKER POWER : 3 - 50 WATTS MAXIMUM !!!
OUT - 24V +
E-VOL50
Volume Control
100Volt
com
USE ONLY HIGH IMPEDANCE
100VOLT LOUDSPEAKERS
