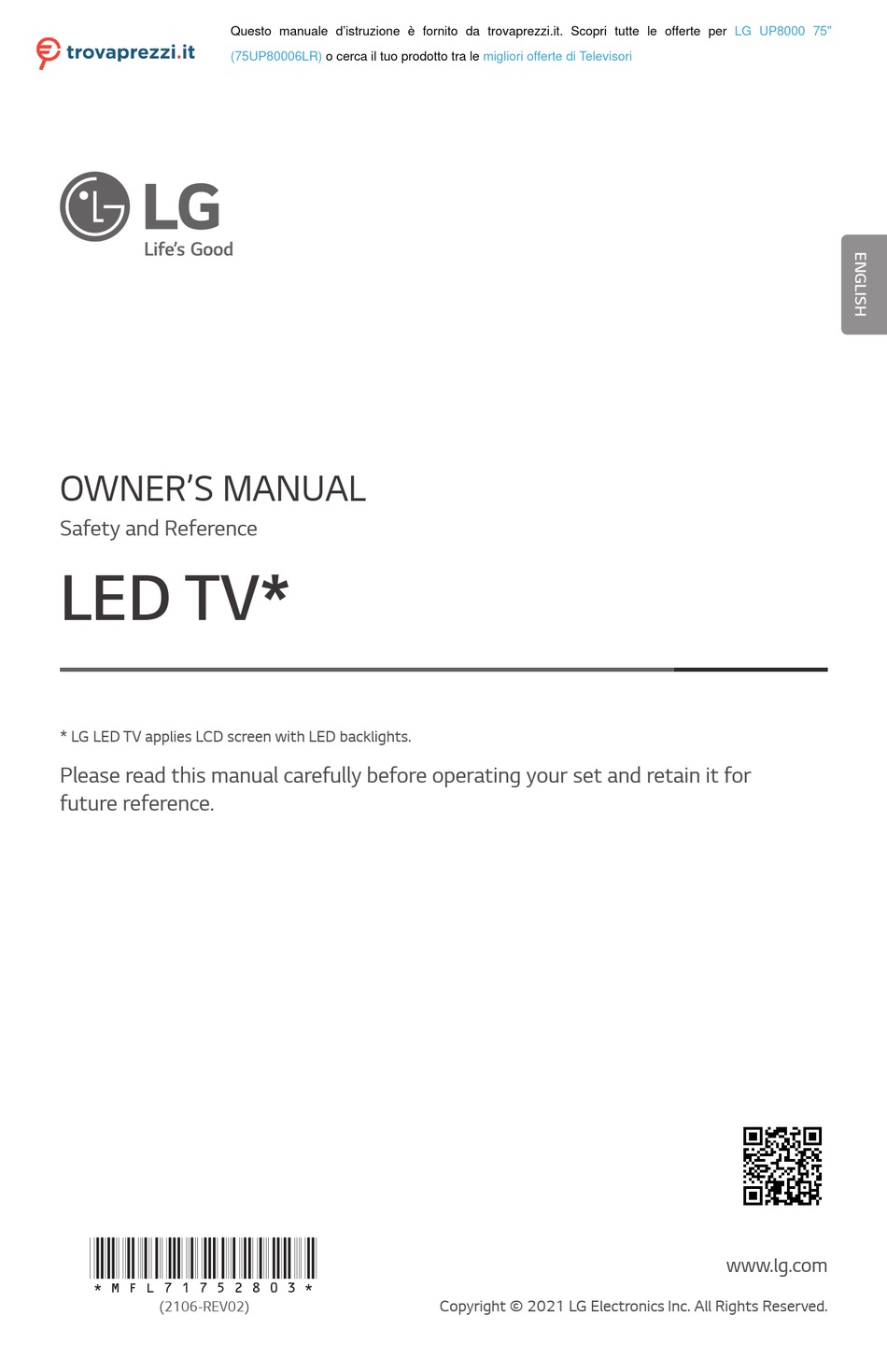

OWNER'S MANUAL
Safety and Reference
LED TV*
* LG LED TV applies LCD screen with LED backlights.
Please read this manual carefully before operating your set and retain it for
future reference.
*MFL71752803*
(2106-REV02)
Questo manuale d'istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per
(75UP80006LR)
o cerca il tuo prodotto tra le
migliori offerte di Televisori
Copyright © 2021 LG Electronics Inc. All Rights Reserved.
LG UP8000 75"
www.lg.com
Advertisement
Table of Contents
Related Manuals for LG 70UP81 Series
Summary of Contents for LG 70UP81 Series
- Page 1 Televisori OWNER’S MANUAL Safety and Reference LED TV* * LG LED TV applies LCD screen with LED backlights. Please read this manual carefully before operating your set and retain it for future reference. *MFL71752803* www.lg.com Copyright ©...
-
Page 2: Before Reading This Manual
Title Warning! Safety instructions Using Remote Control - Using Magic Remote Control Preparing - Using Remote Control - Lifting and moving the TV Connections - Mounting on the Table - Mounting to the Wall Troubleshooting - Antenna/Cable - Satellite dish Specifications... - Page 3 Warning! Safety instructions CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL. This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
- Page 4 • Use only an authorized attachments / accessories approved • Never touch this apparatus or antenna during a lightning by LG Electronics. Otherwise, this may result in fire, electric storm. You may be electrocuted. shock, malfunction, or product damage.
- Page 5 • Batteries - Store the accessories (battery, etc.) in a safe location out of the reach of children. - Do not short circuit, disassemble, or allow the batteries to overheat. Do not dispose of batteries in a fire. Batteries should not be exposed to excessive heat. - Caution: Risk of fire or explosion if the battery is replaced by an incorrect type.
-
Page 6: Lifting And Moving The Tv
Preparing Lifting and moving the TV Please note the following advice to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size. • It is recommended to move the TV in the box or packing material that the TV originally came in. •... -
Page 7: Mounting On The Table
Mounting on the Table 1 Lift and tilt the TV into its upright position on a table. • Leave a 10 cm (minimum) space from the wall for proper ventilation. 2 Connect the power cord to a wall outlet. 10 cm (Depending on model) •... -
Page 8: Mounting To The Wall
LG’s wall mount bracket is easy to move with cables connected. When you do not use LG’s wall mount bracket, please use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices. -
Page 9: Wall Mounting Bracket
Wall Mounting Bracket (Depending on model) Make sure to use screws and wall mount bracket that meet the VESA standard. Standard dimensions for the wall mount kits are described in the following table. 43/50UP767* 55/65UP767* 43/50UP77* 55/60/65UP77* Model 43/50UP78* 55/65UP78* 43/50UP80* 55/60/65UP80* 43/50UP81*... -
Page 10: Satellite Dish
43/50UP75* 55UP75* 65UP75* 43/50UP76* 55UP76* 65UP76* 70/75UP767* 43/50UP767* 55UP767* 65UP767* 70/75UP77* 70/75UP75* Model 43/50UP77* 55UP77* 60/65UP77* 75UP78* 82/86UP80* 43/50UP78* 55UP78* 65UP78* 75UP80* 82/86UP81* 43/50UP80* 55UP80* 60/65UP80* 70/75UP81* 43/50UP81* 55UP81* 65UP81* VESA (A x B) (mm) 200 x 200 300 x 300 300 x 300 400 x 400 600 x 400 Standard screw... -
Page 11: Turning On The Tv
Starting TV Turning on the TV You can simply operate the TV functions, using the button. Using button Power On (Press) 1) All running apps will close, and any recording in progress will stop. (Depending on country) Power Off (Press and Hold) 2) You can access and adjust the menu by pressing the button when TV is on. -
Page 12: Inserting The Battery
Inserting the battery (Depending on model) • When the message [Magic Remote battery is low. Please change the battery.] is displayed, replace the battery. To replace batteries, open the battery cover, replace batteries (1.5 V AA) matching the ends to the label inside the compartment, and close the battery cover. •... -
Page 13: Using Remote Control
Using Remote Control Using Magic Remote Control (Depending on model) The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly. Power Turns the TV on or off. Number buttons Enters numbers. - Page 14 OK Selects menus or options and confirms text in the search bar. your input. You can watch TV or LG Channels. OK Accesses the [Magic Explorer]. When using [TV Guide], [Settings], [Sports Alert], Clears on-screen displays and returns to TV viewing.
- Page 15 Connections Connect various external devices to the TV and switch input modes to select an external device. For more information of external device’s connection, refer to the manual provided with each device. HDMI • When connecting the HDMI cable, the product and external devices should be turned off and unplugged. •...
-
Page 16: External Devices
CI module View the encrypted (pay) services in digital TV mode. (Depending on model) • Check if the CI module is inserted into the Note in the right direction. If the module is not inserted properly, this can cause damage to the TV and the •... -
Page 17: Troubleshooting
Troubleshooting Cannot control the • Check the remote control sensor on the product and try again. TV with the remote • Check if there is any obstacle between the product and the remote control. control. • Check if the batteries are still working and properly installed ( to , to ). -
Page 18: Specifications
Specifications (Depending on country) Broadcasting Specifications Digital TV Analogue TV (Depending on country) (Depending on country) DVB-T/T2 PAL/SECAM B/G/I/D/K Television system DVB-C SECAM L DVB-S/S2 DVB-S/S2 DVB-C DVB-T/T2 VHF III: 174 ~ 230 MHz UHF IV: 470 ~ 606 MHz Channel coverage 46 ~ 862 MHz UHF V: 606 ~ 862 MHz... - Page 19 (Only 70/75UP75*) Wireless module (LGSBWAC02) specifications Wireless LAN (IEEE 802.11a/b/g/n/ac) Frequency range Output Power (Max.) 2400 to 2483.5 MHz 17 dBm 5150 to 5725 MHz 19 dBm 5725 to 5850 MHz 10.5 dBm Bluetooth Frequency range Output Power (Max.) 2400 to 2483.5 MHz 8.5 dBm As band channels can vary per country, the user cannot change or adjust the operating frequency. This product is configured for the regional frequency table.
-
Page 20: Open Source Software Notice Information
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com. - Page 24 The model and serial number of the product are located on the back and on one side of the product. Record them below in case you ever need service. Model Serial No.
