INSTRUCTIONS FOR USE
FREEZER
EN
FN23841
FN23844

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FN23841 and is the answer not in the manual?

Questions and answers

Summary of Contents for Asko FN23841

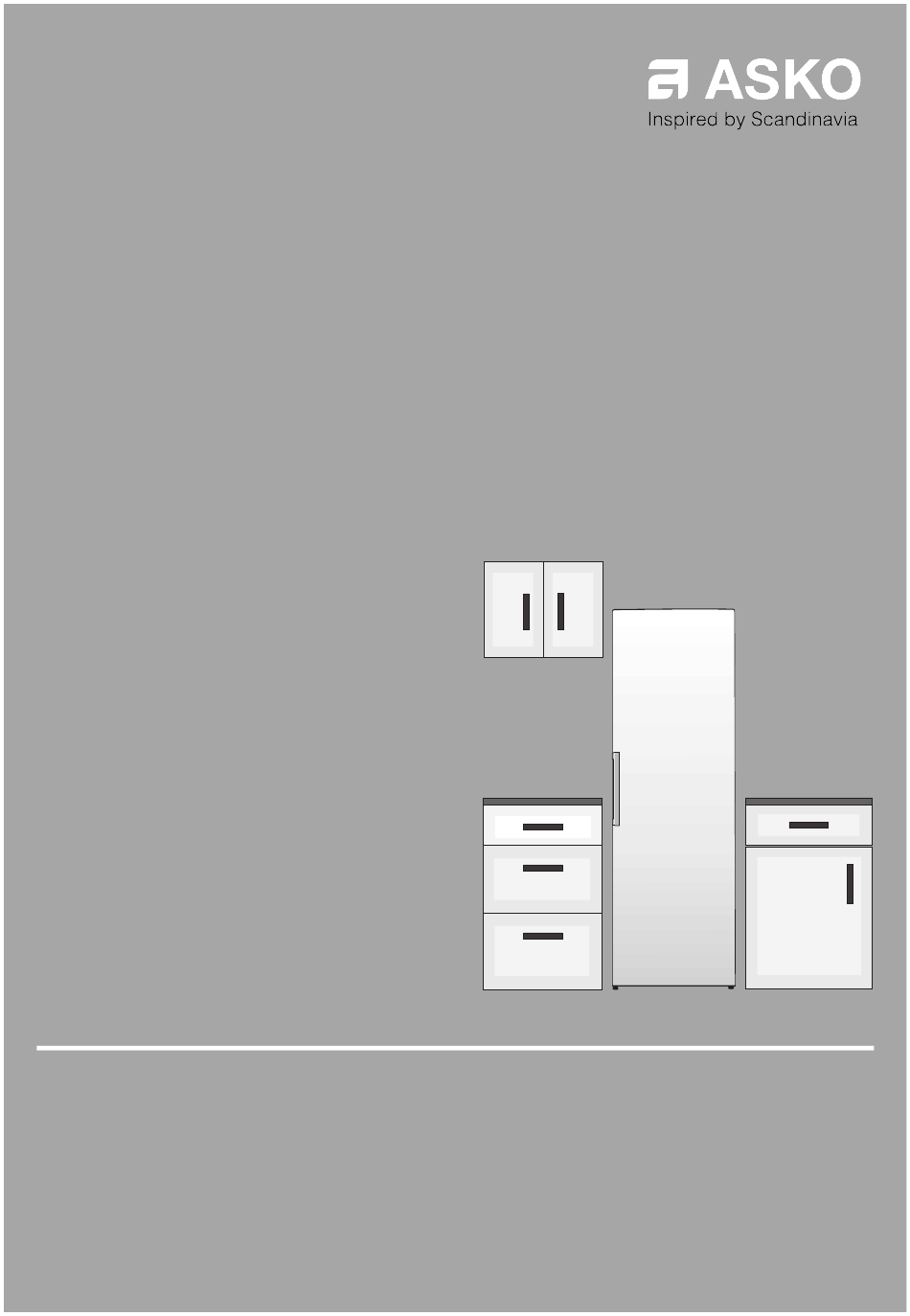

  • Page 1 INSTRUCTIONS FOR USE FN23841 FREEZER FN23844...
  • Page 2: Table Of Contents

    Contents Introduction ..........Description of the appliance ..... Dear customer, ..........AdaptTech ........... Safety instructions ........Operating the appliance ......Safety of children and vulnerable people ..Switching the appliance on/off ....General safety ..........Adjusting the temperature in the Installation ............
  • Page 3: Introduction

    Introduction Dear customer, Congratulations on choosing this Asko freezer. This product is designed with simple operation and optimum comfort in mind. These instructions for use explain how you can make best use of this appliance. These instructions contain information about the operation of the appliance and background information that may be of help to you during its use.
  • Page 4: Safety Instructions

    Safety instructions Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference. Safety of children and vulnerable people •...
  • Page 5 Safety instructions - staff kitchen areas in shops, offices and other working environments; - farm houses and by clients in hotels, motels and other residential type environments; - bed and breakfast type environments; - catering and similar non-retail applications. WARNING! •...
  • Page 6: Installation

    Safety instructions Installation WARNING! This appliance should only be connected by a registered installer. • Remove all the packaging. • Do not install or use a damaged appliance. • Obey the installation instruction supplied with the appliance. • Always be careful when you move the appliance because it is heavy.
  • Page 7: Use

    Safety instructions • Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact an electrician. • Always use a correctly installed shockproof socket. • Do not use multi-plug adapters and extension cables. •...
  • Page 8: Care And Cleaning

    Safety instructions • Be careful not to cause damage to the refrigerant circuit. It contains isobutene (R600a), a natural gas with a high level of environmental compatibility. This gas is flammable. • If damage occurs to the refrigerant circuit, make sure that there are no flames and sources of ignition in the room.
  • Page 9 Safety instructions • The refrigerant circuit and the insulation materials of this appliance are ozone friendly. • The insulation foam contains flammable gas. Contact your municipal authority for information on how to discard the appliance correctly. • Do not cause damage to the part of the cooling unit that is near the heat exchanger.
  • Page 10: Installation And Connection

    Installation and connection Selecting the location • Place the appliance in a dry and well aired room. The permitted ambient temperature range for the appliance depends on the appliance's climate class, which is shown on the type plate. • Do not place the appliance near a source of heat, such as a gas cooker, radiator or boiler, etc., and do not expose it to direct sunlight.
  • Page 11 Installation and connection Appliance installation should be carried out by at least two persons to avoid any personal injury or damage to the appliance. • The appliance must stand level or tilted slightly to the back. It should be stable and placed a solid base. At the front, the appliance is fi tted with two adjustable feet that can be used to level the appliance.
  • Page 12: Connecting The Appliance

    For safety reasons, side-by-side kit should only be installed by an authorized service technician! INFORMATION! For more informations refer to the local Asko dealer or to the Asko website of your country.
  • Page 13: Before Using The Appliance For The First Time

    Before using the appliance for the first time Before you use the appliance for the first time Do not connect the appliance to the mains until you have carefully read the instructions for the correct and safe use of the appliance. As these instructions are for various types and models, it is possible that the instructions for use refer to settings or parts that are not available on your appliance.
  • Page 14: Reversing The Door Opening Direction

    Reversing the door opening direction The direction in which the appliance door opens can be reversed. Note: Disconnect the appliance from the power mains before reversing the door opening direction. Tools required: Socket wrench No. 8, Cross-point screwdriver Flat screwdriver Spanner No.
  • Page 15 Reversing the door opening direction Remove the door from the bottom hinge by carefully lifting the door straight up. Lay the door onto a smooth surface. Take the (right) cap/cover (4) from the bag and place it on the spot from which the top hinge was removed. Remove and save the cap/cover from the other side (5) to which the hinge will be relocated.
  • Page 16 Reversing the door opening direction Attach the hinge (14) onto the opposite side using the screws. The screws should be attached in the order shown in the figure below. First, tighten the screw 1, followed by screws 2. Then, screw on the adjustable feet (11).
  • Page 17: Description Of The Appliance

    Description of the appliance This product contains a light source of energy efficiency class E. 1. Control panel 2. LED lighting of freezer interior 3. NoFrost freezer unit (cooling unit, fan ...) 4. Freezing and storage compartment 5. Foot NoFrost With the NoFrost system, you no longer need to defrost the freezer.
  • Page 18: Operating The Appliance

    Operating the appliance A. Appliance on/off key B. Temperature and extra functions settings key C. Set temperature display The signal light below the set temperature display is lit D. Intensive freezing (fast freeze) function indicator If intensive freezing (freezer boost) is activated, the light D will be lit. E.
  • Page 19: Intensive Freezing (Super Freeze) Function

    Operating the appliance • Set the desired temperature using the B key. • Set the desired temperature by successively pressing the B key. • The indicator cycles through the settings in a circular manner, from right to left. The numbers -16, -18, -19, -20, -22 and -24 indicate the temperature in degrees Celsius (°C) in the appliance.
  • Page 20: High Temperature Alarm

    Operating the appliance High temperature alarm If the temperature inside the appliance is too high, acoustic alarm will be activated (intermittent tone) and the signal light below the set temperature (C) will flash. Every time you switch on the appliance using the A key, a 24-hour delay in alarm operation is activated.
  • Page 21: Storing And Freezing Food

    Storing and freezing food Recommended distribution The best location for freezing fresh food is marked with a WARNING! Do not store lettuce, eggs, apples, pears, grapes, peaches, yoghurt, buttermilk, sour cream or mayonnaise in the freezer. Avoid contamination of food To avoid contamination of food, please respect the following instructions: •...
  • Page 22 Storing and freezing food • Use air and watertight packaging to prevent the food from drying out and lose its vitamins. • Note the type and quantity of the food on the packaging, together with the date on which it was frozen.
  • Page 23: Thawing Frozen Food

    Storing and freezing food Thawing frozen food • Thawing is an important step in storing food preserved by freezing. Food must be thawed in the correct way. • Suitable methods of thawing food are: in the refrigerator; in cold water; in a microwave or conventional oven with a suitable thaw program.
  • Page 24: Maintenance

    Maintenance Defrosting the appliance Defrosting of the NoFrost freezer The NoFrost freezer defrosts automatically. Any frost deposits will then disappear. Any ice or frost deposits that nevertheless form in the freezer compartment can be caused by unusual use of the appliance (opening the door too often and too long or poorly sealing door, etc.). The freezer will then need to be defrosted manually.
  • Page 25 Maintenance • Do not put parts of the appliance in a dishwasher: this could damage them. • The condenser unit, located next to the compressor unit on the back of the appliance (only with some models), has to be kept clean, free of dust or other impurities. Occasionally clean it using a soft non-metal brush or a vacuum cleaner.
  • Page 26: Faults Table

    Faults table When you have any doubts about whether your appliance is working properly you should not immediately assume that it is defective. We recommend that you should in any case check the points in the following table. Problem Cause/Solution •...
  • Page 27 Faults table Table continued from last page Problem Cause/Solution • If the door is not open, or if the light below the "-16°" indicator is still flashing after you have closed the door, then there is a door sensor failure. Call a service centre to arrange a repair. The appliance will operate in safe mode until it is repaired.
  • Page 28: Environmental Aspects

    Environmental aspects Disposal of packaging and appliance This appliance is made from sustainable materials. This appliance must be disposed of in a responsible manner at the end of its service life. Contact the local authorities for information about the method. INFORMATION! See also the chapter ‘Disposal’...
  • Page 29 The instructions for use can also be found on our website: www.asko.com 885935...
