Summary of Contents for PORODO PD-FM36WCC-BK

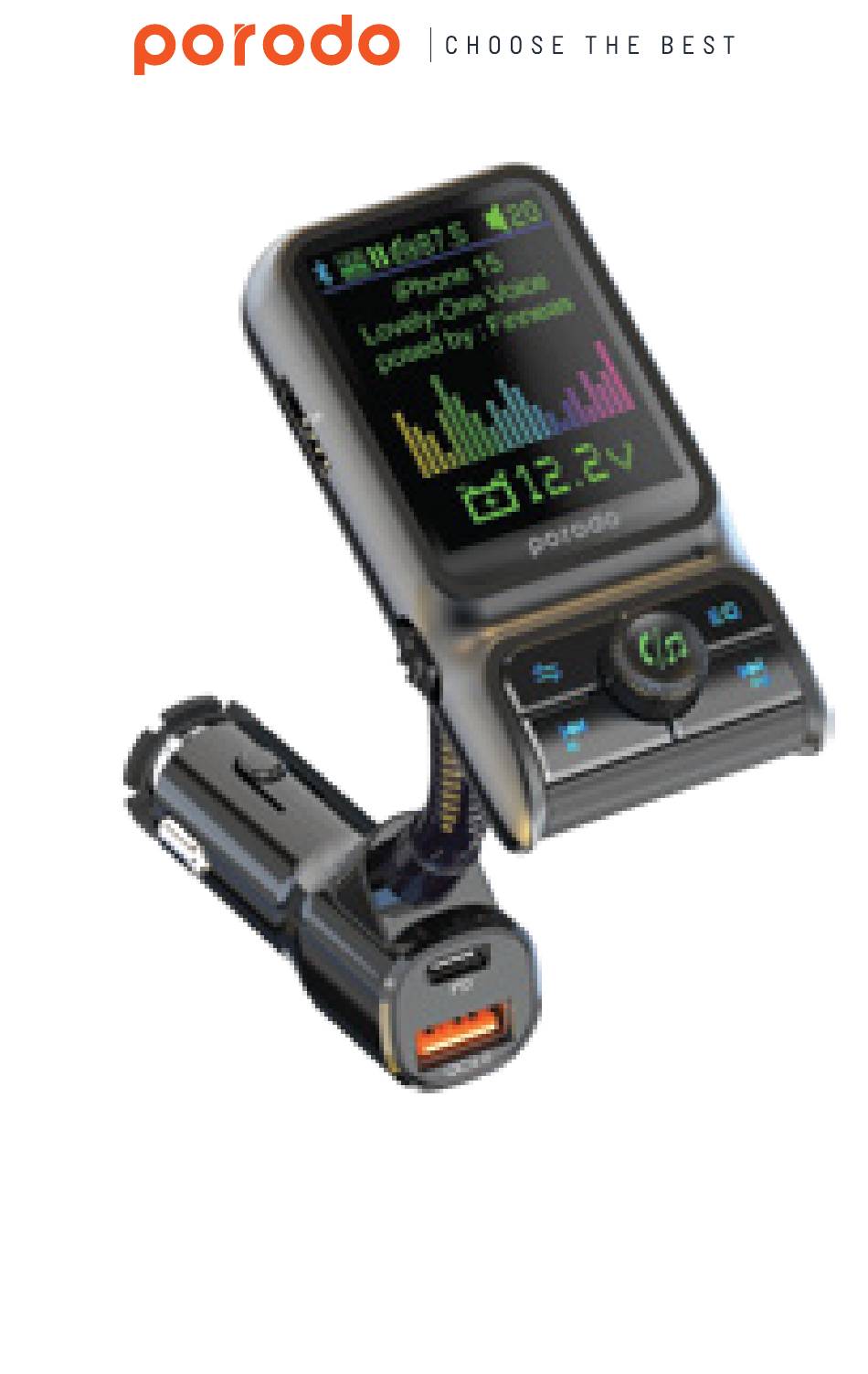

- Page 1 Dual Port Car Charger FM Transmitter MODEL: PD-FM36WCC-BK...
-
Page 2: Product Specifications
Product: 1. bluetooth、FM audio transmission 2. Support QC 3.0 QC2.0、PD、Huawei FCP、 Samsung AFC、BC1.2、 Apple 2.4A and other charging protocols 3. Support WMA,MP3,WAV, APE, FLAC music formats 4. Support bluetooth hands-free、music、navigation 5. Support output over voltage protection, short circuit protection, over current protection, over temperature protection 6. -
Page 3: Product Diagram
5.PD port output:5.5V/3A、9V/3A、12V/2.5A PPS：3.3V-11V/3A 6.Music port:5V/2A 7.Input voltage:12V-24V 8.U-disk/TF card capacity :MAX 32GB Product Diagram: U Disk port AUX input/output Display window TF card slot Power button Switch button EQ button Last song/Menu Next song/FM frequency Multi-function button PD3.0 fast charge port QC3.0 fast charge port Operation instructions: 1. - Page 4 2.Turn the device switch to the ON position 3.Turn on the car FM radio,and choose the blank FM channel 4.Adjust the product frequency same as your car radio 5.Open the Bluetooth of smart device and search for the "BC85" and click connect...
- Page 5 8 7 .5 N OR iPhone 13 Lovely-One Voice posed by : Finneas 1 2 . 2 v BC85 6.After the connection is successful, you can play music,navigate or make/answer calls N OR N OR 8 7 .5 8 7 .5 Todos mis sentidos Todos mis sentidos van pidiendo mas...
-
Page 6: Volume Control
button to adjust frequency,wait for 5 seconds to automatic confirm and save the current frequency,or click“ ”button to confirm. Volume control: Rotate “ ” button clockwise volume +, counterclockwise volume- Music control: 1. Pause/play—click “ ” button 2. Last song—click “ ”... -
Page 7: Dial/Answer Call
Bass Treble Dial/answer call: 1. Answer a call: click“ ” 2. Hang up a call: click“ ” 3. Reject a call: long press“ ” 4. Call back: double click“ ” Play source switch： U-Disk/TF Card/AUX IN, post insertion priority play When the machine is connected to bluetooth/U disk/T card/AUX IN, click button to switch between... - Page 8 1. Audio output mode Enter this mode, need click” ”button to switch ( TF card/U disk/bluetooth play) N OR 8 7 .5 AUX MODE Active audio 1 2 . 2 v Car stereo 2. Audio input mode Enter this mode, play music directly after connect device（If you switch to TF card/U disk/bluetooth play at the same time, there will be sound mixing.）...
-
Page 9: Menu Selection
Cycle mode selection: When playing music with TF card or U disk，can long press “ ” button to switch between single loop, all loop, sequence loop, Random Mode. Only support U disk/TF card play mode Menu Selection: Long press “ ”... -
Page 10: Low Power Mode
Low Power Mode : When the battery voltage is less than 11V, the display flashes. If it continues to flash for 10 minutes without any operation, the bluetooth will enter the low-power mode automatically.（This function is to protect the car battery. Some cars after turned off and locked, the cigarette lighter is not powered off）... -
Page 11: Troubleshooting
Troubleshooting: Power is 1. Check if the machine is in good contact with the cigarette port, and the responding cigarette holder is not seriously rusted. or not 2. Unplug and re-try again displayed 3. Check if the cigarette holder is powered normally Can't play 1. -
Page 12: Packaging Accessories
When using it, good, there adjust to the frequency of no radio is noise station to get better sound effect.． Packaging accessories 1. Main device 2. Manual www.porodo.net /porodo /myporodo Made in China...
