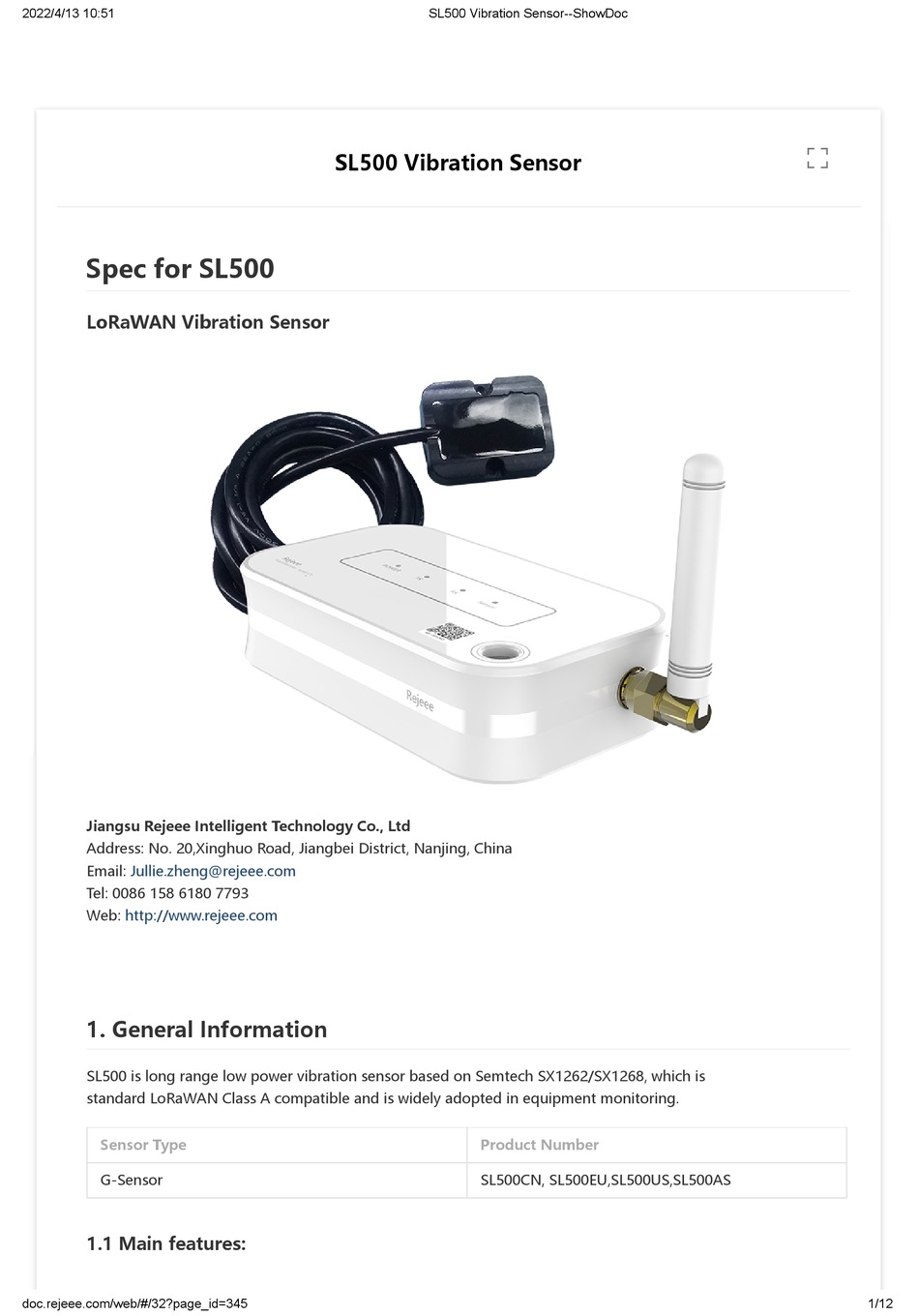

Spec for SL500
LoRaWAN Vibration Sensor
Jiangsu Rejeee Intelligent Technology Co., Ltd
Address: No. 20,Xinghuo Road, Jiangbei District, Nanjing, China
Email:
Jullie.zheng@rejeee.com
Tel: 0086 158 6180 7793
Web:
http://www.rejeee.com
1. General Information
SL500 is long range low power vibration sensor based on Semtech SX1262/SX1268, which is
standard LoRaWAN Class A compatible and is widely adopted in equipment monitoring.
Sensor Type
G-Sensor
1.1 Main features:
doc.rejeee.com/web/#/32?page_id=345
SL500 Vibration Sensor--ShowDoc
SL500 Vibration Sensor
Product Number
SL500CN, SL500EU,SL500US,SL500AS
1/12
Advertisement
Summary of Contents for Rejeee SL500
- Page 1 Tel: 0086 158 6180 7793 Web: http://www.rejeee.com 1. General Information SL500 is long range low power vibration sensor based on Semtech SX1262/SX1268, which is standard LoRaWAN Class A compatible and is widely adopted in equipment monitoring. Sensor Type Product Number...
- Page 2 2022/4/13 10:51 SL500 Vibration Sensor--ShowDoc 3-axis Accelerometer Type-C for Local Configuration Internal Battery Up to 10 Years LoRa SX1262/SX1268, Long Range Low Power LoRaWAN Class A Compatible 1.2 Details: Parameter Feature STM32L151 Wireless LoRaWAN(SX1262/SX1268) Encryption AES128 Battery Built-in Li-battery (Changeable, and No Recharge)
-
Page 3: Installation
2022/4/13 10:51 SL500 Vibration Sensor--ShowDoc 1.4 Installation: Lay the product flat on the table Hang on the wall doc.rejeee.com/web/#/32?page_id=345 3/12... - Page 4 2022/4/13 10:51 SL500 Vibration Sensor--ShowDoc For the G sensor, you can attach to equipment with magnet as below: 2. User Guide Make sure antenna is well installed before turn on the device. 2.1 Turn on/off the device When you get the device, it is off. Just press the button for 3 seconds and you can turn on the device. When you turn on the device, there are 4 led on the top, all led will twinkle from left to right.
- Page 5 2022/4/13 10:51 SL500 Vibration Sensor--ShowDoc uploading. 2.2 Data uploading by press the button When turn on the device, normally the sensor will read data and upload every 10 mins, if you want to send data immediately, you can just press the button for short time, less than 1 second, and sensor will read and upload data.
-
Page 6: Data Uploading
2022/4/13 10:51 SL500 Vibration Sensor--ShowDoc Sensor is green means sensor is reading and uploading data, if sensor is red, that means sensor is not working, please kindly check if the sensor is will connected. 2.4 USB-C Port There is one USB-C port as below, which is for power on and config, connect device to laptop with a USB-C cable,... - Page 7 4. Connect to LoRaWAN Network SL500 vibration sensor is based on standard LoRaWAN Class A, so you can connect to any LoRaWAN network through OTAA. On the back of device, you can find information as below, with this information, you can connect to any LoRaWAN server.
- Page 8 2022/4/13 10:51 SL500 Vibration Sensor--ShowDoc Here below take TTN as an example about how to connect the device to TTN server, please make sure to choose manually and the right frequency plan as below: Sensor LoRaWAN SL500CN SL500EU SL500US doc.rejeee.com/web/#/32?page_id=345...
- Page 9 2022/4/13 10:51 SL500 Vibration Sensor--ShowDoc Sensor LoRaWAN SL500AS And here is the data decoder for TTN platform, just copy the information as below: function decodeUplink(input) { = {}; warnings = []; = input.bytes?input.bytes.length:0; offset = 0; dtype; offset++; Battery voltage level: Battery voltage is from 0-31, 31 means battery is 100% left. */ obj.battery...
- Page 10 2022/4/13 10:51 SL500 Vibration Sensor--ShowDoc warnings: warnings 5. Wireless LoraWAN Sensor Data Format Picture as below, FRMPayload is sensor data. doc.rejeee.com/web/#/32?page_id=345 10/12...
-
Page 11: Local Configuration
2022/4/13 10:51 SL500 Vibration Sensor--ShowDoc 6. Sensor Data Definition 6.1 Device Information(0x00) Type Value Value Value 1 Byte 3 bit 5bit 1 Byte 0x00 Version Battery Level Reserve 6.2 G Sensor(0x01) For Example: FRM Payload is 00 3F 24 01 00 0040 0080 FC40 00... - Page 12 2022/4/13 10:51 SL500 Vibration Sensor--ShowDoc LoRaWAN vibration sensor*1 Mounting brackets*1 LoRaWAN antenna*1 doc.rejeee.com/web/#/32?page_id=345 12/12...
