June 2021© Massey GC1725M ROPS Cab Operation Manual

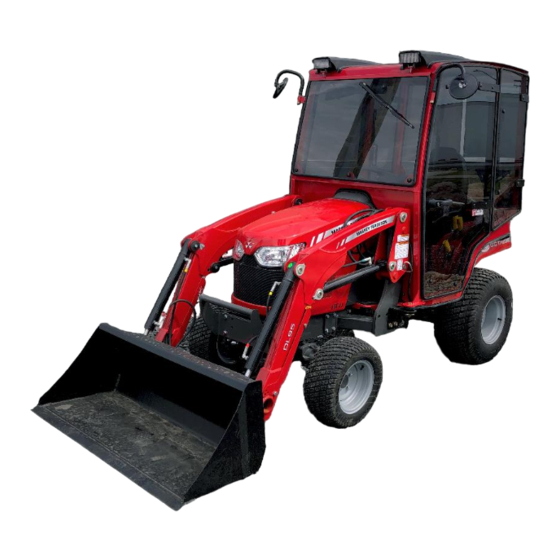

Massey Ferguson GC1725M Cab
* Shown with optional equipment *
Please note: Cab is shown with optional accessories.
Massey GC1725m Cab
This ROPS cab is designed and built to fit the Masey Ferguson GC1712E and GC1725M
tractor.
Designed and Built by:
Tektite Manufacturing Inc:
427 Buffalo Street
P.O. Box 639
Winkler, MB
R6W 4A8
Canada
PH: 204-331-3463
Fax: 204-331-4159
sales@tektite.ca
www.tektite.ca
One year standard product warranty provided by Tektite.
Advertisement
Summary of Contents for Massey Ferguson GC1725M
- Page 1 June 2021© Massey GC1725M ROPS Cab Operation Manual Massey Ferguson GC1725M Cab * Shown with optional equipment * Please note: Cab is shown with optional accessories. Massey GC1725m Cab This ROPS cab is designed and built to fit the Masey Ferguson GC1712E and GC1725M tractor.
- Page 2 June 2021© Massey GC1725M ROPS Cab Operation Manual Tektite Manufacturing Incorporated thanks you for purchasing a Massey Ferguson GC1725M ROPS cab! Tektite has worked very hard to design and build this ROPS product and we hope that it provides you with many years of ROPS protection.
- Page 3 June 2021© Massey GC1725M ROPS Cab Operation Manual Tektite Limited Warranty Tektite Manufacturing Inc. (“Tektite”) warrants to the original purchaser (the “Claimant”), that Tektite products will be free from defective materials or workmanship, under normal use and service, for a period of (1) full year from the original invoice date.
-
Page 4: Safety Precautions
June 2021© Massey GC1725M ROPS Cab Operation Manual Safety Precautions Safety First Read these instructions carefully. It is essential that you read the instructions and safety regulations before you attempt to assemble or use the features that are on this cab/ROPS. - Page 5 June 2021© Massey GC1725M ROPS Cab Operation Manual General Safety 1. Never let an unqualified or untrained driver operate the tractor. 2. Keep a fire extinguisher, with ABC rating securely fastened in the ROPS. Maintain it and be familiar with its use.
- Page 6 June 2021© Massey GC1725M ROPS Cab Operation Manual Safe Operation on Rough Terrain 1. Drive the tractor slowly on hillsides and curves to eliminate the danger of tipping. Avoid slopes which are too steep for safe operation. Avoid sharp uphill turns.
- Page 7 June 2021© Massey GC1725M ROPS Cab Operation Manual 9. Use your turn signals, checking for traffic well in advance of turning. If the tractor is not equipped with turn signals and law requires them, install them prior to operating on or near public roads.
- Page 8 June 2021© Massey GC1725M ROPS Cab Operation Manual Operating Instructions Important The following section locates, identifies and briefly describes the functions of all cab controls. All operators should familiarize themselves with control location and function prior to operating the tractor. Failure to do so may result in unsafe operation of the tractor and possible injury or death to operators and bystanders.
- Page 9 The deluxe cab design for this model features glass windows at all window locations. The Massey GC1725M tractor draws its air intake from underneath the steering wheel, so the tractor cab cannot be completely sealed, otherwise it will starve the engine for air.
- Page 10 June 2021© Massey GC1725M ROPS Cab Operation Manual After your ROPS Cab has been installed: Before starting a tractor equipped with a Tektite ROPS cab: 1. Clear the operator platform of all tools. Tools left in or around the ROPS and tractor can cause operator interference which could lead to bodily injury and/or damage the machine.
- Page 11 Index Service Part # File Name Description A00-0013 TEKT-0009 5MM Bushing A00-0014 TEKT-0092 Thick Bushing A00-0019 STEP-BOLT1-4X1 Step Bolt, 1/4" x 1", MB A00-0020 STEP-BOLT1-4X1-1-4 Step Bolt, 1/4" x 1 1/4", MB A00-0021 FLANGE-NUT-1-4 Flange Nut, 1/4", YD A00-0033 315-080 Rear Wiper Shaft Grommet A00-0043 WWF-MOTOR...
- Page 12 Index Service Part # File Name Description A00-0001 DLP-HANDLE Outside Push Button Handle A00-0003 RIGHT-LATCH Suicide Door Right Latch A00-0013 TEKT-0009 5MM Bushing A00-0018 STEP-BOLT1-4X1-1-2 Step Bolt, 1/4" x 1 1/2", MB A00-0020 STEP-BOLT1-4X1-1-4 Step Bolt, 1/4" x 1 1/4", MB A00-0021 FLANGE-NUT-1-4 Flange Nut, 1/4", YD...
- Page 13 Index Service Part # File Name Description A00-0013 TEKT-0009 5MM Bushing A00-0014 TEKT-0092 Thick Bushing A00-0019 STEP-BOLT1-4X1 Step Bolt, 1/4" x 1", MB A00-0020 STEP-BOLT1-4X1-1-4 Step Bolt, 1/4" x 1 1/4", MB A00-0021 FLANGE-NUT-1-4 Flange Nut, 1/4", YD A00-0033 315-080 Rear Wiper Shaft Grommet A00-0043 WWF-MOTOR...
- Page 14 Index Service Part # File Name Description A00-0001 DLP-HANDLE Outside Push Button Handle A00-0002 LEFT-LATCH Suicide Door Left Latch A00-0013 TEKT-0009 5MM Bushing A00-0018 STEP-BOLT1-4X1-1-2 Step Bolt, 1/4" x 1 1/2", MB A00-0020 STEP-BOLT1-4X1-1-4 Step Bolt, 1/4" x 1 1/4", MB A00-0021 FLANGE-NUT-1-4 Flange Nut, 1/4", YD...
- Page 15 Index Service Part # File Name Description A00-0013 TEKT-0009 5MM Bushing A00-0019 STEP-BOLT1-4X1 Step Bolt, 1/4" x 1", MB A00-0021 FLANGE-NUT-1-4 Flange Nut, 1/4", YD A00-0044 TEKT-ASM-002 Side Window Hinge Weldment A00-0045 TEKT-0004 Side Window Slider Bracket, 1" tube A00-0057 TEKT-0020MIR Side Window Latch, L60776 A00-0058...
- Page 16 Index Service Part # File Name Description A00-0013 TEKT-0009 5MM Bushing A00-0019 STEP-BOLT1-4X1 Step Bolt, 1/4" x 1", MB A00-0021 FLANGE-NUT-1-4 Flange Nut, 1/4", YD A00-0045 TEKT-0004 Side Window Slider Bracket, 1" tube A00-0046 TEKT-ASM-002R Side Window Hinge Right A00-0056 TEKT-0020 Side Window Latch, L60775 A00-0058...
- Page 17 Index Service Part # File Name Description A00-0024 BUSS-15600-08-11 Power Block/Ground A00-0055 TEKT-0019 Fir Tree Fastener A00-0065 TEKT-ASM-005 On-Off Switch w/Lens A00-0067 TEKT-ASM-007 Mom-Off-Mom Rocker Switch A00-0223 TEKT-ASM-013 Steel Top Switchplate w/Decal A00-0224 TEKT-0104 3" Plug, Steel Top Tektite Manufacturing Inc. 24157 Hwy 3, Box 639, Winkler MB, R6W 4A8, Canada Req'd: CNC:...
- Page 18 Index Service Part # File Name Description MFGC1725M-ASM-14 A00-0021 FLANGE-NUT-1-4 Flange Nut, 1/4", YD A00-0023 FLANGE_BOLT_1-4X3-4 Flange Bolt, 1/4" x 3/4", YD A00-0059 FLANGE-NUT-5-16 Flange Nut, 5/16", YD A00-0061 TEKT-0021 Striker Mounting Plate A00-0084 TEKT-0070 Gas Shock A00-0085 TEKT-0069 Gas Shock Stud A00-0101 STRIKER-PIN Striker Pin...
