Important - Please read these
instructions fully before starting assembly
These instructions contain important information that will help
you get the best from your pressure washer, ensuring it is
assembled correctly and safely. If you need help or have damaged
or missing parts, call the Customer Helpline on 0345 605 2062
INSTRUCTION

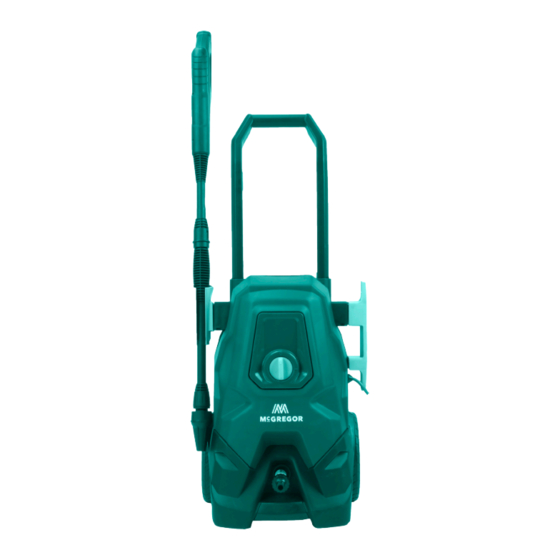

McGregor 1800W HIGH
PRESSURE WASHER
ORIGINAL
MANUAL
7368484 (Model: MPW1801)
AFTER SALES SUPPORT
0345 605 2062
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for McGREGOR MPW1801
Summary of Contents for McGREGOR MPW1801
- Page 1 ORIGINAL INSTRUCTION MANUAL McGregor 1800W HIGH PRESSURE WASHER 7368484 (Model: MPW1801) Important - Please read these instructions fully before starting assembly AFTER SALES SUPPORT 0345 605 2062 These instructions contain important information that will help you get the best from your pressure washer, ensuring it is assembled correctly and safely.
-
Page 2: Table Of Contents
Safety Information Contents Important - Please read these instructions fully before operating or maintaining Safety Information............................3 Warning Symbols ...........................3 General safety............................4 Personal safety............................4 Operating safety............................5 Maintenance and storage safety.......................7 Intended use............................8 Service..............................8 In the Box ..............................9 Assemble ..............................10 Prepare ..............................11 Operate..............................13 Maintenance and Repair..........................17 Storage and Transportation........................18... -
Page 3: Safety Information
Safety Information Important - Please read these instructions fully before operating or maintaining Warning Symbols The following warning symbols appear through this manual and indicate the appropriate safety measures you should take when operating and maintaining the pressure washer. Warning Read the instruction manual Conforms to all relevant safety standards. -
Page 4: General Safety
Safety Information Important - Please read these instructions fully before operating or maintaining General Safety IMPORTANT! - Keep this instruction manual in a safe place for future reference. - Read the instructions carefully. Be familiar with the controls and the prop- er use of the equipment. -
Page 5: Operating Safety
Safety Information Important - Please read these instructions fully before operating or maintaining Personal Safety (continued) please use only with a water backflow preventer or inlet hose-set ap- proved by IEC 61770. - Risk of injection or injury, do not direct discharge stream at persons. - Do not use the appliance when there are other people around, unless they are also wearing safety equipment. - Page 6 Safety Information Important - Please read these instructions fully before operating or maintaining Operating Safety (continued) by means of a cord reel which keeps the socket at least 60 mm above the ground. - The electric supply connection shall be made by a qualified electrician and comply with IEC 60364-1.
-
Page 7: Maintenance And Storage Safety
Safety Information Important - Please read these instructions fully before operating or maintaining vibration. - Do not use the appliance near flammable liquids or gases. In case of non-observance, there is a risk of fire of explosion. - Ensure that the mains voltage matches the information on the label. - Before each use, check the equipment, power cable and plug for dam- age, avoiding an electrical shock. -
Page 8: Intended Use
- to use with accessories, replacement parts and detergents approved by McGREGOR. Observe the instructions provided with these detergents. Any use of the machine that deviates from its intended use and is not included in these instructions is considered unauthorized use and relieves the manufacturer from his or her legal liability. -
Page 9: In The Box
In the Box Parts High pressure washer Adjustable spray lance Gun storage Cable storage Spray gun Screw 4 pcs Detergent bottle Handle Water inlet male connector High pressure hose Nozzle pin Turbo lance Instruction manual If there are any parts missing, please call the customer helpline on 0345 605 2062 Customer Helpline 0345 605 2062... -
Page 10: Assemble
Assemble Preparing to assemble the pressure washer IMPORTANT! - Remove all parts of the pressure washer from the box and carefully remove all packaging. Take care not to lose any instructions which may be affixed to the parts. These provide important information which will be required while attached the pressure washer. -
Page 11: Prepare
Prepare Step 1 - Fit the high pressure hose to the washer WARNING! Always wear safety gloves when doing any work on the pressure washer. 3. Remove the plastic cover and then connect the high pressure hose to the pressure washer. Attach high pressure hose to the machine’s water outlet (hand tighten only). - Page 12 Prepare Step 4 - Assemble inlet adapter. Warning: Use a water filter if the inlet water is contained. Attach the inlet adapter to the machine’s water inlet. Hand tighten only. Step 5 - Connect garden hose and water supply. Attach garden hose to water supply and turn water on. Step 6 - Connect garden hose and inlet adapter.
-
Page 13: Operate
Prepare Step 7 - Connect socket Make sure the ON/OFF switch is in the OFF position and your hands and plug are dry. Connect the plug to the mains socket. Note! We Recommend the use of a RCD Safety protection plug. Operate Step 1 - Starting WARNING! - Page 14 Operate Step 2 - Stopping 1. Release the trigger, and engage the safety lock. 2. Set the On/Off switch to OFF. 3. Close the water supply. Step 3 – Use the high pressure lance WARNING! - Always turn off the machine when changing the high pressure lance.-The trigger gun is subjected to a recoil force when the water jet is discharged.
- Page 15 Operate Step 3 – Use the high pressure lance (continued) CAUTION! - Jet spray adjustment is very aggressive. Do not adjust while spraying. Switch the machine off when interrupting your work for extended periods of time. - The high-pressure pump starts running as soon as you operate the hand-held spray gun. The high-pressure pump stops running as soon as you release the trigger on the hand-held spray gun.
- Page 16 Operate Step 4 – Use the detergent bottle WARNING! In case of contact with detergents: rinse with an abundance of clean water Always turn off the machine when changing the detergent bottle. 1200ml 1. Unscrew the bottle cap of the detergent bottle. Fill the detergent to the detergent bottle. Screw on the bottle cap tight.
-
Page 17: Maintenance And Repair
Maintenance and Repair Maintenance and Repair WARNING! Always switch the product off, unplug from the power socket and let the product cool down before performing inspection, maintenance and cleaning work! Maintenance and Repair(continued) - After every use wipe the machine with a slight damp cloth. Do not clean the machine using a high-pressure water jet. -
Page 18: Storage And Transportation
Storing and transportation Clearing of the Lime scale From periods of time, water lime scale may build up on your lance outlet, use the Nozzle clean- ing pin to clean this away Storing Frost can damage your pressure washer that has not been completely emptied of water. The machine should be stored in a frost free room. -
Page 19: Troubleshooting
Troubleshooting General Troubleshooting WARNING! - Only perform the steps described within these instructions! All further inspection, maintenance and repair work must be performed by an authorised service centre or a similarly qualified specialist if you cannot solve the problem yourself! - Always turn off the machine and remove the plug before making any adjustment. -
Page 20: Technical Data
Technical data Technical Data Table Model MPW1810 Voltage 230-240V~ /50Hz Input power 1800W Working pressure 10MPa Max pressure 13MPa Rated flow 5.2l/min Max flow 6.3l/min Inlet T Net weight 9.5kg Measured sound pressure level 83dB (A), k=3 dB (A) Guaranteed sound power level 94dB (A) Vibration 1.5m/s... -
Page 21: Getting Help
Recycling and disposal Recycling and disposal (continued) This symbol is known as the Crossed out Wheelie Bin Symbol. When this symbol is marked on a product or battery, it means that it should not be disposed of with your general house- hold waste. -
Page 22: Guarantee
Guarantee Dear Customer, In the unlikely event that your device develops a fault, please contact our Customer service department on the telephone number shown below. 1. These guarantee terms cover additional guarantee rights and do not affect your statutory warranty rights. Claims must be accompanied by Proof of Purchase. This must be in the form of a Sales receipt or Bank statement and must show that the product has been purchased within 2 years prior to the claim, from the retailer that it was originally sold to. - Page 23 Customer Helpline 0345 605 2062...
- Page 24 Customer Helpline 0345 605 2062...
