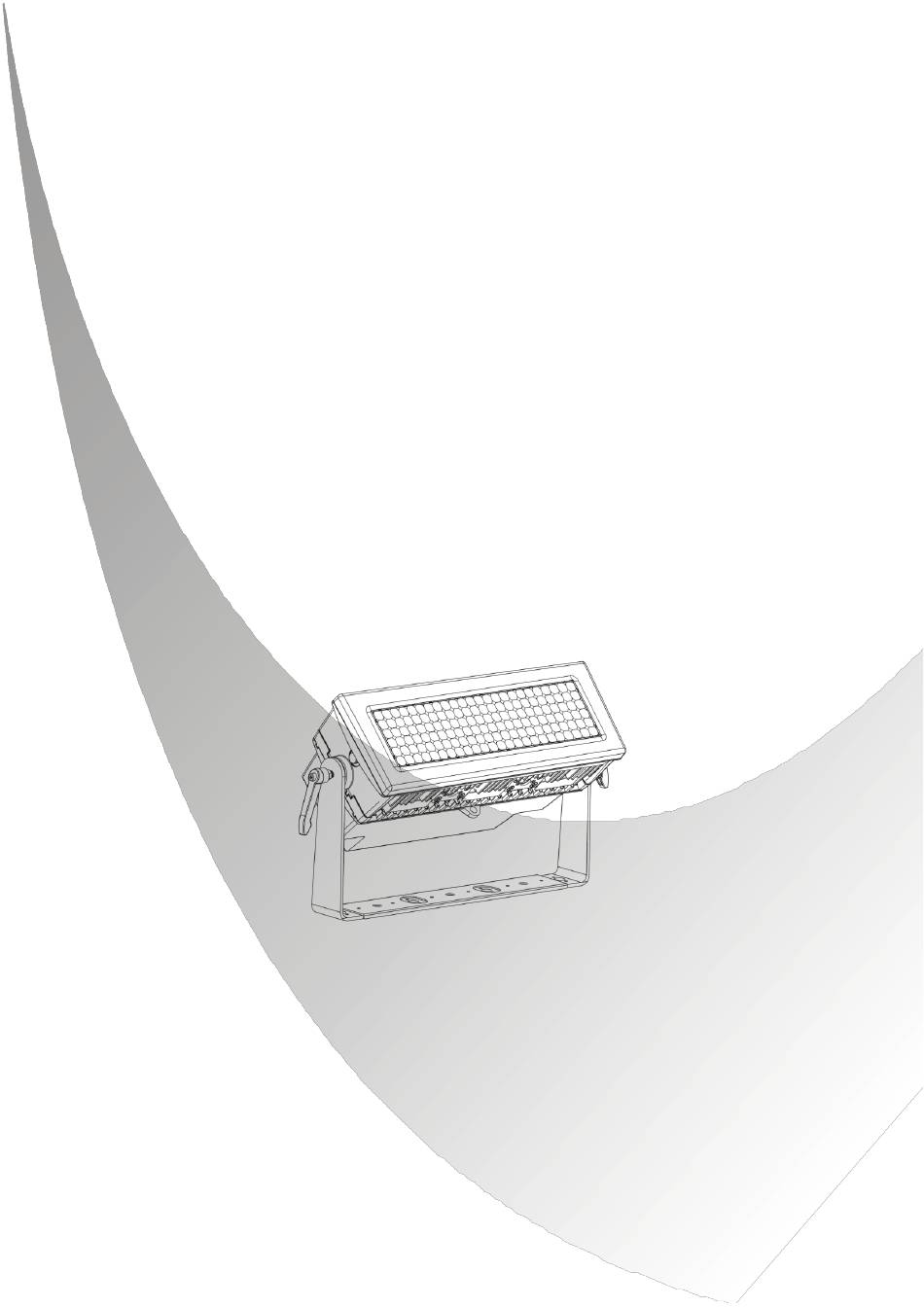

  • Page 1 RAYTHEON USER MANUAL...

  • Page 2: Product Specifications

    1 PRODUCT SPECIFICATIONS PRODUCT SPECIFICATIONS • Voltage:AC100-240V, 50/60Hz • Power: 1100W • Operation Temperature, -20'C-45'C • Size:585X189X307.5mm • IP65 • Weight: 10.5kg 1.2 SAFETY WARNING IMPORTANT: • This product must be installed by a qualified professional. • AII maintenance must be carried out by a qualified electrician. •...

  • Page 3: Installation

    2 INSTALLATION MOUNTING • The fixture be mounted in any position. • Always ensure that the mounting surface can withstand 10 times the weight of the fixture. • Always use a safety cable when mounting the fixture in an elevated position.
  • Page 4 3.2 MENU MAP...

  • Page 5: Edit Static Colour

    3.3 EDIT STATIC COLOUR • GREEN, BLUE AND WHITE to create an infinite range Combine RED, of colors (0-255) • Set the value of the STROBE (0-25Hz) 3.4 DMX512 SETTINGS • Enter the ADDRESS mode to set the DMXADDRESS.

  • Page 6: Activating Auto Programs

    3.5 ACTIVATING AUTO PROGRAMS • Select the target AUTO PROGRAM and press ENTER. • Programs AUTO.01 to AUTO.10 are fully pre-programmed and will not be altered by changes in EDIT mode. 3.6 RUN MODE • Enter RUN MODE to set working mode.

  • Page 7: Special Settings

    3.8 SPECIAL SETTINGS • SETTING menu allows the user to adjust key operation settings for this fixture. • Select UPLOAD to upload the custom programs from the current MASTER unit to the SLAVE units. • To reset custom modes select RESET. Note: UC/RGBW/CALIB.C cannot be reset •...

  • Page 8: Activate The Password

    1200Hz,2000Hz, 4000Hz, 6000Hz, 25000Hz. Note: with refresh rate increased, gray rate of dimmer will be reduced, (high refresh rate, low gray rate), when set to 4000Hz, CV3 is invalid, 25000Hz, CV1, CV2, CV3 are invalid, so please lower PWM rate to increase gray rate in necessary. •...
  • Page 9 3.10 BALANCE PARAMETERS AND CORRECTION MENU DISPLAY Press MENU to enter the password confirmation, to enter the use the password UP + DOWN + UP + DOWN • Enter the CALIB.CCALIBRATION.C to select white color of different color temperature. • There are 12 pre-programmed White colours that can be edited by using RED, GREEN, BLUE &...

  • Page 10: Using A Dmx512 Controller

    4 USING A DMX512 CONTROLLER 4.1 CHANNEL ASSIGNMENT Note: This product has six DMX512 channel configurations: HSIC, SSP, TR16, PIXEL.1, PIXEL.2, HALOGEN HSIC CHANNEL VALUE FUNCTION INTENSITY - 255 HUE FINE - 255 SATURATION 0 - 255 - 10 FUNCTION 2700K 3000K 3200K...
  • Page 11 CHANNEL VALUE FUNCTION MASTER DIMMER 0 - 255 0 - 255 GREEN - 255 BLUE - 255 WHITE - 255 STROBE1 0 - 9 FUNCTION 255 0-25Hz Duration 14ms-650ms) 0 - 255 STROBE2 0 - 9 FUNCTION LIGHTNING STROBE 119 NO FUNCTION 255 RANDOM SROBE...
  • Page 12 TR16 CHANNEL VALUE FUNCTION MASTER DIMMER 0 - 255 MASTER DIMMER FINE 0 - 255 - 255 FINE - 255 GREEN GREEN FINE 0 - 255 BLUE 0 - 255 BLUE FINE - 255 WHITE 0 - 255 WHITE FINE COLOR MARCOS FUNCTION RED 100%...
  • Page 13 CHANNEL VALUE FUNCTION STROBE2 FUNCTION 10 - 109 LIGHTNING STROBE 119 NO FUNCTION RANDOM SROBE AUTO FUNCTION AUTO 01 AUTO 02 AUTO 03 AUTO 04 AUTO 05 AUTO 06 AUTO 07 AUTO 08 AUTO 09 AUTO10 AUTO SPEED ADJUSTMENT DIMMER SPEED FUNCTION 0 - 9 DIM1...
  • Page 14 PIXEL.1 CHANNEL VALUE FUNCTION MASTER DIMMER STROBE1 FUNCTION 0-2SHz - 255 Duration ( 14ms-650ms) STROBE2 NO FUNCTION 10 - 109 LIGHTNING STROBE 110 - 119 NO FUNCTION 120 - 255 RANDOM SROBE RED1 0 - 255 GREEN1 BLUE1 - 255 RED2 GREEN2 0 - 255...
  • Page 15 CHANNEL VALUE FUNCTION BLUE10 RED11 GREEN11 BLUE11 RED12 GREEN12 BLUE12...
  • Page 16 PIXEL.2 CHANNEL VALUE FUNCTION MASTER DIMMER STROBE1 0 - 9 FUNCTION 10 - 255 0-2SHz 0 -255 Duration ( 14ms-650ms) STROBE2 FUNCTION LIGHTNING STROBE NOFUNCTION 255 RANDOM SROBE RED1 GREEN1 BLUE1 WHITE1 RED2 GREEN2 BLUE2 WHITE2 RED3 GREEN3 BLUE3 WHITE3 RED4 GREEN4 BLUE4...
  • Page 17 CHANNEL VALUE FUNCTION GREEN8 BLUE8 WHITE8 RED9 GREEN9 BLUE9 WHITE9 RED10 GREEN10 BLUE10 WHITE10 RED11 GREEN11 BLUE11 WHITE11 RED12 GREEN12 BLUE12 WHITE12...
  • Page 18 HALOGEN CHANNEL VALUE FUNCTION DIMMER 0 - 255 Halogen effect (ON-OFF) 0 - 255 STROBE1 FUNCTION 0 - 9 0-25Hz Duration (14ms-650ms) 0 - 255 STROBE2 0 - 9 FUNCTION LIGHTNING STROBE 110 - 119 FUNCTION RANDOM SROBE 120 - 255 Instruction for strobe effect When Duration is shorter...
  • Page 19 Period (Rate time) Period (Rate Period (Rate Period (Rate time) ms time) ms time) ms 170.0 86.5 168.0 86.0 166.0 85.5 164.0 85.0 162.0 84.5 160.0 84.0 158.0 83.5 156.0 83.0 154.0 82.5 152.0 82.0 2320.0 151.0 81.5 1760.0 150.0 81.0 1760.0 149.0...
  • Page 20 384.0 120.0 69.0 376.0 119.0 68.7 360.0 118.0 68.4 350.0 117.0 68.1 336.0 116.0 67.8 330.0 115.0 67.5 320.0 114.0 67.2 315.0 113.0 66.9 310.0 112.0 66.6 305.0 111.0 66.3 300.0 110.0 66.0 290.0 109.0 65.7 284.0 110.0 65.4 280.0 109.5 65.1 275.0...
  • Page 21 Duration Duration ms Duration ms Duration 218.3 444.3 14.0 220.8 446.8 14.5 223.4 449.4 15.0 225.9 451.9 15.5 228.5 454.5 16.0 231.0 457.0 17.0 233.6 459.6 17.7 236.1 462.1 20.3 238.6 464.7 22.8 241.2 467.2 25.3 243.7 469.8 27.9 246.3 472.3 30.4 248.8...
  • Page 22 103.9 325.0 548.4 106.4 327.5 551.0 108.9 330.1 553.5 111.4 332.6 556.1 113.9 335.2 558.6 116.7 337.7 561.2 119.3 340.3 563.7 121.8 342.7 566.3 124.4 345.2 568.8 126.9 347.8 571.4 129.5 350.3 573.3 132.0 352.9 576.8 134.6 355.4 578.9 137.1 358.0 581.9 139.6...
