FLEMA FPL-1.5TF Quick Start Manual

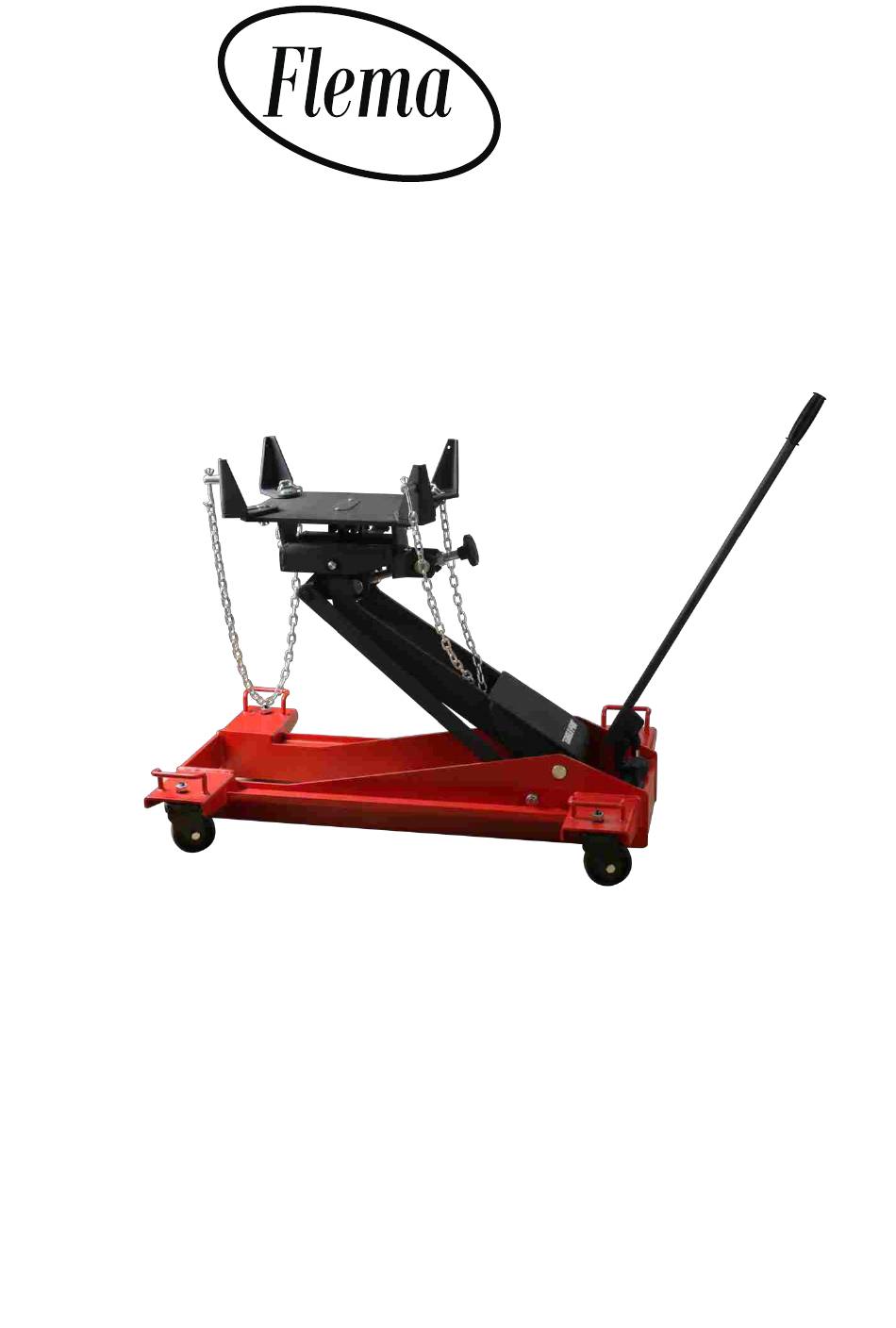

1-1/2 ton truck transmission jack
Hide thumbs
1
2
3
4
5
6
Table of Contents

Advertisement

Quick Links

Download this manual
Model:FPL-1.5TF
1-1/2 Ton Truck Transmission Jack
NOTE: BEFORE USING THIS JACK, PLEASE READ THIS MANUAL, UNDERSTAND
ITS OPERATING PROCEDURES, SAFETY WARNINGS AND MAINTENANCE OF THIS
JACK.
Carefully inspect all components for shipping damage. If shipping damage is found,
notify carrier at once. The carrier is responsible for any damage resulting from
shipment.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FPL-1.5TF and is the answer not in the manual?

Questions and answers

Related Manuals for FLEMA FPL-1.5TF

Summary of Contents for FLEMA FPL-1.5TF

  • Page 1 Model:FPL-1.5TF 1-1/2 Ton Truck Transmission Jack NOTE: BEFORE USING THIS JACK, PLEASE READ THIS MANUAL, UNDERSTAND ITS OPERATING PROCEDURES, SAFETY WARNINGS AND MAINTENANCE OF THIS JACK. Carefully inspect all components for shipping damage. If shipping damage is found, notify carrier at once. The carrier is responsible for any damage resulting from...
  • Page 2 1. SAFETY To avoid personal injury or property damage, please follow all safety precautions. We cannot be responsible for injury or damage resulting from unsafe and incorrect products use or system operation, or lack of maintenance. WARNING indicates a potential danger that requires correct action to avoid personal injury.
  • Page 3 918mm 1854mm 66Kg 74Kg 1150*718*405mm FPL-1.5TF 3. SETUP PLEASE REFER TO THE EXPLODED VIEW DRAWING IN THIS MANUAL IN ORDER TO IDENTIFY PARTS. Install the Part #3-7 and Part 3-13 brackets in the Part #3-8 saddle plate with the Part #3-6 bolts, Part #3-9 washers and Part #3-10 wing nuts.
  • Page 4 and well lubricated to prevent foreign matter from entering the system. If the jack has been exposed to rain, snow, sand, or grit, it must be cleaned before it is used. Store the jack in a well-protected area where it will not be exposed to corrosive vapors, abrasive dust, or any other harmful elements.
  • Page 5 PART LIST Part No Description Qty. Part No Description Qty. Wheel Assy. 1-15 Copper Washer Washer 1-16 Valve 1-17 Steel Ball Frame 1-18 O-ring Bolt 1-19 Release Valve Shaft 1-20 Washer 1-21 Release Knob...
  • Page 6 Rod Link 1-22 Bolt Washer 1-23 Steel Ball Saddle Seat 1-24 Ball Seat Shaft 1-25 Spring Washer 1-26 Screw Bracket 1-27 Sealing Washer 1-28 Screw Shaft 1-29 Spring 1-30 Steel Ball Bolt 1-31 Spring Hand Wheel 1-32 Copper Washer Adjustment Rod 1-33 Screw 1-34...
