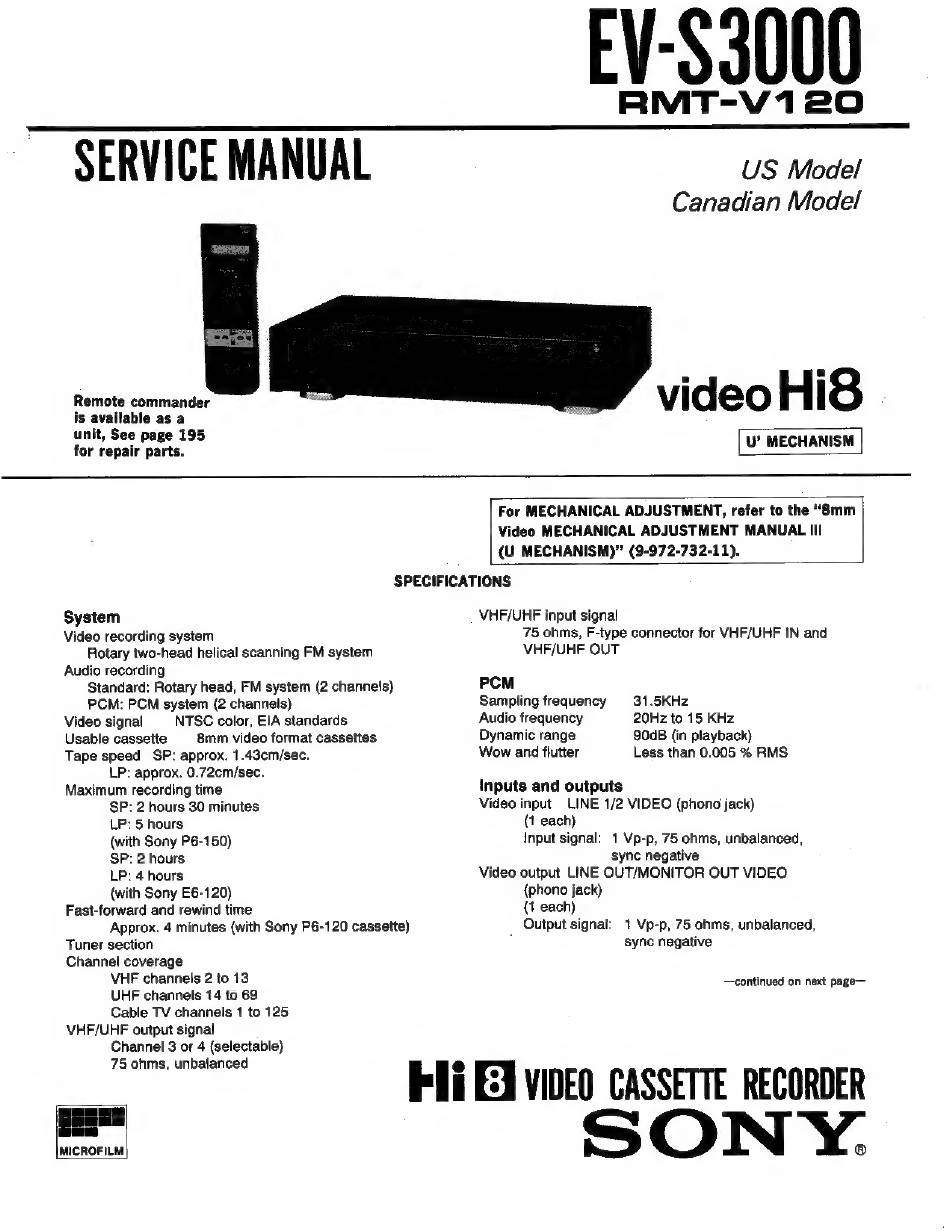

EV-$3000
RMT-V120
SERVICE MANUAL
US Model
Canadian Model
'a=
ideo
H i
Remote
de
H
8
is srliabe asa .
Vi
eo
l
q
19!
-
for repair parts. °
U' MECHANISM
For MECHANICAL ADJUSTMENT, refer to the "8mm
Video MECHANICAL ADJUSTMENT MANUAL III
(U MECHANISM)" (9-972-732-11).
SPECIFICATIONS
System
VHF/UHF input signal
Video recording system
75 ohms, F-type connector for VHF/UHF IN and
Rotary two-head helical scanning FM system
VHF/UHF OUT
Audio recording
Standard: Rotary head, FM system (2 channels)
PCM
PCM: PCM system (2 channels)
Sampling frequency
31.5KHz
Video signal
NTSC color, EIA standards
Audio frequency
20Hz to 15 KHz
Usable cassette
8mm video format cassettes
Dynamic range
90dB (in playback)
Tape speed
SP: approx. 1.43cm/sec.
Wow and flutter
Less than 0.005 % RMS
LP: approx. 0.72cm/sec.
Maximum recording time
inputs and outputs
SP: 2 hours 30 minutes
Video input
LINE 1/2 VIDEO (phono jack)
LP: 5 hours
(1 each)
(with Sony P6-150)
Input signal:
1 Vp-p, 75 ohms, unbalanced,
SP: 2 hours
sync negative
LP: 4 hours
Video output LINE OUT/MONITOR OUT VIDEO
(with Sony E6-120)
(phono jack)
Fast-forward and rewind time
(1 each)
Approx. 4 minutes (with Sony P6-120 cassette)
: Output signal:
1 Vp-p, 75 ohms, unbalanced,
Tuner section
sync negative
Channel coverage
VHF channels 2 to 13
—continued on next page—
UHF channels 14 to 69
Cable TV channels 1 to 125
VHF/UHF output signal
Channel 3 or 4 (selectable)
75 ohms, unbalanced
1G ED VIDEO CASSETTE RECORDER
ell
SONY.
