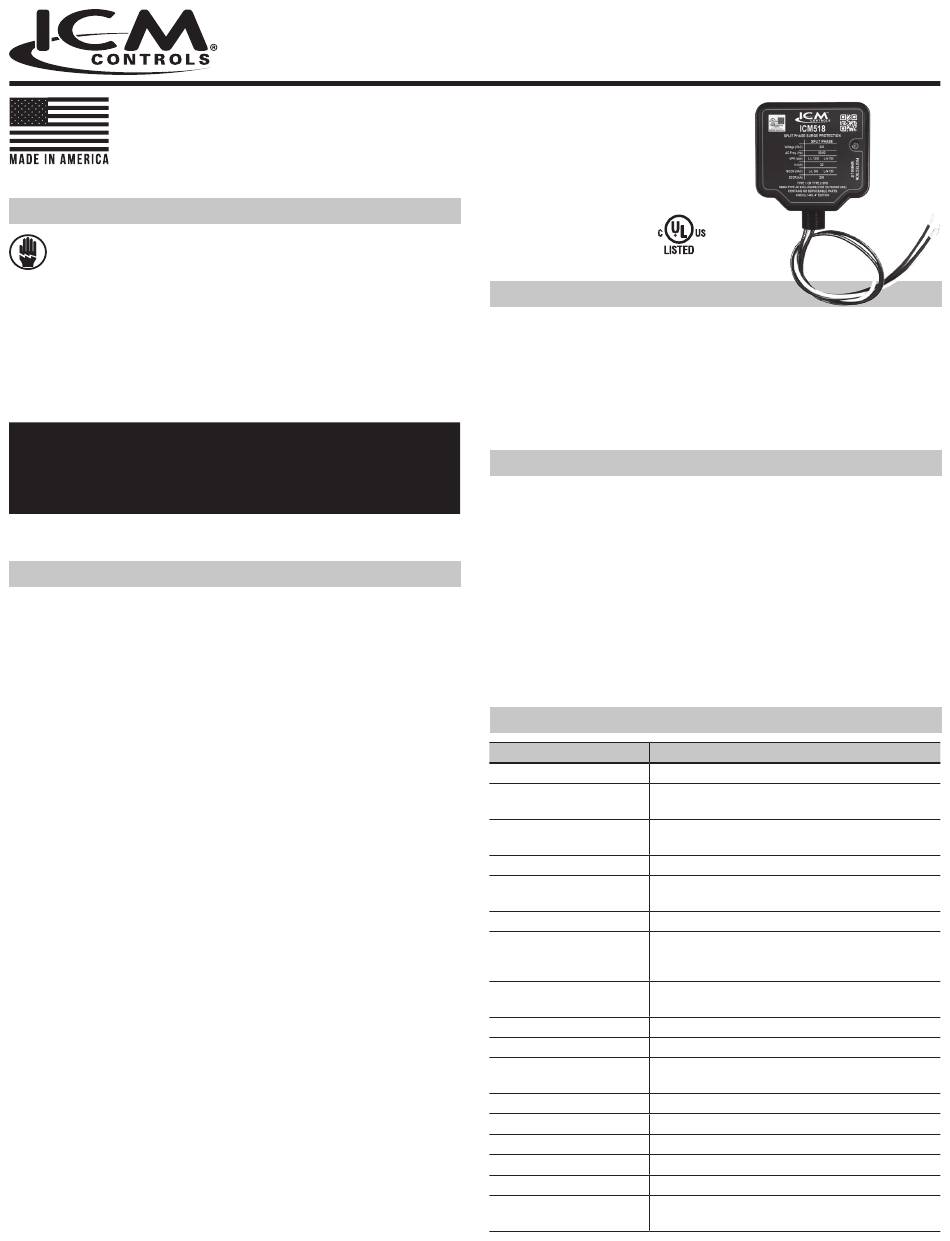

INSTALLATION, OPERATION & APPLICATION GUIDE
For more information on our complete range of American-made products – plus wiring
diagrams, troubleshooting tips and more, visit us at www.icmcontrols.com
IMPORTANT SAFETY INFORMATION
ELECTRICAL SHOCK HAZARD! – Before installing
this unit, turn off power at the main service panel by
removing the fuse or switching the appropriate circuit
breaker to the OFF position.
• WARNING — No Serviceable Parts (Attention: Aucune pièce
remplaçable ou reparable).
• WARNING — Shock hazard — Do not open (ATTENTION – RISQUE
DE CHOC – NE PAS OUVRIR).
Please follow all State, Local and National electrical codes when
installing this product. Installation should only be done by a licensed
electrician for Type 1 devices or a licensed HVAC technician for Type
2 devices.
INSTALLATION INSTRUCTIONS
The conductors used to connect the SPD shall not be any longer
than necessary and shall avoid unnecessary bends.
1. Turn off the main breaker and/or main power to the service
disconnect.
2. Verify your mains voltage and match that with the ICM518 ratings.
3. Remove the cover on the service disconnect or the electrical panel.
4. Mount the ICM518 through the 3/4" conduit connection of the
electrical panel.
5. Remove the retaining ring and washer on the ICM518.
6. Feed the wires into the electrical panel or service disconnect.
7. Re-secure the retaining ring and washer.
8. Route the white wire to the neutral lug and secure.
Wiring Type 1 installation
• Route the two black wires to the appropriate L1 and L2 connections
before the breaker panel as seen in the wiring diagram for Type 1
installation and according to your local, state, and national electrical
codes.
• Connect the white wire to the Neutral Bus.
Wiring Type 2 installation
• Route and connect the two black wires (L1 and L2) to the individual
breakers on the circuit breaker panel as seen in the wiring diagram
for Type 2 installation and according to your local, state and national
electrical codes.
• Connect the white wire to the Neutral Bus.
9. Reinstall the cover on the service disconnect or the electrical panel.
10. Restore power; Green LED should be on indicating full protection.
Surge Protective Device for Split Phase configuration
Limited lifetime
product, up to a 3-year
$10,000 connected
equipment warranty
MAINTENANCE
Periodically check the LED status on the SPD. If the Greenlight is
OFF, the protection is no longer available and the SPD needs to be
replaced immediately. 12 AWG stranded copper wire or larger required.
Product contains no serviceable parts. This device features an internal
protection that will disconnect the surge protective component at
the end of its useful life but will maintain power to the load – now
unprotected.
MODE OF OPERATION
The ICM518 is a UL Listed Type 1&2 Surge Protective Device for 240 VAC
Split Phase voltage configurations. When a surge occurs, the ICM518
will absorb the surge up to the limits expressed in the specifications
section of this guide. The ICM518 incorporates thermal protection
on the surge elements (TMOV's) which allows for safe disabling of
the surge elements when a surge exceeds the thermal limits of the
device. The ICM518 has a status light on the control which identifies
operational status when illuminated. The ICM518 can be installed as
a Type 1 or Type 2 device for both indoor and outdoor applications.
Suitable for use on a circuit capable of delivering not more than 200kA
RMS symmetrical amperes, 240V maximum (Convient à des circuits
produisant au plus 200kA RMS A eff.", 240V maximum).
SPECIFICATIONS
Description
Service Voltage
Short Circuit Current
Rating (SCCR)
Nominal Discharge
Current (In)
SPD Type
Surge Protection
Technology
Protection Mode
VPR (Vpk)
Maximum Continuous
Operation Voltage (MCOV)
Input Power Frequency
Diagnostics
Enclosure Rating
Installation Point
Dimensions
Operating Temperature
Operating Humidity
Operating Altitude
Agency Certification and
Approvals
ICM518
E347279
Ratings
Split Phase 240 VAC
200 kA
20 kA
Type 1 (Can also be used in Type 2 applications)
TFMOV
L1-L2, L1-N, L2-N
VOLTS (V) MODE VPR (Vpk)
240 L-L 1200
L-N 700
L-L: 300 VAC L-N: 150 VAC
50/60Hz
Green LED indicates surge protection present
NEMA/Type 4X water tight plastic enclosure for
outdoor and indoor installation
Electrical panel/disconnect
4.3" X 4.1" X 2.3"
-40°F to 185°F (-40°C to 85°C)
Less than 85%, noncondensing
Less than 2000 meters
ANSI/UL1449 4th Edition Listed Device - cULus
Listed
