OPERATOR'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MEGA-MIX and is the answer not in the manual?

Questions and answers

Summary of Contents for Greentek MEGA-MIX

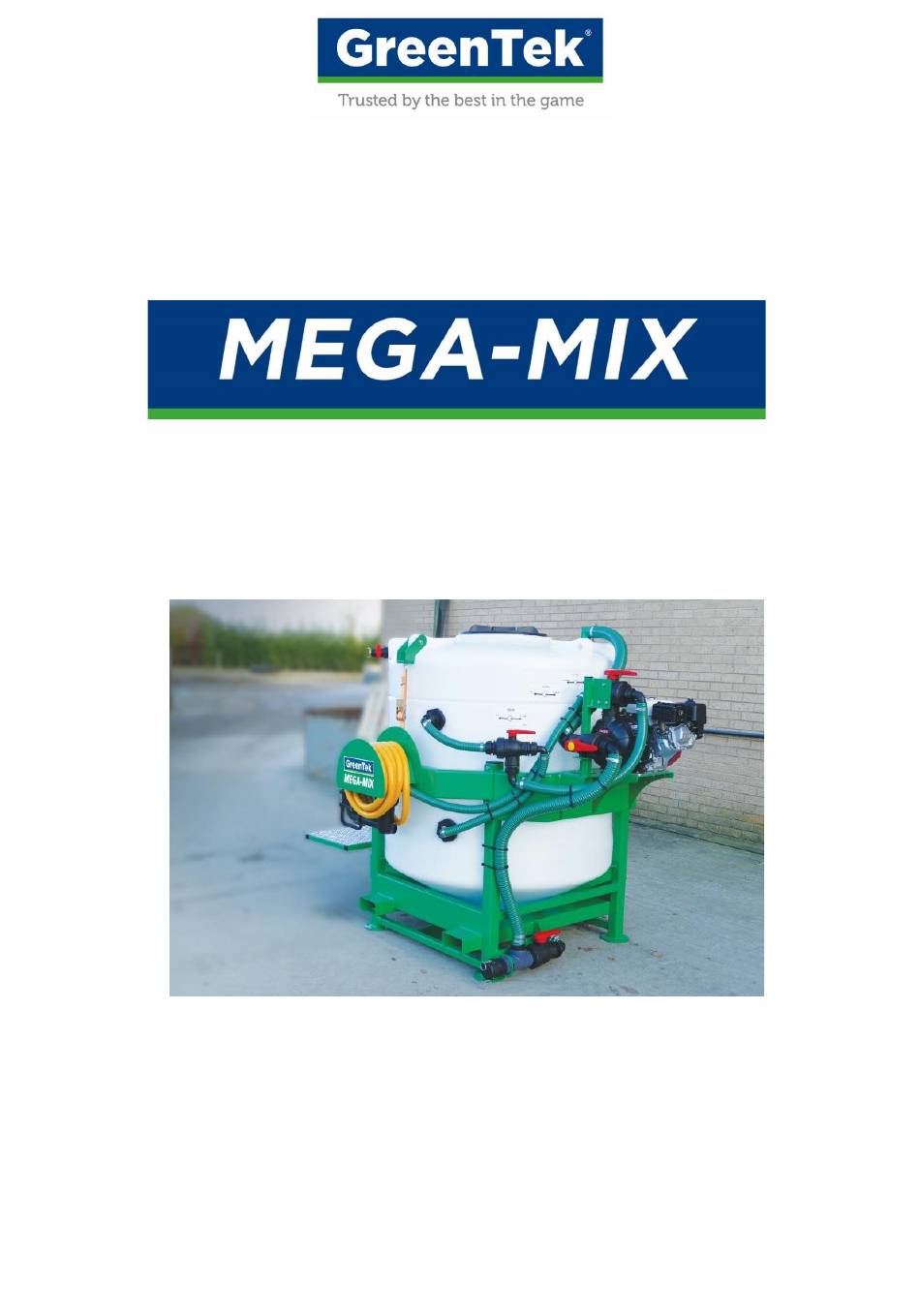

  • Page 1 OPERATOR’S MANUAL...

  • Page 2: Safety Warnings

    As with all equipment it is essential that all operators read and follow these instructions in order to use the Mega-Mix safely without endangering themselves or other persons.

  • Page 3: Valve Operation

    It must not be used for any other purpose. The Mega-Mix must be drained of all liquid before it is exposed to temperatures of zero degrees Celsius or below, in order to avoid frost damage. It must be stored in a frost-free environment when not in use.

  • Page 4: Filling The Tank

    FILLING THE TANK Option 1. The tank can be filled by connecting a hose to the connector at the top of the tank. A ballcock valve inside the tank will automatically shut off the flow when full.
  • Page 5 Option 2. Alternatively, a suction hose can be connected to the 2” cam coupler on the lower chassis. This enables it to suck water out of a tank or irrigation system. In this mode, ensure that the inlet valve is closed (as pictured in Figure 1) before connecting the cam coupler.
  • Page 6 MIXING THE CONTENTS OF THE TANK Fill the tank with a minimum of 100 litres of water before adding any granules. To mix the contents of the tank move the ‘SUCTION’ valve to the ‘TANK’ position and the ‘PRESSURE’valve to the ‘AGITATE’ position. This will draw liquid up the pipe in the centre of the tank, through the pump, and return it to the tank at high pressure, mixing the contents.
  • Page 7 TRANSFERING THE CONTENTS OF THE TANK To transfer the contents of the tank to your sprayer, move the ‘SUCTION’ valve to the ’TANK’ position and the ‘PRESSURE’ valve to the ‘TRANSFER’ position. This will draw liquid up the pipe in the centre of the tank through the pump and send it to the transfer hose.

  • Page 8: Draining The Tank

    IMPORTANT: The Mega-Mix must be drained of all liquid before it is exposed to temperatures of zero degrees Celsius or below, in order to avoid frost damage. It must be stored in a frost-free environment when not in use.
  • Page 10 GUARANTEE GreenTek equipment is guaranteed for 5 years for commercial use, and 3 months for hire use. This covers everything except components subject to fair wear and tear such as blades, brushes, belts, bearings, and drive splines etc, and damage caused by corrosion, abuse or lack of maintenance.
