Summary of Contents for NEFF S897ZM800E

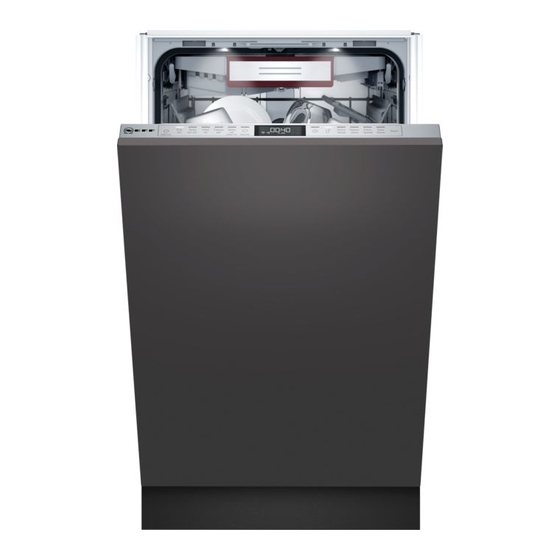

- Page 1 Dishwasher [en] Information for Use S897ZM800E...
-
Page 2: Table Of Contents
Table of contents Safety .......... 4 Features......... 22 General information...... 4 Top basket ........ 23 Intended use........ 4 Bottom basket ........ 23 Restriction on user group.... 4 Cutlery drawer ........ 24 Safe installation ........ 4 Etagere ........... 25 Safe use ........... 6 Folding prongs ....... 25 Damaged appliance ...... 8 Basket heights........ 25 Risk to children ........ 8 Before using for the first time .. - Page 3 Customer Service...... 61 Setting additional functions .... 35 Product number (E-Nr.), produc- Setting timer programming .... 35 tion number (FD) and consecut- Starting the programme .... 35 ive numbering (Z-Nr.) ..... 62 Interrupting programme .... 35 AQUA-STOP guarantee .... 62 Terminate programme.... 36 Switching off appliance .... 36 Technical specifications....
-
Page 4: Safety
en Safety Safety Observe the following safety instructions. General information ¡ Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe for future reference or for the next owner. ¡ Do not connect the appliance if it has been damaged in transit. Intended use Only use this appliance: ¡... - Page 5 Safety en WARNING ‒ Risk of electric shock! ¡ Incorrect installation is dangerous. ▶ Connect and operate the appliance only in accordance with the specifications on the rating plate. ▶ Always use the supplied power cable for the new appliance. ▶ Connect the appliance to a power supply with alternating current only via a properly installed socket with earthing.
-
Page 6: Safe Use
en Safety ¡ Contact between the appliance and installation lines may lead to a defect in these lines, e.g. gas pipes and power lines. Gas from a corroded gas pipe can ignite. A damaged power line can cause a short circuit. ▶... - Page 7 Safety en ¡ Highly caustic alkaline or highly acidic cleaning agents in con- junction with aluminium parts in the interior of the appliance may cause explosions. ▶ Never use highly caustic alkaline or highly acidic cleaning agents, in particular commercial or industrial products, in conjunction with aluminium parts (e.g.
-
Page 8: Damaged Appliance
en Safety ▶ Never kink, crush or modify the power cord. WARNING ‒ Risk of burns! The blow opening of the Zeolith container becomes hot and can cause burns. ▶ Never touch the blow opening of the Zeolith container. Damaged appliance WARNING ‒ Risk of electric shock! ¡... - Page 9 Safety en ¡ Children may breathe in or swallow small parts, causing them to suffocate. ▶ Keep small parts away from children. ▶ Do not let children play with small parts. ¡ Children may become trapped in the appliance and suffocate. ▶...
-
Page 10: Safety Systems
en Safety Safety systems Protect children from possible hazards resulting from the appli- ance. The appliance is equipped with a "Childproof lock " → Page 12. -
Page 11: Preventing Material Damage
Preventing material damage en pipes supplied for the drinking Preventing material damage Preventing material dam- water and waste water connec- tions are not affected here. ¡ Modified or damaged water hoses may result in material damage and Preventing material damage Safe installation damage to the appliance. -
Page 12: Childproof Lock
en Childproof lock ¡ Unsuitable cleaning agents may Environmental protection and saving energy Environmental protection damage the appliance. Do not use a steam cleaner. and saving energy ▶ So as not to scratch the finish ▶ on the appliance, do not use Environmental protection and saving energy sponges with a rough surface or Disposing of packaging... -
Page 13: Aquasensor
Installation and connection en During the drying phase moisture Sensor setting Description from the interior of the dishwasher is SE:00 Optimum setting for a stored in the mineral and heat energy mixed load and heavily is released. The heat energy is blown soiled tableware. -
Page 14: Installing And Connecting The Appliance
en Installation and connection marks on the appliance. These Drainage connection marks will disappear after the first Connect your appliance to drainage wash cycle. connection so dirty water is dis- The delivery consists of the following: charged via the wash cycle. ¡... -
Page 15: Electrical Connection
Installation and connection en Electrical connection Connecting the appliance to the electricity supply Notes ¡ Please follow the "Safety instruc- tions" → Page 4. ¡ Connect the appliance to alternat- ing current only, in the range of 220 - 240 V and 50 Hz or 60 Hz. ¡... -
Page 16: Familiarising Yourself With Your Appliance
en Familiarising yourself with your appliance Familiarising yourself with your appliance Familiarising yourself with your appliance Familiarising yourself with your appliance Appliance You can find an overview of the parts of your appliance here. Rating plate Rating plate with "E number and FD number" → Page 62. -
Page 17: Controls
Familiarising yourself with your appliance en "Detergent" → Page 30 is added to the detergent Detergent dispenser dispenser. "Bottom basket" → Page 23 Bottom basket "Filter system" → Page 43 Filter system Dispenser for special salt Add special salt to the dispenser for special salt. → "Water softening system", Page 26 Tablet collecting tray During the wash cycle tablets automatically fall out of the detergent dispenser into the tablet collecting tray... - Page 18 en Familiarising yourself with your appliance 3 4 5 6 "Switching on the appliance" → Page 34 ON/OFF button and reset button "Switching off the appliance" → Page 36 "Terminating the programme" → Page 36 "Programmes" → Page 20 Programme buttons "Home Connect" → Page 40 WLAN display Display The display shows information about the remain- ing running time or the basic settings.
- Page 19 Familiarising yourself with your appliance en button If you press for approx. 3 seconds, you can open the basic settings. → "Changing basic settings", Page 39 Depending on the appliance specifications...
-
Page 20: Programmes
en Programmes Programmes Programmes You can find an overview of the pro- runtime will change if the rinse aid Programmes grammes that can be selected here. system is switched off or rinse aid Different programmes, which can be needs to be added. found on the control panel of your The consumption values can be appliance, are available depending... -
Page 21: Information For Test Institutes
Programmes en Programme: Programme sequence Additional func- tions Tableware: Particularly gentle: Power Zone ¡ Cleaning delicate table- ¡ Pre-Rinse Extra Shine Glass 40° ware, cutlery, temperat- Extra Speed ¡ Cleaning 40 °C → "Additional ure-sensitive plastics, ¡ Intermediate rinse glasses and stemware in functions", ¡... -
Page 22: Additional Functions
en Additional functions Press . Additional func- Press the right programme button. tion → "Programmes", Page 20 ¡ Switch on with mixed Press the button for the relevant loads containing table- Power Zone additional function. ware with different soil- → "Additional functions", Page 22 ing levels, e.g. -
Page 23: Top Basket
Features en Raise or lower the basket evenly to Top basket the right level. Arrange cups, glasses and small items of tableware in the top basket. Check that the basket is level on both sides. Release the levers. You can adjust the height of the top a The basket clicks into position. -
Page 24: Cutlery Drawer
en Features To fold down a side shelf, push the lever forwards and fold down the side shelf . Cutlery drawer Arrange cutlery in the cutlery drawer. To fold down the front prongs, push the lever forwards and fold down the prongs ... -
Page 25: Etagere
Features en You can fold the prongs down to po- Etagere sition pans, bowls and glasses Use the cutlery shelf and space un- better. derneath for small cups and glasses Folding down prongs or for large items of cutlery, e.g. cooking spoons or serving cutlery. If you do not need the prongs, fold them down. -
Page 26: Before Using For The First Time
en Before using for the first time Level Top basket Bottom basket 2 max. ø 18.5 cm 27.5 cm 3 max. ø 21 cm 25 cm "Set the amount of rinse aid to be Before using for the first time Before using for the dispensed."... -
Page 27: Setting The Water Softening System
Water softening system en Water hardness °E Hardness range mmol/l Setting value 13 - 15 Medium 1.9 - 2.1 H:03 16 - 20 Medium 2.2 - 2.9 H:04 21 - 26 Hard 3.0 - 3.7 H:05 27 - 38 Hard 3.8 - 5.4 H:06 39 - 62 Hard... -
Page 28: Switching Off The Water Softening System
en Water softening system Note: Only use special salt for ¡ The water hardness is 0 - 8 °E. dishwashers. You do not need to use special Do not use salt tablets. salt. Do not use table salt. Press . Add the special salt to the dis- To open the basic settings, press penser. -
Page 29: Rinse Aid System
Rinse aid system en The consumption values specified Add rinse aid up to the max mark. are laboratory measurements determ- ined in accordance with the currently applicable standard and using the Eco 50° programme and the factory value of the water hardness is set to 16 - 20°E. -
Page 30: Switching The Rinse Aid System Off
en Detergent To save the settings, press starch and remove protein. Oxygen- for 3 seconds. based bleaching agents are generally used to remove coloured marks, e.g. tea or ketchup. Switching the rinse aid sys- tem off Note: Follow the manufacturer's in- structions for each detergent. If you find the rinse aid refill indicator Detergent Description... -
Page 31: Unsuitable Detergents
Detergent en Separate detergents Unsuitable detergents Separate detergents are products Do not use detergent which could that do not contain components other cause damage to the appliance or than detergent, e.g. powder deter- present a risk to health. gent or liquid detergent. With powder and liquid detergent the Detergent Description... -
Page 32: Adding Detergent
en Tableware ¡ The function of rinse aid is limited Close the lid of the detergent dis- with combined detergents. You will penser. generally get better results using rinse aid. ¡ Use tablets with a special drying performance. Adding detergent To open the detergent dispenser, press the locking latch. -
Page 33: Damage To Glass And Tableware
Tableware en Damage to glass and table- Cause Recommendation ware The water temperat- Select a programme ure of the programme with lower temperat- Only put glasses and china in the is too high. ures. dishwasher if it is marked as dish- After the programme washer-safe by the manufacturer. -
Page 34: Removing Tableware
en Basic operation To save resources, do not pre- Removing tableware rinse tableware under running wa- ter. WARNING Observe the following when arran- Risk of injury! ging tableware: Hot tableware can cause burns to the – Put heavily soiled tableware in skin. -
Page 35: Setting A Programme
Basic operation en for the combination of energy/wa- Press . ter consumption for this type of a This activates time preselection. tableware and evidences conform- Note: To deactivate timer program- ity with the EU Ecodesign Direct- ming, press repeatedly until ive. "00h:00m"... -
Page 36: Terminate Programme
en Basic operation Terminate programme To end a programme early or to switch from a programme that has already started, you will need to can- cel it first. Open the appliance door. Press for approx. 4 seconds. Close the appliance door. a All displays light up. a As soon as the displays are off, the display shows "00h:01m"... -
Page 37: Basic Settings
Basic settings en Basic settings Basic settings You can configure the basic settings for your appliance to meet your needs. Basic settings Overview of basic settings The basic settings depend on the features of your appliance. Basic setting Display text Selection Description Water hardness H:04... - Page 38 en Basic settings Basic setting Display text Selection Description EmotionLight EL:01 EL:00 - EL:02 Interior light. ¡ With the setting "EL:00"m the in- terior light is switched off. ¡ With the setting "EL:01", the in- terior light can be activated via the ON/OFF button.
-
Page 39: Changing Basic Settings
Basic settings en Basic setting Display text Selection Description Button volume bL:02 bL:00 - bL:03 Set the button volume during opera- tion. Level "bL:00" switches the but- ton tones off. Childproof lock c:00 c:00 - c:01 Switch the → "Electric childproof lock", Page 12 on or off. -
Page 40: Home Connect
en Home Connect Press repeatedly until the dis- Home Connect quick start play shows the right value. Connect your appliance to a mobile You can change several settings. device quickly and easily. To save the settings, press for 3 seconds. Installing app Close the appliance door. Install the Home Connect app on your mobile device. -
Page 41: Home Connect Settings
Home Connect en Home Connect settings Remote Diagnostics Adapt Home Connect to your needs. Customer Service can use Remote You can find the Home Connect set- Diagnostics to access your appliance tings in the basic settings for your ap- if you contact them, have your appli- pliance. -
Page 42: Cleaning And Servicing
Tip: You can get our tested and ap- proved Dishwasher Care and Ma- Cleaning and servicing Cleaning and servicing chine Cleaner for Dishwashers online at https://www.neff-home.com/store To keep your appliance working effi- Cleaning and servicing or from customer service. ciently for a long time, it is important to clean and maintain it carefully. -
Page 43: Filter System
Cleaning and servicing en Phase Removal of Detergent Placement Grease and limescale Liquid machine care product Appliance interior, e.g. bottle or machine descaler in hung in the cutlery basket or powder form. powder in the interior. Food remnants and de- Machine cleaner Detergent dispenser posits To ensure optimum cleaning perform-... - Page 44 en Cleaning and servicing Press the locking catches Fine filter gether and lift the coarse filter out Coarse filter . Cleaning filters Soiling in the dishwashing water may block the filters. After each wash check the filters for residue. Turn the coarse filter anticlockwise and remove the filter system ...
-
Page 45: Cleaning Spray Arms
Cleaning and servicing en Cleaning spray arms Limescale and soiling in the dish- washing water may block the nozzles and bearings on the spray arms. Clean the spray arms regularly. Unscrew the upper spray arms and pull down to remove Pull up the lower spray arm to re- move. -
Page 46: Troubleshooting
en Troubleshooting Troubleshooting Troubleshooting You can rectify minor faults on your appliance yourself. Read the troubleshoot- Troubleshooting ing information before contacting after-sales service. This will avoid unneces- sary costs. WARNING Risk of electric shock! Incorrect repairs are dangerous. Repairs to the appliance should only be carried out by trained specialist ▶... -
Page 47: Error Code / Fault Display / Signal
Troubleshooting en Fault Cause Troubleshooting Appliance door does not Appliance door and door Clean the appliance door and door ▶ open. seal are soiled. seal with a damp cloth and a little washing-up liquid. Automatic door opening is Wait one second after closing the ▶... - Page 48 en Troubleshooting Fault Cause Troubleshooting E:32-00 will light up altern- Remove the filter from the supply ately or indicator for water hose supply lights up. Clean the filter. Re-insert the filter in the supply hose. Screw the water connection back Check the water connection for leaks.
-
Page 49: Washing Results
Troubleshooting en Fault Cause Troubleshooting E:90-01 will light up altern- Mains voltage is too low. This is not a fault on the appliance. ately. Contact an electrician. Have the mains voltage and elec- trical installation checked by an electrician. E:92-40 will light up altern- Filters are soiled or blocked. - Page 50 en Troubleshooting Fault Cause Troubleshooting Tableware is not dry. Water collects in recesses of Position tableware at an angle ▶ the tableware or cutlery. where possible. The combined detergent Use rinse aid to improve drying per- used has a poor drying per- formance.
- Page 51 Troubleshooting en Fault Cause Troubleshooting Remnants of food on table- Tableware is placed too Arrange tableware with sufficient ware. close together or basket is space in between. overfilled. The spray jets must reach the sur- faces of the tableware. Avoid points of contact. Spray arm rotation is Arrange tableware so that it does ▶...
- Page 52 en Troubleshooting Fault Cause Troubleshooting Detergent residue in the ap- Tabs are used in the quick Select a more intensive "Pro- ▶ gramme" → Page 20 or use pliance or short programme. Dissolv- "Powder detergent" → Page 30. ing time of the tab is not at- tained.
- Page 53 Troubleshooting en Fault Cause Troubleshooting Stubborn white coatings are Too little detergent is being Increase the amount of detergent ▶ present on tableware, inside used. used or change "Detergent " → Page 30. the appliance or the door. Washing programme selec- Select a more intensive washing ▶...
- Page 54 en Troubleshooting Fault Cause Troubleshooting Coloured deposits (yellow, The formation of films is due Check the setting of the water orange, brown) that are easy to ingredients of food rem- softening system. to remove are present inside nants and tap water (limes- Add special salt.
- Page 55 Troubleshooting en Fault Cause Troubleshooting Irreversible clouding of Glasses are not dishwasher- Use dishwasher-proof glasses. ▶ glassware. proof, only suitable for dish- Glasses are usually only suitable for washers. use in a dishwasher, i.e. long-term wear or long-term changes must be expected.
-
Page 56: Home Connect Problem
en Troubleshooting Home Connect problem Fault Cause Troubleshooting Connection to home net- WLAN on router is not act- Check the wireless network con- ▶ work is not established. ive. nection of your router. WLAN display is flashing. Connection to home net- Activate the wireless network con- ▶... - Page 57 Troubleshooting en Fault Cause Troubleshooting Appliance cannot be Appliance functions have Pull out the mains plug or switch off switched on or operated. failed. the fuse. Wait at least 2 minutes. Connect the appliance to the power supply. Switch the appliance on. Appliance does not start.
-
Page 58: Mechanical Damage
en Troubleshooting Fault Cause Troubleshooting All LEDs lit up or flashing. Electronics have detected a Press the main switch button for ap- fault. prox. 4 seconds. → "Controls", Page 17 The appliance is reset and restar- ted. If the problem occurs again: Switch off the appliance. ‒... - Page 59 Troubleshooting en Fault Cause Troubleshooting Knocking or rattling noise. Spray arm is striking table- Arrange tableware so that the spray ▶ ware. arms do not strike tableware. With a small load the water Distribute the tableware evenly. ▶ jets directly strike against Load the appliance with more table- ▶...
-
Page 60: Clean Wastewater Pump
en Transportation, storage and disposal Insert the pump cover and press Clean wastewater pump down . Large remnants of food or foreign bodies can block the waste water pump. As soon as the rinsing water no longer drains properly, the waste water pump must be cleaned. -
Page 61: Transporting The Appliance
Customer Service en Unplug the appliance from the Transporting the appliance mains. To avoid damage to the appliance, Cut through the power cord. empty it before transporting. Dispose of the appliance in an en- Note: Always transport the dish- vironmentally friendly manner. washer upright to prevent residual Information about current disposal water getting into the machine's con-... -
Page 62: Product Number (E-Nr.), Produc- Tion Number (Fd) And Consecut- Ive Numbering (Z-Nr.)
en Technical specifications The contact details for Customer Ser- defective supply lines or fittings up vice can be found in the enclosed to the Aqua-Stop connection on Customer Service directory or on our the tap. website. ¡ If your appliance is fitted with Aqua-Stop, you can in principle Product number (E-Nr.), pro- leave your appliance unattended... -
Page 63: Information Regarding Free And Open Source Software
äte GmbH, Carl-Wery-Str. 34, 81739 A detailed Declaration of Conformity Munich, Germany. can be found online at www.neff- The source code will be made avail- home.com/uk among the additional able to you on request. documents on the product page for Please send your request to oss- your appliance. - Page 64 en Declaration of Conformity 5 GHz WLAN (Wi-Fi): For indoor use only.
- Page 68 BSH Hausgeräte GmbH Carl-Wery-Straße 34 81739 München, GERMANY Valid within Great Britain: Imported to Great Britain by BSH Home Appliances Ltd. Grand Union House Old Wolverton Road Wolverton, Milton Keynes MK12 5PT United Kingdom *9001549259* 9001549259 020413 442 A5...
