Summary of Contents for Endorphines Golden Master
- Page 1 M U L T I B A N D M A S T E R I N G P R O C E S S O R...
-
Page 2: Table Of Contents
C O N T E N T WARRANTY VISIT US INTRO CONNECTING THE POWER TECHNICAL SPECIFICATIONS OVERVIEW INTERFACE – FRONT PANEL INTERFACE – REAR SIDE OPERATION MODES HOW EQUALIZER WORKS HOW COMPRESSOR WORKS HOW MID/SIDE PROCESSING WORKS EXPRESSION INPUT ASSIGNMENT PRESETS LOAD / SAVE BYPASS FOOTSWITCH MODES FIRMWARE UPDATE... -
Page 3: Warranty
W A R R A N T Y 1-year warranty is guaranteed from the product's purchase date in case of any manufacturing errors or other functional deficiencies during runtime. The warranty does not apply in case of: �� damage caused by misuse ��... -
Page 4: Intro
GOLDEN MASTER Pedal takes inspiration from studio mastering and radio loudness units from the 1990s and gives control over the... -
Page 5: Connecting The Power
C O N N E C T I N G T H E P O W E R Use a quality 9V ‘Boss’-standard center negative power adapter, typically 500mA. However the unit may be powered from any 9 to 18V center-positive or center-negative DC adapters (full protection). -
Page 6: Overview
O V E R V I E W Golden Master is a true stereo pedal designed for both live musicians and studio heads that want to take extra care of their mix or just give extra punch to specific sounds. Built in end of signal chain limiter makes it a great sound design tool whether used on guitars or synthesizers especially when used for feedback patching. -
Page 7: Interface - Front Panel

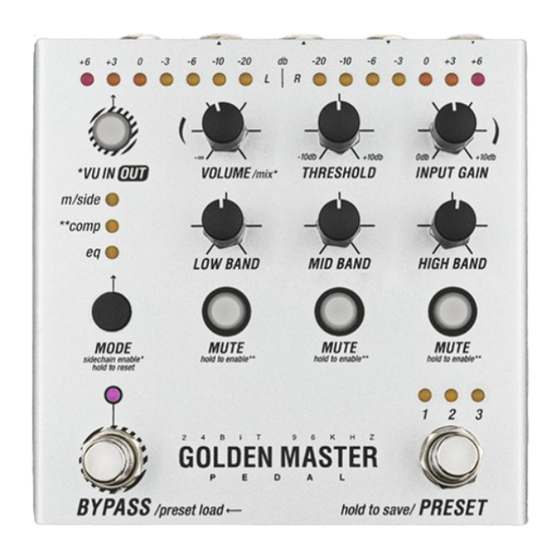

I N T E R F A C E – F R O N T P A N E L I N T E R F A C E – R E A R S I D E P a g e 7 o f 1 7... - Page 8 line level or high I N L E F T ( M O N O ) , I N R I G H T J A C K S : impedance left and right stereo audio inputs. – is , i.e. I N P U T L E F T n o r m a l l e d pre-routed...
- Page 9 two rows of seven LEDs act as a standard volume V U M E T E R L E D s : unit meters per left and right channel. Used to show either the audio input or output level selected with (7) button press.
-
Page 10: Operation Modes
O P E R A T I O N M O D E S Golden Master’s chain consists of 3 main parts that can be configured using 3 main (10) KNOBS: stereo multiband EQ, stereo multiband L O W / M I D / H I G H B A N D Compressor and stereo multiband Mid/Side processing. -
Page 11: How Equalizer Works
Cutting the frequencies involves reducing the levels of specific frequencies, while boosting frequencies involves increasing their levels. GOLDEN MASTER Pedal has 3 bands with band crossover points at around 300 Hz and 3 kHz creating three: LOW (approx. 20 Hz to 300 Hz), MID (300 Hz to 3 kHz) and HIGH (approx. - Page 12 L O W / M I D / H I G H giving you a distinct spectrum of soft to heavy settings. So far, GOLDEN MASTER has six compressors for each stereo pair; LOW, MID and HIGH bands running at the same time.
-
Page 13: How Mid/Side Processing Works
‘widening’, be sure to feed some stereo N o t e : signal into the GOLDEN MASTER Pedal. Feeding only single mono audio (e.g. into will not give you a significant result as there is simply no I N L I N P U T J A C K difference between the left and right and center/side parts will not be perceived. -
Page 14: Presets Load / Save
(5) position. V O L U M E K N O B GOLDEN MASTER Pedal has 3 preset slots which correspond to 3 LEDs (15) above footswitch (14). You may still play with the current preset but only P R E S E T select the new slot to load. -
Page 15: Bypass Footswitch Modes
B Y P A S S F O O T S W I T C H M O D E S There are two bypass options that can be selected by pressing and holding M O D E for more than 4 seconds. The number of button blinks shows + B Y P A S S B Y P A S S... -
Page 16: Firmware Update
fixes. Feel free to write any bugs, features ideas or improvements to beta@endorphin.es Update procedure video: To update the firmware on your Golden Master Pedal, first download the latest firmware file once available on ENDORPHIN.ES website: https://www.endorphin.es/modules/p/golden-master-pedal The update procedure is made via audio: either computer or phone will work, we advise you to disable all notifications (flight mode) so that the update is not... -
Page 17: Credits
C R E D I T S E N D O R P H I N . E S – G O L D E N M A S T E R P E D A L C O L L E C T I O N S P R I N G / S U M M E R 2 0 2 4 Module idea, concept and manual by Andreas Zhukovsky Hardware design, code direction by Andreas Zhukovsky Core engine programming by BSVi...
