User Manual
®
Vividia
F8 Inspection DVR Flashlight
Features
⚫ Video & audio recording
⚫ Video size: HD 1280x720 , VGA 640x480 pixels
⚫ 1.5" TFT LCD resolution 480x240
⚫ MRemory :support Micro SDHC ( class 6 or above )
⚫ Battery : Li-ion rechargeable battery (3.7 V /
4400
mAh)
⚫ High Power LEDx3 PCS

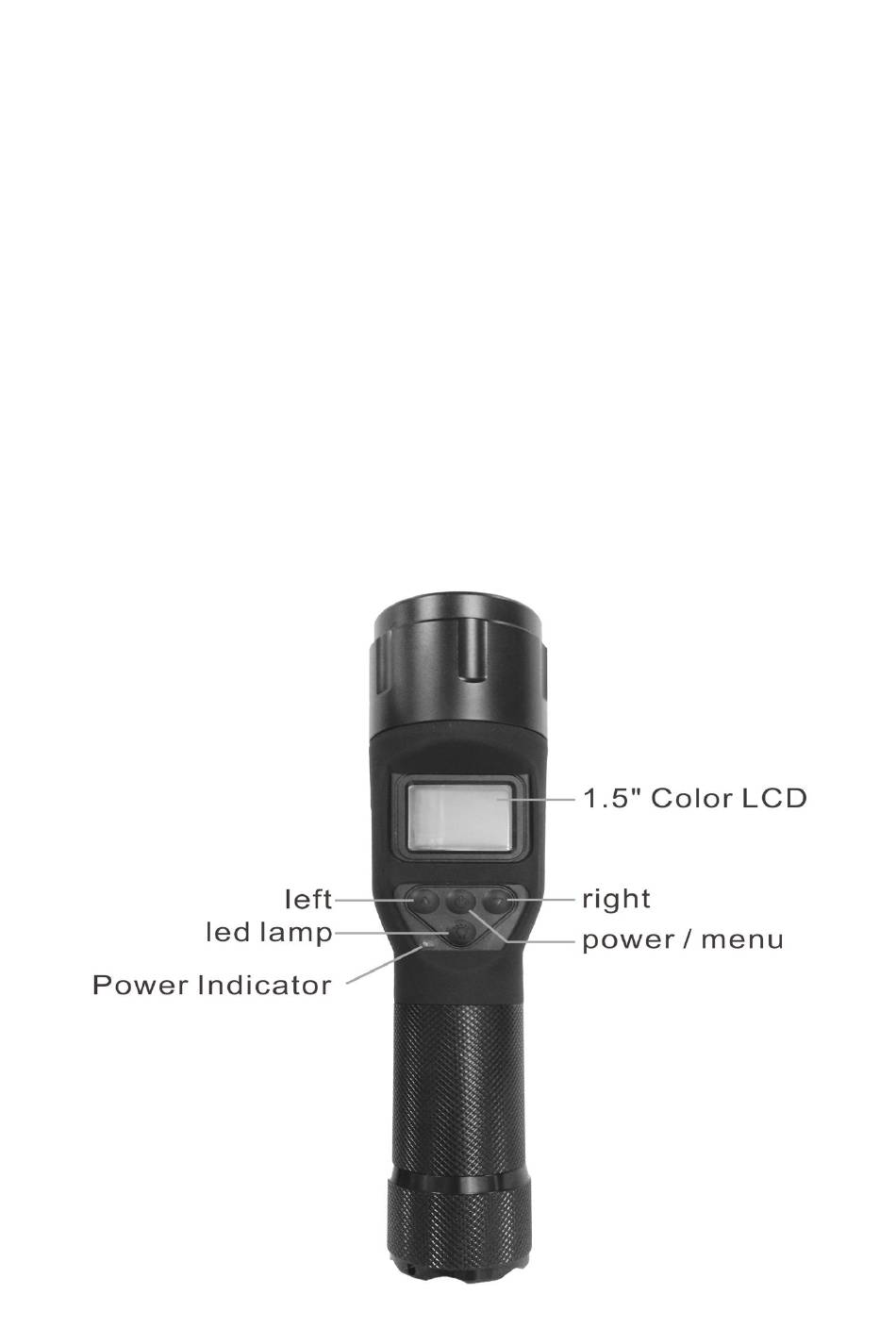

Outlooks & Keys Function
Advertisement
Table of Contents
Summary of Contents for Vividia F8
- Page 1 User Manual ® Vividia F8 Inspection DVR Flashlight Features ⚫ Video & audio recording ⚫ Video size: HD 1280x720 , VGA 640x480 pixels ⚫ 1.5” TFT LCD resolution 480x240 ⚫ MRemory :support Micro SDHC ( class 6 or above ) ⚫...
- Page 2 Operation: Inserting battery & micro SD card (class 6 or above) Before using you ‘should better make sure that there is a battery in the battery room, if there are no battery ,and you need to put one in ,please keep the positive electrode on the up side . .Install battery and battery cover, then you can start to use the light.
- Page 3 Battery Charging Before charging ensure the unit is switched off. It cannot be operated whilst being charged. Charging from AC adapter or computer USB port. Connect one end of the USB lead to PC and the other end to the devices mini USB port , During charging the Power indicator will illuminate red, When charging is complete the power indictor will go out, this can take up longer than 8...
- Page 4 Ensure the time and date have been set Ensure the micro SD card is inserted Press the Power button to switch the device on. The camera image will appear on the screen and the Power indicator will illuminate green To switch the device off , press the ON/OFF button 2 seconds Inserting micro SD card Before using the camera or video function an micro SD card must be inserted into the card slot Press the Left button to take a picture,...
- Page 5 Playback Mode To enter Playback Mode the latest stored picture or video will be displayed. Video Playback → Image Playback → Use the navigation keys to select playback (video file will auto play) Press OK key to stop video playback Looping Video To setting looping video On / Off...
- Page 6 Underwater Mode To setting underwater mode On / Off Setup To enter setup menu Setup → Resolution → Select video & image resolution HD / VGA Setup → Microphone → Select microphone on /off...
- Page 7 Setup → Data → Set Date/Time Use the navigation keys LEFT/RIGHT to edit the time and date (YY/MM/DD, MM/DD/YY, DD/MM/YY) Setup → Language Language Selection Allows the language to be set for the menu functions. Use the navigation keys LIFT/RIGHT to select from the languages available Setup →...
- Page 8 .USB cable: for data transmission and battery charge (included) Ø55 x 225 mm .Overall Dimension: Special remind : After using in the sea, please rinse with water and then dried, it can lengthen the service life Vividia Technologies 3110 Wade Hampton Blvd. #18 Taylors, SC 29650 www.oasisscientific.com...
