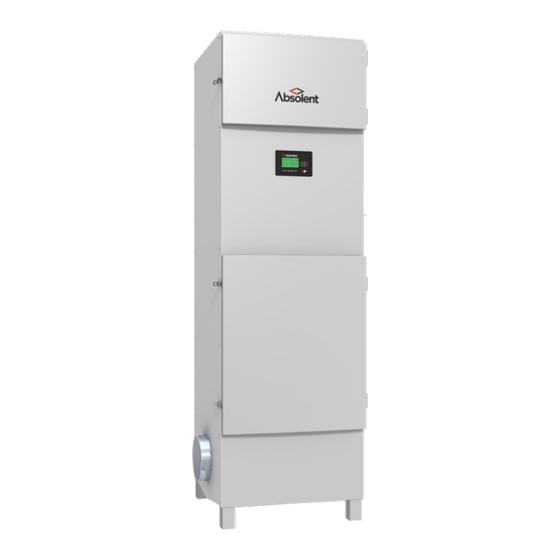

- Page 1 EN/US/CA/A.mist A.mistT/UM-2239-1 User’s Manual in original Oil Mist Filter A•mist , A•mist , A•mist , A•mist A•mist , A•mist , A•mist , A•mist 40TF 80TF...
-
Page 2: Table Of Contents
EN/US/CA/A.mist A.mistT/UM-2239-1 BASIC INFORMATION 1.3 List of contents, continued: 1.1 Introduction Transport at site/Mounting/ This manual contains all necessary information Installation ........5 about safety, installation, commissioning and General ..........5 maintenance. Transporting A•mist , A•mist A•mist ..........5 This product is produced and designed in ac- Transporting A•mist ......5 cordance with applicable EC directives. -
Page 3: Approved To Ce-Directives, Ul And Csa Standards
EN/US/CA/A.mist A.mistT/UM-2239-1 APPROVED TO CE-DIRECTIVES, UL AND CSA STANDARDS The A•mist product line is approved to European directives and standards. You can find the EC declaration of con- formity in chapter 18. All electric components are UL-approved. The electrical motor is also CSA-appro- ved. -
Page 4: Safety Precautions
EN/US/CA/A.mist A.mistT/UM-2239-1 SAFETY PRECAUTIONS Type of warning Warning text Warning - Hazardous voltage! The filter unit works with a high electrical voltage. The electrical installation must be performed by qualified electricians. Disconnect the power supply to the filter unit before it is opened and/or before starting work on the filter unit. Danger Warning - Do not connect the filter unit to explosive gases! Do not connect the filter unit to processing machines that can bring about an... -
Page 5: Transport At Site/Mounting/Installation
EN/US/CA/A.mist A.mistT/UM-2239-1 TRANSPORT AT SITE / MOUNTING / INSTALLATION 5.1 General When unpackaging the filter unit please check that it has not been damaged during transport. If a claim is necessary, contact the shipper. 5.2 Transporting A•mist , A•mist , A•mist The filter unit is delivered on a wooden pallet and is wrapped in plastic foil. -
Page 6: Transporting A•Mist 40-80
EN/US/CA/A.mist A.mistT/UM-2239-1 TRANSPORT AT SITE / MOUNTING / INSTALLATION (cont.) 5.4 Transporting A•mist , A•mist , A•mist , A•mist 40TF 80TF The filter unit is delivered on a wooden pallet and is wrapped in plastic foil. The A•mist A•mist and A•mist filter units are delivered fully assembled, the A•mist is split between 40TF... -
Page 7: Installation
EN/US/CA/A.mist A.mistT/UM-2239-1 TRANSPORT AT SITE / MOUNTING / INSTALLATION cont. 5.6 Installation 1. Place the filter unit at its point of destination and bold it to the floor. 2. Open the service door and check that the filter cassettes are secured. -
Page 8: Technical Data
EN/US/CA/A.mist A.mistT/UM-2239-1 TECHNICAL DATA 7.1 Technical data A•mist , A•mist , A•mist , A•mist A•mist A•mist A•mist A•mist A•mist A•mist 20HP A•mist A•mist 20HPS [mm] 1555 1555 2060 2060 2060 2275 Height, centred outlet 61.2 61.2 81.1 81.1 81.1 89.6 [inch] [mm] 1000... -
Page 9: Technical Data A•Mist
EN/US/CA/A.mist A.mistT/UM-2239-1 TECHNICAL DATA (cont.) 7.2 Technical data A•mist 40T/TF A•mist in mm: A•mist in inches: ø 400 ø 15.7 11.8 1222 49.7 25.4 1267 28.8 A•mist (with integrated fan) in mm: A•mist (with integrated fan) in inches: 40TF 40TF 11.8 25.4 48.1... -
Page 10: Technical Data A•Mist
EN/US/CA/A.mist A.mistT/UM-2239-1 TECHNICAL DATA (cont.) 7.3 Technical data A•mist 80T/TF A•mist in mm: A•mist in inches: ø 500 ø 19.7 A•mis Premium Air Filtration 13.8 1415 55.7 49.8 1266 A•mist (with integrated fan) in mm: A•mist (with integrated fan) in inches: 80TF 80TF 13.8... -
Page 11: Electrical Connections
EN/US/CA/A.mist A.mistT/UM-2239-1 ELECTRICAL CONNECTION Warning - Dangerous voltage All electrical work must be carried out by qualified electricians. 8.1 General For the warranty to apply, a qualified person must carry out all the electrical wiring in accordance with local regulations. If the filter unit is equipped with extra electrical equipment, this equipment shall be wired according to the wiring diagram supplied. -
Page 12: Electrical Connection Of A•Monitor
EN/US/CA/A.mist A.mistT/UM-2239-1 ELECTRICAL CONNECTION cont. 8.3 Electrical connection of A•monitor 15 VDC 460V 400V 230V ((o)) max: 230V / 1A Flow diagram A•mist ΔP ΔP ΔP Subject to alteration without prior notice. -
Page 13: To Be Checked Before The First Start Of The Filter Unit
EN/US/CA/A.mist A.mistT/UM-2239-1 TO BE CHECKED BEFORE THE FIRST START OF THE FILTER UNIT Risk of trapping injury! Do not insert your hand into the filter unit when the fan is running. Do not wear loosely hanging clothing near the fan when operational. These can be sucked into the fan or get caught. -
Page 14: Service Schedule
EN/US/CA/A.mist A.mistT/UM-2239-1 CARE / MAINTENANCE (cont.) A•mist A•mist A•mist A•mist A•mist More information on the electronic manometer, see heading 11. The pressure gauges are graduated in [Pa] Filter stage 3 HEPA and contain green, yellow and orange sec- tors. The filter cassette is to be replaced Filter stage 2 when its pressure gauge has reached the orange sector. -
Page 15: Electronic Manometer
EN/US/CA/A.mist A.mistT/UM-2239-1 ELECTRONIC MANOMETER (A•mist , A•mist , A•mist 10-20 40-80 11.1 Functional description An electronic pressure gauge A•monitor is supplied as standard along with most A•mist filter units. The pressure monitor is delivered factory preset and contains the following features: OPTICAL DISPLAY OVER EACH FILTER STAGE The present pressure drop over each filter stage is monitored (See 11.2.) -
Page 16: Handling The Filter Cassettes
EN/US/CA/A.mist A.mistT/UM-2239-1 HANDLING THE FILTER CASSETTES Warning! Use requisite personal protection equipment when performing service work on the filter unit. Lifts or the like must be used when carrying out service work above the ground. 12.1 General Filter cassettes are heavy, especially when filled with fluid after a period of use. Below is a table of weight for the different filter cassettes available. -
Page 17: Worn Out Filter Cassettes
EN/US/CA/A.mist A.mistT/UM-2239-1 HANDLING THE FILTER CASSETTES cont. 12.3 Worn out filter cassettes When the filter cassette is worn out it has to be taken care of in an environmental-friendly way. The sheet metal casing and the aluminum separators can be recycled. Clean filtermedia can be sent to disposal facilities, but when it contains oil and particles from the process, local regulations for disposal or incineration need to be followed. -
Page 18: Accessories
EN/US/CA/A.mist A.mistT/UM-2239-1 ACCESSORIES A number of accessories are available for the type A•mist Absolent oil mist filter. Installation instruc- tions for these are described on the following pages. However, note that the products must be ordered separately. 13.1 LIQUID TRAPS Return Liquid Hose The return liquid hose is designed for connection to the return oil pipe of the filter unit. -
Page 19: Extension Legs
EN/US/CA/A.mist A.mistT/UM-2239-1 EXTENSION LEGS 13.2 Used when it is desirable to raise the filter unit above floor level to enable the use of a liquid trap, for instance. The standard legs raise the filter unit 300 mm above the floor. DIFFERENT HOODS 13.3 - A•mist... -
Page 20: Spray System
EN/US/CA/A.mist A.mistT/UM-2239-1 SPRAY SYSTEM 13.4 If the impurities are ”too dry” or if they contain liquid particles with excessive viscosity (sluggish), this drastically reduces the self-cleaning capability and useful life of the filter unit. To increase the liquid content in the impurities and/or reduce the viscosity, small liquid droplets are sprayed from a nozzle into the air. -
Page 21: Prefilter For Severe Dirt
EN/US/CA/A.mist A.mistT/UM-2239-1 PREFILTER FOR SEVERE DIRT 13.8 For severe dirt, we supply a flat prefilter which is to be mounted under the first filter stage of the A•mist filter unit. Please contact Absolent / your Absolent represen- tative for more information. STAND-ALONE A•MONITOR 13.9 A•monitor is integrated at the front of nearly all... -
Page 22: Fault Tracing
EN/US/CA/A.mist A.mistT/UM-2239-1 FAULT TRACING Mal- Possible cause / function Action The fan rotates in the wrong direction. Action: Check that the fan rotates according to the arrow on the motor (only skilled personnel). With VFD (frequency converter): The fan speed is set too low. Action: Check/adjust the fan speed (rpm/Hz) (only skilled personnel). -
Page 23: Absolent Warranties
EN/US/CA/A.mist A.mistT/UM-2239-1 ABSOLENT WARRANTIES Absolent always take full responsibility that the delivered product fulfils the function and life time that was guaranteed when purchased. This warranty is however only valid if the product is in its original configuration and only when original spare parts have been used when servicing or repai- ring the filter unit. -
Page 24: Ec Declaration Of Conformity
EN/US/CA/A.mist A.mistT/UM-2239-1 EC DECLARATION OF CONFORMITY Annex 11 1A EC DECLARATION OF CONFORMITY Machinery directive 2006/42/EG, 11 1A Manufacturer: Absolent AB Staplaregatan 1 SE-531 40 Lidköping Sverige Tel: +46 (0)510-48 40 00 Authorized to compile technical documentation: Technical writer Staplaregatan 1 SE-531 40 LIDKÖPING Sverige Tel: +46 (0)510-48 40 00... - Page 25 NOTES...
