Softel FTTX-PT-M16 Instruction Manual

1. Description:

The FTTX-PT-M16 is used as a termination point for the feeder cable to connect with drop
cable in FTTx communication network system. The fiber splicing, splitting, and distribution can
be done in this box, and meanwhile it provides solid protection and management for the FTTx
network building.

2. Features:

1. Total enclosed structure.
2. Material:PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection
to IP65.
3. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in
one.
4. Cable, pigtails, and patch cords are running through their own paths without disturbing each
other, micro type PLC splitter installation, easy maintenance.
5. Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for
maintenance and installation.
6. Box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor
and outdoor use.

3. Specification:

1). Environmental Requirement
-Working temperature: -40℃～+85℃
-Relative humidity: ≤85% (+30℃)
-Atmospheric pressure: 70KPa~106Kpa
2). Main Technical Datasheet
-Insertion loss: ≤0.15dB
-UPC return loss: ≥50dB
-APC return loss: ≥60dB
3). Thunder-proof Technical Datasheet
-The insulation resistance between the grounding device and the metal parts of the box is no
less than 2 10 4 MΩ/500V (DC); IR≥2 10
-The voltage resistance between the grounding device, and the box and its metal parts is
no less than 3000V (DC)/min, no puncture, no flashover; U≥3000V

4. Configuration Table:

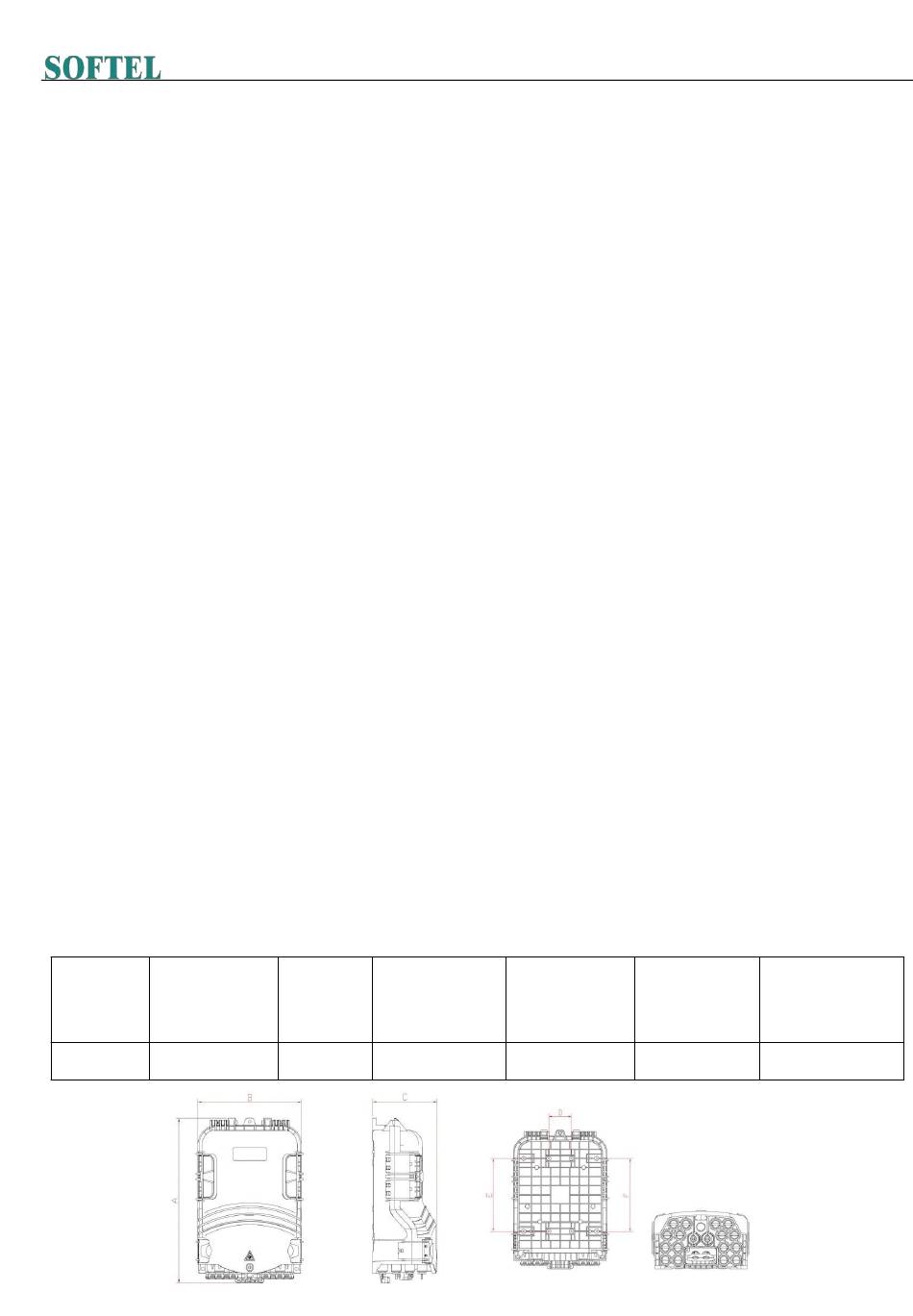

Size (Pic 1)
Model
A*B*C (mm)
16 CORE 319.3*214*133
FTTX 16 CORE Terminal Box
Instruction Manual
MΩ/500V.
4
Table 1- Model and configuration
Installation Size
Max
(Pic 2)
Capacity
D*E*F(mm)
48 52*166*166
Pic 1 Box Size
Into the largest Maximum size
cable diameter of branch hole
(mm) (mm)
ᴓ8~14 ᴓ16
Pic 2 Installation Size
level up
Waterproof SC/AP
C adapter
16
