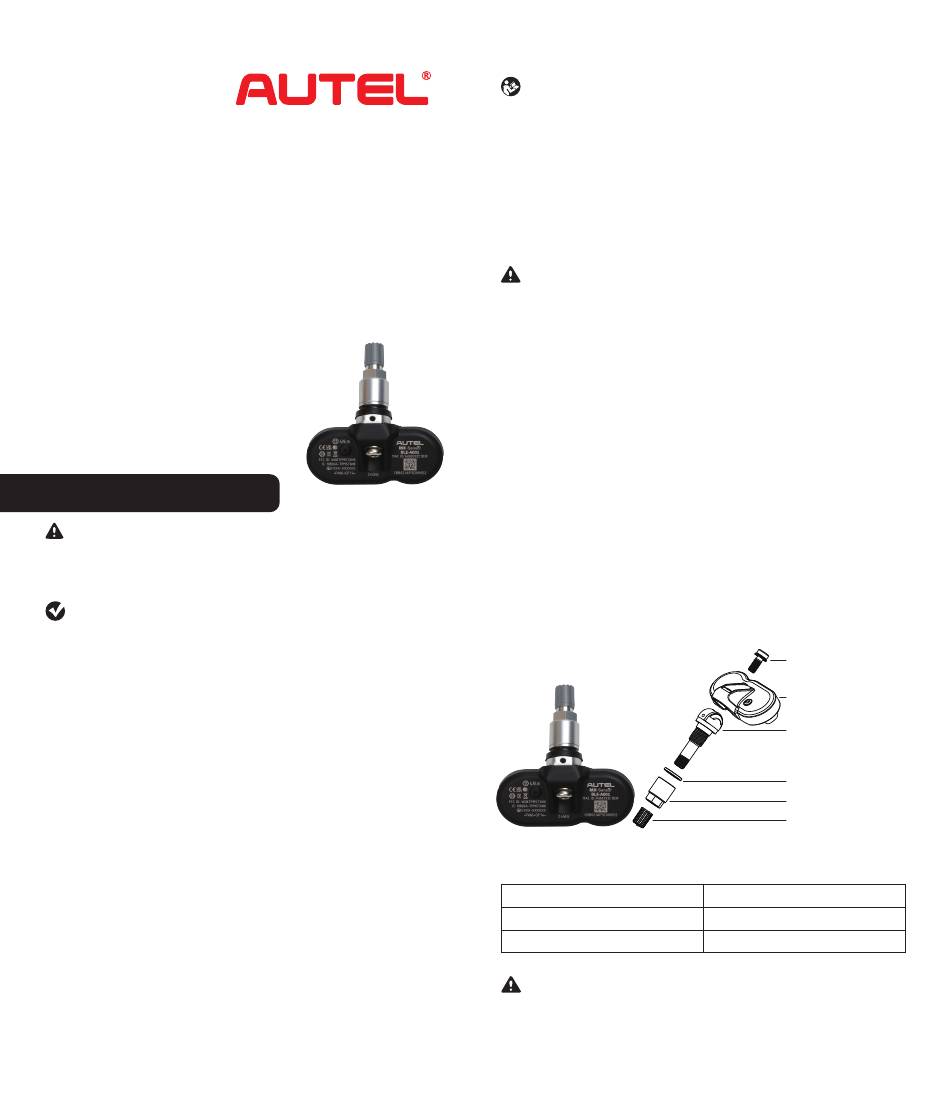

Autel MX-SENSOR Quick Start Manual

PROGRAMMABLE
BLE TPMS SENSOR
MX-SENSOR
2.4 GHz Metal Valve (Screw-in)
CAUTION: Do Not race with the vehicle on which the Clamp-in MX-Sensor
is mounted, and always keep the drive speed under 300 km/h (186 mph).
WARRANTY
AUTEL guarantees that the sensor is free from material and
manufacturing defects for a period of twenty-four (24) months or
for 25,000 miles, whichever comes first. AUTEL will at its
discretion replace any merchandise during the warranty period. The
warranty shall be void if any of the following occurs:
1. Improper installation of products
2. Improper usage
3. Induction of defect by other products
4. Mishandling of products
5. Incorrect application
6. Damage due to collision or tire failure
7. Damage due to racing or competition
8. Exceeding specific limits of the product
Emai l : sa l es@ a ut el . co m
We b : w ww.au t el . com
ww w.m axi t p m s. com

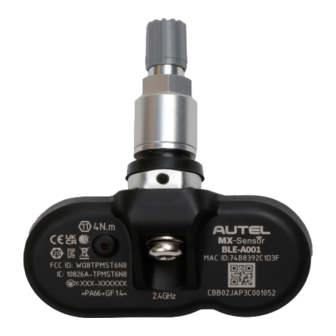

Take BLE-A001 sensor as
an example in this manual.
SAFETY INSTRUCTIONS
Before installing the sensor, read the installation and safety
instructions carefully. For reasons of safety and for optimal
operation, we recommend that any maintenance and repair
work be carried out by trained experts only, in accordance with
the guidelines of the vehicle manufacturer. The valves are
safety-relevant parts which are intended for professional
installation only. Failure to do so may result in the failure of the
TPMS sensor. AUTEL does not assume any liability in case of
faulty or incorrect installation of the product.
CAUTION
• The TPMS sensor assemblies are replacement or maintenance
parts for vehicles with factory installed TPMS.
• Make sure to program the sensors by AUTEL sensor program-
ming tools by the specific vehicle make, model and year before
installation.
• Do not install programmed TPMS sensors in damaged wheels.
• In order to guarantee optimal function, the sensors may only be
installed with original valves and accessories provided by AUTEL.
• Upon completing the installation, test the vehicle's TPMS
following the procedures described in the original manufactur-
er's user guide to confirm proper installation.
EXPLODED VIEW OF SENSOR
Technical data of the sensor
Weight of sensor without valve
Dimensions
Max. pressure range
CAUTION: Each time a tire is serviced or dismounted, or if the
sensor is removed or replaced, it is mandatory to replace the
rubber grommet, washer, nut and valve core with our parts to
ensure proper sealing.
It is mandatory to replace the sensor if it is externally damaged.
Correct sensor nut torque: 4 Newton-meters.
Screw
Sensor body
Valve stem, rubber
grommet and valve
core assembly
Washer
Screw-nut
Cap
24.3 g
approx. 63.6 x 33.6 x 22.6 mm
800 kPa
