SSV Works Can-Am X3 2014 Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

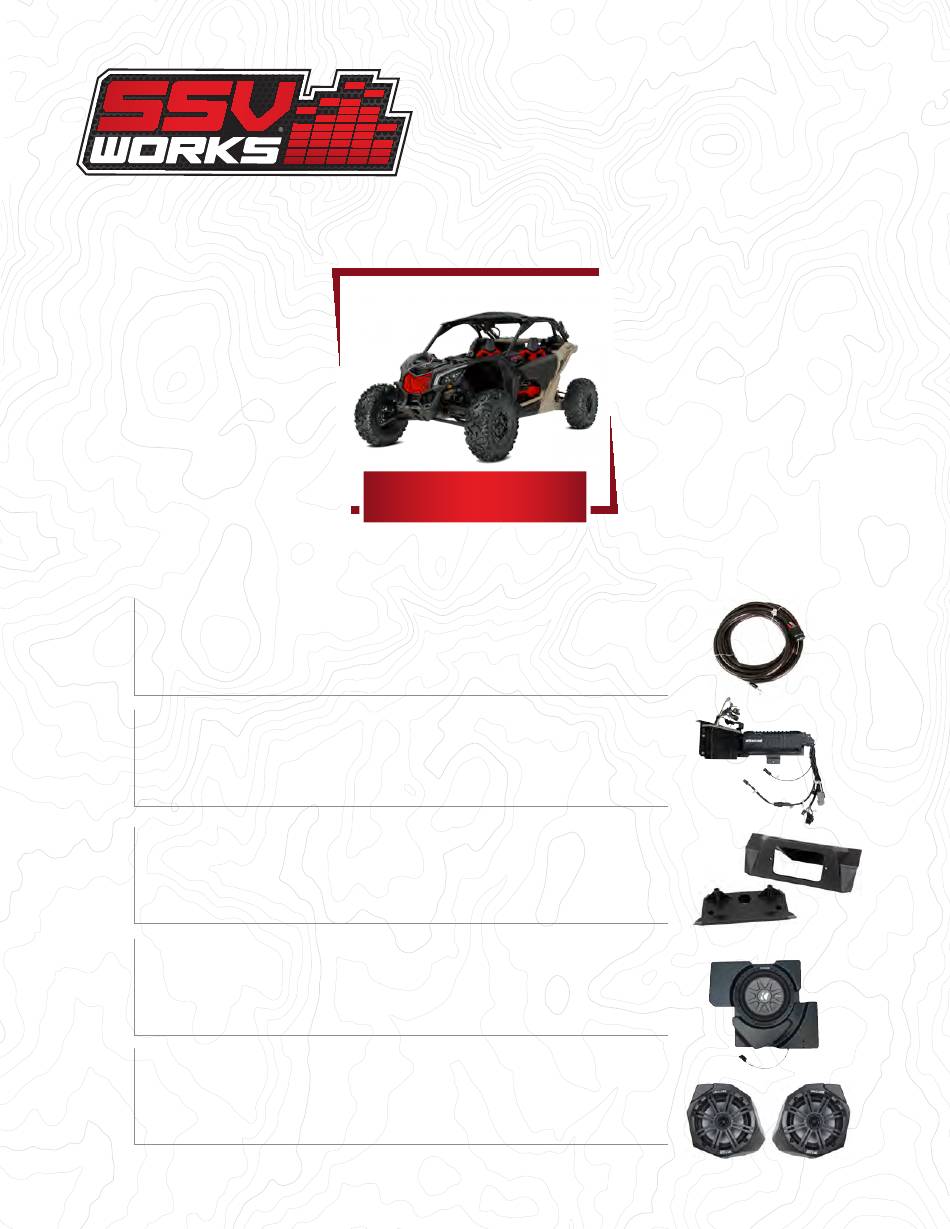

SSV WORKS, 201 N. Rice Ave Unit A, Oxnard, CA 93030
www.SSVworks.com
|
Phone: 818-991-1778
6
pg
Panels, Dash Disassembly,
and Wiring
9
pg
Amp Tray
Installation
12
pg
MRB3 and Dash Kit
Installation
14
pg
Underseat Subwoofer
Installation
17
pg
Kick Panel Speakers
Installation
|
Fax: 866-293-6751
Can-Am X3
X32-Q3K3
Kicker 3 Speaker Audio Kit
2014+
Can-Am X3
Phase 3
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Can-Am X3 2014 and is the answer not in the manual?

Questions and answers

Summary of Contents for SSV Works Can-Am X3 2014

  • Page 1 X32-Q3K3 Can-Am X3 Kicker 3 Speaker Audio Kit SSV WORKS, 201 N. Rice Ave Unit A, Oxnard, CA 93030 Phase 3 www.SSVworks.com Phone: 818-991-1778 Fax: 866-293-6751 Can-Am X3 2014+ Panels, Dash Disassembly, and Wiring Amp Tray Installation MRB3 and Dash Kit...

  • Page 2: Parts List

    All SSV Works enclosures are covered by a limited lifetime warranty against defects in instructions completely before material or workmanship. All SSV Works Electronics are covered by a limited 1 year warranty installation to avoid possible injury, or against defects in material or workmanship. All SSV Works Speakers are covered by a damage to the accessory or vehicle.

  • Page 3: Installation Notes

    All SSV Works enclosures are covered by a limited lifetime warranty against defects in instructions completely before material or workmanship. All SSV Works Electronics are covered by a limited 1 year warranty installation to avoid possible injury, or against defects in material or workmanship. All Kicker Speakers are covered by a limited 1 damage to the accessory or vehicle.
  • Page 4 WARRANTY INFORMATION: Please read and understand these All SSV Works enclosures are covered by a limited lifetime warranty against defects in material instructions completely before or workmanship. All SSV Works Electronics are covered by a limited 1 year warranty against installation to avoid possible injury, or defects in material or workmanship.
  • Page 5 All SSV Works enclosures are covered by a limited lifetime warranty against instructions completely before defects in material or workmanship. All SSV Works Electronics are covered by a installation to avoid possible injury, or limited 1 year warranty against defects in material or workmanship. All SSV Works damage to the accessory or vehicle.
  • Page 6 PANELS AND DASH DISASSEMBLY A. To remove the seat, use a 13mm socket and wrench to remove front (2) bolt and nut, and use a 18mm socket to remove (2) rear nuts and seat belt nut ( repeat on other seat) B.
  • Page 7 E. Remove gas cover on the passenger side to expose a 10mm nut. Unscrew with a wrench and T30 torx driver. E2. Using panel removal tool unsnap (2) push clips on the driver and passenger side dash covers. Unscrew the (4) T30 screws on the passenger side, and (7) T30 screws on the driver side.
  • Page 8 RUNNING AMP POWER CABLE AND SPEAKER WIRE A. In this step you will be feeding all of the necessary wires from the top drivers side dash down the center dash column. Be sure to run all of the wires along side the factory cabling to avoid any moving parts. Feed both amp power wires, both audio expansion harness, (one is for subwoofer, the second is for rear speakers sold separately), and power/ground for MRB3 from top driver side down the center column (A1).
  • Page 9 AMP PLATE INSTALLATION 1. INPUT (FRONT) - CONNECT TO MRB3 “FRONT SPEAKERS” 2. INPUT (REAR) - CONNECT TO MRB3 “REAR SPEAKERS” 3. INPUT (SUB) - CONNECT TO MRB3 “LINE OUT EXT AMP TRIGGER 4. OUTPUT (SUB) - CONNECT TO SUB 5.
  • Page 10 C. Secure the amp tray to the vehicle using the supplied M6 flange hex D. Make a pilot hole with a pick tool through the top right screw hole head Bolt, 10mm nut and washer. in the amp plate and push all the way through the vehicle panel. F.
  • Page 11 I. Route the front speaker harness (B-H1909) towards the driver and passenger side of the vehicle and leave the 4 pin connector at the driver side of dash (I1). Route the passenger side speaker wire under the center dash panel all the way to the passenger side speaker location (I2). J.
  • Page 12 DASH KIT A. Remove the factory rocker switches. B. Locate the two dimples at the top of the dash. These dimples are actual screw bosses on the underside of the dash. Line up base plate Drill pilot hole Drill 1/2” hole C.
  • Page 13 F. Now that the MRB3 remote is mounted to the dash kit route the din cable through the base plate so that it drops into the dash. Plug into wire control panel. Make sure arrows align. Push carefully until you hear a click. Pull the din cable all the way through until the X3-DM3 Top Panel rests on the Base Plate.
  • Page 14 UNDER SEAT SUBWOOFER ENCLOSURE A. Apply the short foam strips to the large bracket in the order shown above (A1). Apply the long foam strips to the outside edges of the enclosure. (Driver outside = left / Passenger outside = right) (A2). B.
  • Page 15 E. Remove the factory 10mm nut and bolt from the brake line. Place the washer on top of the factory bracket and push the long M6x25mm screw through the top. Then attach the brake line, spacer, washer and nut. (Disregard this step for the 4-seat Maverick X3 Max) F.

  • Page 16: Drill Template

    I. The large bracket will align over (2) factory holes in the chassis. Using a #3 Phillips screwdriver, secure the large bracket to the chassis with the provided (2) thread rolling screws and washers. J. Route the first audio extension harness out from the center console away from any moving parts and sharp metal then connect to the X32-DUS10.
  • Page 17 FRONT KICK PANELS A. Front covers will need to be removed, start by removing B. Remove the eleven (11) T30 Torx bolts that secure the fender. passenger side gas cover. Note: There is three (3) T30 screws on passenger side and two (2) on driver side that will have a 10mm bolt.
  • Page 18 E. Cut out the template (Driver/Passenger) along the cut line. F. Using a scribing tool, mark the center of the three (3) drill points Position the template on inner plastic ,making sure to square illustrated on the template as shown in image F. up the template along the factory panel as shown in image E.
  • Page 19 K. Place the kick pod in position for mounting. Use the provided L. Once all screws have been inserted into pod , tighten all three M6 screws and washers to hand tighten the pod to the kick (3) screws. panel. M.
  • Page 24 C. Zip tie all wiring to the factory cables away from any moving parts. THIS CONCLUDES THE INSTALLATION PROCESS. REPLACE THE FACTORY PANELS AND SEATS. QUESTIONS? PLEASE CONTACT SSV WORKS AT 818-991-1778 OR EMAIL SUPPORT@SSVWORKS.COM © 2022 SSV Works, Oxnard, CA 93030...
  • Page 25 TRY SSV WORKS CAGE MOUNT 6.5” SPEAKER PODS! 818-991-1778 Call SSV Works custom molded Cage Mount Pods are designed for 6.5” speakers and can be used when you need more sound in to order yours today! your Side by Side. Unlike wakeboard towers, these mini pods are designed to provide sound to the passengers without blocking visibility.
