Summary of Contents for KRAFTWERK WANDLER K/E

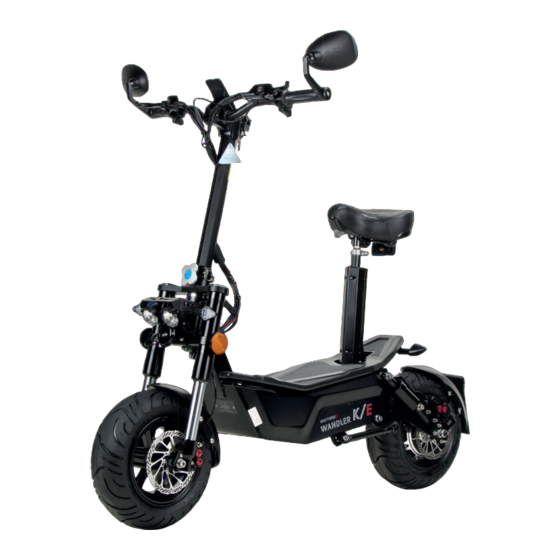

- Page 1 Kraftwerk E eScooter Model: WANDLER K/E Your eScooter. Designed in Germany. CHANGES EVERYTHING.. EVERYTHING.. Operation manual Operation manual Wandler K/E 45km/h and 20 km/h version www.kraftwerk-e.com...
- Page 2 GIVES GIVES Our electric scooter. Made for you. EVERYTHING. EVERYTHING.
-
Page 3: Table Of Contents
Page Tyres and wheels Page Guarantee conditions 22-23 Page Accessories and parts Page Error Search 24-25 Page Instructions for care 25-26 Page Technical data Page Maintenance manual 27-28 Page Service 28-30 Page Operation manual Kraftwerk E - Wandler K/E www.kraftwerk-e.com... - Page 4 Warn of health hazards and indicate possible injury hazards. Warn of health hazards and indicate possible injury hazards. Indicates possible hazard to Wandler K/E or other objects. Non-compliance may lead to the Indicates possible hazard to Wandler K/E or other objects. Non-compliance may lead to the conclusion of guarantees.
-
Page 5: Safety
Persons of 16 -year -old age with moped or car license. 3.3. Helmets Due to its maximum speed of approximately 45 km /h, the Wandler K/E may only be driven with a helmet. 3.4. EEC Document (European Certificates of Conformity) For the approval of your Wandler K/E, use the attached DIN A4 sheet (European Certificate of Conformity EEC). -
Page 6: Package Content
5. Package content Your scooter comes with below accessories: 1. Instructions 2. Tool kits 3. Fuse 4. Licence plate 5. Charger 6. COC certificate Operation manual Kraftwerk E - Wandler K/E www.kraftwerk-e.com... - Page 7 PIN and nut tighten well (c and d in picture 2). Make sure that nut tighten well and insert safe PIN before using. Make sure that nut tighten well and insert safe PIN before using. Operation manual Kraftwerk E - Wandler K/E www.kraftwerk-e.com...
-
Page 8: First
After the handlebar is fi xed, the QUICK -CONNECT connectors for accelerator, light /horn switch, brake handles, lamp,ignition and display must be connected. Note the correct polarity and fi t accuracy of the connectors Note the correct polarity and fi t accuracy of the connectors Operation manual Kraftwerk E - Wandler K/E www.kraftwerk-e.com... -
Page 9: Commissioning
You will find mirror should insert the throttle cover, you should find mirror and disassembled throttle handlebar cover as follow picture 1, then rank the parts as picture shows, fix and tighten all of them, then mirror finished mounting as picture 2. Operation manual Kraftwerk E - Wandler K/E www.kraftwerk-e.com... - Page 10 2 shows the turn light mounted. The hole for mounting side reflector is on the front suspension, arrow c and d in picture 3 , find the hole and tighten reflector as picture 4. Operation manual Kraftwerk E - Wandler K/E www.kraftwerk-e.com...
- Page 11 The clamping force can be adjusted by adjusting the nut to the quick lever. An unscrewed quick-release lever can be opened again. This could allow the saddle to slide down during the ride. Heavy falls can be the result. Operation manual Kraftwerk E - Wandler K/E www.kraftwerk-e.com...
- Page 12 In order to make scooter locked as foldable, make sure insert safe PIN at position arrow c in picture 2. Operation manual Kraftwerk E - Wandler K/E www.kraftwerk-e.com...
- Page 13 Place the ignition key on position „1“ so that the scooter is ready for use. Arrow a shows ignition key, arrow b shows key for steering lock, arrow c shows position of deck lock. Operation manual Kraftwerk E - Wandler K/E www.kraftwerk-e.com...
- Page 14 (arrow c on picture), you can speed up your scooter now. EEC street models without lights button, front and rear light must keep long bright status while ignition key is power on as new EEC transport rules. Operation manual Kraftwerk E - Wandler K/E www.kraftwerk-e.com...
-
Page 15: Battery
- The battery develops its maximum power after about fi ve charging cycles. - Turn off power fi rstly when mount or remove batteries. - The battery and charger of Wandler K/E are matched. Therefore, never charge the batteries with a charger other than the supplied charger. - Page 16 Never operate the charger with damaged cable or plug or with damage to the plastic housing. Do not dismantle or open the charger yourself under any circumstances. Any manipulation or incorrect assembly may result in an electric shock or fi re. Operation manual Kraftwerk E - Wandler K/E www.kraftwerk-e.com...
- Page 17 Insert the 3 -pole charger on the right front bottom of the vehicle. If you switch the display to green, you can remove the charger from the scooter. You can use the scooter now. Operation manual Kraftwerk E - Wandler K/E www.kraftwerk-e.com...
- Page 18 - The charger shall not be activated in a battery temperature range below +10 and over +60 degrees. Therefore, bring the battery to room temperature before each charge. - Choose a storage place where the Wandler K/E is stored as far as possible at room temperature.
-
Page 19: Tacho
8. Battery Use only original Wandler K/E approved batteries to prevent damage to the controller. The use of unauthorised batteries results in the loss of the warranty. The maximum achievable range with a charge of the battery depends on a number of factors. - Page 20 Error 3: Motor failure Error 4: Speed sensor failure Error 5: Brake failure Error 6: Battery under voltage Error 7: Controller temperature protection Error 8: Communication sending failure Error 9: Communication acceptance failure Operation manual Kraftwerk E - Wandler K/E www.kraftwerk-e.com...
- Page 21 Manufacturer already setted all functions and data, please DO NOT change anything, uncorrect setting could lead to serious error, if happened, please contact with your dealer. Wrong operation could results in the loss of the warranty. Operation manual Kraftwerk E - Wandler K/E www.kraftwerk-e.com...
-
Page 22: Starting And Driving
The scooter is equipped with a regulator which interrupts the power supply to the motor in the short term when the brake lever is pressed. Wandler K/E use hydraulic brake, you have to check the oil lever after half a year or one year common using. -
Page 23: Tyres And Wheels
Also excluded are damages due to improper use, in particular jumping, descending steps, sidewalks, stairs and the like, running on muddy ground, sand or gravel, and overloading due to excessive weight. Gross pollution causes higher wear and is therefore not covered. Operation manual Kraftwerk E - Wandler K/E www.kraftwerk-e.com... -
Page 24: Accessories And Parts
In case of a warranty case, the buyer shall provide the seller with the duly completed ser- vice booklet including proof of payment. 14. Accessories Parts Only use original Kraftwerk E accessories and parts. The use of non-specified accessories may lead to accidents and also to the cancellation of the warranty. www.kraftwerk-e.com Operation manual Kraftwerk E - Wandler K/E www.kraftwerk-e.com... -
Page 25: Error Search
The brake arches are not correct- ly adjusted and release the brake Let the engine cool down. Avoid ext- contact. reme climbs when the speed decrea- ses vehemently and only reaches The engine ran hot. step speed. Operation manual Kraftwerk E - Wandler K/E www.kraftwerk-e.com... -
Page 26: Instructions For Care
- The high water pressure can cause severe damage to electronics, tires, warehouses, seals. - Use a soft, moist cloth to wash. - Do not wipe dirt with dry cloth, as otherwise scratches in the paint arise. Operation manual Kraftwerk E - Wandler K/E www.kraftwerk-e.com... -
Page 27: Technical Data
-aggressive preservatives and care. Treat parts at risk of corrosion regularly with preservatives and care products, but especially in winter. 17. Technical data Model Wandler K/ E 45 km/h (Wandler K/E 20 km/h) Motor 1500W rear motor (500W rear motor) Battery... -
Page 28: Maintenance Manual
Brake system functional test, if applicable. Adjust, check brake linings, see paragraph Check tyre air pressure and correct Load battery with the supplied charger Test drive after maintenance, control of operational safety Operation manual Kraftwerk E - Wandler K/E www.kraftwerk-e.com... -
Page 29: Service
19. Service If you have any questions or need spare parts and accessories, please contact your dealer or our online store at the following : Dealer-Stamp: Producer-Website: www.kraftwerk-e.com Operation manual Kraftwerk E - Wandler K/E www.kraftwerk-e.com... - Page 30 2000 km interval. You should visit your dealer if you discover a defect in the vehicle. Doing your own repairs can void the warranty. Now we wish you a lot of fun and always a safe trip with your converter K/E. with your converter K/E. Operation manual Kraftwerk E - Wandler K/E www.kraftwerk-e.com...
- Page 31 18. Maintenance Dealers enter the work carried out here, please do not forget the date and stamp! The following work was carried out Check Repair Change Interval Operation manual Kraftwerk E - Wandler K/E www.kraftwerk-e.com...
- Page 32 Handelsfabrik Sachsen GmbH Barthügelsstraße 40 01689 Weinböhla Germany All other informations you fi nd here www.kraftwerk-e.com Dealer-Stamp: www.kraftwerk-e.com...
