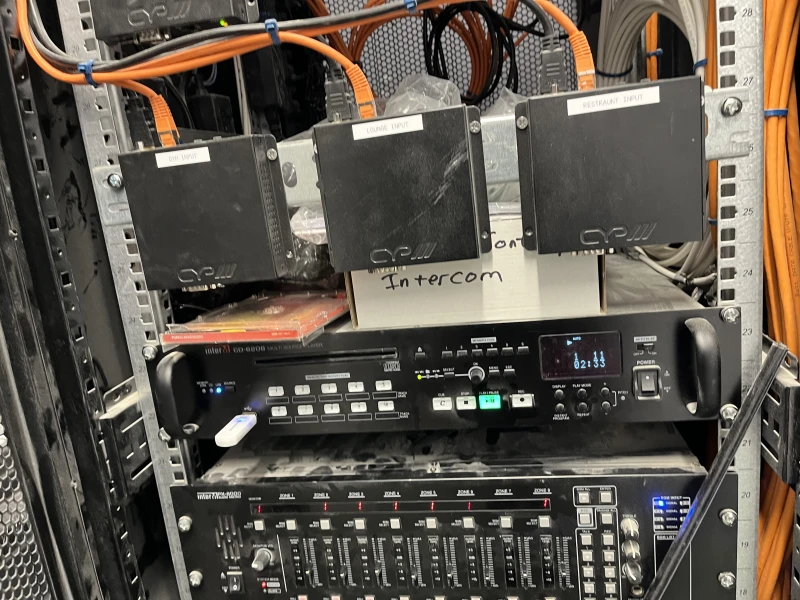

- Page 1 Operation Manual Multi Source Player CD-6208 * Rack mount products in the Western Hemisphere(North America, South America, and the Caribbean) do not have handles installed due to customer preference.
- Page 2 A personal welcome to you from the management and employees of Inter-M All of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value, and we are delighted you have purchased one of our products.
-
Page 3: Table Of Contents
4. AUTO PLAY ..........................14 5. RECORDING ..........................15 6. DELETE .............................16 7. CUE ............................18 8. PITCH............................18 9. EJECT............................18 10. DISPLAY MODE ........................19 11. CAUTION..........................19 Block Diagram ..........................20 Specifications ..........................21 Service Procedures............................23 Schematic.............................23 Parts List ............................23 Variations and Options .......................23 Warranty ............................23 CD-6208... -
Page 4: Unpacking
S3125A S3125A CD-6208... -
Page 5: Features
Can be controlled by a remote controller such as AMX or CRESTRON system. * Internal Memory Adopting a built-in memory (8G Byte) enables to save files up to 300 files per each memory disc. The built-in memory consists of 6 memory discs. CD-6208... -
Page 6: Additional Descriptions
1. RS-232C Terminal Purpose Receive Transmit Ground 2. Remote control function Play/Pause, Stop, Skip down/up, Search Down/up, etc can be controlled by a remote controller. 3. Downloading of the control protocol You can download the protocol at the home page (www.inter-m.com). CD-6208... -
Page 7: Method To Treat Compact Disc (Cd)
Method to treat Compact Disc (CD) Method to treat Compact Disc (CD) The CD-6208 is designed for the playback of CD-DA, MP3, or WMA. Please use a CD with following mark: - Make the label side upward when inserting a CD in the disc slot. -
Page 8: Front Panel
Use this button to select the Skip (I ◀ ◀ ▶ ▶ I), Folder (111) or Search (◀ ◀ ▶ ▶) mode. After select the mode, skip, folder or search function can be performed using the ENCODER switch. - Skip (I ◀ ◀ ▶ ▶ I) : skips a track or a folder. - Folder (111) : skips a folder. CD-6208... - Page 9 18. INSTANT PROGRAM BUTTON Use this button to memory 10 tracks in 6 memory discs into 10 instant play buttons. ※ In CD or USB function, the Instant Program button or the Instant Play function can not be used. CD-6208...
- Page 10 When the play button is pressed, playback begins at exactly that point. 25. USB Use this terminal to mount USB memory. MP3 or WMA files in the USB memory can be played or can be copied to the internal memory. The unit supports USB 1.1. CD-6208...
-
Page 11: Rear Panel
2. RS-232C TERMINAL This terminal allows control by a remote controller such as AMX /CRESTRON etc. The control protocol can be downloaded from the home page. (www.inter-m.com) 3. COAXIAL OUTPUT This terminal provides the digital audio signal in S/PDIF format. -
Page 12: Operating Method
• select I ◀ ◀▶ ▶ I using the SELECT button and select the track to playback by turning the ENCODER switch. (4) Press the 111111 button to play. To skip the track during playback, select I ◀ ◀▶ ▶ I using the SELECT button and select the track to playback by turning the ENCODER switch. CD-6208... - Page 13 Press the 111111 button to stop. ※ Note: When the track which status is not good or which format is not compatible, the window displays “PLAY ERROR”. The error track is skipped and playback the next track. CD-6208...
- Page 14 MULTI SOURCE PLAYER 3) Memory Disc function The CD-6208 has internal memory of 8GByte. The memory discs from 1 to 6 are virtual disc of the internal memory. The reaping files from CD-DA are saved in the internal memory and the files copied from a USB are saved in the internal memory.
-
Page 15: Repeat
(7) If the music file is saved in the selected INSTANT PLAY button then the INSTANT PLAY button is lit. (8) Press the ESC button to stop the INSTANT program. 2) Instant Play Press the INSTANT PLAY button to play. After playback the track, playback stops. CD-6208... -
Page 16: Auto Play
Stop. ※ If Auto Play switch is turned off while playing and is turned back on, regardless of Auto Play setting, equipment will play from the first track before the power off and play from Repeat All. CD-6208... -
Page 17: Recording
5. The mp3 files in CD will be copied to the internal memory disc as it is. 6. CD-6208 can play the MP3 file which has 44.1kHz sampling frequency and 64kbps~320kbps bit rates. CD-6208 can play the WMA file which has 44.1kHz sampling frequency and 64kbps~320kbps bit rates, or 48kHz sampling frequency and 64kbps~192kbps bit rates. -
Page 18: Delete
2. When recording from USB to Memory Disk, there will be no analog or digital audio output. 3. CD-6208 can play the MP3 file which has 44.1kHz sampling frequency and 64kbps~320kbps bit rates. CD-6208 can play the WMA file which has 44.1kHz sampling frequency and 64kbps~320kbps bit rates, or 48kHz sampling frequency and 64kbps~192kbps bit rates. - Page 19 111111 button. (5) Turn the 111111 switch to select the track to delete and press the 111111 button. (6) Press 111111 button again when ”DELETE?” is displayed on the window. The selected file in the memory disc is deleted. CD-6208...
-
Page 20: Cue
PITCH menu and press the 111111 button. (3) Press the 111111 button when the window displays ”PITCH OFF”. The window displays ”OK”. The PITCH LED is off. 9. EJECT Press EJECT button to eject a disc. CD-6208... -
Page 21: Display Mode
8. Maximum 32GB USB memory can be used. 9. The memory disc 1 to 5 has 1Gbyte memory and the memory disc 6 has 3 Gbyte memory. 10. DO NOT INSERT a CD of 8 cm size into the slot. CD-6208... -
Page 22: Block Diagram
MULTI SOURCE PLAYER Block Diagram Block Diagram CD-6208... -
Page 23: Specifications
MULTI SOURCE PLAYER Specifications Specifications CD-6208 Disc 12cm (4.7 inch) CD, CD-R, CD-RW Formats Audio CD (CD-DA), MP3, WMA Number of channels 3 channels (L,R,Mono) Analog Output Connectors RCA: L / R, XLR: L / R / Mono Analog Output Level (Max) +6dBV±2dB (2Vrms) - Page 24 MULTI SOURCE PLAYER DIMENSIONS ※ CD-6208...
-
Page 25: Service
To obtain specific warranty information and available service locations contact Inter-M directly or the authorized Inter-M Distributor for your specific country or region. - Page 26 NOTE...
- Page 27 CD-6208...
